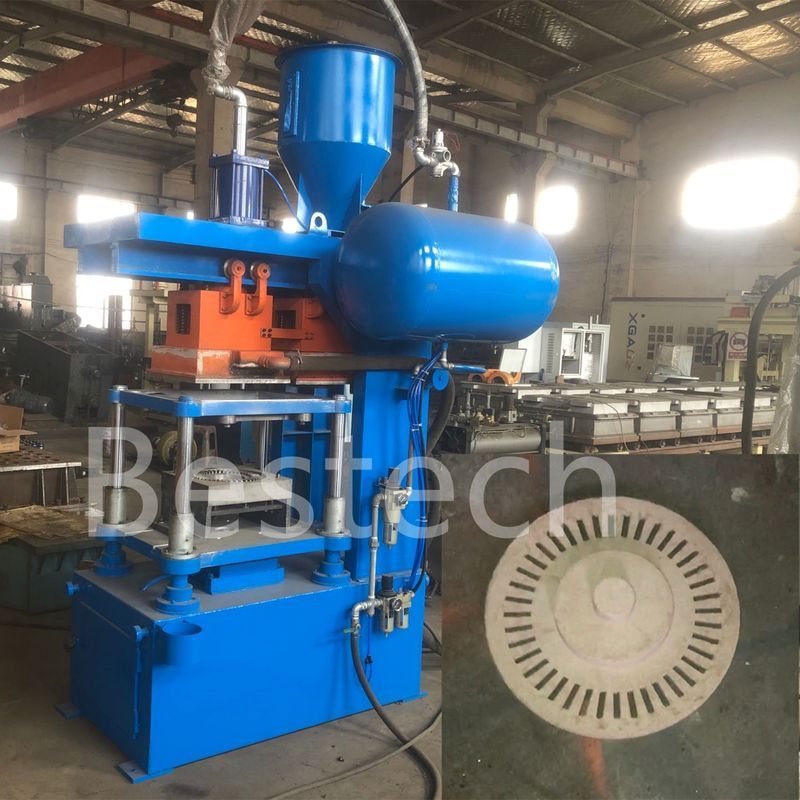

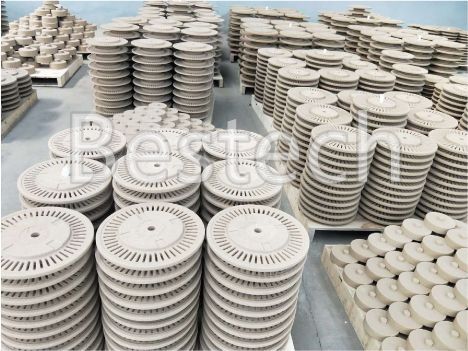

cold box sand core shooting machine for brake disc production sand core making machine Products from Qingdao bestech machinery

Product Details

Application of automatic Cold Core Shooter
Apply to vertical or horizontal parting mold; through heating phenolic resin coated sand to produce shell core or hot core, or through carbon dioxide and triethylamine to produce cold cores; the efficiency is high.with sand province,less gas.

Horizontal Parting Core Shooting Machine with Folding Screen, Cold Box Core Shooter

Performance and Characteristics of automatic cold core shooter

1. Suitable for rapid curing of the resin sand of cold core box by triethylamine or CO2, high efficiency, low cost and low gas
evolution to sand core or sand moulds.
2. PLC program control, LCD screen parameter setting, process display, fault diagnosis, manual/automatic/point operation, automatic digital display temperature control.
3. Adopt vibration pressurization sand shooting technology, high rigidity and precision, finish good, no waste, less rest sand in sand shooting head.
4. Precise guiding device for sand cylinder, amine plate and vertical motion. after shooting sand, automatically blown, cured and cleaned. Remove mould automatically to take out sand core.
5. Equipped with high performance SL series triethylamine generator, high production efficiency, little amine, no pollution, no need for secondary blowing.
6. High frequency quenching hard chromium guide rail with high precision and long service life, the mold can be multi directional, sealing automatic door to improve the operating environment.
7. All movement and core shooting is air operated or driven by pneumatic or hydraulic together.

Model	unit	ZH600	ZH750	ZH850
Dimension of mold board	mm	780*600	800*780	980*800
Max sand core weight	kg	15	20	25
Sand hopper volume	kg	200	200	300
Cylinder diameter	mm	200	280	320

FAQ:

Q:How to choose cold core shooter or hot core shooter?
A:Hot box core shooter is most popular.Cores are more rigid and keep longer time exposed in open air. Cold box core shooter is a little cheaper.

Q:Can you customize foundry sand core shooting machine (sand core shooter) according to customer pattern?
A:Normally our standard type can meet most customer requirements. If necessary, we can customize foundry sand core shooting machine (sand core shooter) according to customer pattern.

Q:What is application of core shooting machine?
A:Core shooting machine is automatic equipment to make sands cores for green sand molds. It can save cost and labors and promote productivity.
