Automatic green sand molding machine for foundry plant
- 10000.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

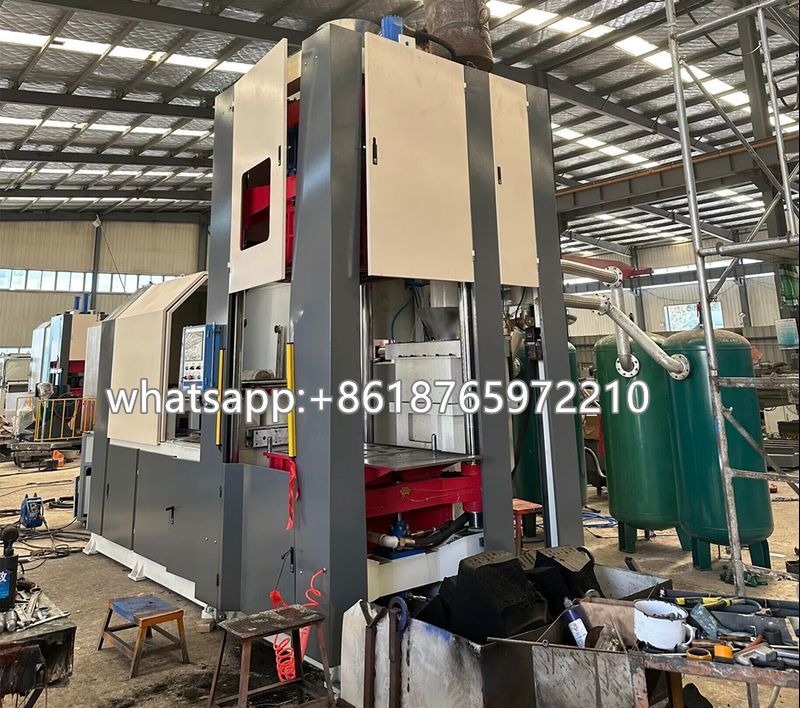

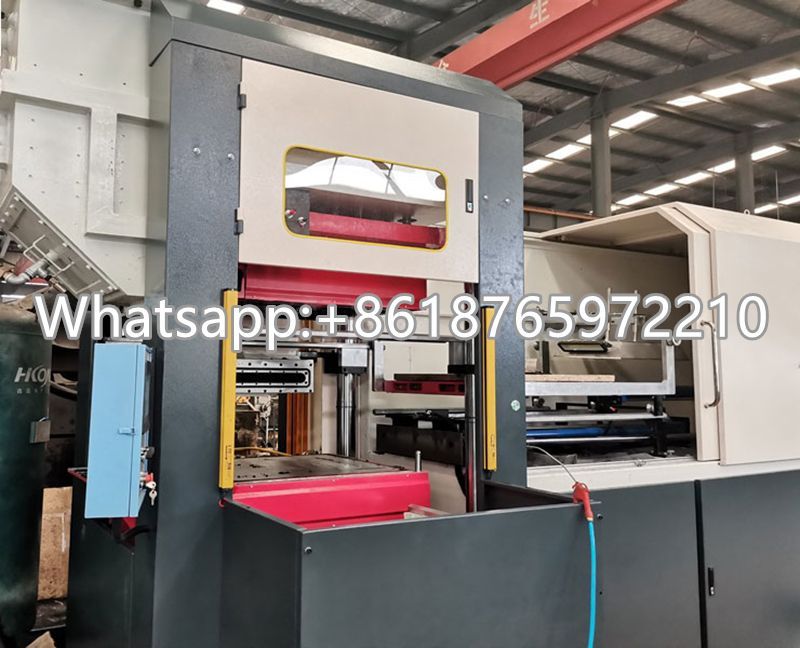

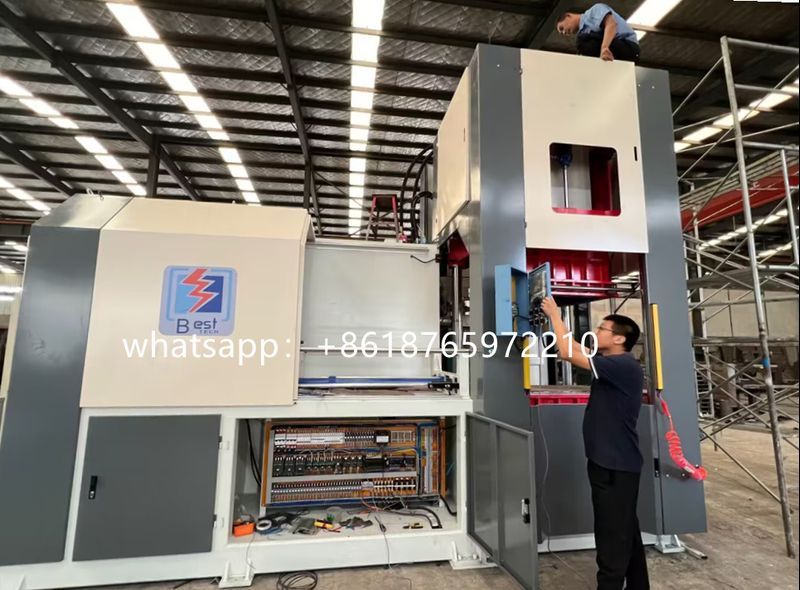

Automatic Horizontal Sand Molding Machine with Mold Handling Line
Horizontal Automatic Sand Molding Machine Description
The fully automatic horizontal flaskless parking molding Machine adopts PLC control, stable and reliable, can realize automatic operation, simple and convenient operation, small area, high productivity, suitable for the production of automotive parts, such as cylinder head, flywheel shell, brake pliers, etc. Also suitable for the production of pipe, valve, shaft, cover plate parts, such as through, three links, bends, pipe clamps and so on. Is the most popular molding equipment in the foundry.
Feature of Automatic Horizontal Sand Molding Machine
1.Horizontal parting, convenient lower core.
2.Mould height adjustable, save sand.
3.Intelligent control, no need of professional workers, the operation is simple and quick.
4.Can be composed of production lines,also can be stand-alone production.
5.Safety light switch, ensure absolute safety under the core process.
6.High efficiency and stability, 24 hours to run, to provide sustained productivity.
7.Can do complex castings.
8.Touch screen, parameter modification, immediately visible.
9.Hydraulic power, stable operation, high degree of compaction.
10.The sand box is provided with exhaust holes.
11.Angle of the sand shooting valve can be adjusted.
12.Hydraulic extrusion molding, the operating environment is more quiet.
2.Mould height adjustable, save sand.
3.Intelligent control, no need of professional workers, the operation is simple and quick.
4.Can be composed of production lines,also can be stand-alone production.
5.Safety light switch, ensure absolute safety under the core process.
6.High efficiency and stability, 24 hours to run, to provide sustained productivity.
7.Can do complex castings.
8.Touch screen, parameter modification, immediately visible.
9.Hydraulic power, stable operation, high degree of compaction.
10.The sand box is provided with exhaust holes.
11.Angle of the sand shooting valve can be adjusted.
12.Hydraulic extrusion molding, the operating environment is more quiet.
Right elevation
Left elevation
Front elevation
Technical Parameter Automatic Horizontal Sand Molding Machine
Item | Z425 | Z426 | Z427 | Z428 | Z4210 |

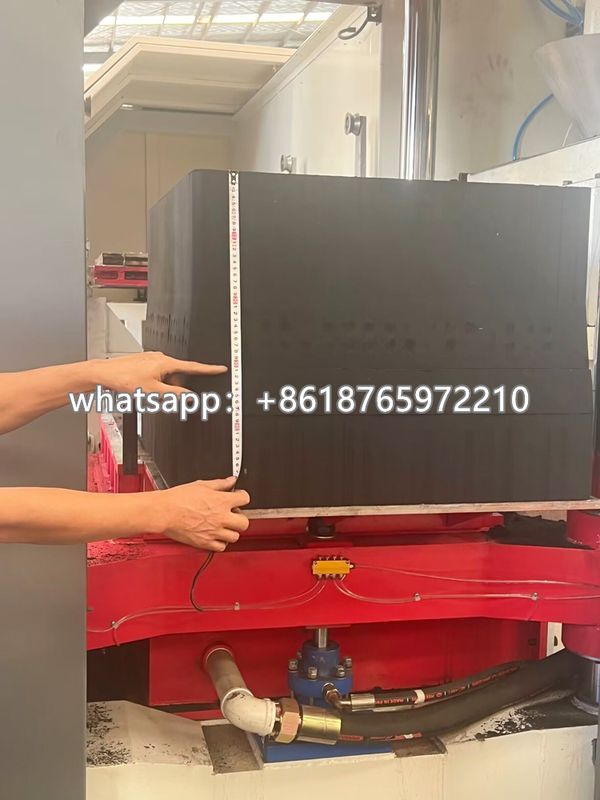

Sand Mold Size(mm) | 500*400*(120-150) | 610*508*(130-180) | 700*600*(120-150) | 800*800*（200-250） | 1000*1000*（200-280） |
Total Power(kw) | 15 | 18.5 | 22 | 22 | 30 |
Air Pressure(Mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
Air Consumption(M3/Min) | 1.6 | 2 | 2.2 | 2.5 | 2.8 |
Productivity(second/mould) | 36-40 | 40-45 | 40-45 | 50-55 | 55-60 |
Oil Pressure(Mpa) | 8.5 | 10.6 | 9.2 | 8.9 | 8.5 |
Sand Consumption(T/H) | 8.6-12 | 10.5-17 | 12-22 | 20-30 | 30-40 |
Automatic Horizontal Sand Molding Machine Main Parts
Advantage Automatic Horizontal Sand Molding Machine
Advantages
1. Improve the production efficiency,save the human resource. 90mold/h capacity.
Horizontal parting flaskless automatic molding machine.Equivalent to squeeze molding machine 5 sets + 5 worker.
2. Implement quality improvement and stability Reduce the parting, Improve parting accuracy With high rigidity guide rod support. Through the support of four high rigid guide
rods to achieve high accuracy parting, mould assembling.The maximum 0.9MPa of the extrusion pressure to improve the quality of the mold.
3.Reduce operating costs, save energy, improve the environment Reduce the use of sand reduce the flying sand, sand scattered Boxup and down in closed state ,molding at the same time.
Horizontal parting flaskless automatic molding machine.Equivalent to squeeze molding machine 5 sets + 5 worker.
2. Implement quality improvement and stability Reduce the parting, Improve parting accuracy With high rigidity guide rod support. Through the support of four high rigid guide
rods to achieve high accuracy parting, mould assembling.The maximum 0.9MPa of the extrusion pressure to improve the quality of the mold.
3.Reduce operating costs, save energy, improve the environment Reduce the use of sand reduce the flying sand, sand scattered Boxup and down in closed state ,molding at the same time.

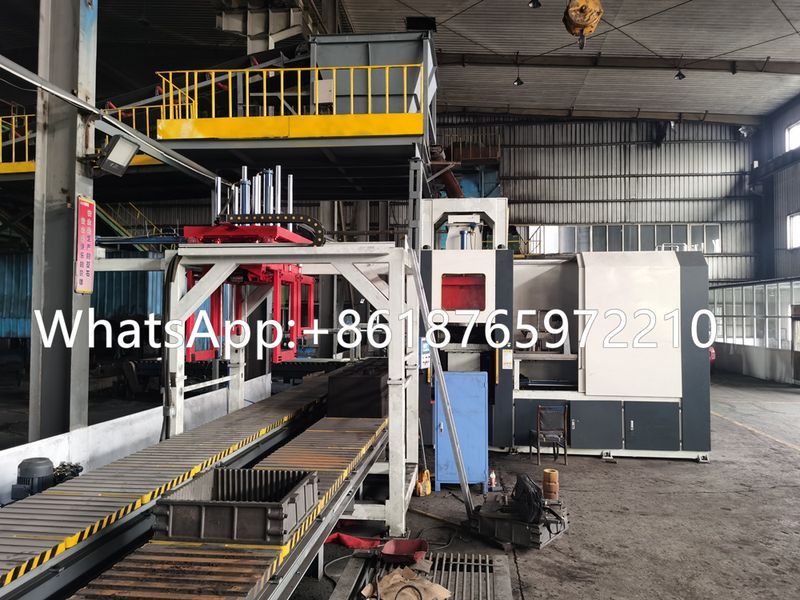

Automatic Horizontal Sand Molding Machine With Sand Mold Transfer Line
