China Foundry Continuous Green Sand Mixer Distributor High Efficiency Rotor Foundry Sand Mixer

Supplier: Qingdao Jiaruide Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms changjie Qu
Price: $13775.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	normal product	Mechanical test report:	if
port:	Qingdao	Type of machine:	High-efficiency rotor sand mixer
Main selling point:	high productivity	brand:	Qingdao Garride
Health status:	new	product name:	sand mixer
Voltage:	Customized according to device size	place of origin; place of origin:	Shandong China
Core Components Warranty:	1 year	weight:	custom made
type:	Foundry green sand mixer	payment terms:	letter of credit, wire transfer
Applicable industries:	casting, cast steel, casting	Dimensions (LWH):	Customized according to device size
Showroom location:	not any	Weight (kg):	11500
Video external inspection:	if	Warranty:	1 year
strength:	custom made	Core components:	Bearings, Gearboxes

Product Description

Model	Disc diameter (mm)	productivity (tons/hour)	Main motor power (kw)	Rotor motor power (kw)	Spindle speed (r/min)	rotor speed (rev/min)	Dimensions (mm)	Weight (t)
GS16-30	φ1600	15-20	30	2×15	34	980	265021602386	4.5
GS20-55	φ2000	25-32	75	2×22	31.72	980	357734233256	11.5
GS20-75	φ2000	30-35	75	2×30	27.32	975	357734233256	11.8
GS22-90	φ2240	35-40	90	2×37	27.32	975	360038683578	13.5
GS25-110	φ2500	40-50	110	2×45	27.3	950	430541503511	16.8
GS25-132	φ2500	50-60	132	2×55	27.32	950	406236163511	17.8
GS29-200	φ2850	60-80	200	2×55	25.4	850	457644823734	20.5

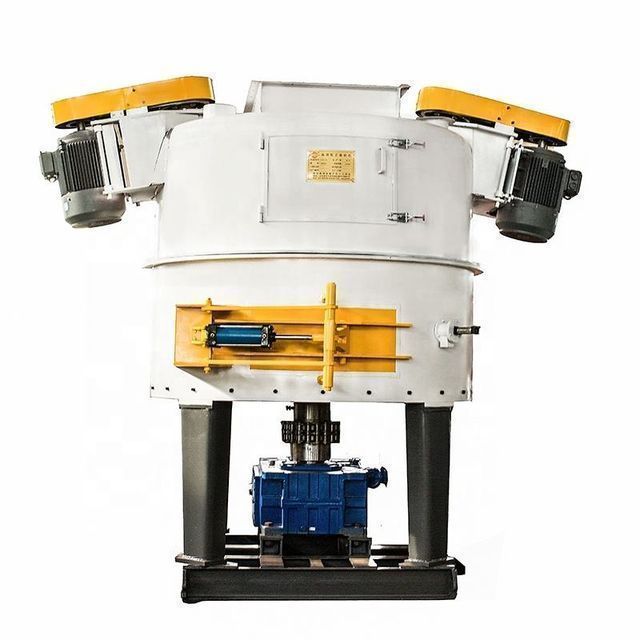

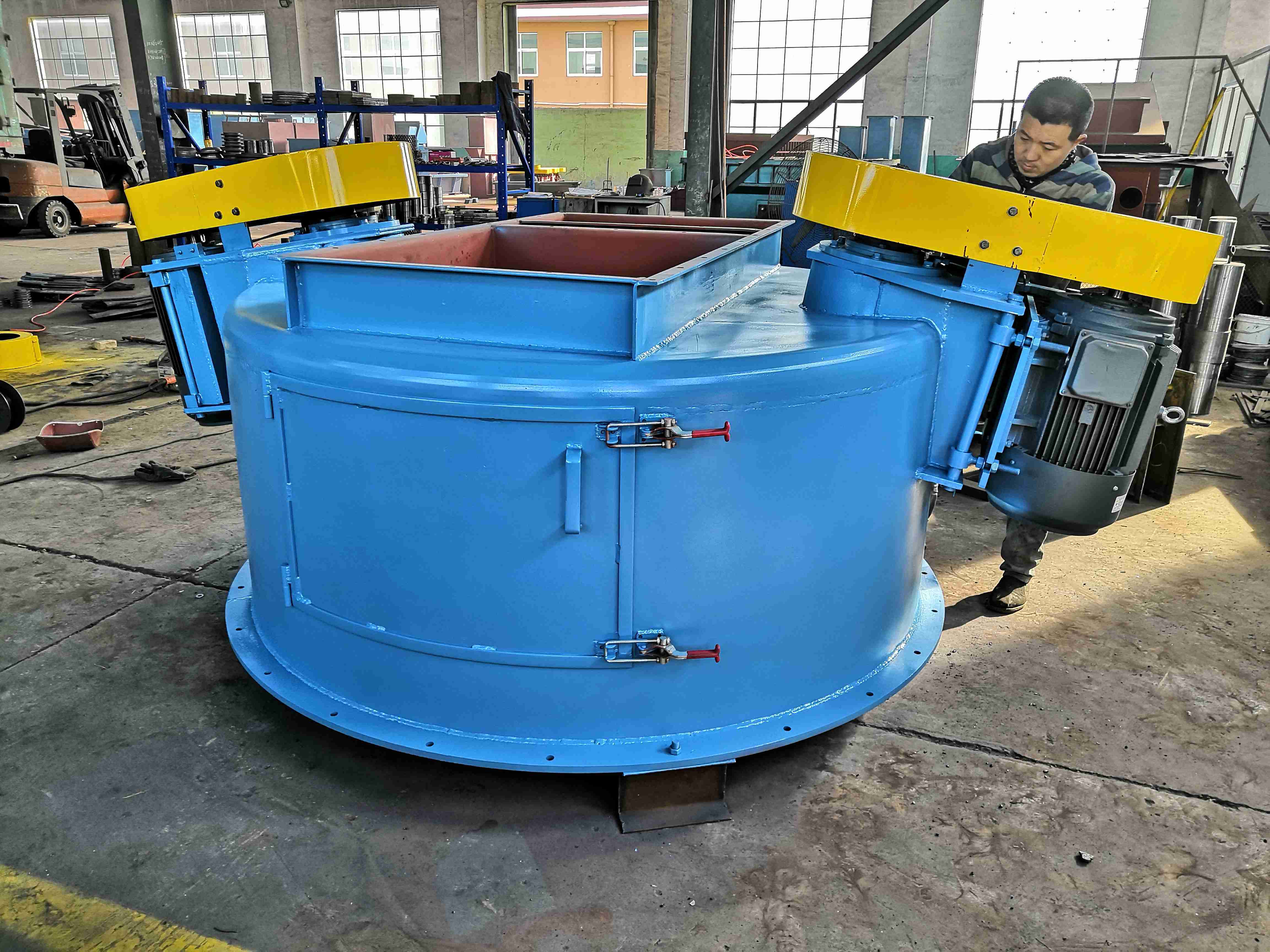

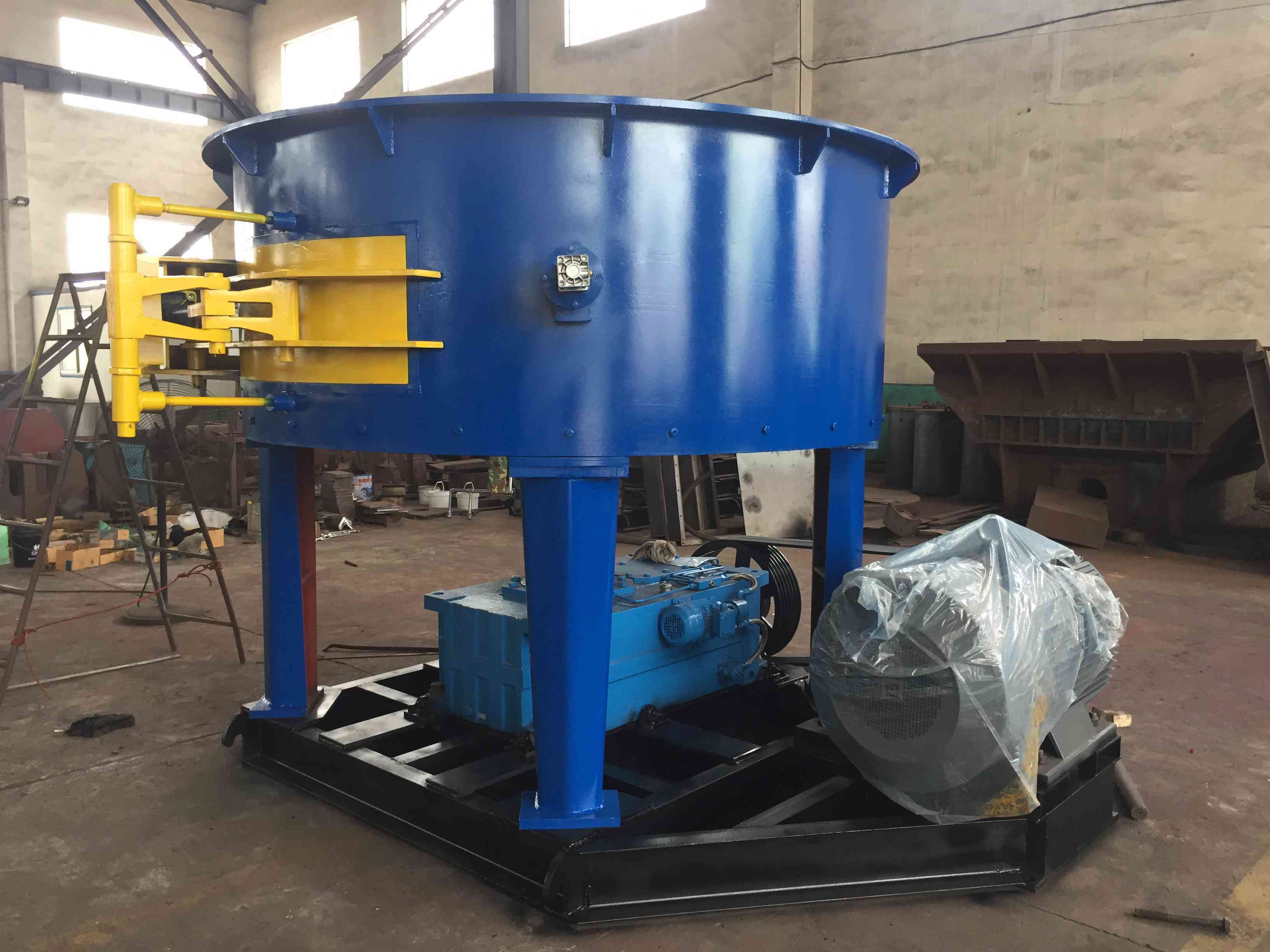

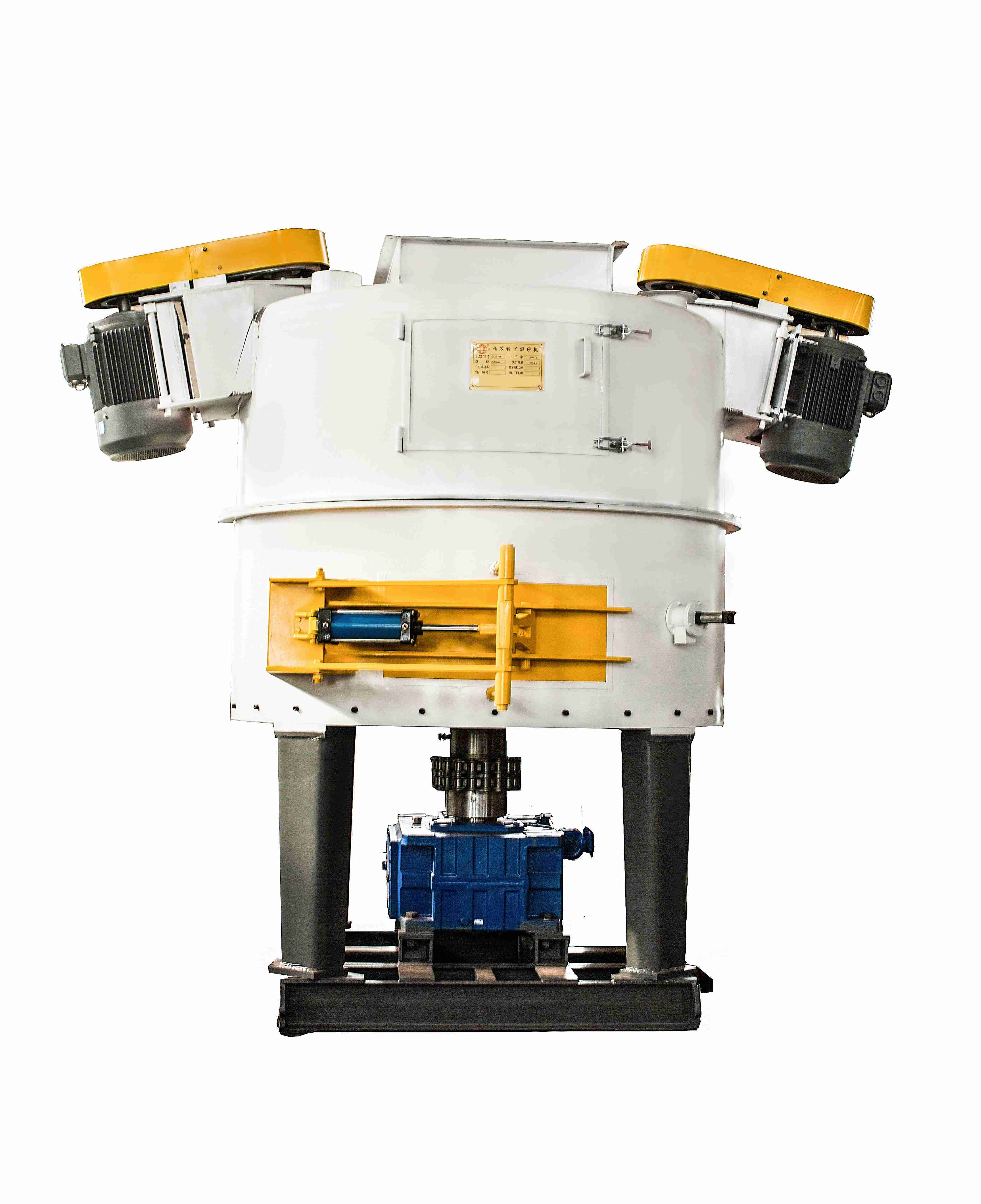

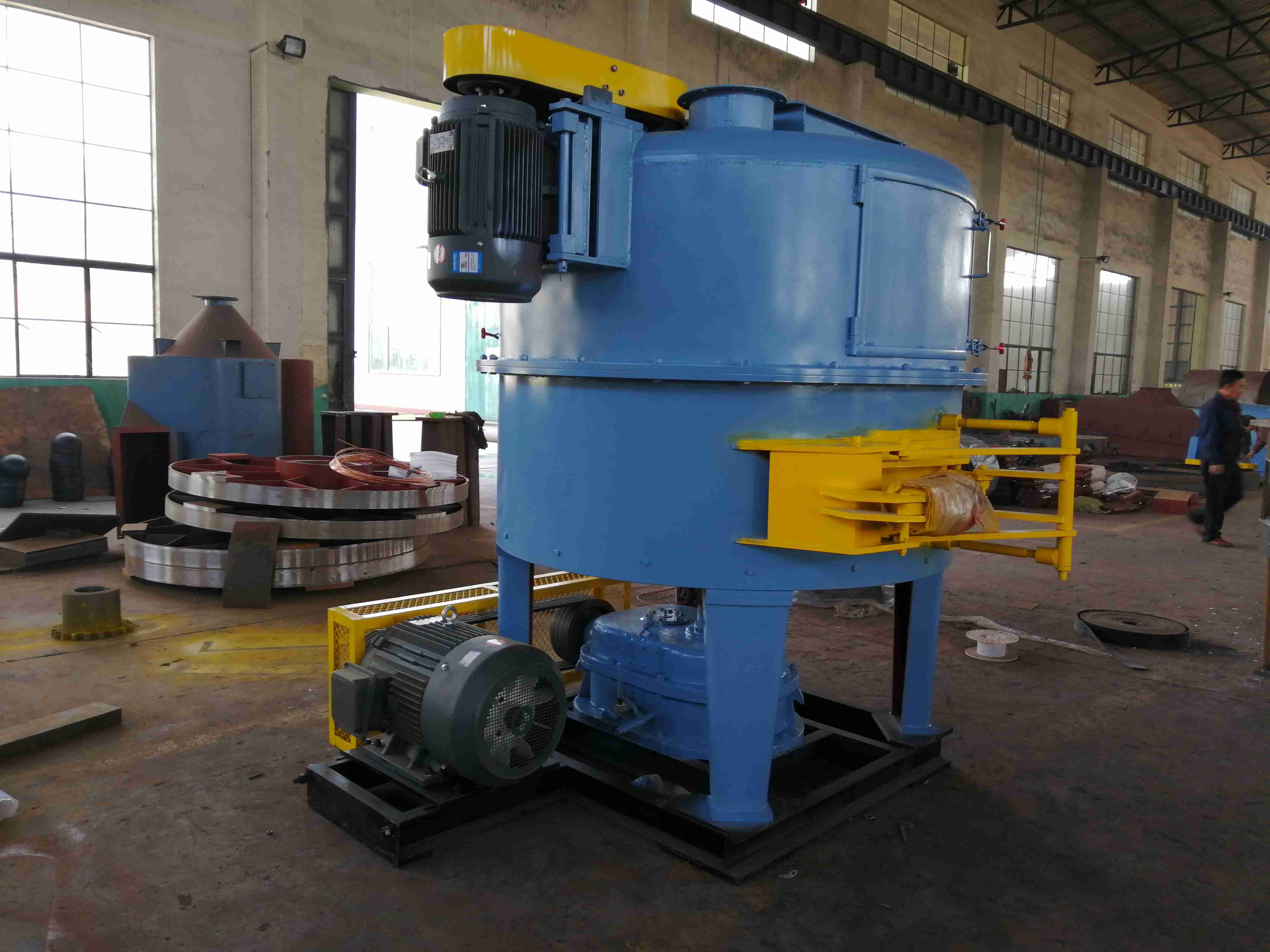

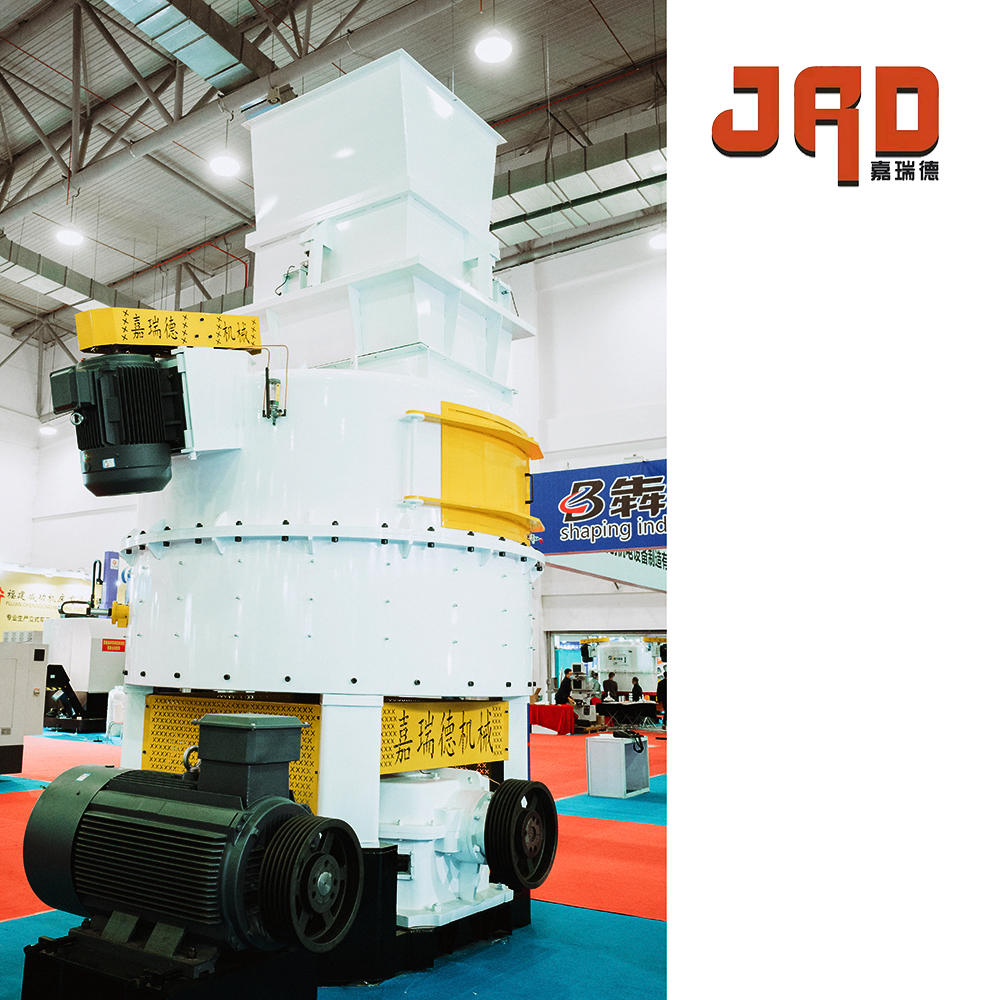

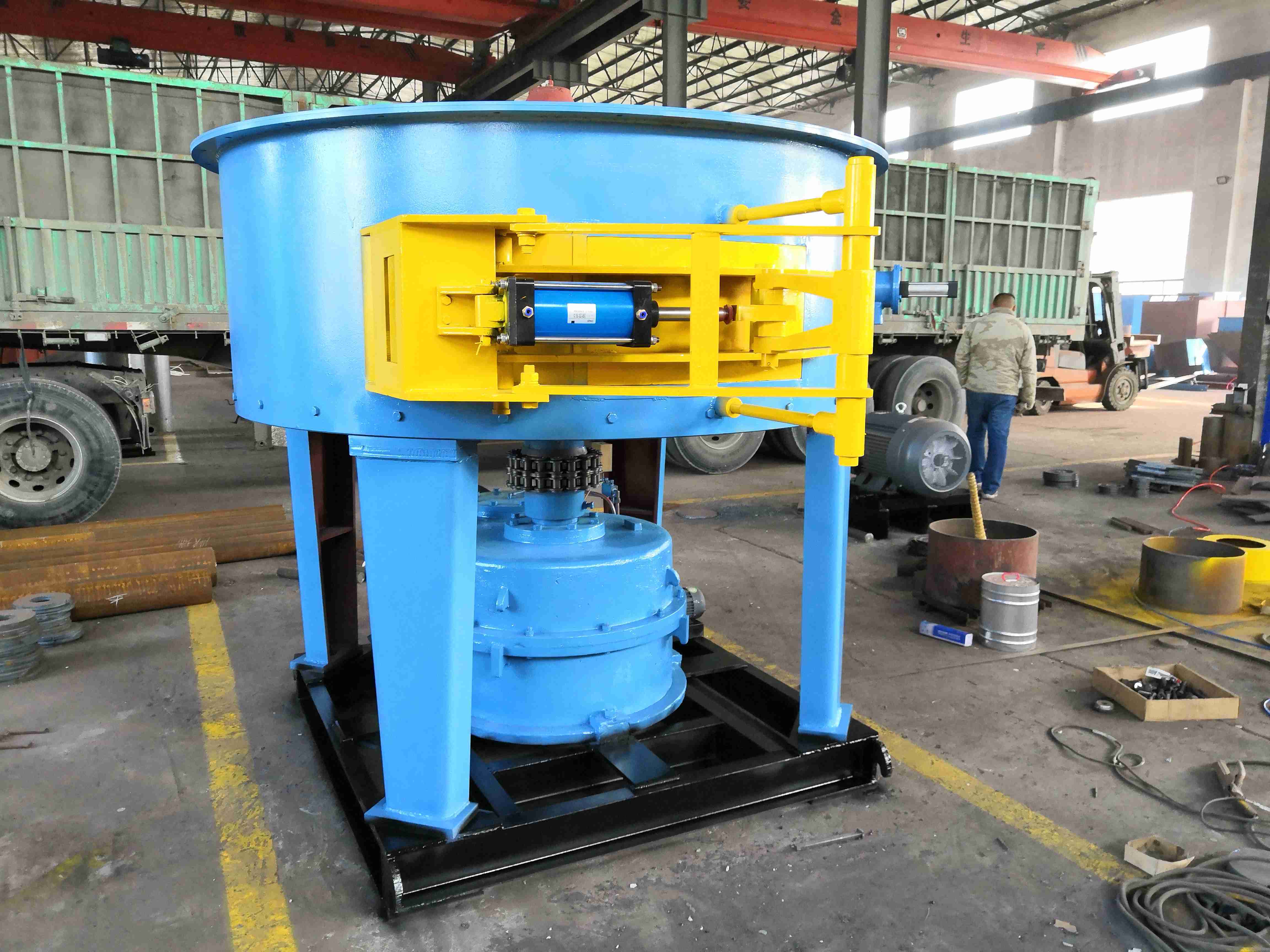

GS series high-efficiency rotor sand mixer
1. Purpose:
This machine is mainly used for molding sand mixing in foundry workshop, namely machine molding single sand, dry film sand, self-hardening sand, surface sand, back sand, and can also be used for glass, ceramics, refractory materials, etc. Materials and other industries mix various powdery and granular materials.
2. Features:
(1) The double "S" type scraper is optimally matched with the high-speed rake rotor, which has a large amount of sand mixing, strong sand mixing ability and good sand production performance.
(2) New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper, etc., improve the service life of wearing parts.
(3) Soft start, alloy steel gears, lubrication control machine, to ensure the smooth and reliable transmission system, can start with load.
(4) Symmetrically opened access door for easy maintenance and cleaning
(5) The latest type of side unloading door can be opened flexibly and reliably, completely solving the problem of sand leakage at the bottom.
