CZ Purlin Roll Forming Machine (Quick Change type CZ80-300)

  • Supplier: Xiamen BMS Group
  • Region: Fujian, China
  • Contact: Mr Pablo Andrey
  • Price: $39980.00 /set
  • Min. Order: 1 set
Product details
Power(W):18.5KW+7.5KW;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Fujian China;Decoiler:Manual/Hydraulic for options;
Model Number:CZ80-300;Working material:galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC);
Forming station:16;Thickness:1.5-3.0mm;
Warranty:18 Months;Port:Xiamen;
Weight:about 10.5 tons;Supply Ability:30 Set/Sets per Month;
Dimension(L*W*H):About 11.2M*2.5M*1.8M;Output:about 15meters per minute;
Yield strength:245-550Mpa;Condition:New;
Voltage:AC 3-380V/415V/440V;Packaging Detail:Main body of CZ Purlin Roll Forming Machine(Quick Change type C80-300Z140-300) is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are covered by plastic film.;
Production Capacity:15-20m/min;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Cutter material:Cr12 Tool Steel;Shaft:95mm;
Certification:ISO9001;Housing:H400 beam;
Brand Name:BMS;Type:Steel Frame & Purlin Machine;
Work Pressure:245---550Mpa;Delivery Detail:Shipped in 45 days after payment;
Punching:single hole and dual holes;

Product Description

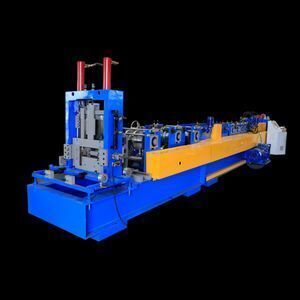

       Quick Change CZ80-300 Purlin Roll Forming Machine








1.Main features of quickly change C purlin roll forming machine



  The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of CZ shaped steel forming machine




    Machine Parts

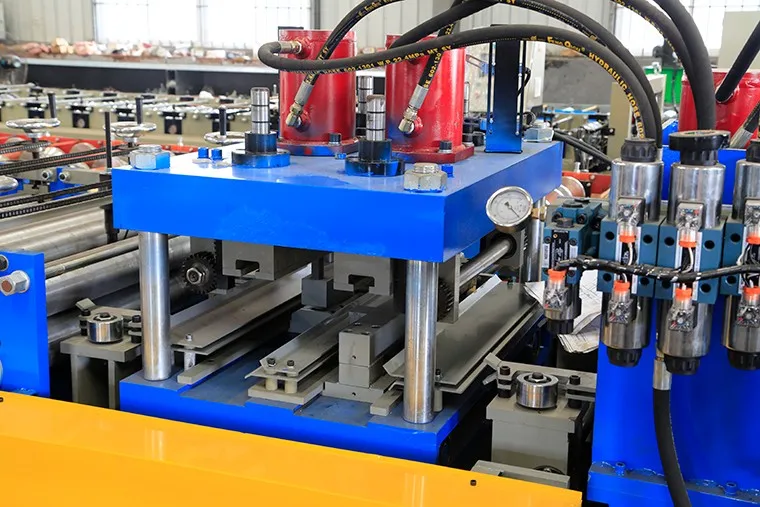

        1) CZ purlin machine punching system

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

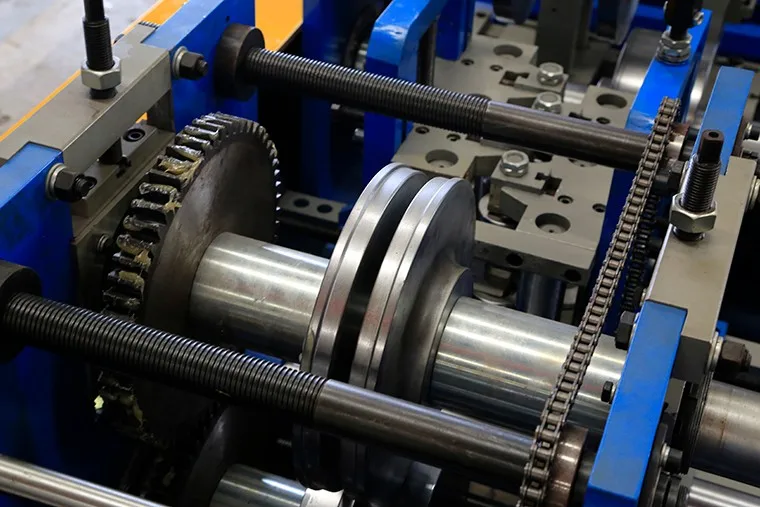

        2)   CZ purlin machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

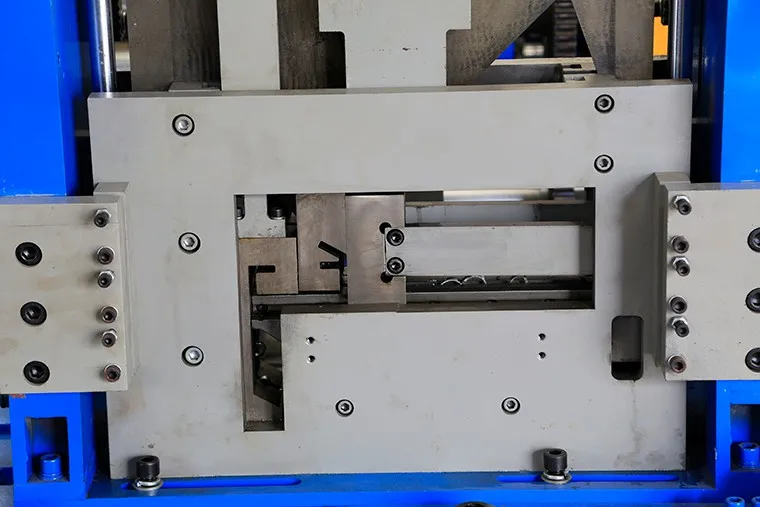

       3) CZ purlin machine post cutter

        Brand: BMS    Original: China

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa





        4) CZ purlin machine location pin

        Brand: BMS    Original: China

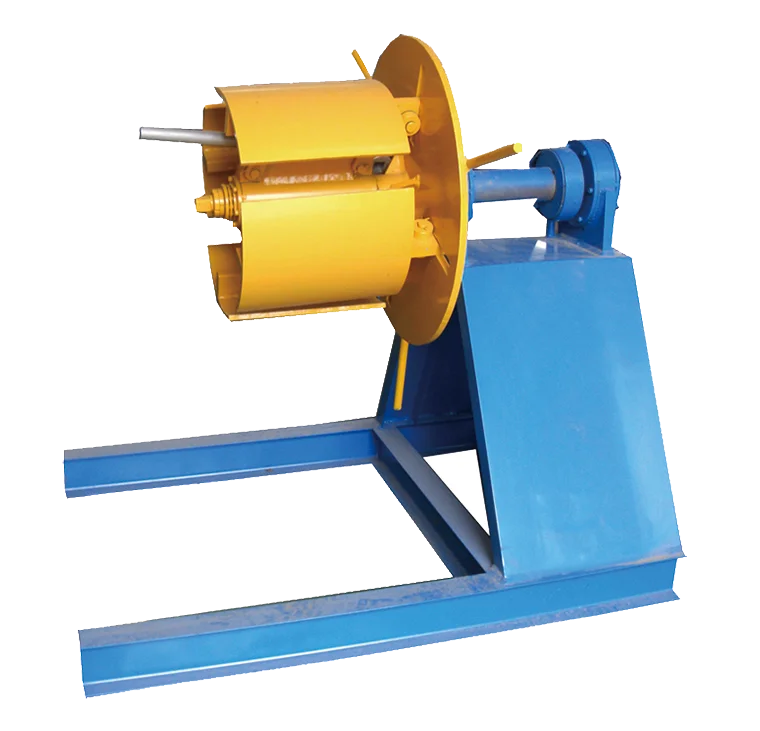

        5) CZ purlin machine decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton







        With 3 tons hydraulic decoiler for option





        6) CZ purlin exit rack

        Brand: BMS    Original: China

        Un-powered,one unit







3.Other detailes of CZ purlin roll forming machine



Suitable for material with thickness 1.2-2.5mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of purlin roll forming machine CZ80-300

1. The warranty of purlin roll forming machine CZ80-300

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
