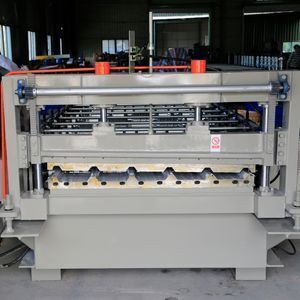

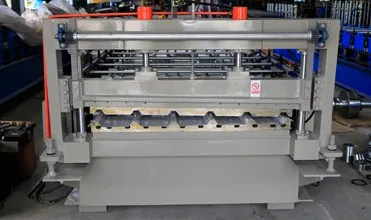

Chinese Hot sale metal roofing sheets panel roll forming machine

  • Supplier: Xiamen BMS Group
  • Region: Fujian, China
  • Contact: Mr Pablo Andrey
  • Price: $13900.00 /set
  • Min. Order: 1 set
Product details
Type:Tile Forming Machine;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Key Selling Points:Long Service Life;cut-to-length tolerance:±1mm;
Dimension(L*W*H):About 8M*1.6M*1.2M;Port:Xiamen;
Use:Roof;Housing:H450 beam;
Roller material:First grade 45# steel;Yield strength:G350-G550Mpa;
Tile Type:Colored Steel;Condition:New;
Warranty:2 Years;Thickness:0.3-0.8mm;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Shaft:80mm round steel;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Decoiler:Manual/Hydraulic for options;
Forming station:About 20 stations;Place of Origin:Fujian China;
Production Capacity:18-20m/min;Certification:ISO9001 CE SGS;
Packaging Detail:Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are covered by plastic film.;Voltage:380V/50HZ 3Phase(or other);
Supply Ability:30 Set/Sets per Month;Working material:galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC);
Brand Name:BMS--or OEM;Cutter material:Cr12MOV Tool Steel;
Weight:8Tons;
Product Description

Flow chart:

Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

Product Application

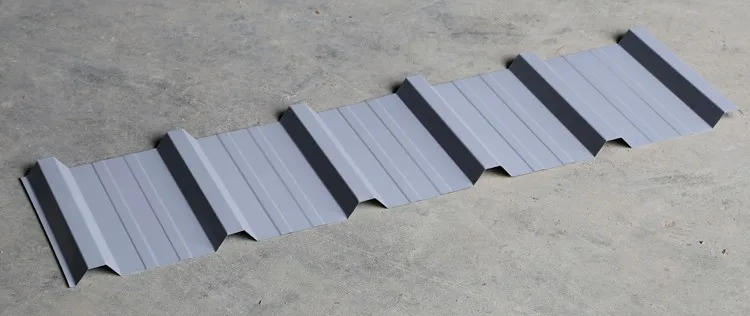

This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

TECHNICAL PARAMETERS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Serial Number
Item
Parameters
Remark

Applicable material
Type
GI/PPGI
Thickness
0.3-0.8MM
Yield strength(Mpa)
235-345mPA

Main performance parameters
Forming speed(M/MIN)
15-20m/min
Machine size(L×W×H)
8*1.5*1.2
Refer to the machine
Power supply(KW)
7.5+3.0
Motor and Hydraulic Motor
MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name
Model/name
Quantity
Technical description

1.Decoiling system

Manual decoiler

1 set
Capacity: Max. 5Ton,Un-powered,Manually control steel coil inner bore shrinkage and stop,



2.Forming machine
Material Guiding System
1 set
For feeding in a right position no Deviation.
Precutting Device
1 set
Prevent the profile being unbeautiful because of the rough material.
Main Roll Forming Machine
1 set
About 18 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system
Hydraulic Cutting Device
Precutting and postcutting both.
4.Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.

5.Control system

PLC Control System

1 set
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system
Exit rack
3 PC
no power.

Main Features

1) We use Taiwan quality.

2) Adopting advanced world famous brand components in computer parts.  Like siemense, schneider, sony etc...

3) Running in a high automatization and intellectualization,no pollution.

The similar video you can check via:

https://youtu.be/8aM6oprCXJI

Detailed Images

Machine parts

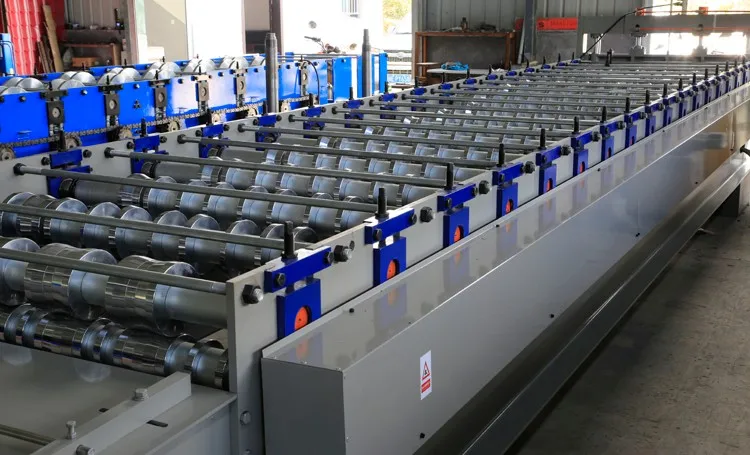

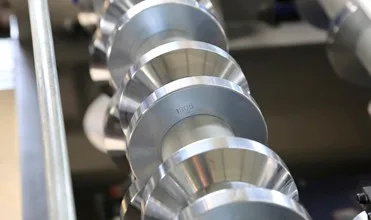

Name: Rollers

Material: Imported first grade 45# steel.

Treatment process: CNC precision machined, heat treatment

hard Chrome Coated; And at last mirror-surface treatment for anti-rust, long service life and beautiful.

Machine parts

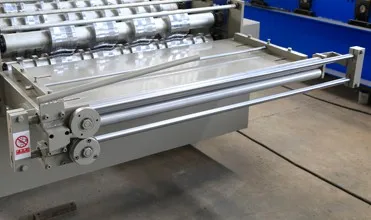

Name: Manual precutting device
Feature: Connecting with the PLC control system.

Once material is required to change or the production is nearly finish, the PLC would alarm and you just need to pull the device to finish the cutting. easy operation and save your time.

Machine Parts

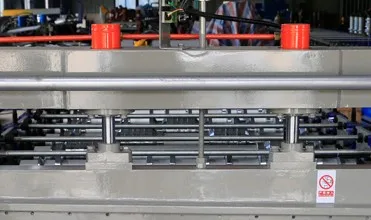

Name: Double cylinder cutting structure
Feature: Unlike other factory in china, we adopt the double cylinder cutting structure. to ensure the balance during the cutting process, thus, more stable and longer service life.

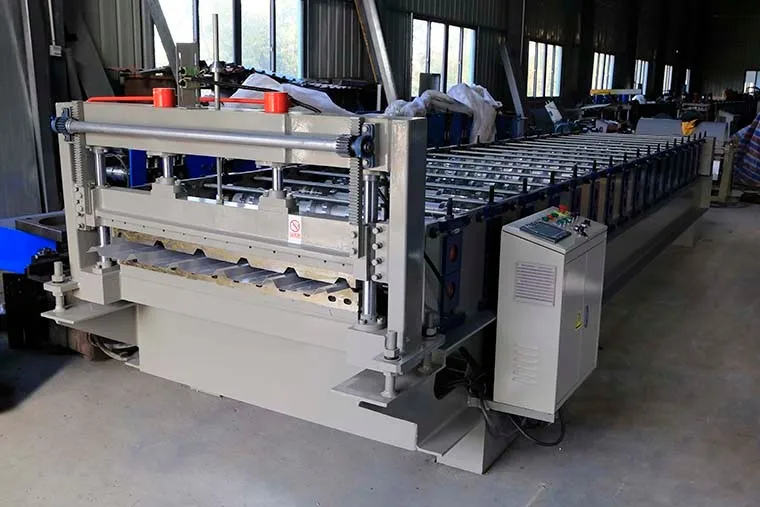

Main Features

Name: Postcutting Device.
Feature: Two cutting blades, stop to cut, cutting model: Cr12mov. Driving by hydraulic power.

With two pillars support to make the cutting processing more stable, no shake.

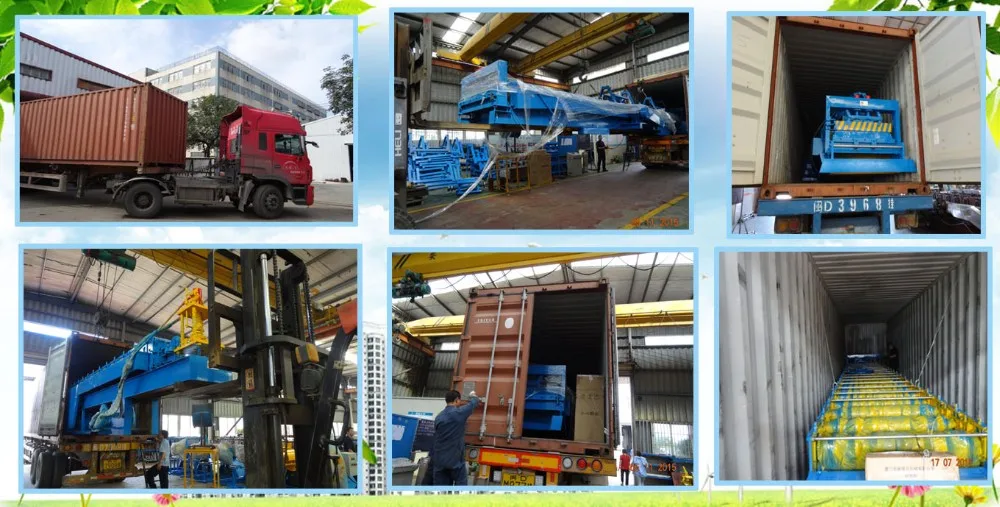

Packing & Delivery

Before laoding the machine in the container, we clean the machine first and cover with a film.
and fix the machine stable and tighty by Steel wire rope in the container, thus, for the machine safe, no moving.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications
My professional
Building Trade Show

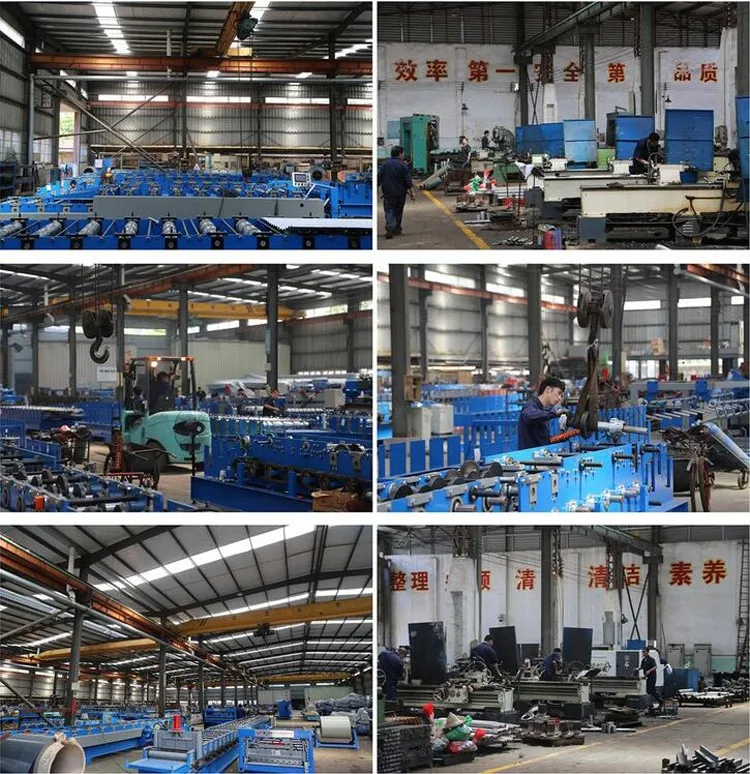

COMPANY INTRODUCTION.

BMS Machine (formerly named as HF BRAND FORMING MACHINERY CO.,LTD) was established in 1996,which covers an area of MORE THAN 20000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE, we have been the TOP 3 manufacturer and exporter of cold roll forming machines in China. We are an ISO9001 approved company, and have European CE certification (issued by SGS). We have the honor to serve some of the famous companies in the world such as TATA STEEL,BLUESCOPESTEEL, BRADBURY MACHINERY,etc.


We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.

Contact me once you have any questions or any help in china.

Nate (Export Manager)
Mobile/Whatsapp:+86-13306012875

Wechat:+86-13306012875
Facebook: www.facebook.com/nate89757
Website: www.rollformingmachinerychina.com
BRAND FORMING MACHINERY CO.,LTD(BMS)

Related Products

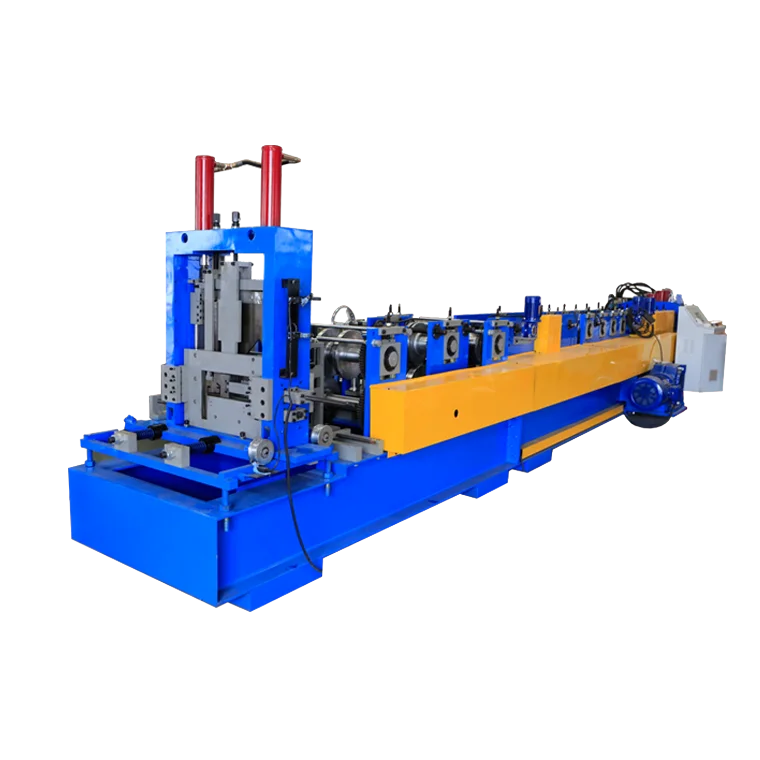

CZ Purlin Roll Forming Machine
