PRY-1660E Single color web offset printing machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Color & Page:	Single Color;
Machine speed:	12000s.p.h;	Blanket size:	6806751.9mm;
Maximum sheet size:	480*660mm;	Plate size:	6256750.3mm;
Packaging Detail:	wooden case each PRY-1660E Single color web offset printing machine;	Condition:	New;
Voltage:	220V;	Sheet thickness:	0.04-0.45mm;
Usage:	Bill Printer,Card Printer,Cloths Printer,Label Printer,Paper Printer,Tube Printer;	Product name:	PRY-1660E Single color web offset printing machine;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Video technical support;	Port:	shanghai;
Warranty:	1 Year;	Certification:	CE;
Place of Origin:	Jiangxi China;	Plate Type:	Flatbed Printer;
Automatic Grade:	Automatic;	Supply Ability:	10 Set/Sets per Month;
Maximum image area:	470*650mm;	Weight:	3500KG;
Dimensions(LWH):	235019601770mm;	Minimum sheet size:	250*330mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Type:	Offset Printer;
Brand Name:	Printyoung;

Product Description

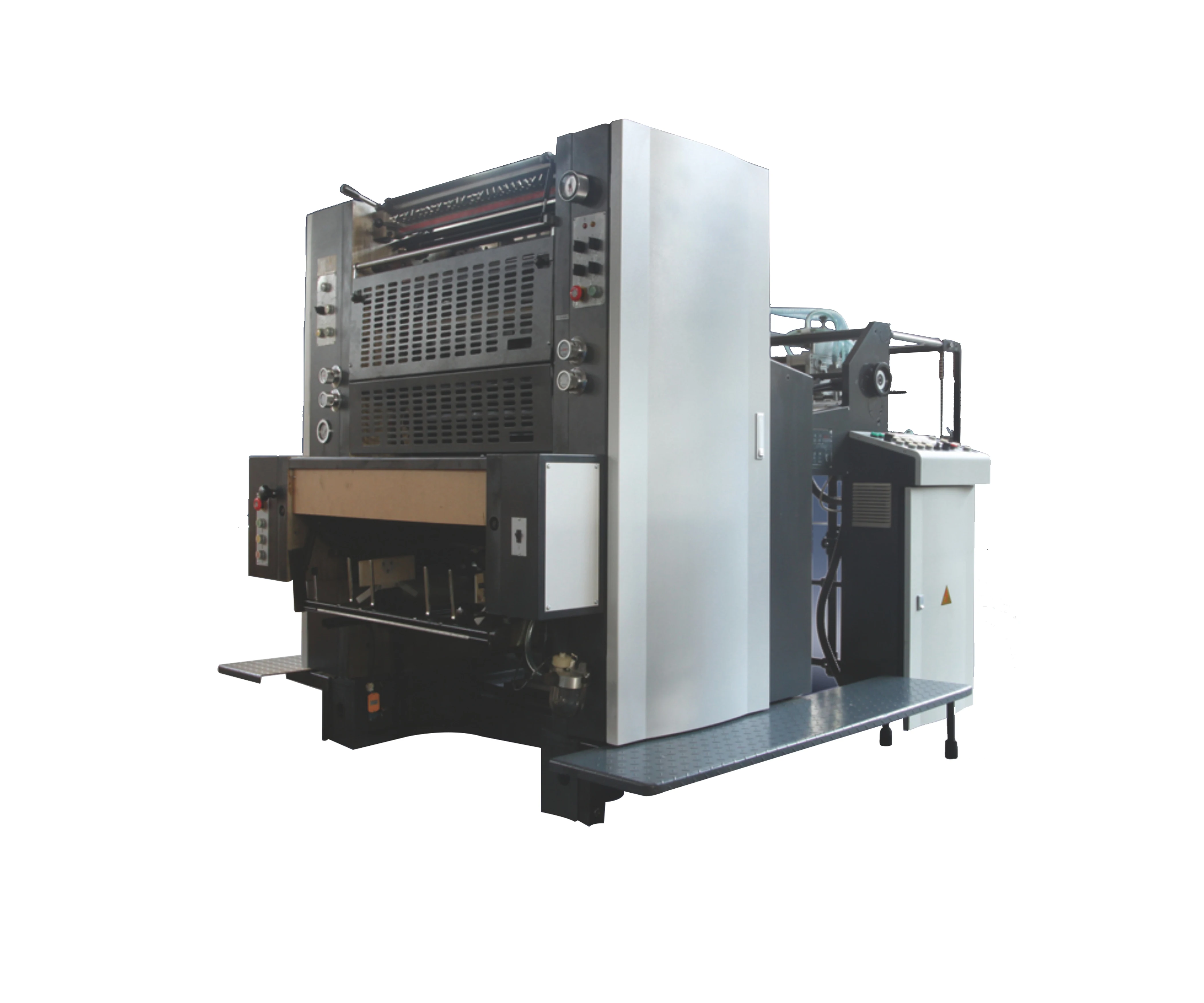

PRY-1660E Single color web offset printing machine

Specifications

1.easy to operate
2.reasonable price and good after-sales service
3.CE certificate

Features:

The Driven system is equipped with Advanced Frequency Speed-regulating System. Thefunctions of forwards, backwards, low-speed run, constant velocity and braking are controlled by frequency converter. And the main motor is 4Kw Three-phase AC induction motor. ETR (Electronic Thermal Relay) protect motors from overload.
Control circuit is controlled by PLC (Programmable Logical Controller) and Electronic sheet alignment control. When pressing the button FEED, the press is running automatically according to procedures, and inspect if there are double sheets, no sheets and distorted sheets or not automatically.
Eccentric Swing-up gripper transfer system is equipped with the conjugate cam and the constant force device, which ensures to transfer sheets stably, accurately and reliably.
The pressure of Ink form rollers and water form rollers is adjusted by eccentric structure of worm and worm wheel, because of convenient operation.
The plate cylinder is equipped with a quick-action plate clamping system. It is easier and more convenient to install and remove plates.
The cams are designed and optimized through computer and machined on the NC machine tools.
The press is equipped with automatic centralized lubrication system of fixed point, fixed time and fixed quantity.
The interferences (faults) display on the control console. It is easier for operator to detect the interferences (faults) sources.
The feeder head is equipped with the patented rotary air distributing valve to clean the lint and dust out automatically.

Technical Parameters :

Model	PRY-1660E
Machine speed	12000s.p.h
Maximum sheet size	480×660mm
Minimum sheet size	250×330mm
Sheet thickness	0.04-0.45mm
Maximum image area	470×650mm
Plate size	625×675×0.3mm
Blanket size	680×675×1.9mm
Maximum feeder pile height	930mm
Maximum delivery pile height	420mm
Machine overall dimension	2350×1960×1770mm
Total power of motors	6.82kw
Weight	3500kg
