Similar Speedmaster Heidelberg offset presses for magazines

Supplier: Weifang Swan Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Brian Mu
Price: $23800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color Unit Number:	4 units	place of origin; place of origin:	Shandong China
Mechanical test report:	if	type:	offset press
Main selling point:	automatic	After-sales service provided:	Online support
Make:	Groni	Maximum printing area:	505x350mm
Auto grade:	automatic	Packaging Details:	Export similar speedmaster heidelberg magazine offset press wooden box
Dimensions (LWH):	4500x1700x1600mm	Damping Roller:	19 pieces
Colors and Pages:	Polychromatic	Showroom location:	Uzbekistan, Bolivia
Marketing Type:	New Products 2020	Health status:	used
weight:	9600kg	Minimum paper size:	260x190mm
Warranty:	1 year	Paper Thickness:	0.04-0.4mm
port:	Qingdao	Maximum printing speed:	13000 rpm
Delivery stack height:	400mm	payment terms:	L/C,Western Union,T/T,MoneyGram
Plate type:	Flatbed printer	Stack height:	750mm
Core Components Warranty:	6 months	Applicable industries:	print shop
Supply capacity:	20 sets per month	Core components:	Bearings, Gears, PLCs, Engines
Voltage:	380V	Packaging Preview:
usage:	Receipt Printer, Card Printer, Label Printer, Paper Printer	year:	2015
Video external inspection:	Not available	brand:	swan

Product Description

Similar Speedmaster Heidelberg offset presses for magazines

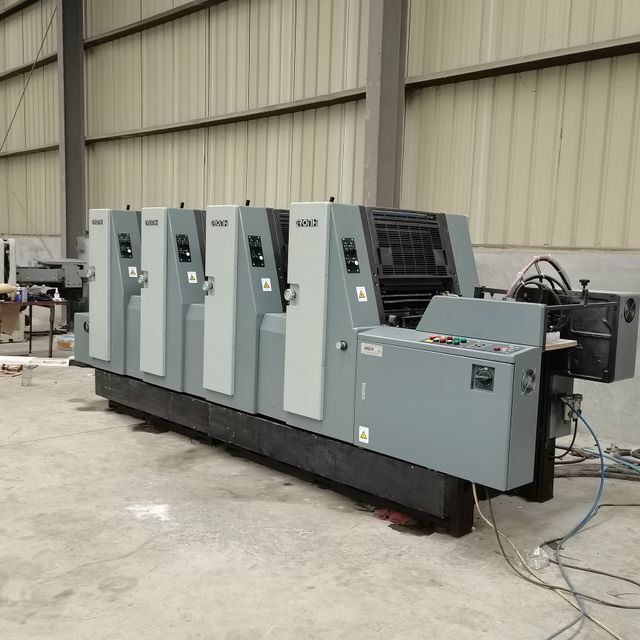

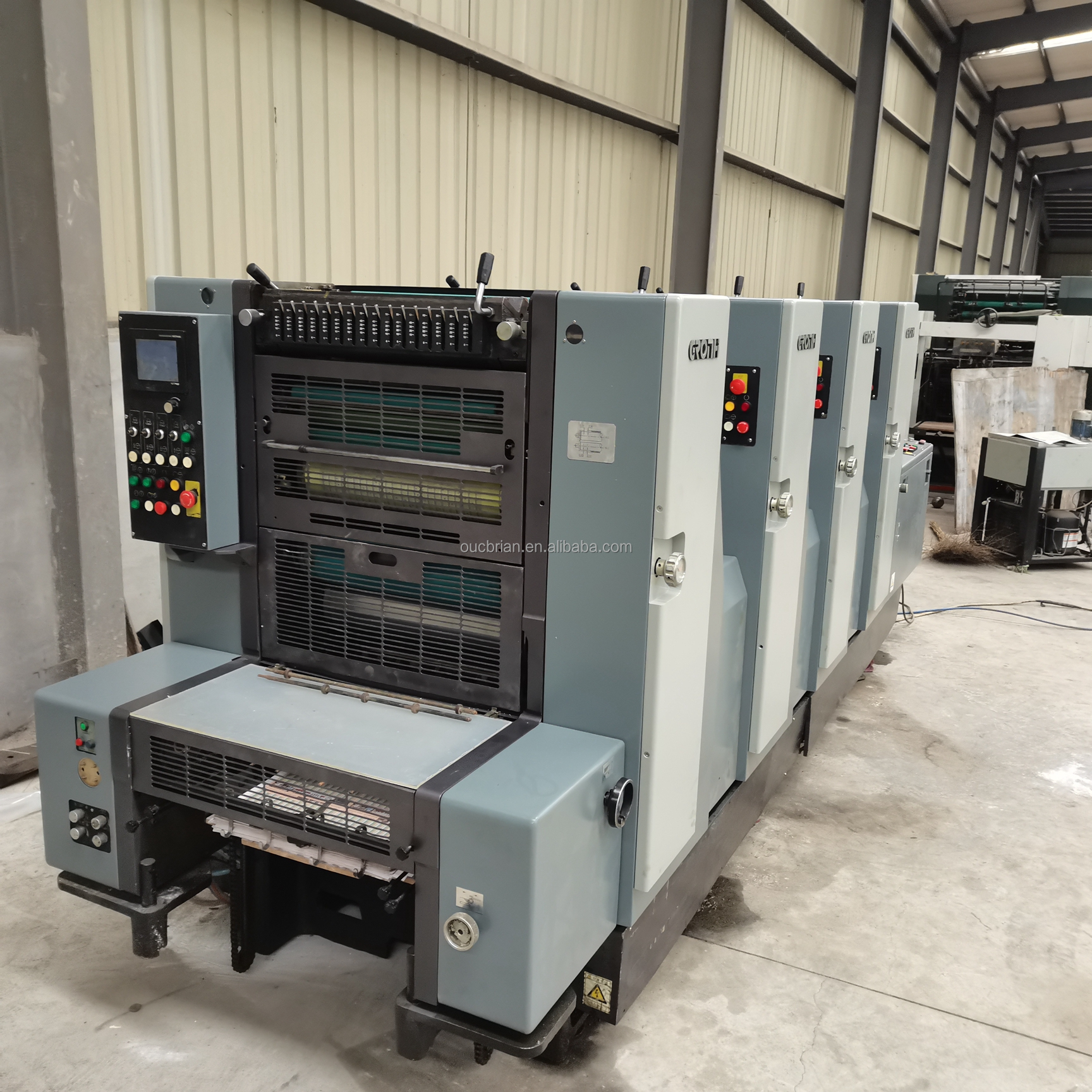

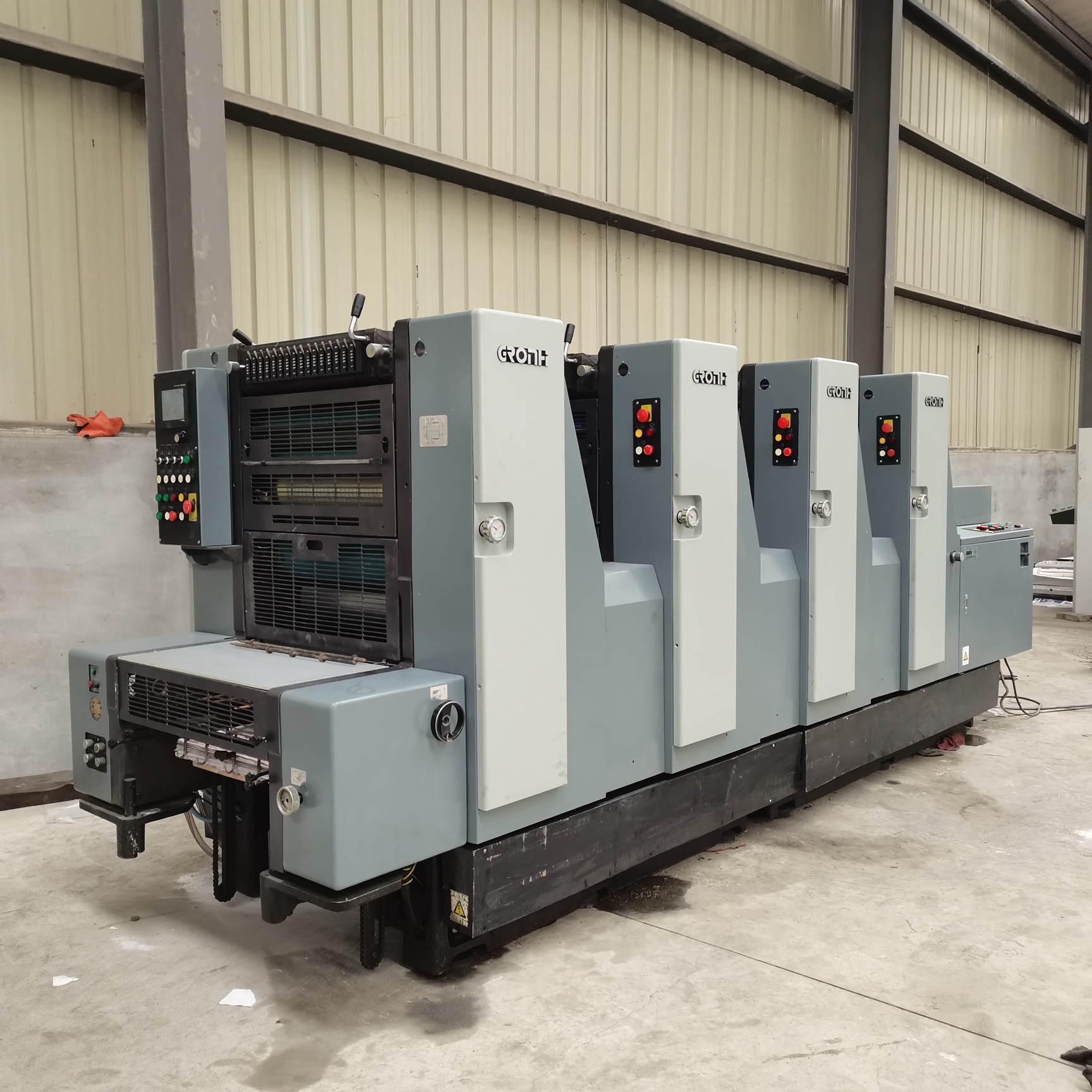

Heavy Duty 4 Color Offset Press for Magazines 560mm Flatbed Offset Press Type GTOV 52

Models: 470,520 560, 660,740 mm.
Video link:
https://www.youtube.com/watch?v=Ago0wAkbWiE
https://www.youtube.com/watch?v=UIALHN2eLFM

Model:	GH524	GH564
color unit number	4	4
maximum printing speed	12000 seconds/hour	12000 seconds/hour
Maximum paper size	520x375mm	560×400mm
minimum, paper size	100x148mm	148×100mm
paper thickness	0.04-0.4mm	0.04-0.4mm
maximum, printing area	510x360mm	540×380mm
board size	510x410x0.15mm	550×433×0.15mm
stack height	900mm	900mm
high delivery	420mm	420mm
ink roller	19	19
Damping roller	4	4
plate roller	5 (4 ink, 1 dampening)	5 (4 ink, 1 dampening)
plate damping	Alcohol	Alcohol
strength	12Kw	12kW
net weight	9000kg	9600kg
Machine size	4330x1820x1720mm	4420×2280×1720(mm)

advantage

Advantages of the Hans Gronhi heavy duty four-color offset press

1. They are new (made in 2006-2016)
2. They are very efficient:
1) Automatically upload four editions within 3 minutes
2) Speed 13000S/H,
3. Easy to operate:

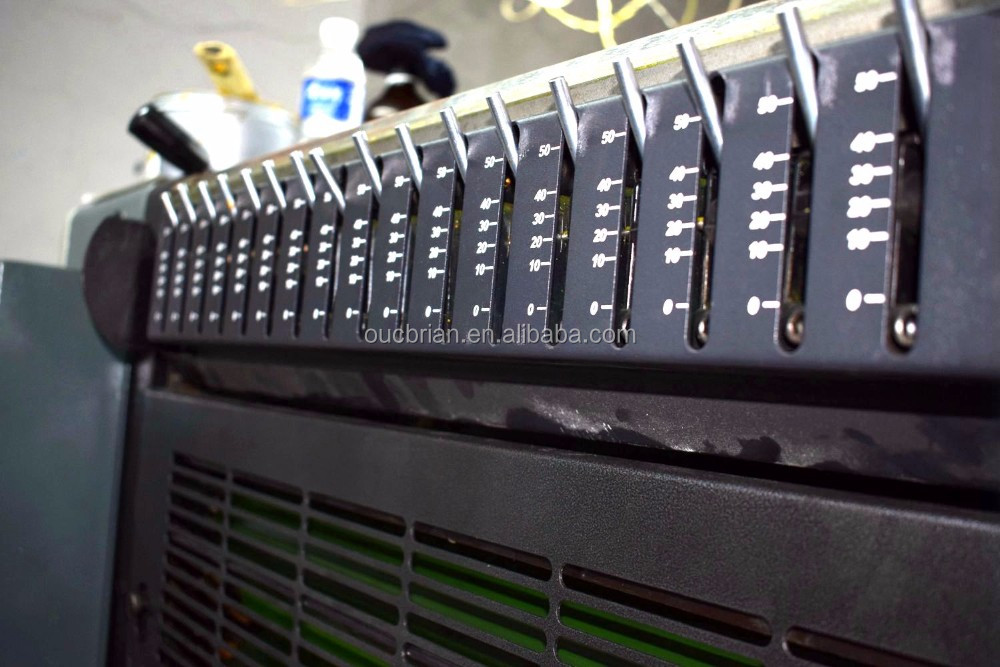

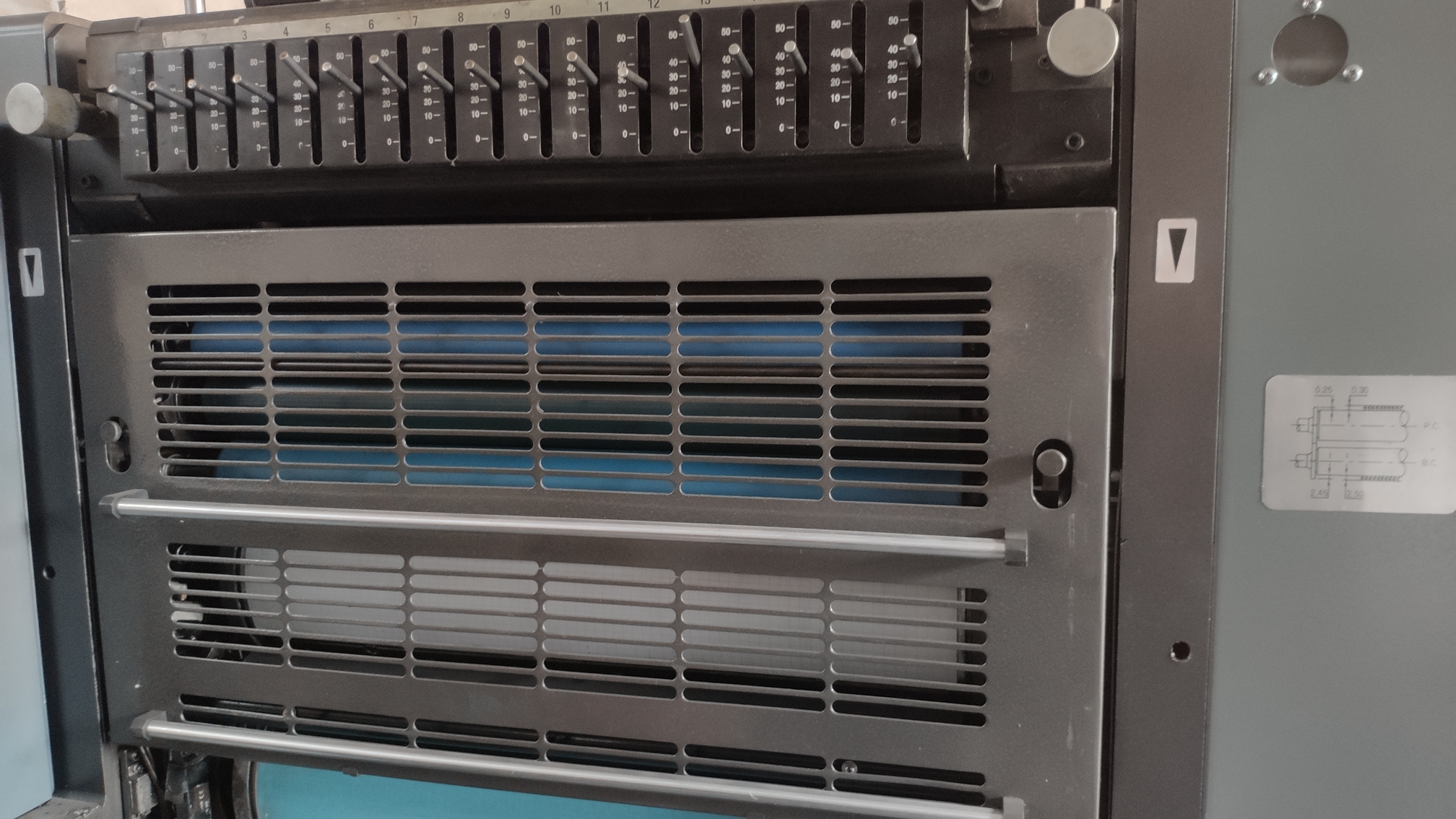

1) Computer controlled inking
2) Automatic registration adjustment
4. Most cost-effective
1) The price is much cheaper than the old Heidelberg machine
2) Spare parts are easily available and maintenance is cheap (there are still more than 3000 sets in China)

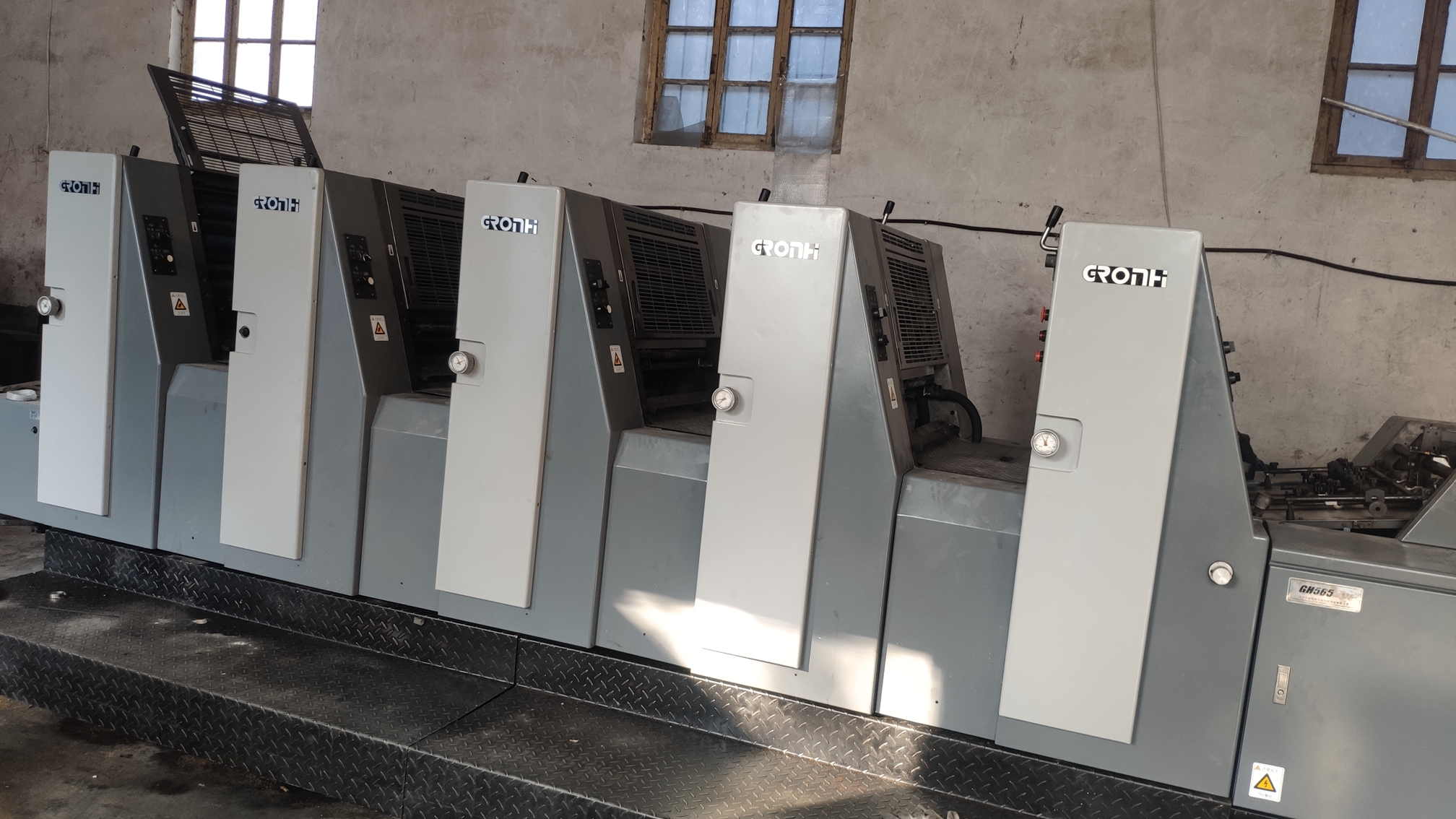

We have a number of machines in our inventory in sizes 520,560,660 that were built around 2011-12.

finished work

main featureHeavy-duty four-color offset press for magazines

1. The unit layout is adopted, one double-diameter cylinder and two single-diameter cylinders complete the transition. Intelligent and personalized touch screen control system.

2. Semi-automatic plate changing device

3. The non-stop touch screen control system realizes precise axial and circumferential adjustment, the axial direction is ±1mm, the circumference is ±0.5mm, and the step distance is 0.01mm. Printing accuracy, continuous and stable printing are guaranteed.

4. Alcohol dampening system, independent dampening roller drive motor, with speed-up function, uniform distribution of liquid film to reduce dpi increase, optional automatic detection device for alcohol concentration.

5. Pneumatic centralized control and execution mechanism can realize various functions such as automatic inking, dampening, clutch pressurization, and plate changing. It greatly reduces the size of the machine, reduces the power of the main motor and the transmission link of the medium, improves the execution speed of the transmission mechanism, and enhances the reliability and stability of the operation.

6. The super strong cast iron plate and the unique design of the base make its structure stable, durable and reliable. High precision outboard helical gear drive and low noise ensure satisfactory performance and extended service life.

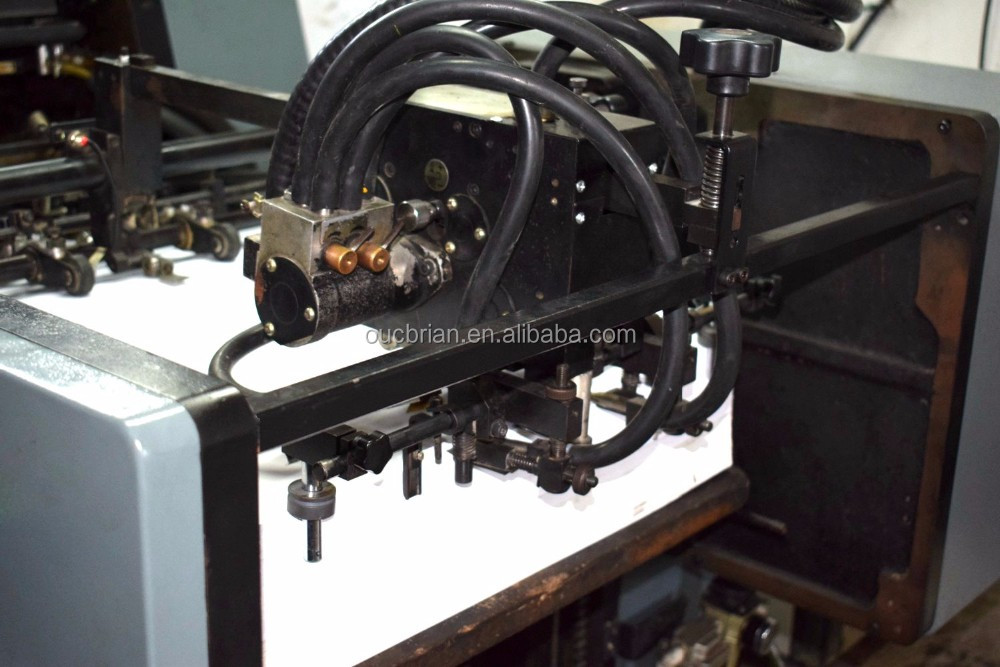

7. Continuous suction paper feeding and upper swing paper feeding device.

8. Automatic lubrication system
