Chain Hoist Block and Tackle 2 Ton 4000lb Winch Capacity Engine Lift Puller Fall

Supplier: Foshan Lomba Lifting Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Joe Cheng
Price: $22.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

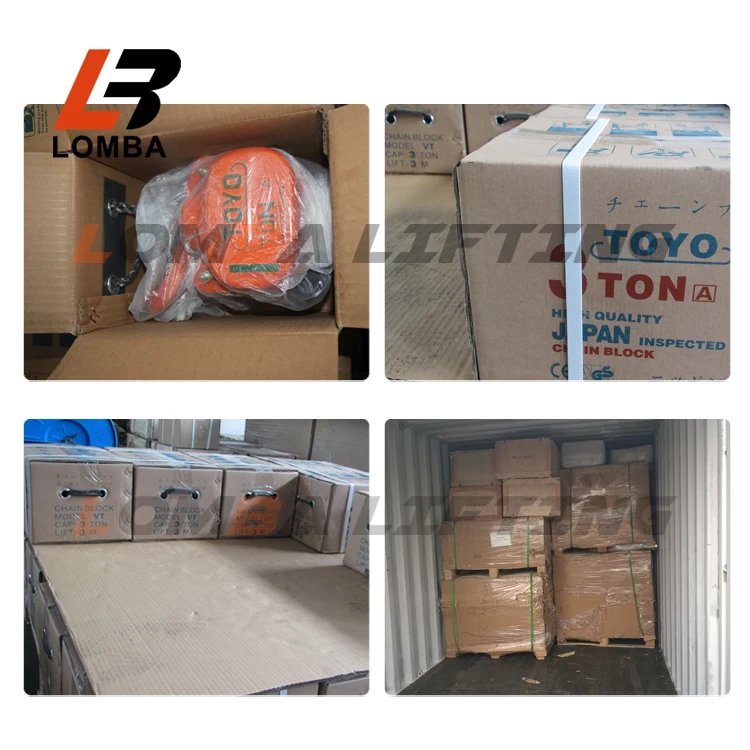

Package Type:	Standard Export Carton Box or Wooden Case;	Delivery Detail:	0 days after payment;
Single package size:	32X30X20 cm;	Chain painting:	Galvanzied or Black coating;
Load chain:	G80;	Selling Units:	Single item;
Single gross weight:	12 KG;	Brand:	OEM;
Lifting height:	1.5M-10M;	Place of Origin:	China (Mainland);
Capacity:	0.5-20t;	Color:	Black, Yellow, Orange, White, Blue;

Product Description

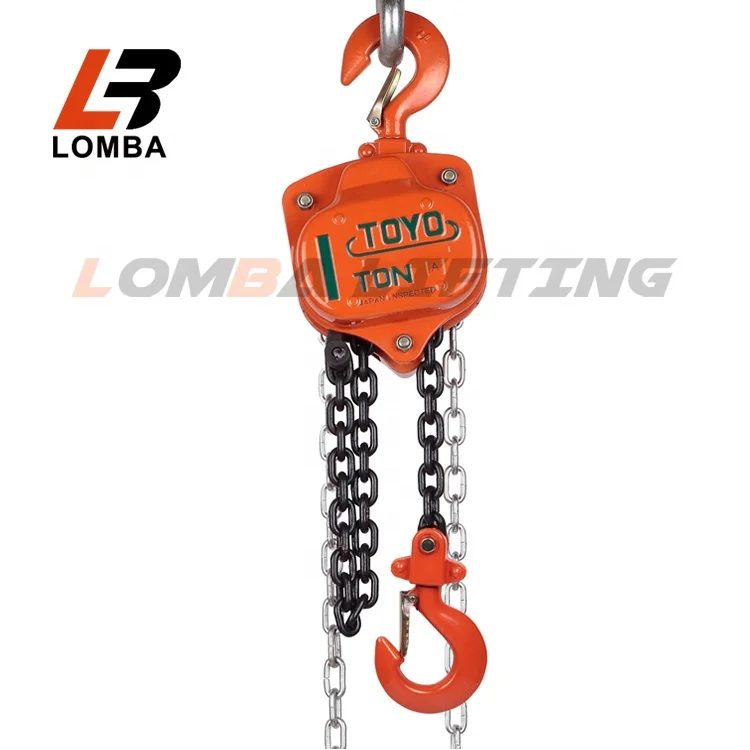

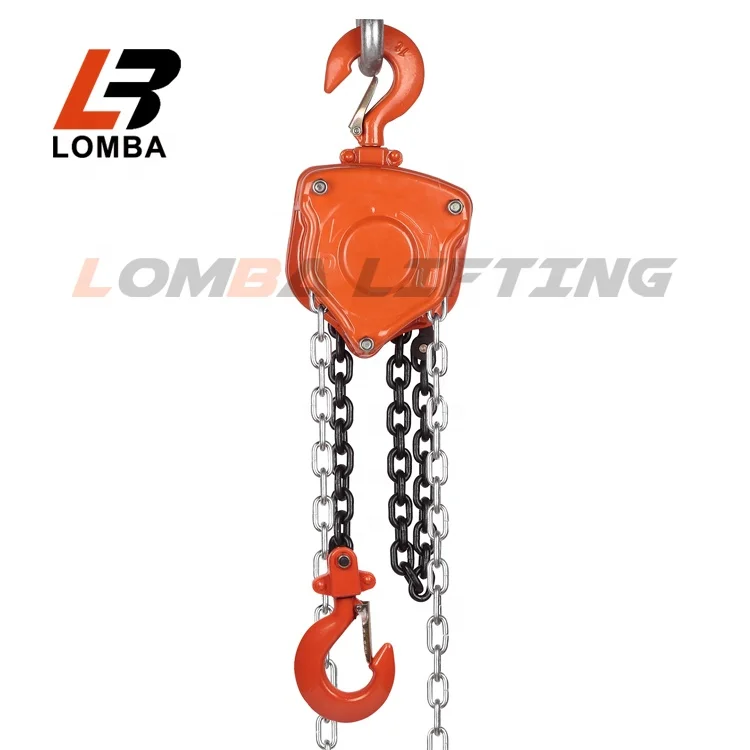

HSZ-A Manual Operated Chain Fall Engine Hoist Block And Tackle Lift

Technical Benefits

1. High-tech load chains are approved by DIN5684, one of the world’s most rigid standards. This is the special heat treated load chain of ISO Grade T (900N/mm²) whose tensile strength far surpasses ISO T class.

2. Double pawls supporting fail-safe brake mechanism

Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.

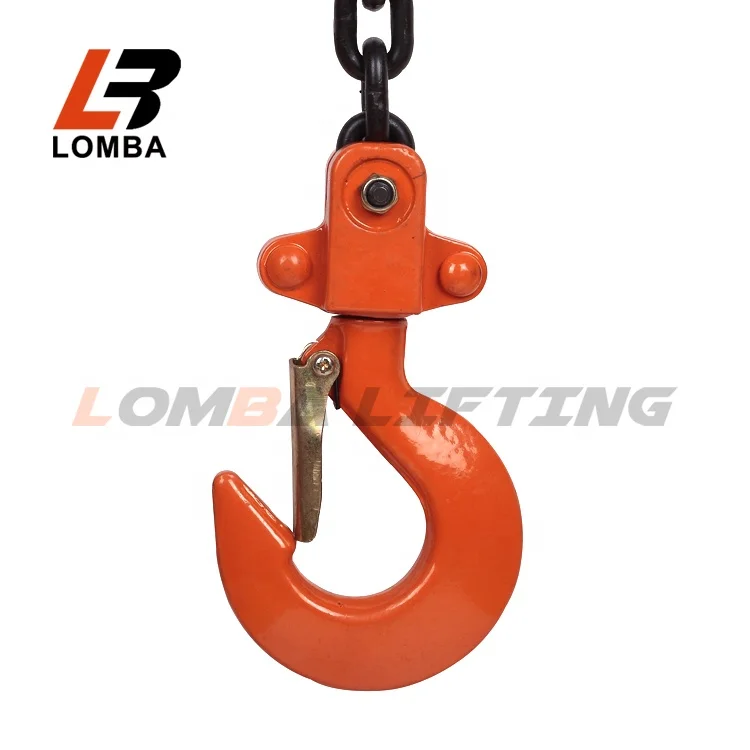

3. Bottom hook with thrust bearing

The thrust bearing enables the lifted load to be moved in any direction without subjecting it to stress.

4. Hooks of easier handling shape.

The opening of the hooks has been made wider for easier handling and working. However if by any chance the hook is overload there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.

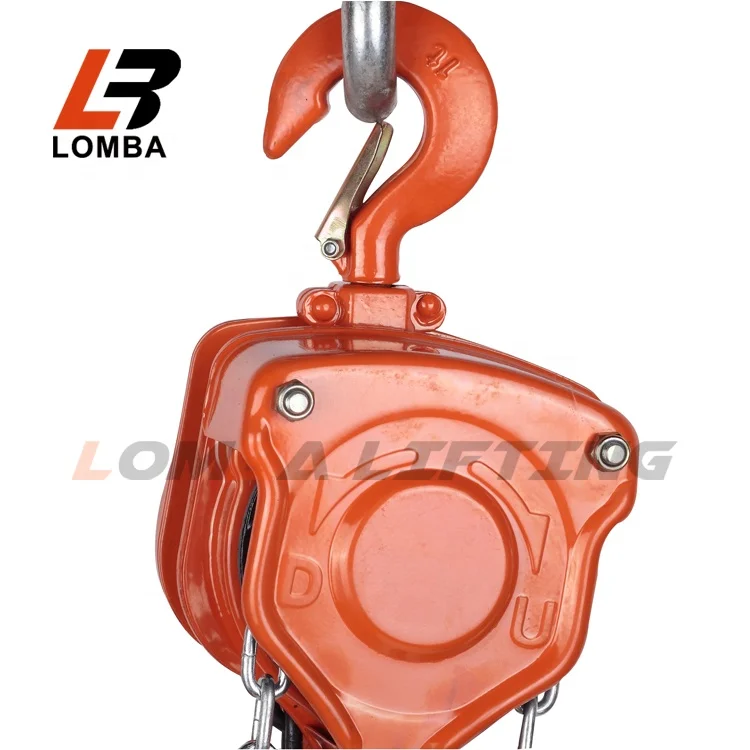

5. Tough framing

The tough gear case, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.

6. Rolled-edge hand wheel cover

This provides smooth operation of the hand chain when pulled sideways. Strong and least corrosive electrostatic powder painting.

7. Wet friction discs with longer life

8. Meets requirement of EN13157

9. Load sheave with sealed roller bearing

10. Anchor plate avoiding overlowering

11. Sealed roller bearing inside

Tested according to EN13157-2004

Product code	Capacity (t)	Standard lift (m)	Test load (t)	Pulling Efforts (kg)	Chain fall No.	Load chain Dia (mm)	Dimensions(mm)				Net Weight (kg)
Product code	Capacity (t)	Standard lift (m)	Test load (t)	Pulling Efforts (kg)	Chain fall No.	Load chain Dia (mm)	A	B	C	D	Net Weight (kg)
HSZ-A005	0.5	3.0	0.75	16	1	5.0	127	144	285	27	9.1
HSZ-A010	1.0	3.0	1.50	24	1	6.3	147	157	315	30	12.0
HSZ-A015	1.5	3.0	2.25	28	1	7.1	179	174	340	34	13.8
HSZ-A020	2.0	3.0	3.00	32	1	8.0	179	204	380	37	21.6
HSZ-A020A	2.0	3.0	3.00	30	2	6.3	147	174	380	37	20.4
HSZ-A030	3.0	3.0	4.50	32	2	7.1	179	206	475	43	21.0
HSZ-A050	5.0	3.0	6.30	36	2	9.0	179	263	635	46	37.5
HSZ-A100	10.0	3.0	12.50	38	4	9.0	179	367	760	67	59.5
HSZ-A150	15.0	5.0	18.80	38x2	6	9.0	207	754	850	84	125.0
HSZ-A200	20.0	5.0	25.00	38x2	8	9.0	207	873	870	96	145.6
