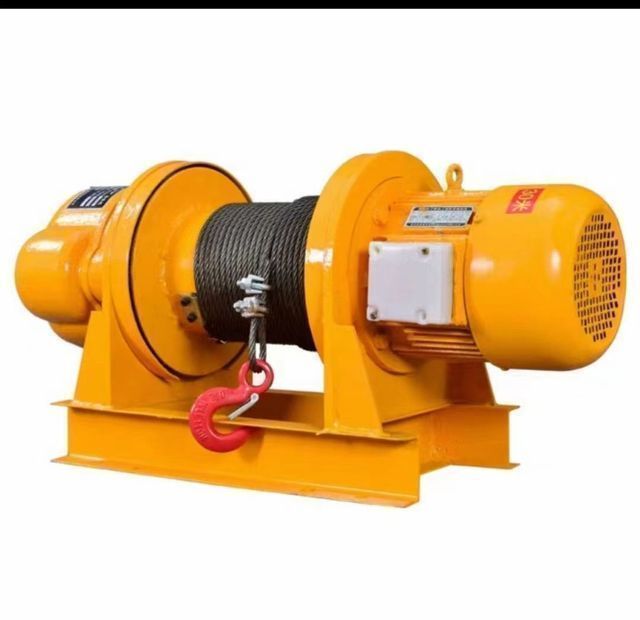

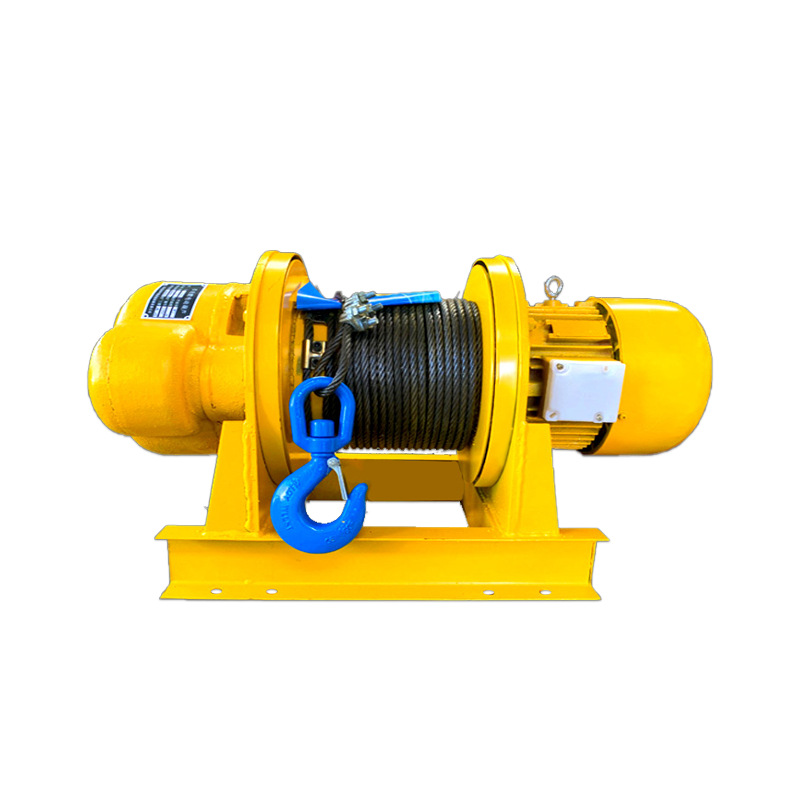

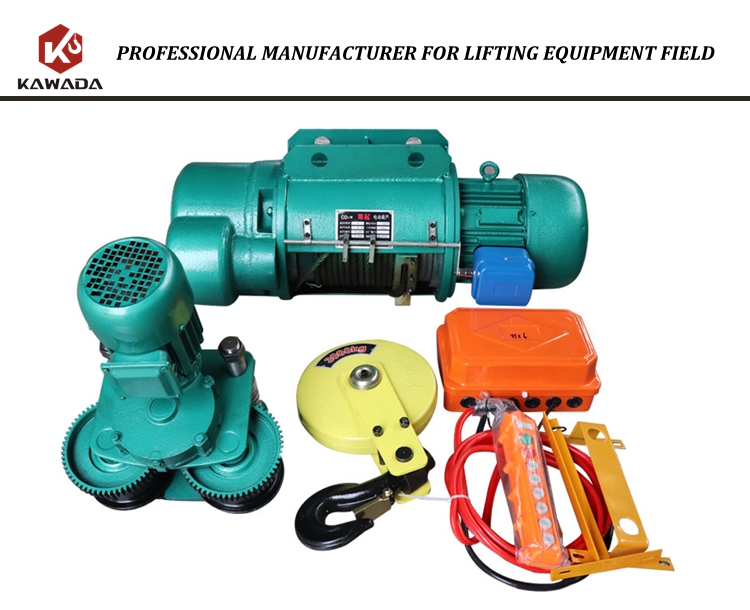

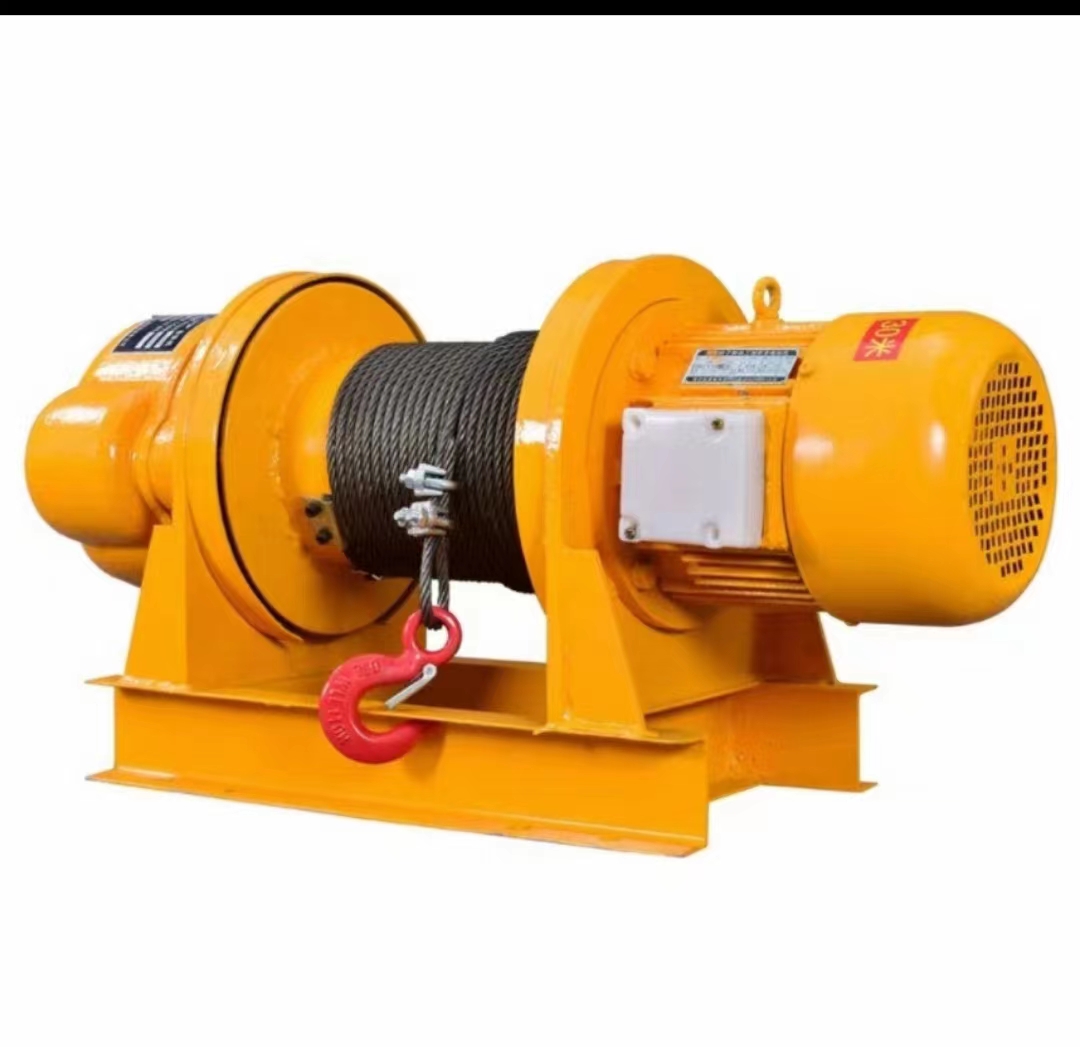

Wire rope electric hoist mute 5 tons 10 tons wire rope hoist 48v elevator 30 meters lift electric wire rope hoist
- 110.00 1 - 9 cartons
- 100.00 10 - 19 cartons
- 90.00 >=20 cartons
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | The outside of the carton is cloth 20'Container: 220pcs | MOQ: | 1 |
| usage: | Lifting equipment | boost speed: | 8 m/min |
| delivery time: | 3 days | Lifting height: | 6m/9m/15m/30m |
| Customization support: | OEM production | model: | CD/MD 0.25T 0.5T 1T 2T 3T 4T 5T |
| product name: | electric hoist | Sling Type: | wire rope |
| pack: | wooden box | Package preview: | |
| place of origin; place of origin: | Hebei | trademark: | custom logo |
| capacity: | According to customer requirements | Warranty: | 1 year |
| Voltage: | 380v | payment terms: | L/C, D/P, T/T |
parameter | ||||||||||||||||
Model | CD/MD 0.25 tons | CD/MD 0.5 tons | CD/MD 1 ton | CD/MD 2 tons | CD/MD 3 tons | CD/MD 4 tons | CD/MD 5 tons | |||||||||
Lifting capacity | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |||||||||
Lifting height (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |||||||||
Lifting speed(m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | |||||||||
running speed | 20(30) m/min | |||||||||||||||
Wire Rope Model | 6×19-3.6 | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-15-200 | |||||||||
I-beam track model | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |||||||||
Minimum radius of circular orbit (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |||||||||
lift motor | motor | ZD12-4 | ZD21-4 | ZD22-4 | ZD31-4 | ZD41-4 | ZD41-4 | ZD51-4 | ||||||||
ZDS0.2/1.5 | ZDS0.2/1.5 | ZDS0.4/3 | ZDS0.4/4.5 | ZDS0.8/7.5 | ZDS1.5/13 | |||||||||||
capacity | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 | |||||||||
Rotating speed | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | |||||||||
power supply | 3P 380V 50HZ | |||||||||||||||
parameter | ||||||||||||||||
Model | CD/MD 0.25 tons | CD/MD 0.5 tons | CD/MD 1 ton | CD/MD 2 tons | CD/MD 3 tons | CD/MD 4 tons | CD/MD 5 tons | |||||||||
Lifting capacity | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |||||||||
Lifting height (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |||||||||
Lifting speed(m/min) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | |||||||||
running speed | 20(30) m/min | |||||||||||||||
Wire Rope Model | 6×19-3.6 | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-15-200 | |||||||||
I-beam track model | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |||||||||
Minimum radius of circular orbit (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |||||||||
lift motor | motor | ZD12-4 | ZD21-4 | ZD22-4 | ZD31-4 | ZD41-4 | ZD41-4 | ZD51-4 | ||||||||
ZDS0.2/1.5 | ZDS0.2/1.5 | ZDS0.4/3 | ZDS0.4/4.5 | ZDS0.8/7.5 | ZDS1.5/13 | |||||||||||
capacity | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 | |||||||||
Rotating speed | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | |||||||||
power supply | 3P 380V 50HZ | |||||||||||||||
