Hot sale high speed HHBB 0.5 ton to 80 ton electric wire rope hoist with hook and trolley low headroom electric chain hoist

Supplier: Shandong Jndo Hoisting Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy su
Price: $328.00 / 1 - 49 sets
$195.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

capacity:	custom made	Packaging Details:	wooden box
Lifting height:	custom made	Customization support:	OEM production
Certificate:	International Organization for Standardization	chain:	FEC G80 chain
type:	Lifting equipment	power supply:	electrical
Supply capacity:	92428711 sets per month	boost speed:	6.8 m/min
Origin:	Hebei china	Package preview:
Warranty:	1 year	port:	Qingdao Tianjin Shanghai Guangzhou Ningbo Port
model:	HHBB	color:	yellow, customized
Processing:	accept	payment terms:	L/C, D/P, D/P, T/T
Voltage:	380v/220v/customized, 220V/50HZ, other, 110V-240V, 380v	product name:	Electric chain hoist

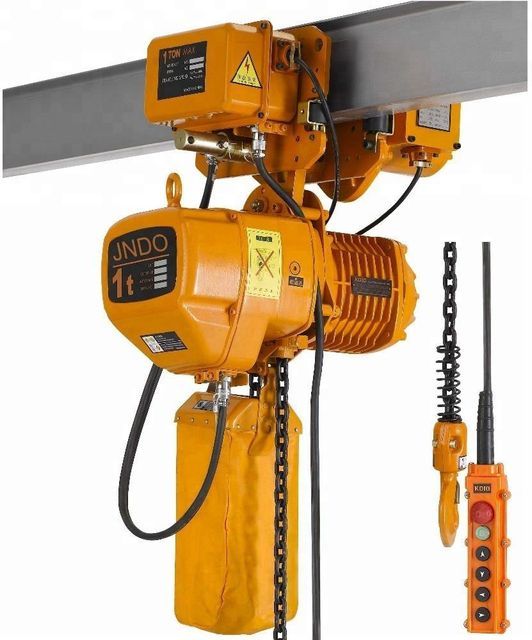

HHBB 0.5 ton to 80 ton trolley low headroom electric chain hoist with hook

Professional special lifting equipment

Electric chain hoist

HHBB remote control 1 ton electric chain hoist is the lightest hoist in the HHBB series. We have different optional configurations for you to choose from: fixed, mobile, low clearance, single speed, two speed, etc. The standard voltage is 380V 50Hz three-phase, but the voltage is available from 220V~440V, 60Hz version is also available, we provide customers with 1-phase motors.

Specification

HHBB hoist with hook
capacity link	Lifting speed(m/min)	Power(KW)	Chain Specifications
0.5 ton-1	6.8	0.75	6.3
1 ton-1	6.8	1.5	7.1
2 tons-1	6.6	3.0	10.0
2 tons-2	3.4	1.5	7.1
3 tons-1	5.4	3.0	11.2
3 tons -2	3.3	3.0	10.0
3 tons -3	2.3	1.5	7.1
5 tons-2	2.7	3.0	11.2
7.5 tons-3	1.8	3.0	11.2
10 tons-4	2.7	3.0*2	11.2
15 tons-6	1.8	3.0*2	11.2
20 tons-8	1.4	3.0*2	11.2
25 tons-10	1.0	3.0*2	11.2
30 tons-12	0.9	3.0*2	11.2

HHBB electric trolley hoist
capacity link	Lifting speed(m/min)	Working speed(m/min)	Chain Specifications
0.5 ton-1	6.8	11/1 21/1	6.3
1 ton-1	6.8	11/1 21/1	7.1
2 tons-1	6.6	11/1 21/1	10.0
2 tons-2	3.4	11/1 21/1	7.1
3 tons-1	5.4	11/1 21/1	11.2
3 tons -2	3.3	11/1 21/1	10.0
3 tons -3	2.3	11/1 21/1	7.1
5 tons-2	2.7	11/1 21/1	11.2
7.5 tons-3	1.8	11/1 21/1	11.2
10 tons-4	2.7	11/1 21/1	11.2
15 tons-6	1.8	11/1 21/1	11.2
20 tons-8	1.4	11/1 21/1	11.2
25 tons-10	1.0	11/1 21/1	11.2

HHBB Hoist Low Headroom
capacity link	Lifting speed(m/min)	Power(KW)	Chain Specifications
1 ton-1	6.8	1.5	7.1
2 tons-1	6.6	3.0	10.0
2 tons-2	3.4	1.5	7.1
3 tons-1	5.4	3.0	11.2
3 tons -2	3.3	3.0	10.0
5 tons-2	2.7	3.0	11.2
7.5 tons-3	1.8	3.0	11.2
10 tons-4	2.7	3.0*2	11.2

Product Description

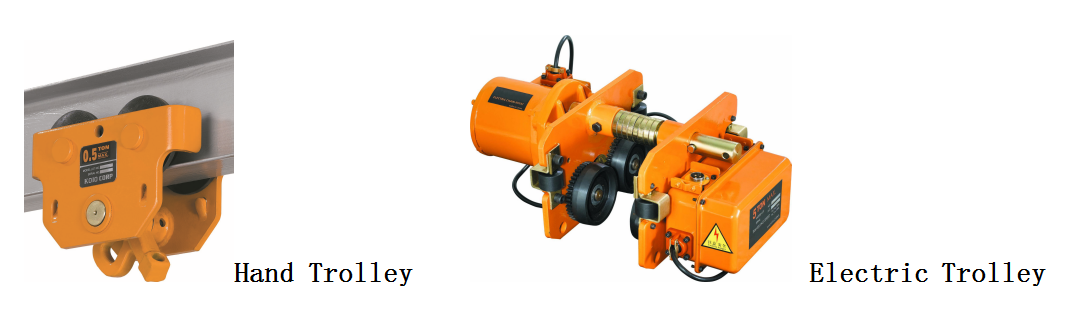

trolley

Electric trolleys and manual trolleys are both convenient tools to assist the movement of the hoist along the beam rail. The electric trolley has two speed settings. The fast mode is 21m/min, and the slow mode is 11m/min, which can be adjusted to meet different requirements.

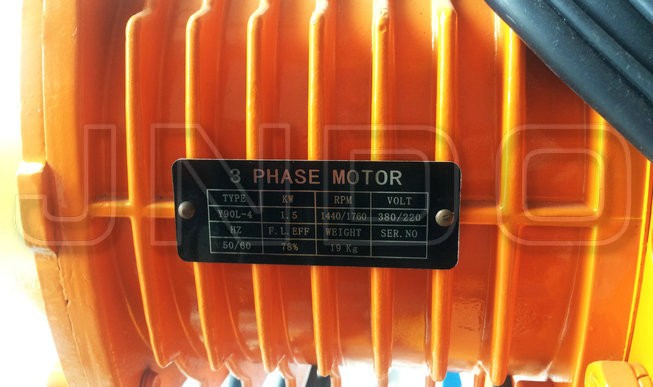

engine

When working at high speed, it adopts double gear transmission and helical gear transmission to make the hoist run smoothly and with low noise. The magnetic generator is the latest design, which can brake immediately when the power is cut off. The heat sink is specially designed to ensure fast heat dissipation.

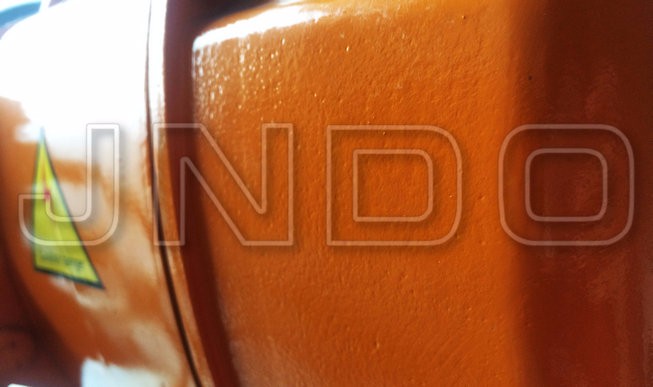

shell

The shell is made of lightweight aluminum alloy, which is light but strong. Fully sealed housing keeps the motor away from dust and water.

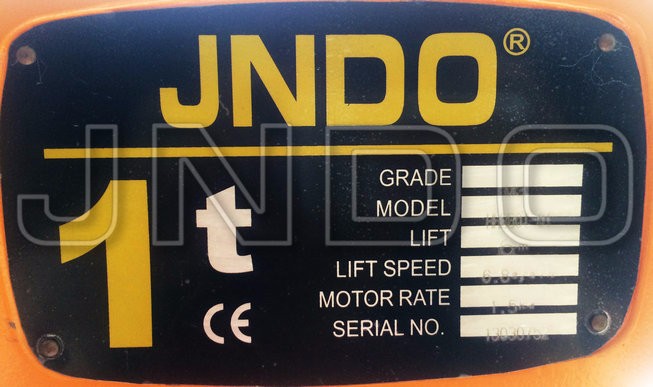

nameplate

Made of steel or aluminum, it can be designed according to customer requirements. The rivets are in place and will never fall off.

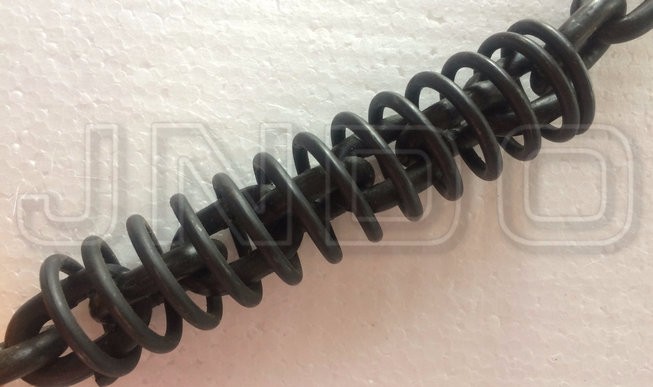

chain and spring

The chain adopts imported FEC80 super heat-treated alloy steel chain. It can be used safely in harsh environments such as rainwater, seawater, and chemicals. The springs are made of tempered spring steel, strong and highly flexible, shock-absorbing.

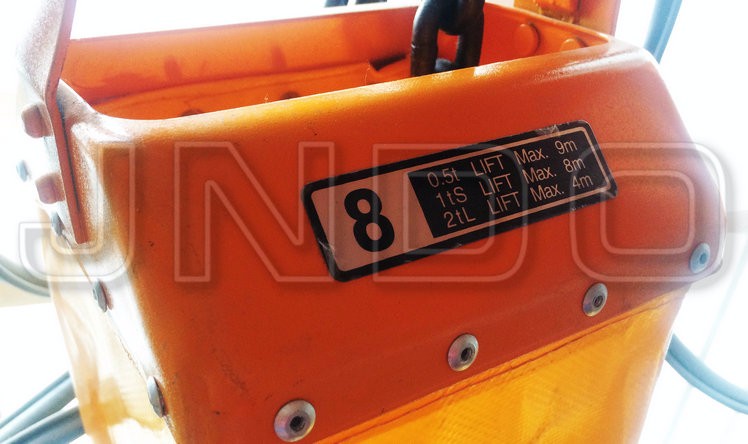

Chain bag

Made of steel and high-quality canvas, it is highly abrasion-resistant, grease-resistant, and strong enough to withstand heavy chains. Lightweight, beautiful and durable.

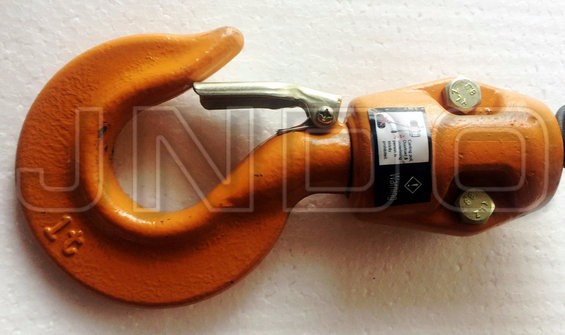

hook

The hooks are hot forged with perfect strength and not easy to break. 360 degree swivel and safety tongue. Even if the hook is damaged due to overload, it is only plastically deformed and never brittle.

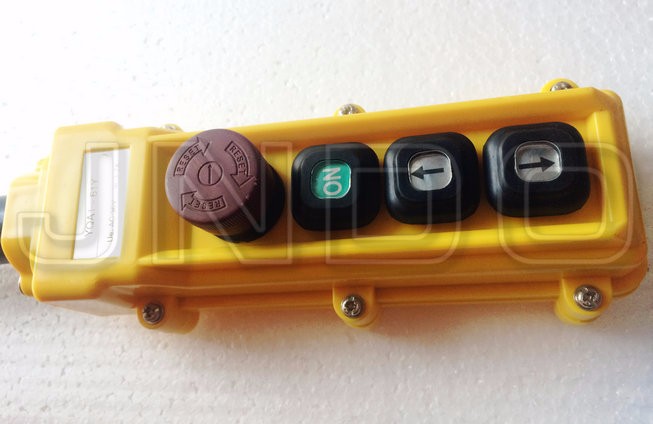

switch handle

Comfortable switch handle with emergency stop button to protect yourself at all times. Different switch handles can be selected to control the trolley and hoist at the same time.
