20000 LBS DC 12V 24V Heavy Duty Electric Winch

Click here to contact
Product details
Warranty:1 yearbrand:JNDO
usage:Wire drawing machinePackaging Details:20000 LBS DC 12V 24V heavy duty electric winch in carton or wooden case, on pallet, we can also pack as buyer's request
weight:(Excluding cables) Net Weight: 52kg Gross Weight: 54kgport:Qingdao
Supply capacity:200 sets per monthapplication:ATV/UTV
Rated Pull Wire:20,000 lb (9090 kg) single lineFunction:pull cart
place of origin; place of origin:Shandong Chinacapacity:20000IBS
Certification:Chief ExecutiveEnergy source:electrical
Gear ratio:375:1color:custom made
payment terms:L/C,Western Union,T/Tmodel:JNDO
motor:Permanent magnets

20000 LBS DC 12V 24V Heavy Duty Electric Winch







Product Description



The 20000lb off-road vehicle winch has a single rope pulling force of up to 9.1 tons. Can be used on heavy vehicles such as vans. This product is the first of our company. Used to be the most powerful tool

strength. Currently, it is still quite popular with its good performance.

If you need a product with high pulling force, this product will definitely meet your requirements.

The fairlead for this product is integrated with the winch. Therefore, it saves installation time. For products with high pulling force, the design makes the product safer and more user-friendly.

Recommended optional accessories

1. Wireless remote control

2. Gloves

3. Crane





Product parameters



Rated rope tension

20000LBS(9090kg), single line

motor

7.3hp/5.5kw 12V, series winding motor

control

Wired Remote Switch, 12′ (3.7m) Cable

gear train

3-stage planetary gear

Gear reduction ratio

375:1

clutch

Flexible operation and waterproof

braking action

Automatic drum brake

Drum size (diameter x L)

Φ99mm×201.5mm

fairlead

4-way roller fairlead

remote control

include

coating

dark grey powder coat

battery recommendation

Minimum 650CCA

Cable (Diameter×L)

Φ13mm×36m

battery cable

Size 2, 72 in (183 mm)

mounting bolts

254mm×114.3mm(10"×4.5"), 254mm×19.5mm

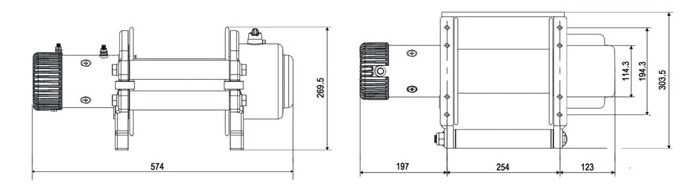

Dimensions (L×W×H)

570mm×310mm×280mm

Package

Packing a total of two boxes, a box of winches, a box of cables

Cable weight

Net Weight: 28kg Gross Weight: 29.5kg

weight

(Excluding cables) Net Weight: 52kg Gross Weight: 54kg

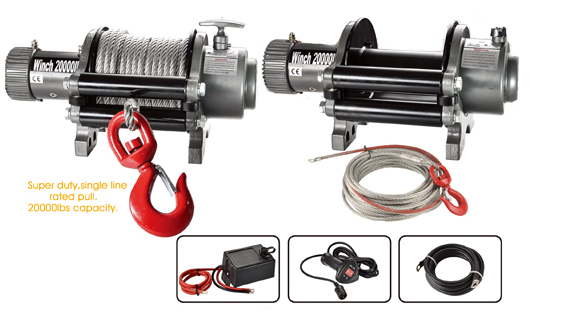

photo show
