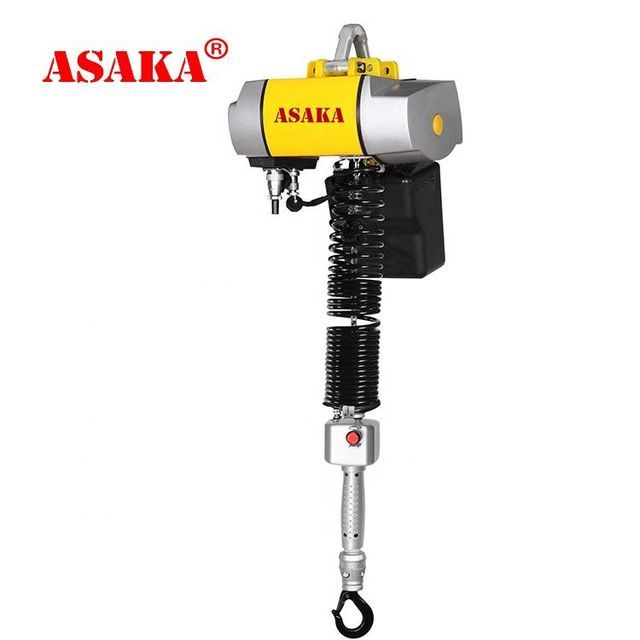

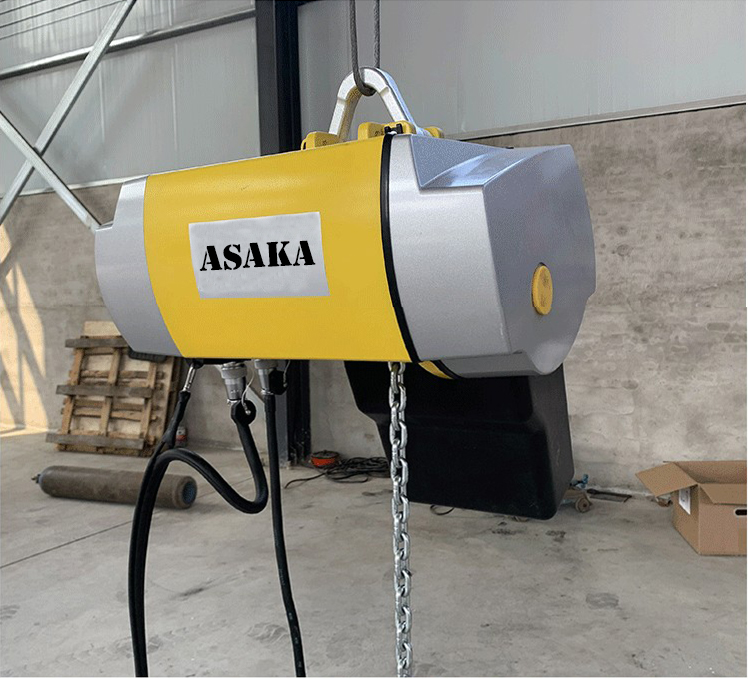

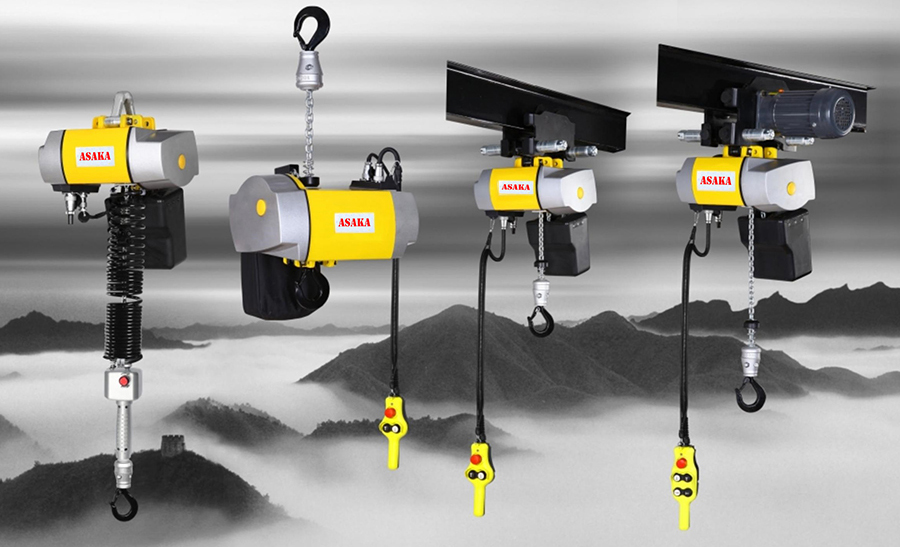

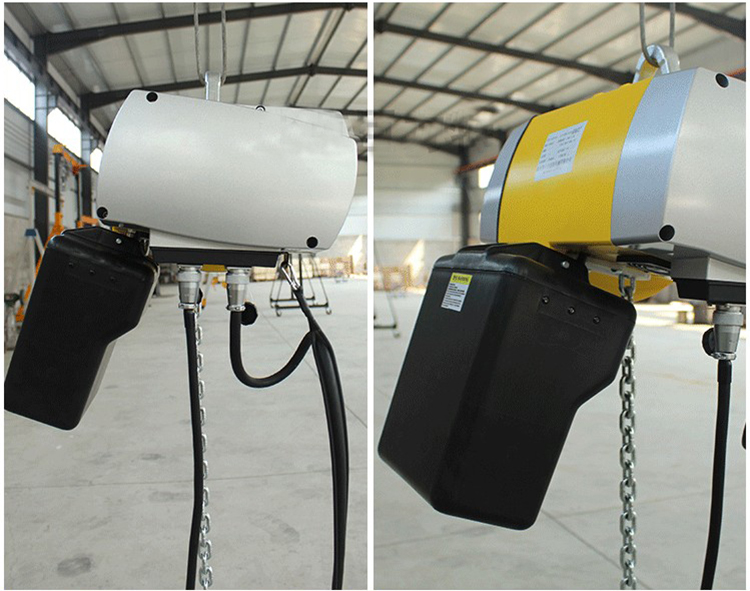

Hot Product Electric Chain Hoist 125KG Mini Electric Chain Hoist With Best Quality
-
Supplier: Zhi Xing Machinery (Hangzhou) Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Betty Zhou -
Price: $1400.00 / 1 - 19 pieces
$1300.00 / 20 - 99 pieces
$1199.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| Supply capacity: | 2000 pieces per month | Voltage: | 220V/Hz |
| boost speed: | Single speed/double speed, 5/20 m/min | chain: | German RUD chain |
| power supply: | 220V/1 phase | Certification: | CE/TUV |
| product name: | Electric chain hoist | color: | Custom colors are acceptable |
| Packaging Details: | high quality carton | port: | Ningbo or Shanghai or |
| current: | 2.5A | Standard lift height: | 2-6 meters |
| control method: | hand controller | Origin: | Zhejiang, China |
| Package preview: | strength: | 0.7 kW | |
| Customization support: | Processing | payment terms: | wire transfer |
| model: | DC heart failure | weight: | 23 kg |
Professional EditionDuct description
main feature:
Motor: IntegratedThree-phase two-speedAsynchronous motor hoist housing:All aluminum alloy die casting, CNC body processing gearbox: grinding and processing hard-toothed helical gear, gearbox oil stick
Motor: IntegratedThree-phase two-speedAsynchronous motor hoist housing:All aluminum alloy die casting, CNC body processing gearbox: grinding and processing hard-toothed helical gear, gearbox oil stick
Control board: Board control, DC5V control voltage, optional DC24V control with phase sequence protection Handset:GG handle imported from Italychain: Import chainSprocket:Alloy steel sprocketLimit switch: CHERRY German cherry waterproof travel switchPlug: Weipu aviation plug is used for power supply, gold-plated crystal head is used for control, and alloy protection
Product Details

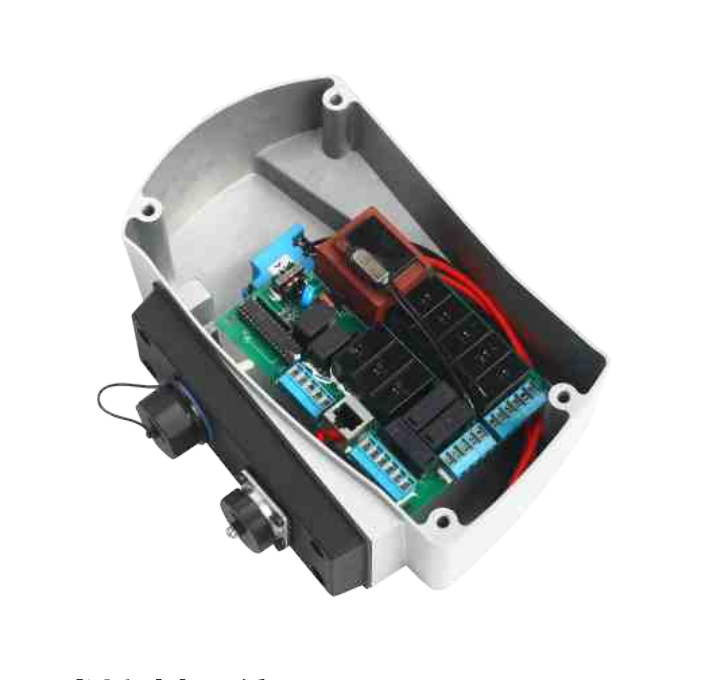

5V electric control system
KACC electronic control system adopts wear-free semiconductor technology, which takes more space and weight than mechanical phase.

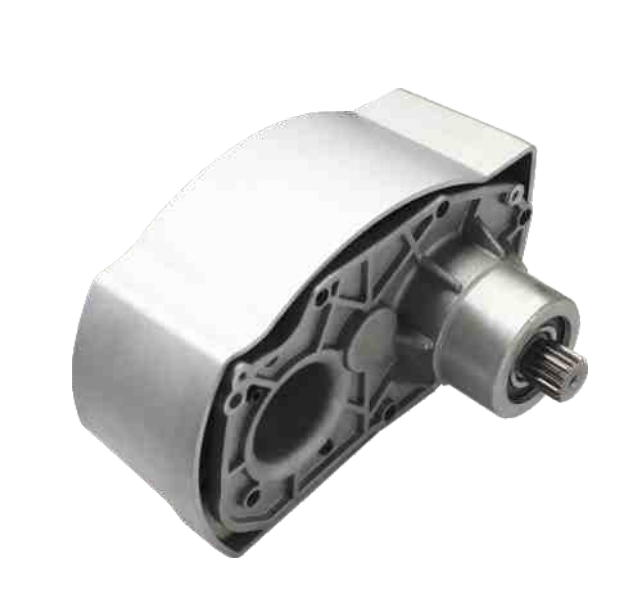

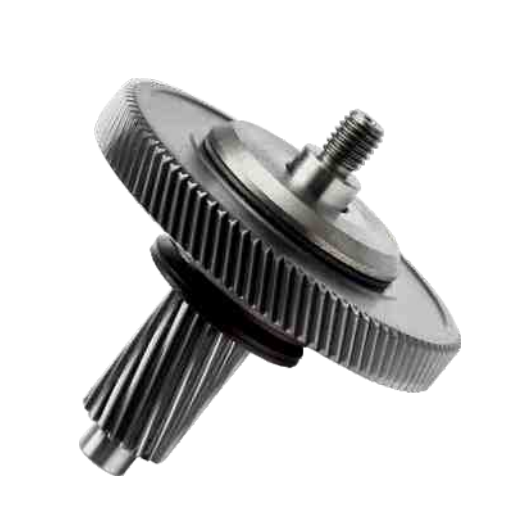

motor and gearbox.
The standardized design of the motor and gearbox provides a wider range of lifting speeds, all motors adopt a squirrel-cage structure, and are equipped with two-pole and eight-pole coils, and the gearbox is compressed separately. This design makes installation and maintenance easy, and the gearbox self-lubrication makes the gearbox wheels and bearings run more smoothly.

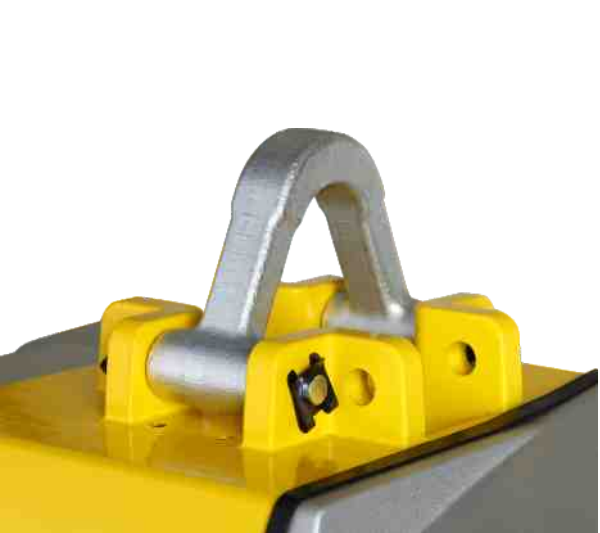

Hanging ears.
The movable lug design facilitates the installation and movement of the hoist, and at the same time ensures the smooth operation of the hoist.
fixed in one direction. If lugs are not available, the hoist can be secured in other ways. This reduces the headroom of the sweet grass and increases the lifting height.
fixed in one direction. If lugs are not available, the hoist can be secured in other ways. This reduces the headroom of the sweet grass and increases the lifting height.

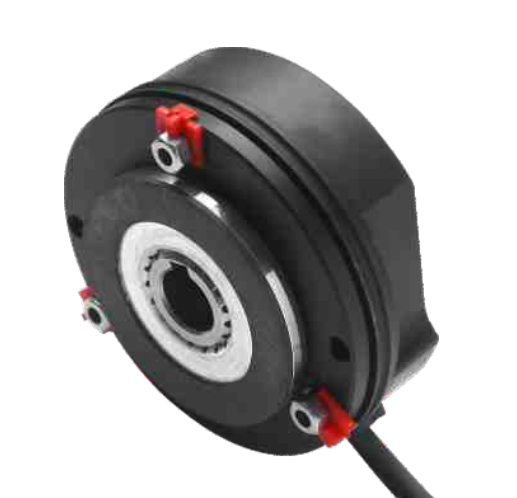

brake.
The brake pads are made of non-hazardous asbestos material, so that the brake system has a long service life. (Brake pads can meet the braking requirements of more than one million times after the first adjustment) The brake force can be adjusted to meet the needs of different working conditions.
Friction protection device.
The friction lifting overload protection plate provides reliable protection for the operation of the reed. Special lining design greatly reduces wear. The damage rate keeps the entire load at a high level of safety. And easy to adjust points from the outside.

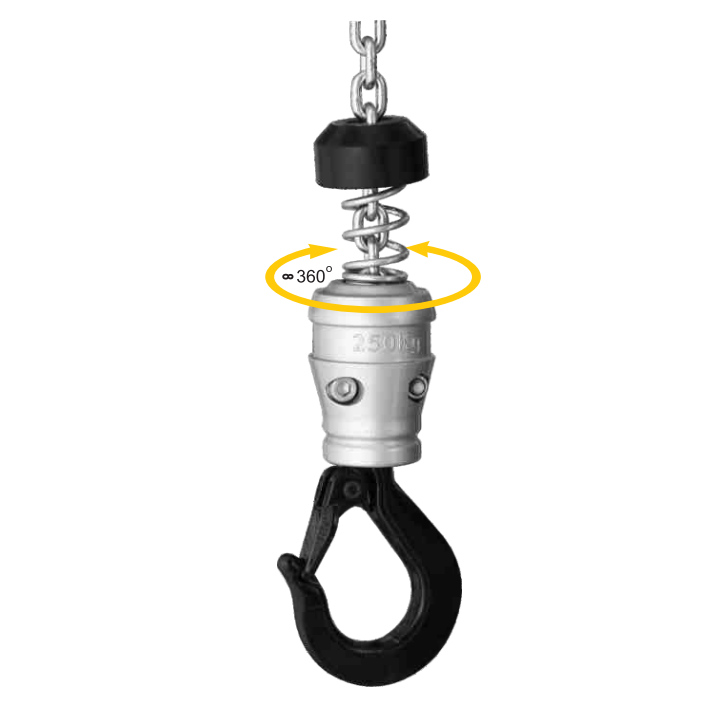

swivel hook.
The sling is designed to swivel so that the helper can easily lift the load and easily control the direction of the hook.

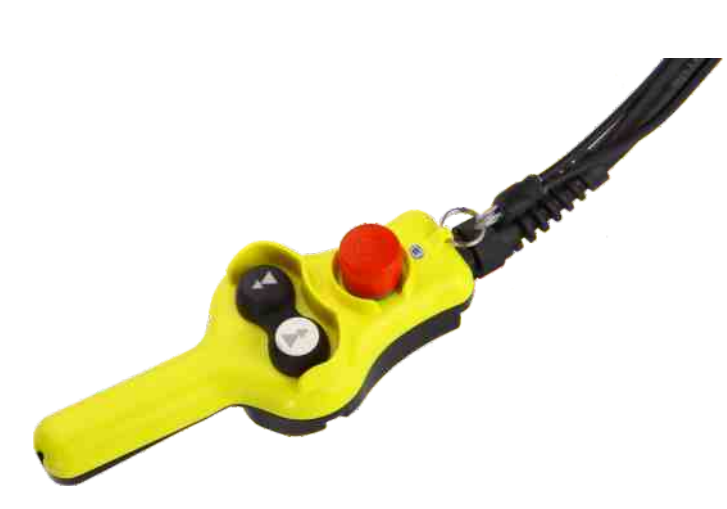

flashlight door.
The flashlight door is ergonomically designed, and the chain hoist flashlight door is equipped with two buttons and an emergency stop button. The flashlight connection uses an easy-to-install plug and socket standard assembly with a self-locking assembly.

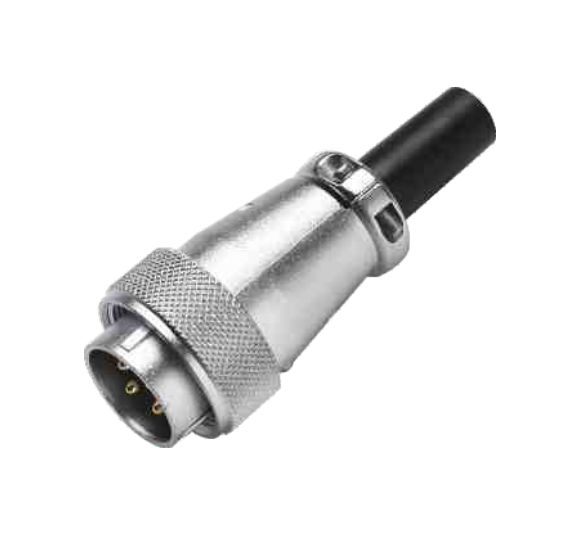

Connection plug and socket standard components.
The connection between the power supply and the control unit adopts standard plug and socket components, which makes the connection more firm, greatly simplifies the installation work, and saves time and effort. No wiring errors. In the future maintenance work, it is also mentioned to provide safe and convenient conditions.

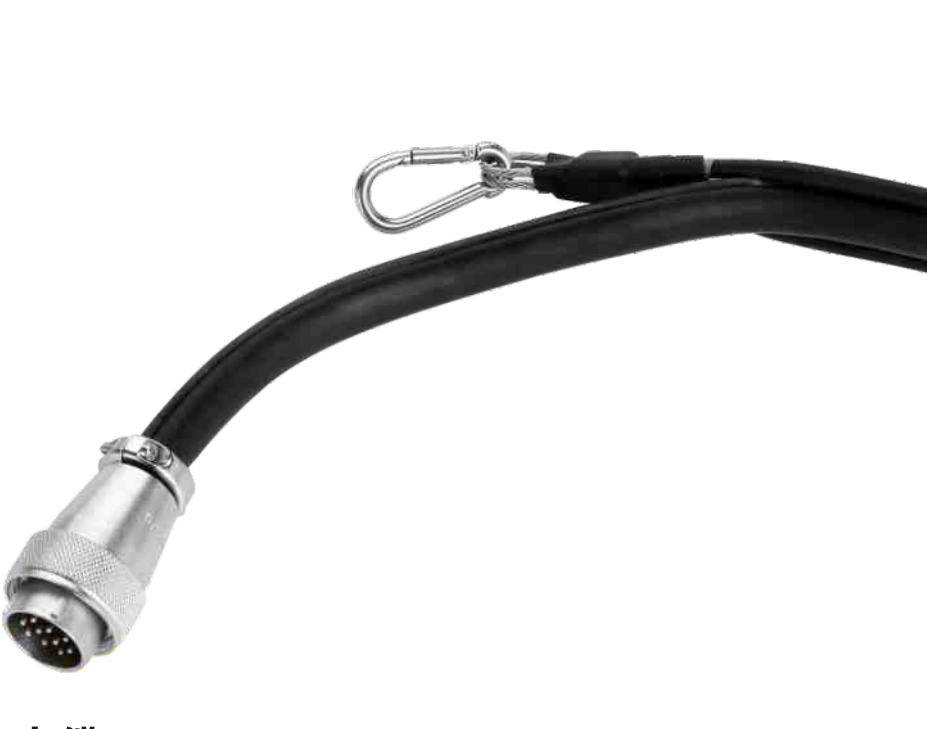

cable.
The special structural design makes the 8 cores evenly stressed and more flexible. The cable core is also equipped with two-way steel wire rope tensile load. Thanks to the excellent performance of the PVC sheath, it has higher tensile strength and tear strength than ordinary rubber materials, while maintaining softness. The minimum bending radius is: 10xD. 304 stainless steel quick buckle ensures connection strength.

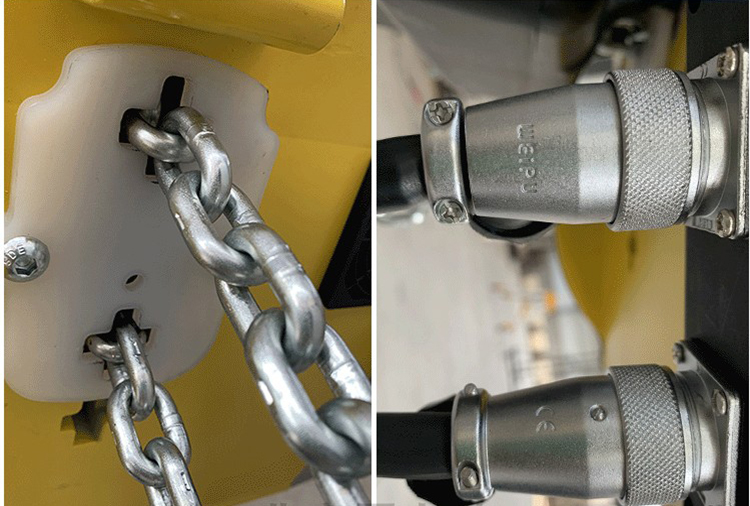

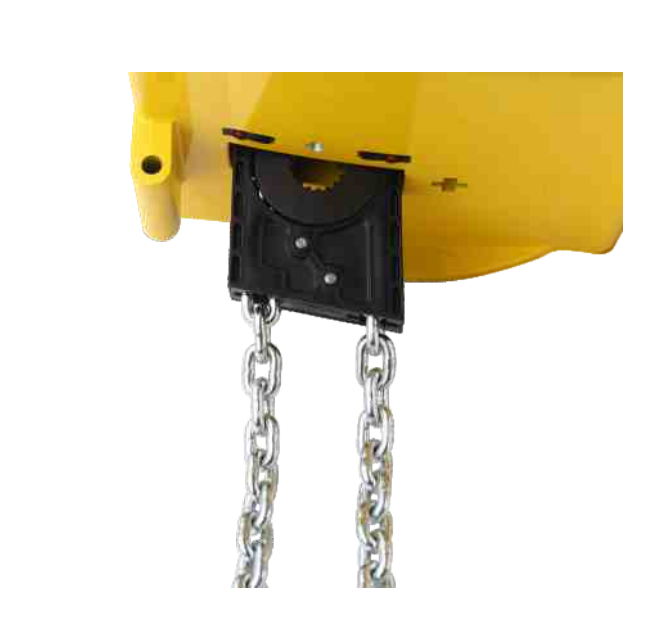

chain system.
The feeding system consists of high-alloy strips, guides and guide chains. Both chain guides and guide chains are standardized and easy to replace. Save time and money.

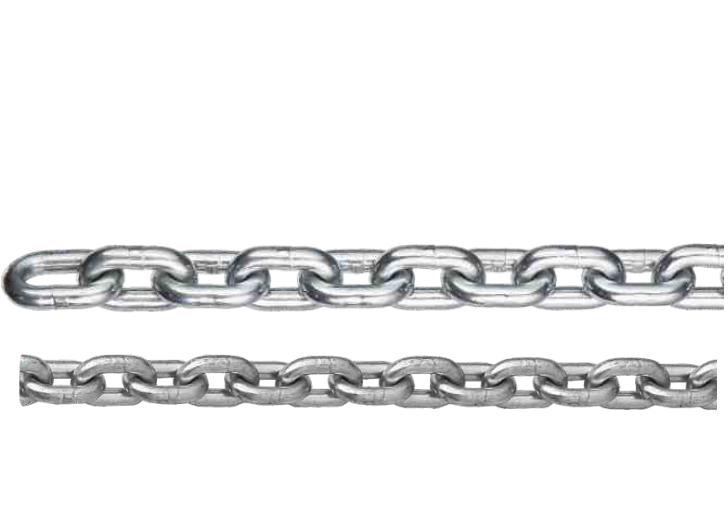

High strength alloy chain.
The special alloy plated high-kill chain makes the strip have a longer lifespan and is safer and more reliable.
There are fast and slow speeds.
Every DCH electric chain hoist is equipped with two speeds. The speed ratio of DCH0125, DCH025, DCH050, and DCH100 is 1:4, and the speed of DCH0125 can reach 20M/min.

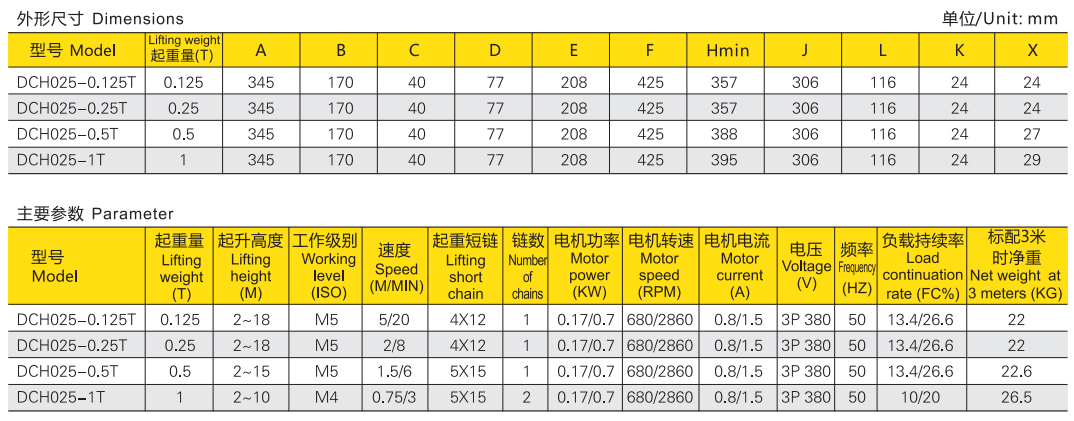

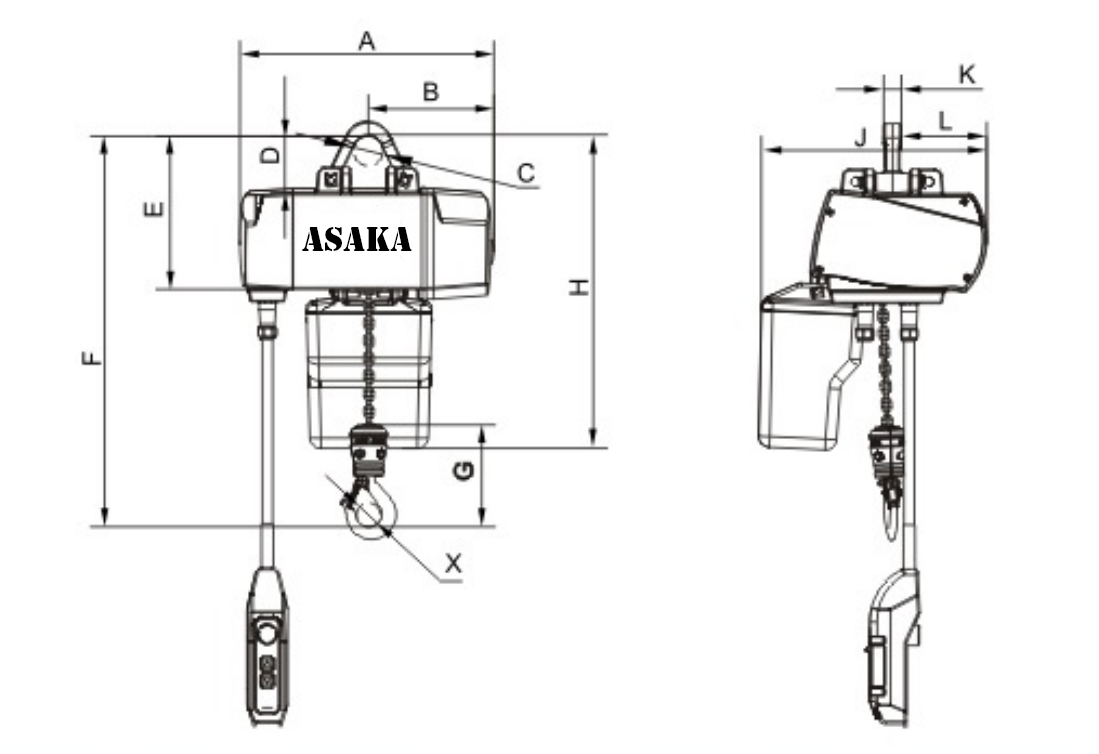

Product parameters
Zhixing Machinery Co., Ltd. focuses on professional lifting solutions. The main products are manual chain hoists, lever hoists, slings, hydraulic jacks, rigging and so on. We are located in Hangzhou City, Zhejiang Province, China, with convenient transportation access. All of our products comply with international quality standards. We will provide inspection reports to customers for each batch of goods. Trust Zhixing, your lifting solution starts here!
FAQ
Q1. How to order?
You can contact us by email to order, and you can also choose Alibaba insurance order when it is less than USD 10000.00.
Q2, Can I get a sample before order?
Of course, we will provide you with free samples within 3-5 working days.
Q3, What is your payment terms?
Usually we do T/T 30% as deposit, 70% T/T after BL copy.
Q4, How about your delivery time?
1 x 20ft container takes 30-40 days.
Q5, How do you guarantee your quality?
We produce products in strict accordance with EN12195-2, AS/NZS 4380:2001 standards. And strictly tested before shipment.
Q6, Can you accept small orders?
For some normal items, we can do small quantity according to your detailed requirements.
You can contact us by email to order, and you can also choose Alibaba insurance order when it is less than USD 10000.00.
Q2, Can I get a sample before order?
Of course, we will provide you with free samples within 3-5 working days.
Q3, What is your payment terms?
Usually we do T/T 30% as deposit, 70% T/T after BL copy.
Q4, How about your delivery time?
1 x 20ft container takes 30-40 days.
Q5, How do you guarantee your quality?
We produce products in strict accordance with EN12195-2, AS/NZS 4380:2001 standards. And strictly tested before shipment.
Q6, Can you accept small orders?
For some normal items, we can do small quantity according to your detailed requirements.
