Wholesale Wholesale Lever Chain Puller with Vital Japan Technology
- 95.00 1 - 49 pieces
- 38.00 50 - 99 pieces
- 32.00 >=100 pieces
| port: | Tianjin or Guangzhou | brand: | OEM production |
| Supply capacity: | 10000 pieces per month | payment terms: | L/C, T/T, MoneyGram |
| color: | black, yellow, orange, white, blue | Package preview: | |
| Lifting height: | 1.5M-3M | model: | SBH-L type |
| capacity: | 0.8-6.4 tons | Packaging Details: | Standard export packaging |
| Chain painting: | Galvanized or black coated | Name: | Lever block |
| Load chain: | G80 | type: | VL |
| Origin: | Hebei china | chain: | G80 chain |
| Certificate: | CE certification |

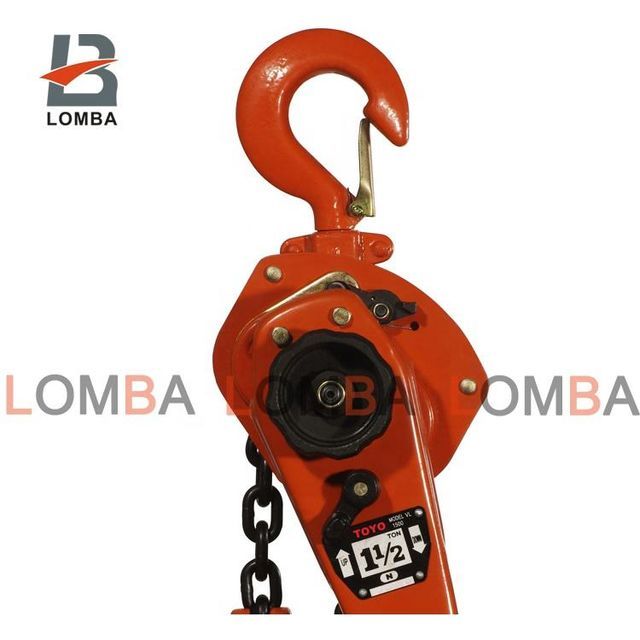

Manual ratchet lever hoist/lever chain ratchet puller with TOYO Japanese technology
technical features
1. One-button operation to adjust the chain freely
2. Grade 80 alloy load chain ISO and GES standards
3. Forged and heat treated hooks with batch traceability and tensile indicators
idling
1. Fully depress the retaining pawl and pull the grip ring towards you.
2. The chain can be manually adjusted up and down.
3. Terminate idling: Put the shift lever in the down position (see figure below). Then, depressing the dog as far as it will go, gently push the clamp ring so that the dog engages the outer edge of the stop plate. Next, grab the grip ring and handle with one hand, and push them in while turning them counterclockwise. The pawl returns to its original position.
* Specifications on this leaflet may be changed without notice for improvement.
Tested according to EN13157-2004
|
Product Code |
capacity (t) |
standard elevator (rice) |
test load (t) |
traction (Kilogram) |
pendant number |
Lifting chain diameter (mm) |
Dimensions (mm) |
net weight (Kilogram) |
||||
|
A |
Second |
C |
Man |
Second |
||||||||
|
HSH-A075 |
0.75 |
1.5 |
1.13 |
15 |
1 |
6.3 |
148 |
128 |
295 |
256 |
45 |
6.9 |
|
HSH-A100 |
1.00 |
1.5 |
1.50 |
20 |
1 |
6.3 |
152 |
128 |
310 |
256 |
48 |
7.0 |
|
HSH-A150 |
1.50 |
1.5 |
2.25 |
18 |
1 |
7.1 |
161 |
148 |
335 |
368 |
52 |
9.6 |
|
HSH-A200 |
2.00 |
1.5 |
3.00 |
twenty four |
1 |
7.1 |
168 |
148 |
350 |
368 |
60 |
10.1 |
|
HSH-A300 |
3.00 |
1.5 |
4.50 |
38 |
1 |
9 |
191 |
180 |
405 |
368 |
66 |
15.9 |
|
HSH-A600 |
6.00 |
1.5 |
9.00 |
39 |
2 |
9 |
191 |
180 |
550 |
368 |
80 |
25.7 |
Separate validation load tests with separate serial numbers
