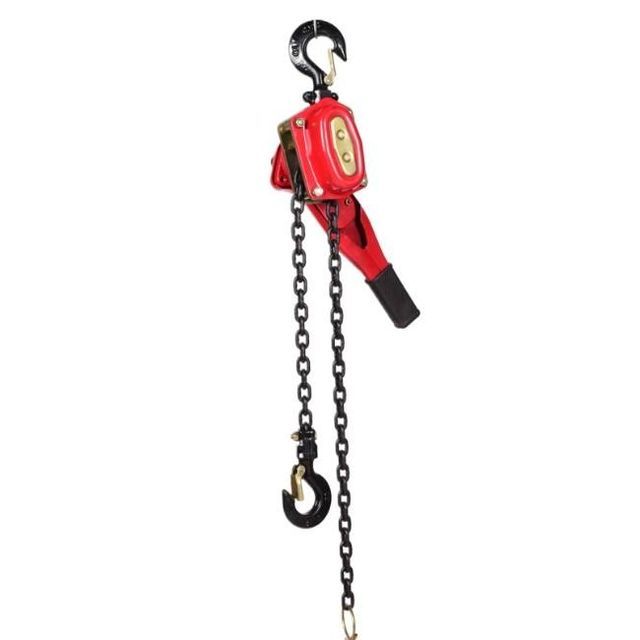

Lifting height 20m 6m manual lever hoist hand chain hoist
- 38.47 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rated lifting capacity: | 0.75 tons | net weight: | 7.7 kg |
| Hand pull at full load: | 140n | Packaging Details: | wooden box |
| Model: | HSH-0.75A | Test load: | 11 kn |
| Origin: | Hebei china | Standard lifting height: | 1.5m |
| Package Size: | 35.5X14X16.5 cm | Warranty: | 3 years |
| payment terms: | L/C, D/P, T/T | Supply capacity: | 10000 sets per month |
| Rows of lifting chain: | 1 | Lifting chain diameter: | 6 meters |
Product Description
Model | HSH-0.75A | HSH-1.5A | HSH-3A | HSH-6A | HSH-9A | ||
Rated lifting capacity | Ton | 0.75 | 1.5 | 3 | 6 | 9 | |
standard lifting height | rice | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Test load | thousand | 11.0 | 22.5 | 37.5 | 75.0 | 112.5 | |
hand pull when fully loaded | no | 140 | 240 | 320 | 340 | 360 | |
Rows of lifting chain | 1 | 1 | 1 | 2 | 3 | ||
Lifting chain diameter | mm | 6 | 8 | 10 | 10 | 10 | |
Main dimensions mm | A | 155 | 180 | 215 | 215 | 215 | |
Second | 95 | 105 | 130 | 130 | 130 | ||
C | 135 | 155 | 211 | 254 | 330 | ||
D. | 37 | 45 | 50 | 64 | 85 | ||
h | 320 | 380 | Chapter 480 | 600 | 700 | ||
L | 285 | 370 | 410 | 410 | 410 | ||
K | 26 | 45 | 50 | 64 | 85 | ||
net weight | Kilogram | 7.7 | 11.8 | twenty one | 32 | 47 | |
Package Size | centimeter | 35.5X14X16.5 | 46.5X15.5X19 | 51X19X21.5 | 53X22X21.5 | 82X32X21.5 | |
Weight gain per 1 meter increase in height | Kilogram | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |
detailed picture
