APS-AR Small one color business card offset printing machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Card Printer,Paper Printer;	Color & Page:	Single Color;
Printing speed:	4000~8000 tickets/ hour;	The thickness of the paper:	0.15 -1.5mm(90-700g);
Model Number:	APS-AR;	After-sales Service Provided:	Engineers available to service machinery overseas;
Gross Power:	1.5kw;	Automatic Grade:	Automatic;
Packaging Detail:	wooden case each APS-AR Small one color business card offset printing machine;	Port:	Shanghai;
Supply Ability:	30 Set/Sets per Month;	Type:	Offset Printer;
Plate Type:	Flatbed Printer;	Paper size:	Min: 45 x 80mm max: 165 x 265mm;
Dimensions(LWH):	1060 x 610 x 660mm;	Voltage:	AC100V(Single-phase) 1.2KVA 50/60Hz;
Place of Origin:	Zhejiang China (Mainland);	Name:	APS-AR Small one color business card offset printing machine;
Payment Terms:	L/C,T/T,Western Union;	Weight:	124kg;
Condition:	New;	Brand Name:	Printyoung;
Delivery Detail:	20 days;	Printing area:	165 x225mm;
Certification:	CE;

Product Description

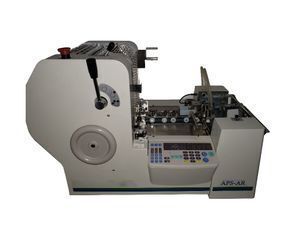

APS-AR Small one color business card offset printing machine

The characteristics :

1.No stop electronic control world image,the minimum regulator school scale accuracyis up to 0.01 mm;

2.Using an air pump, vacuumsuction, paper front-end blowing, suction nozzleof paper feeding, automatic paper feeding table rise, electronic control of the paper height limiter;

3. Syndiospecific paper feedingskew is the biggest adjustment ends is 0.4 mm, the print is not without affecting the printing overprint precision;

4. PS version, can be adaptedto meet the needs of different oxidezinc plate, platemaking equipment;

5. The optional UV drying device, the adaptation of the UV printing needs;

6. Specification: maximum print size: 165x225mm; 45x80mm; minimum size printing: printing thickness: 0.15-1.5mm; production speed: 4000-8000 / hour;

7.General paper supplydevice used for paper suction,to ensure the stability of. Electronic overprinter system, ensure the printing overprint precision;

Printing chromatic number	Monochrome overprinter
Printing surface	Single-sided printed
Printing object	Special card, PVC, paper
Paper size	Minimum: 45 x 80mm maximum: 165 x 265mm
The thickness of the paper	0.15 -1.5mm(90-700g)
Printing area	165 x225mm
Loading paper height	185mm(The phone card 650zhang)
Printing speed	4000~8000 / hour
Paper feeding mode	Vacuum suction paper and paper pushing mode
The paper discharge mode	Net belt conveyor and pallet paper discharge
A printing plate size	220×230mm Thickness:0.1~0.2mm
Plate hanging way	Handle type in its version of open mechanism
The fountain mode	New AR Electrical automatic mode
Roller number	Water roll: 5 (1, ink ink 1)
For roller:	9 (2, ink ink 2)
Ink roller:	1
Heaven and earth cover position adjustment	Electronic type: 0.01mm step
The transverse sleeve position adjustment	Mechanical: + 5mm (0.01 micrometer)
Blanket cleaning device	Roller way, blower drying (optional)
Power Supply	AC100V(Single-phase) 1.2KVA 50/60Hz
Size	1060 x 610 x 660mm long high
The weight of the machine	124kg
