S32760 Mesh for Nuclear Radioactive Liquid Filtration
- 67.00 piece
|
project |
detailed |
|
Basic product overview and parameters |

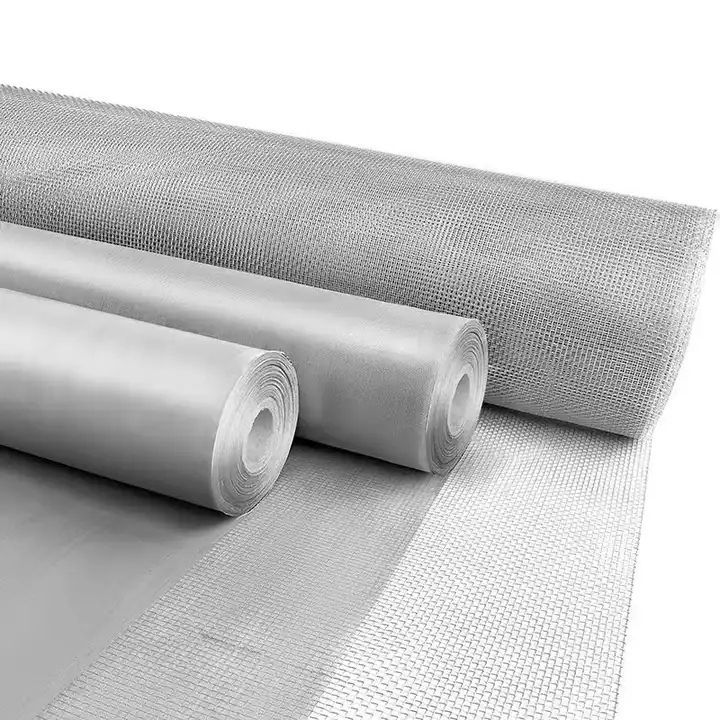

one. Product and alloy information • Product Name: OFOLAN S32760 (F55) Super Duplex Stainless Steel Wire Mesh (woven/perforated variants) • Alloy Designations: UNS S32760, DIN 1.4501, GB 022Cr25Ni7Mo4WCuN, ASTM A240 • Trademark: OFOLAN; Origin: China B. Main specifications • Mesh Count: 40–80 Mesh • Wire Diameter: 0.12–0.25mm • Mesh Size (Aperture): 0.2–0.39mm • Thickness (Thi): 0.12–0.3mm (calculated based on wire diameter: plain weave ≈ wire diameter; twill weave ≈ 1.0–1.2×wire diameter) • Weaving Method: Plain Weave, Twill Weave • Density: 7.8 g/cm³; Melting Point: 1400–1450℃ C. Logistics and Warranty • Packaging: wooden box • Warranty period: 3 months |
|
Core product features |
1. Corrosion Resistance: PREN≥40 (better than 316L/2205); tungsten-copper alloying enhances resistance to sulfuric/hydrochloric acid and chloride pitting. 2. Mechanical Performance: Tensile ≥750MPa, yield ≥550MPa; stable toughness at -50℃to 300℃. 3. Processability: Weldable with ER2594 filler; cold/hot formable (intermediate annealing may be needed). |
|
Main application areas |
1. Marine Engineering: Seawater desalination filters, offshore platform screens. 2. Oil & Gas: Downhole tool filters, sour gas processing meshes. 3. Chemical Industry: Acid reactor filters, FGD system screens. 4. Energy: Nuclear power heat exchanger components, geothermal pipeline filters. |
|
Contact Information |
1. Company name: Anping Aofulan Metal Wire Mesh Manufacturing Co., Ltd. 2. Address: High-tech Zone, Anping County, Hengshui City, Hebei Province, China 3. Contact: +86 13315865785 (Mobile/WhatsApp); estrellayue@ofolan.com 4. Website: http://www.ofolan.com |
