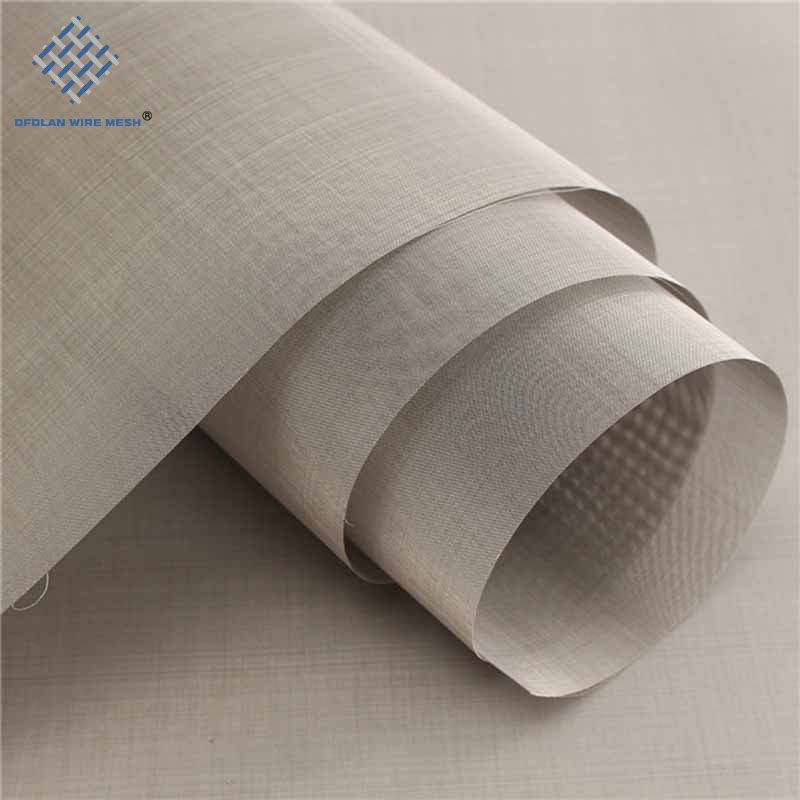

Hastelloy B-2 40Mesh Welded Mesh for Hydrochloric Acid Storage Tank Filtration

基本 产品概述及参数

一个。 产品和合金信息

• Product Name: OFOLAN Hastelloy B-2 Mesh (40Mesh, woven/perforated variants)

• Alloy Designations: UNS N10665, DIN 2.4617, ASTM B333, ASME SB333

• 商标：OFOLAN;产地：中国

B. Key Specs (40Mesh Specific)

• Mesh Count: 40 Mesh (fixed)

• Wire Diameter: 0.20–0.25mm

• Mesh Size (Aperture): 0.45–0.50mm

• Thickness (Thi): 0.40–0.60mm

• Weaving Method: Plain/Twill Weave (optimized for 40Mesh high-flow filtration)

• Density: 9.2 g/cm³; Melting Point: 1330–1420 ℃

C. 物流与保修

• Packaging: Sealed Wooden Crate (moisture-proof, anti-oxidation)

• 保修期：3个月

核心 产品特点

1. Superior Reductive Acid Resistance: Specializes in resisting hydrochloric acid (any concentration/temperature under normal pressure), sulfuric acid (low-to-medium concentration), phosphoric acid and organic acids (acetic acid, formic acid). Low carbon (≤0.02%) and silicon content prevents intergranular corrosion, while high molybdenum (26–30%) forms a dense passivation film to resist chloride-induced stress corrosion cracking—ideal for reductive harsh environments.

2. Mechanical Performance: Tensile strength ≥690MPa, yield strength ≥310MPa; excellent toughness and structural stability at ≤760℃ continuous service, no brittle fracture under cyclic acid exposure and temperature fluctuations.

3. 40Mesh Specific Advantages: Medium-coarse precision with 0.45–0.50mm aperture, balances particle retention and fluid throughput. Separates 450–500μm impurities, suitable for high-flow filtration in reductive acid media with high solid content; uniform mesh structure ensures long-term filtration consistency without clogging easily.

Main Application Fields (40Mesh Focus)

1. Chemical Industry: Filtration of hydrochloric acid storage/transport pipelines, medium-concentration sulfuric acid processing equipment, organic acid (acetic/formic acid) synthesis reaction 釜 screening, phosphoric acid raw material impurity removal.

2. Metallurgy & Mining: Wet smelting acid leaching solution filtration (non-ferrous metals like nickel/cobalt), corrosive slag separation in acid-based mineral processing, high-solid-content reductive acid fluid screening.

3. Pharmaceutical & Fine Chemical: Pretreatment of organic acid raw materials in drug synthesis, filtration of reductive catalyst-containing solutions, intermediate product coarse filtration in fine chemical production.

4. Environmental Protection: Coarse filtration of high-concentration acidic wastewater (e.g., pickling wastewater), impurity removal in reductive industrial waste gas washing liquid, acid-based waste liquid pretreatment before deep treatment.
