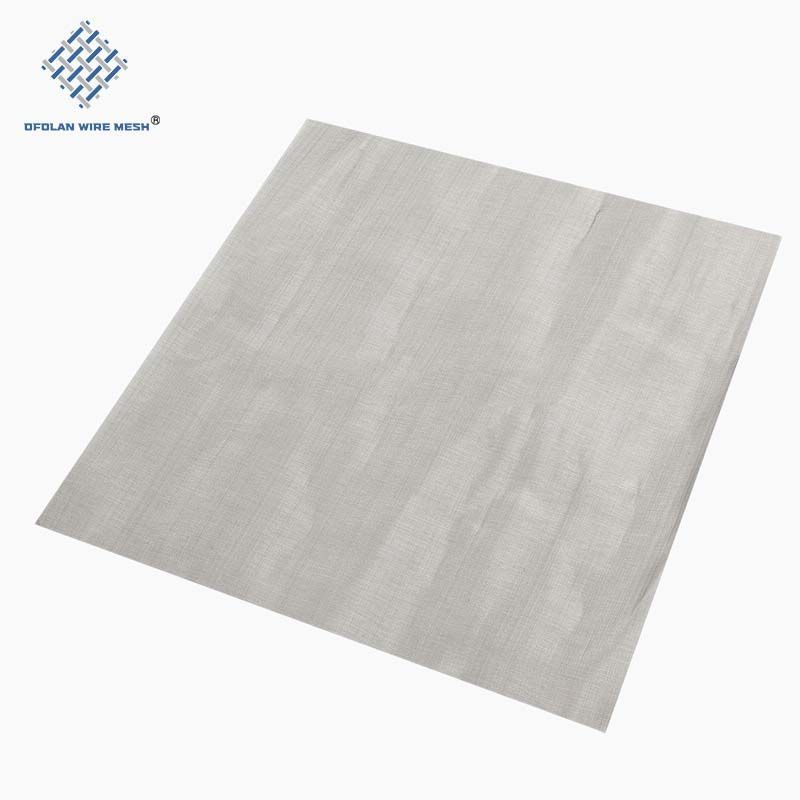

Alloy20 Mesh for Waste Incineration Flue Gas Cleaning

Basic product overview and parameters

A. Product and alloy information

• Product Name: OFOLAN Alloy20 Mesh (woven/perforated variants)

• Alloy Designations: UNS N08020, DIN 1.4563, ASTM B463, ASME SB463

• Trademark: OFOLAN; Origin: China

B. Main specifications

• Mesh Count: 10–400 Mesh

• Wire Diameter: 0.05–1.2mm

• Mesh Size (Aperture): 0.04–12mm

• Thickness (Thi): 0.1–2.5mm

• Weaving Method: Plain/Twill/Dutch/Herringbone/Five Heddle Weave

• Density: 8.08 g/cm³; Melting Point: 1357–1430℃

C. Logistics and Warranty

• Packaging: wooden box

• Warranty period: 3 months

Core product features

1. Corrosion Resistance: PREN ≥35 (far superior to 316L); resists sulfuric acid, hydrochloric acid, chloride-containing media and alkaline environments, anti-pitting/crevice/intergranular corrosion.

2. Mechanical Performance: Tensile strength ≥620MPa, yield strength ≥275MPa; excellent toughness and ductility, maintains stability in high-temperature (≤250℃) and high-pressure environments.

3. Processability: Easy to weld, cold/hot work and form; customizable in mesh count, wire diameter and size; cost-effective and durable for harsh industrial filtration scenarios.

Main application areas

1. Chemical Industry: Sulfuric acid/hydrochloric acid handling equipment, chemical reactor filtration, electrochemical processing filters.

2. Petrochemical & Offshore: Offshore oil and gas drilling filters, petrochemical pipeline strainers, marine heat exchanger tube protection.

3. Pharmaceutical & Food Grade: High-purity pharmaceutical granulation screening, fermentation tank filtration, food-grade brewery filtration.

4. Special Industry: Seawater desalination membrane housing filtration, nuclear power plant condensers, radioactive liquid filtration, flue gas desulfurization units.
