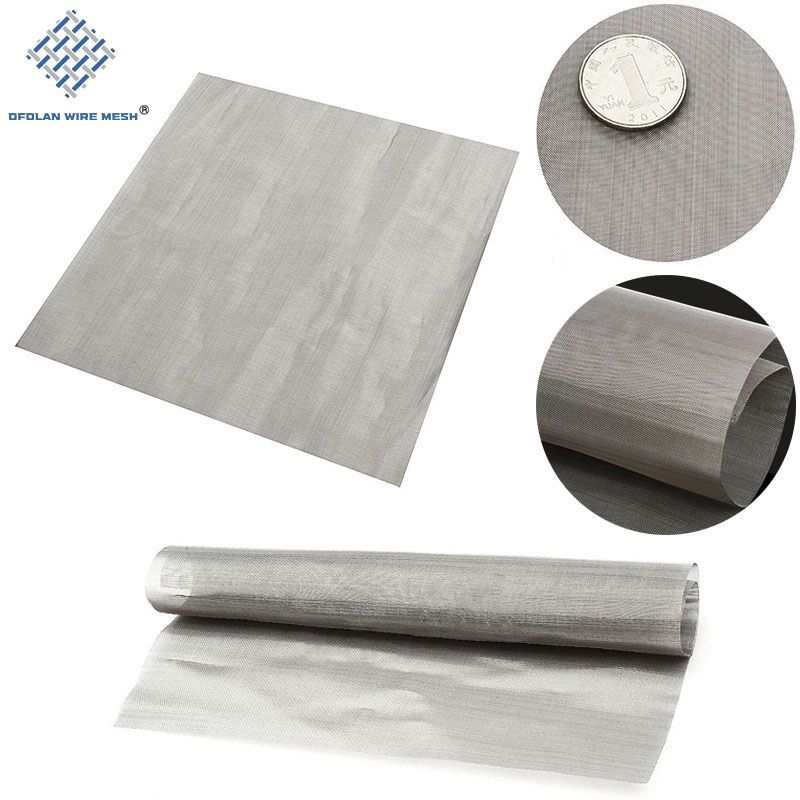

Hastelloy C-276 Dutch Weave Mesh for Precision Corrosive Filtration

Basic product overview and parameters

A. Product and alloy information

• Product Name: OFOLAN Hastelloy C-276 Mesh (woven/perforated variants)

• Alloy Designations: UNS N10276, DIN 2.4819, ASTM B575, ASME SB575

• Trademark: OFOLAN; Origin: China

B. Main specifications

• Mesh size: 10–300 mesh

• Wire Diameter: 0.04–1.5mm

• Mesh Size (Aperture): 0.04–15mm

• Thickness (Thi): 0.08–3.0mm

• Weaving Method: Plain/Twill/Dutch/Herringbone/Five Heddle Weave

• Density: 8.90 g/cm³; Melting Point: 1325–1370℃

C. Logistics and Warranty

• Packaging: wooden box

• Warranty period: 3 months

Core product features

1. Corrosion Resistance: PREN ≥60 (top-tier among corrosion-resistant alloys); excellent resistance to oxidizing/reducing acids (hydrochloric acid, sulfuric acid, nitric acid), chloride-containing media, seawater, alkaline solutions and harsh chemical environments, anti-pitting/crevice/intergran corrosion.

2. Mechanical Performance: Tensile strength ≥690MPa, yield strength ≥310MPa; outstanding high-temperature strength (≤1095℃continuous service), good toughness and ductility, maintains stability under extreme temperature and corrosion combined conditions.

3. Processability: Easy to weld (compatible with common welding processes), cold/hot work and form; customizable in mesh count (10–300), wire diameter and size; adapts to medium-to-high precision filtration needs (10–100 Mesh for coarse screening, 100–300 Mesh for precision filtration), resistant to erosion, wear and thermal fatigue for long-term extreme industrial use.

Main Application Fields

1. Chemical & Petrochemical: Strong acid handling equipment filters (10–300 Mesh), chemical reactor linings, petrochemical high-corrosion pipeline strainers, flue gas desulfurization units in harsh environments.

2. Marine & Desalination: Seawater desalination high-pressure membrane housing filtration (150–300 Mesh), offshore oil and gas drilling extreme corrosion filters (10–100 Mesh), marine high-corrosion pipeline screens.

3. Precision & Special Industry: High-purity pharmaceutical filtration (200–300 Mesh), laboratory harsh corrosive media screening, nuclear power plant radioactive liquid/gas filtration, metallurgical industry corrosive slag separation (10–80 Mesh).

4. Advanced Manufacturing: Aerospace auxiliary system corrosion-resistant filtration components, electronic component high-purity cleaning fluid filtration (250–300 Mesh), glass/ceramic industry corrosive high-temperature process filters.
