High Corrosion Resistance 317L Mesh for Nuclear Power Plant Filters

Basic product overview and parameters

one. Product and alloy information

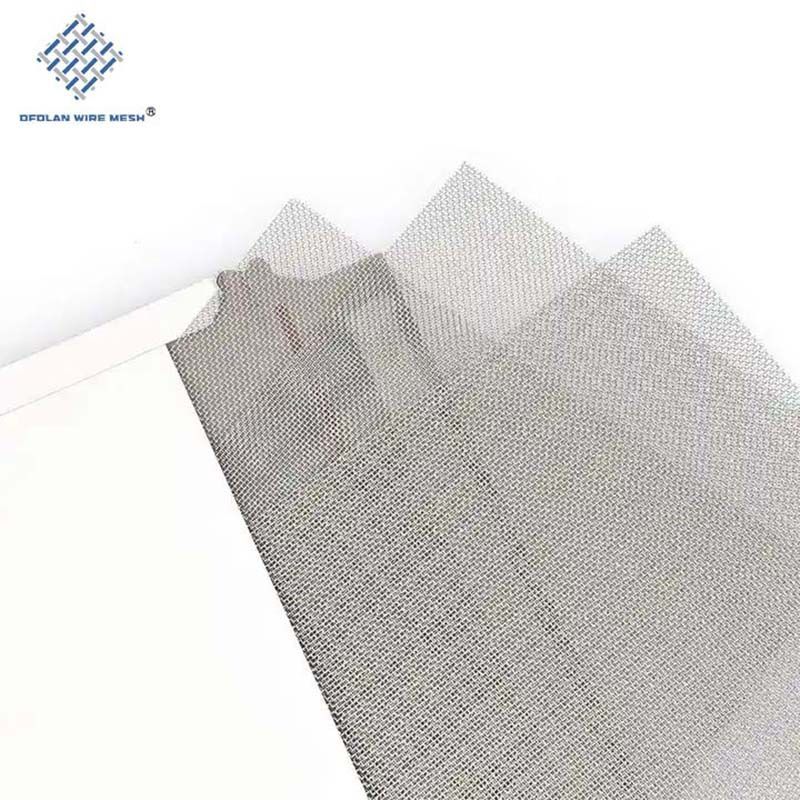

• Product Name: OFOLAN 317L Super Austenitic Stainless Steel Wire Mesh (woven/perforated variants)

• Alloy Designations: UNS S31703, DIN 1.4438, GB 022Cr19Ni13Mo3, ASTM A240

• Trademark: OFOLAN; Origin: China

B. Main specifications

• Mesh size: 10–300 mesh

• Wire Diameter: 0.03–0.8mm

• Mesh Size (Aperture): 0.05–2.4mm

• Thickness (Thi): 0.03–0.95mm (calculated based on wire diameter: plain weave ≈ wire diameter; twill weave ≈ 1.0–1.2×wire diameter)

• Weaving method: plain weave, twill weave

• Density: 7.9 g/cm³; Melting Point: 1400–1450℃

C. Logistics and Warranty

• Packaging: wooden box

• Warranty period: 3 months

Core product features

1. Corrosion Resistance: PREN≥32 (superior to 317 and 316L). Low carbon content avoids intergranular corrosion after welding; high molybdenum content strengthens resistance to chloride pitting/crevice corrosion. It can resist erosion from sulfuric acid, phosphoric acid, formic acid and seawater, suitable for harsh corrosive environments.

2. Mechanical Performance: Tensile ≥485MPa, yield ≥170MPa. It maintains stable toughness and structural integrity in the temperature range of -60℃to 300℃, with no brittle failure even in extreme low-temperature conditions.

3. Processability: Optimal welding with ER317L filler; excellent cold/hot forming performance. Complex processing (such as deep stamping) can be assisted by intermediate annealing to maintain material ductility and dimensional accuracy.

Main Application Fields

1. Chemical Industry: Filters for high-concentration acid-base reactors, corrosion-resistant screens for chemical plating baths, filtration components for organic synthesis equipment.

2. Marine Engineering: Seawater desalination reverse osmosis system filters, offshore platform seawater pipeline screens, marine corrosion-resistant filter elements.

3. Pharmaceutical & Food Industry: High-purity water filtration screens for pharmaceutical production, corrosion-resistant filters for food acid pickling lines, sterile filtration meshes for beverage processing.

4. Energy & Environmental Protection: Flue gas desulfurization system filters for thermal power plants, corrosion-resistant screens for geothermal energy equipment, filtration meshes for electroplating wastewater treatment.

5. Nuclear Industry: Auxiliary filtration components for nuclear power plant secondary circuit systems, corrosion-resistant screens for radioactive waste liquid treatment equipment.
