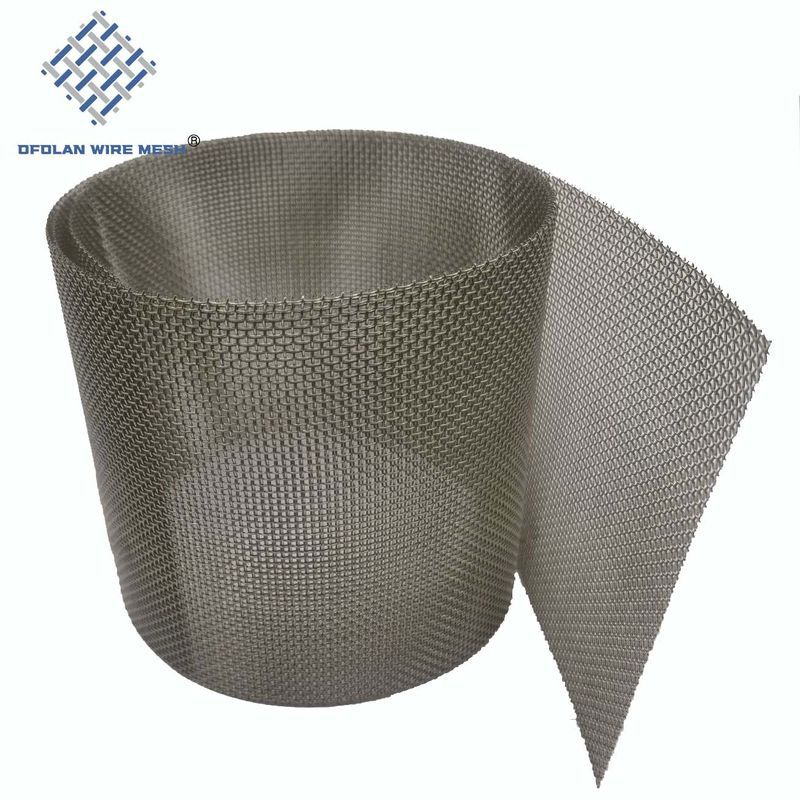

Inconel718 Mesh 83.5Mesh for High Precision Industrial Micro Impurity Filtration

Basic product overview and parameters

A. Product and alloy information

• Product Name: OFOLAN Inconel718 Mesh (65/83.5Mesh, woven variants)

• Alloy Designations: UNS N07718, DIN 2.4668, ASTM B637, AMS 5662, JIS NCF718

• Trademark: OFOLAN; Origin: China

B. Key Specs (65/83.5Mesh Specific)

• Mesh Count: 65Mesh / 83.5Mesh (two fixed precision options)

• Wire Diameter: 65Mesh: 0.18–0.22mm; 83.5Mesh: 0.15–0.18mm

• Mesh Size (Aperture): 65Mesh: 0.25–0.28mm; 83.5Mesh: 0.18–0.20mm

• Thickness (Thi): 65Mesh: 0.35–0.45mm; 83.5Mesh: 0.30–0.40mm

• Weaving Method: Plain Weave / Twill Weave (plain for uniform precision; twill for enhanced strength)

• Density: 8.2 g/cm³; Continuous Service Temperature: -253~650℃; Short-term Service Temperature:≤800℃; Melting Point: 1330–1390℃

C. Logistics and Warranty

• Packaging: Vacuum-sealed anti-oxidation bag + Sealed Wooden Crate (moisture-proof, corrosion-resistant)

• Warranty period: 3 months

Core product features

1. Superior High-Temp Performance: As a gamma prime strengthened nickel-chromium alloy, it maintains stable mechanical properties at -253~650℃. It resists oxidation up to 800℃and exhibits excellent creep and fatigue resistance under long-term high-temperature loads.

2. Exceptional Strength & Corrosion Resistance: Room-temperature tensile strength reaches 1241–1380MPa, and 650℃high-temperature tensile strength remains 896–1172MPa. It resists corrosion from seawater, weak acids, and industrial corrosive media, with low carbon content to avoid intergranular corrosion.

3. 65/83.5Mesh Precision Advantages: 65Mesh (0.25–0.28mm aperture) balances throughput and precision for medium-fine filtration. 83.5Mesh (0.18–0.20mm aperture) achieves high-precision screening of micro-impurities. Both feature uniform mesh structure, not easy to clog, and durable in extreme environments.

Main Application Fields (65/83.5Mesh Focus)

1. Aerospace & Aviation: 83.5Mesh for high-temperature fluid filtration in aero-engine auxiliary systems; 65Mesh for gas path impurity screening of aircraft turbine components.

2. Energy & Nuclear Industry: 65Mesh for high-temperature corrosive gas filtration in nuclear power plant auxiliary equipment; 83.5Mesh for precision filtration of thermal power plant high-temperature steam systems.

3. Chemical & Petrochemical: 65Mesh for catalyst recovery and impurity removal in high-temperature reactors; 83.5Mesh for fine filtration of organic chemical intermediates and corrosive fluids.

4. Metallurgy & Advanced Manufacturing: 65Mesh for non-ferrous metal smelting high-temperature slag fine separation; 83.5Mesh for electronic component processing high-purity medium filtration and semiconductor industry ultra-pure water screening.
