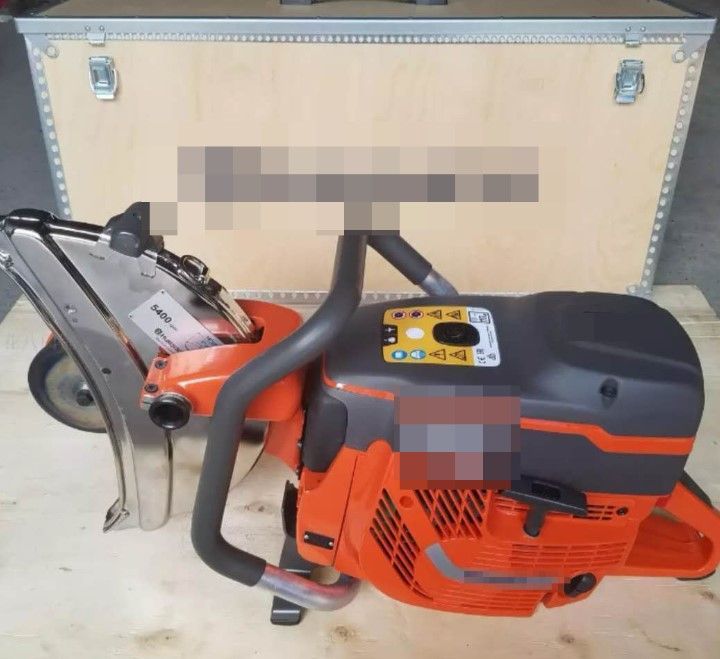

K1270 Gasoline Portable Rail Cutting Cutting Machine

K1270 Rail Cutting Machine

1. Gasoline engine: two-stroke, air-cooled , single-cylinder

2. Power: 5.9kw

 3. Grinding wheel: double reinforced wire mesh

4. Maximum linear velocity: 100m /s

 5. Rated R.M.P : 5100 ± 100r / min

 6. Grinding wheel size: φ 350 × φ 25.4 × T 3.8 / 4.2mm

 7. Cutting accuracy: a. Vertical deviation between incision and longitudinal direction of the rail: ≤0.40mm b. Plane deviation between bidirectional cutting interface: ≤0.35mm

8. Cutting depth: 125mm

9. Cutting time: ≤ 120s ( for 60kg/m rail)

10. Machine weight: 28kg

11. Fuel tank capacity: 1.25L

12. Overall size: 850 × 480 × 500mm
