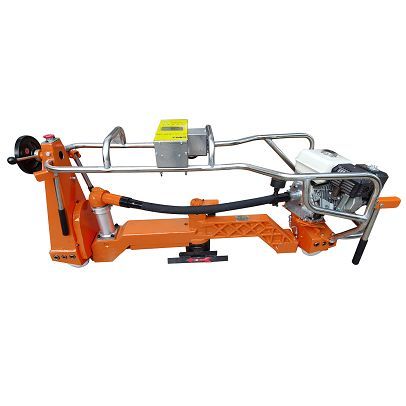

NGM-4.8 Internal Combustion Digital Rail Grinding Machine

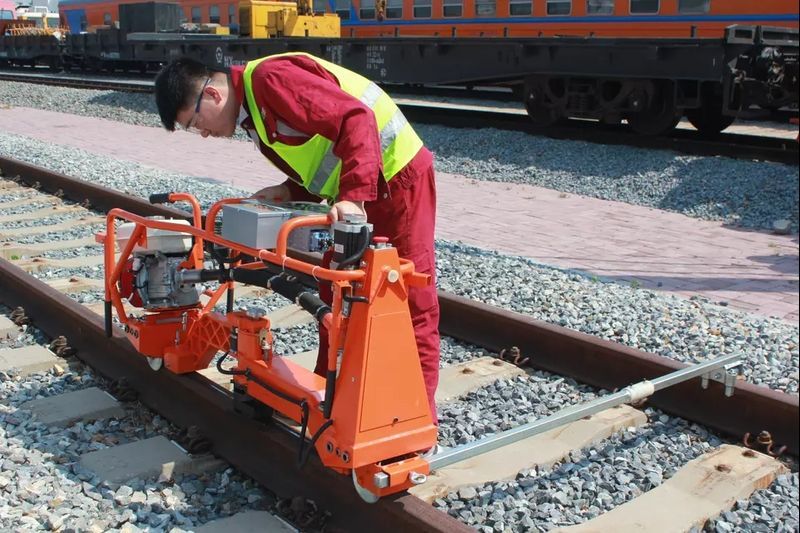

NGM-4.8I digital display rail grinder is suitable for grinding 43kg/m-75kg/m rail welds, uneven joints, rail side fat edges, rail surface welding repairs and other parts. A high-precision rail grinder with multi-purpose, automation and intelligence.

Model: NGM-4.8I

Type: Rail grinder

Material: stainless steel

Dimensions (length x width x height) (mm): 1500 * 450 * 750 mm

Internal combustion engine: GX200, >3600r/min, 4.8kW

Grinding wheel specifications: 125*65*M20

Grinding wheel linear speed: > 35m/s

Spindle speed: 4500r/min

Grinding wheel inclination angle: +90 degrees

Tilt angle accuracy: 0.5 degrees, 1.0 degrees, 2.0 degrees, 3.0 degrees, 4.0 degrees, 5.0 degrees

Grinding wheel stroke: 45 mm

Grinding wheel feed accuracy: 0.05 mm, 0.1 mm, 0.15 mm, 0.2 mm, 0.25 mm, 0.3 mm

Profile wheelbase: 1000mm

Weight: 90kg
