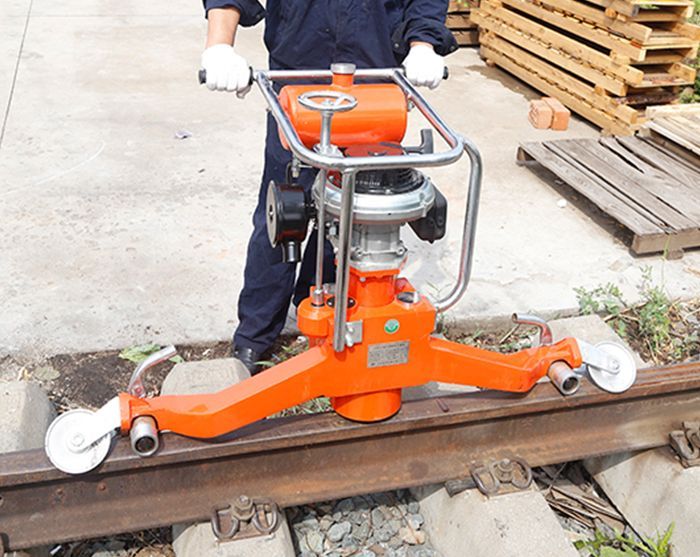

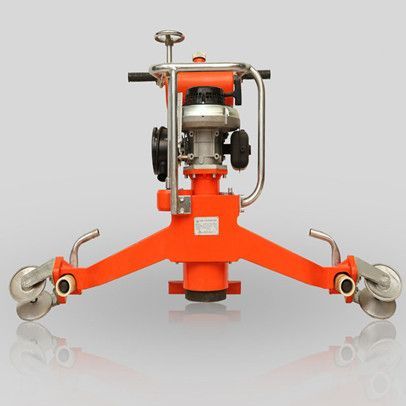

NGM-6.0 Rail Profile Grinder

This machine is powered by the M165 two-stroke gasoline engine imported from Spain. It is a small machine used for shaping and grinding rail head welding joints and surface repairs. Suitable for 43~75kg/m rails. The special diaphragm carburetor ensures that the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thereby ensuring the accuracy of rail grinding.

Model: NGM-6.0

Type: Rail profile grinder

Material: stainless steel

Dimensions (length x width x height) (mm): 1410*500*850mm

Engine: Two-stroke gasoline engine M165

Power: 6.0kW

Grinding speed: ≥3900r/min

Grindstone inclination angle: 0~90°

Grindstone feeding stroke: 42mm

Grinding stone specifications: φ150xφ55x70mm

Fuel tank volume: 4.5L

Profile wheel span: 1000mm

Feed adjustment accuracy: 0.125mm

Weight: 60kg
