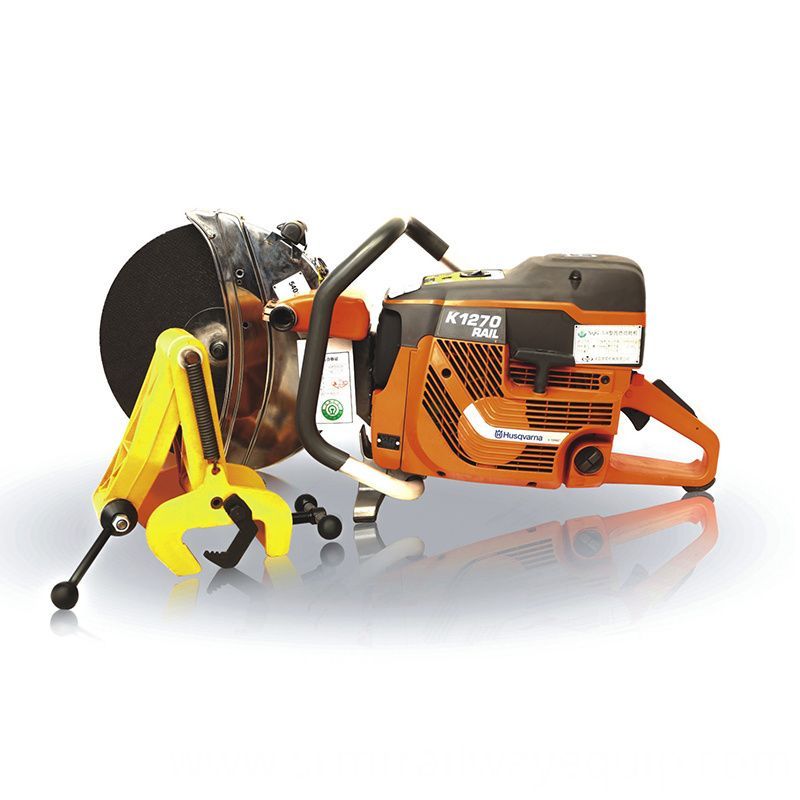

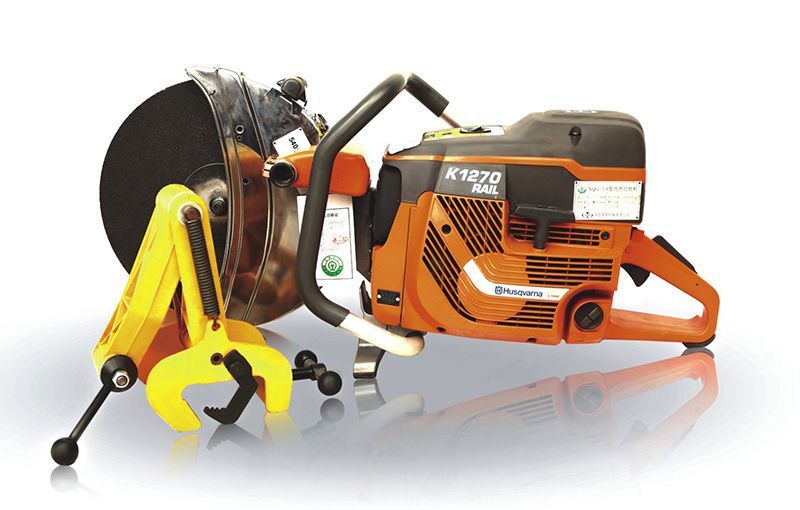

NQG-5.8 Lightweight Abrasive Rail Saw Disc Cutter

NQG-5.8 砂轨锯

NQG-5.8轻型砂轨锯是一种铁路养护工具。它不仅可以高速、高质量地切割钢轨，而且具有低磨损的切割盘。它被导轨夹锁定。它结构简单，重量轻，安全，移动方便。适用于长轨焊接厂的无缝轨道断轨的维护、修复、钢轨的切割等。

Model：NQG-5.8

Type：Rail Cutting Machine

Material：Stainless Steel

Dimensions (L x W x H) (mm)：850*480*500mm

Engine：Single-cylinder, air-cooling，two-stroke petrol engine (imported from Sweden K1270R)5.8 kW

Cutting disc form：Double- layer reinforced wire mesh

Linear speed of cutting disc：100 m/s

Rated RPM：≥4500 r/min

Specification of cutting disc：φ355xφ25.4 x3.8mm

Cutting accuracy：Vertical deviation of notch and rail≤0.30mm ，Deviation of bidirectional cutting interfaces≤0. 35mm

Cutting time：≤110s( cut off 60kg/m rail)

Fuel tank capacity：1.25 L

Weight：22kg
