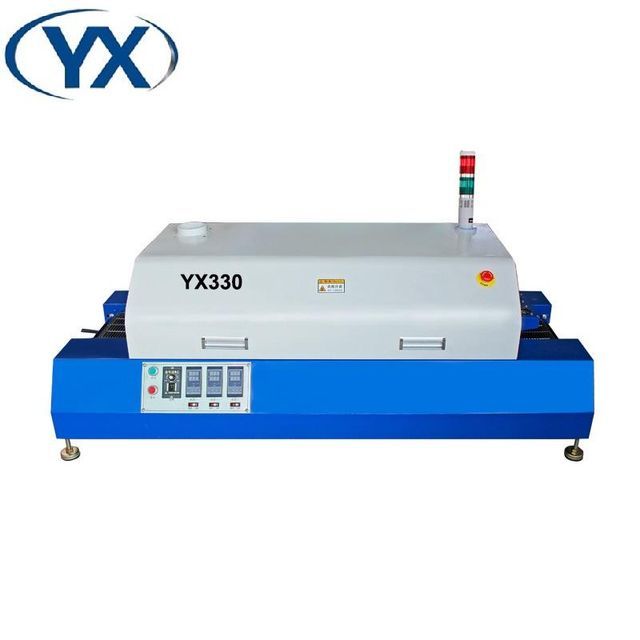

High Quality SMD SMT Machine Reflow Oven YX330 Zone 3
-
Supplier: Wenzhou Yingxing Import&export Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jim Jiang -
Price: $960.00 /set -
Min. Order: 1 set
Product details
| Heating method: | Infrared heating | Showroom location: | not any |
| Marketing type: | 2020 new products | aspect: | 170cm*71cm*65cm |
| Main selling points: | Easy to operate | Applicable industries: | PCB welding and manufacturing factory |
| type: | reflow soldering,reflow soldering | Core components: | Motors, gears, pumps |
| Post-warranty service: | Video technical support | Health status: | new |
| Local service location: | not any | Rated Capacity: | 6000 kilowatt, 6000 watt |
| usage: | PCB soldering | Video outbound inspection: | if |
| brand: | YX | Warranty: | 1 year |
| Voltage: | 220V, 50Hz | Printed circuit board dimensions: | Maximum 280*280mm |
| Packaging details: | Comes in sturdy wooden packaging | Single piece packaging size: | 170X71X65cm |
| Sales unit: | Single product | Core component warranty: | 1 year |
| Rated working cycle: | Heat for 30 minutes | Mechanical test report: | if |
| Gross weight of single piece: | 120.000kg | Weight (kg): | 120kg |
| After-sales service provided: | Video technical support | Place of origin: | Zhejiang, China |
introduce

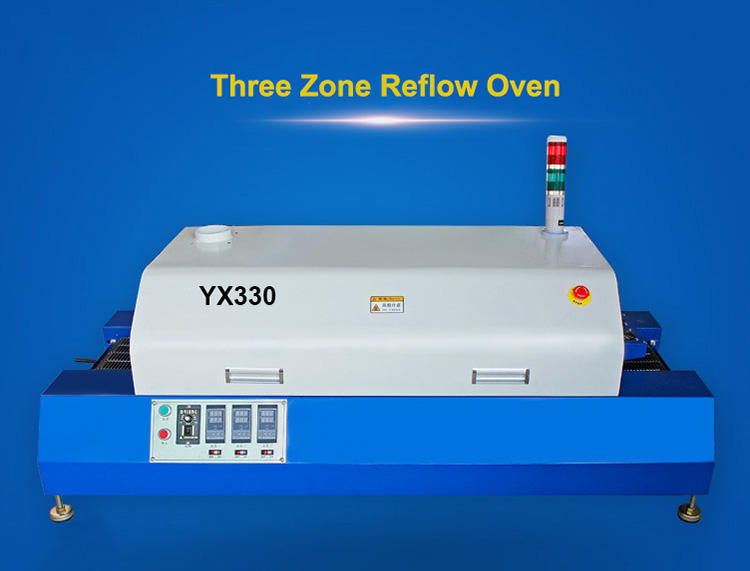

Three-zone reflow oven Number of heating zones: 3 Temperature zone Heating method: Infrared heating Number of cooling zones: 2 Ventilation cooling heating zone length: 1000 MM
packing list
1. Instruction manual: 1 copy 2. Certificate: 1 copy 3. Exhaust pipe: 1 4. Pipe button: 1
Specification | ||
Model | YX330 | |
Number of heating zones | 3 temperature zones | |
Infrared heating heating method | hot air | |
Number of cooling zones | 2 Ventilation and cooling | |
Heating zone length | 1000mm | |
Belt width | 300mm | |
Printed circuit board size | Maximum 280*280mm | |
Net belt height | 300+20mm | |
Mesh belt conveying speed | 0~2000mm/min | |
Mesh belt conveying direction | Left → Right (right → left) | |
Starting power | 6kW | |
Working power | 2kW | |
heating time | about 30 minutes | |
time through machine | 3.5~5.5 minutes | |
Temperature control range | Ambient temperature – 400℃ | |
Temperature control method | PID closed loop control | |
net weight | 120kg | |
size | Length 1700* Width 710* Height 650mm | |

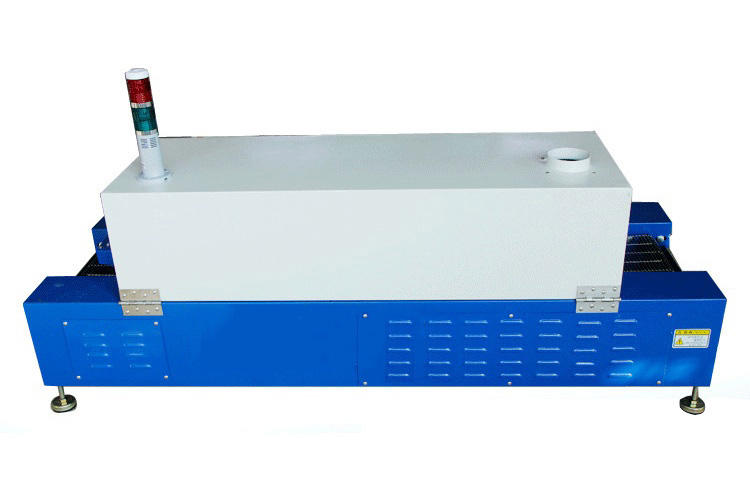

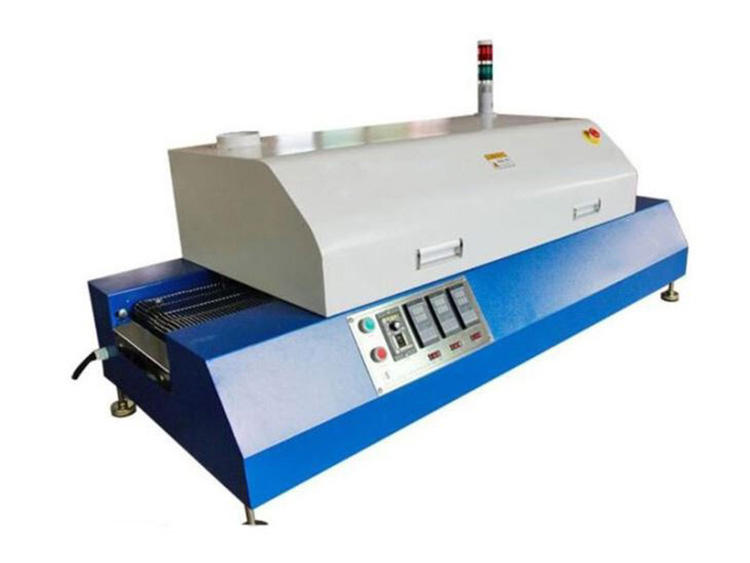

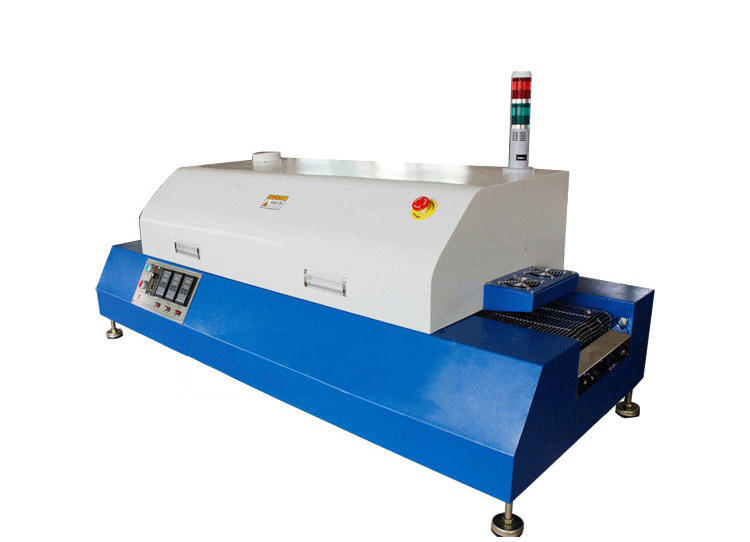

Product Details
Wenzhou Yingxing Technology Co., Ltd.Specialized in SMT production line (PNP machine) for more than 9 years
our service
1. Video technical support 2. 24-hour online support 3. Cargo tracking support 4. Free damaged parts (1-year warranty)
Frequently Asked Questions
Q: How was the training?
Answer: After purchasing our machine, your engineer can go to our company, or it is easy to operate the machine according to the training video and user manual, the user manual will be provided with the machine.
Answer: After purchasing our machine, your engineer can go to our company, or it is easy to operate the machine according to the training video and user manual, the user manual will be provided with the machine.
Q: Are these machines difficult to use?
A: No, it's not difficult at all. For our previous customers, a maximum of 2 days was enough to learn to operate the machine.
A: No, it's not difficult at all. For our previous customers, a maximum of 2 days was enough to learn to operate the machine.
Q: Do your machines have quality certificates?
Answer: All our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have their own patents.
Answer: All our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have their own patents.
Q: What’s the warranty of the machine?
A: One year, then the parts will be provided to buyers for free during the warranty period.
A: One year, then the parts will be provided to buyers for free during the warranty period.
Q: Are these machines available in English?
Answer: Yes
Answer: Yes
