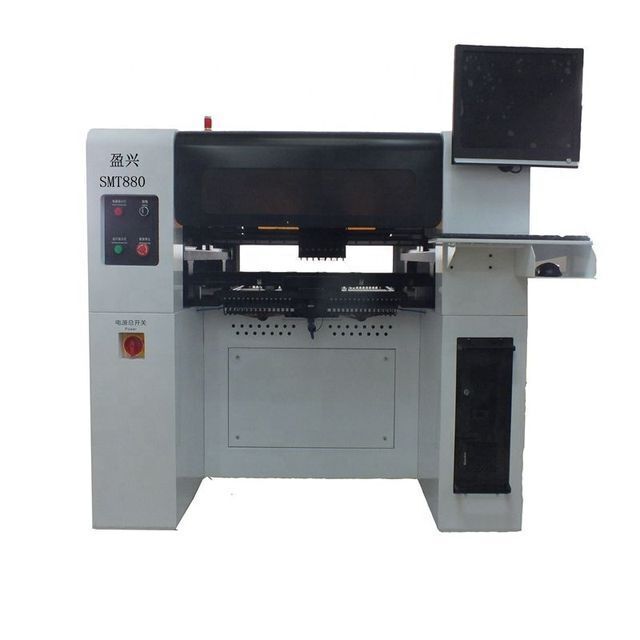

2021 The Newest Pick and Place Machine SMT Machine SMT880 With 8 heads and 10 cameras+Servo motor/Screw Guide
-
Supplier: Wenzhou Yingxing Import&export Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jim Jiang -
Price: $15200.00 / 1 - 1 sets
$15000.00 / >=2 sets -
Min. Order: 1 set
Product details
| Number of head: | 8; | Drive motor: | Panasonic Servo Motor; |
| Software: | English; | Guide: | Guide Screw; |
| Condition: | New; | Payment Terms: | Western Union,T/T,Paypal Or Aliexpress; |
| MAX circuit board area: | 500*455mm; | Port: | Guangzhou/Shanghai/Ningbo; |
| Model Number: | SMT880; | Local Service Location: | None; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | After-sales Service Provided: | Video technical support,Free spare parts,Online support; |
| Supply Ability: | 300 Set/Sets per Month; | Showroom Location: | None; |
| Packaging Detail: | With strong wooden package; | Automatic board: | Three-stage track; |
| Applicable Components: | 0201/40*40mm; | Warranty: | 1 Year; |
| Number of camera: | 10; | Machinery Test Report: | Provided; |
| Marketing Type: | New Product 2020; | Core Components: | Motor; |
| Video outgoing-inspection: | Provided; | Number of feeder: | 80; |
| Warranty of core components: | 1 Year; | Maximum mounting speed: | 15000 Pcs/hour; |
| Place of Origin: | Zhejiang China; | Brand Name: | YX; |
Wenzhou Yingxing Technology Co.,Ltd Specialises in SMT Production Line (PNP Machine）
More than 9 years
Pick and place SMT880 With 80 Feeders and 8 Heads+Servo Motor+Screw guide
Three-stage track
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
Product Paramenters
Three-stage track
-
Contact NOW
Panasonic Servo Motor
Screw Guider
Specification | ||
Number of feeders | 80 | |
Number of IC tray | 8 | |
Number of cameras | 10 | |
Number of heads | 8 | |
Average power | 1000W | |
Automatic board | Three-stage track | |
Guide | Screw guide | |
Maximum mounting speed | 15000 Pcs/h | |
Average mounting speed of actual mounting resistance | 12000 Pcs/h | |
Maximum travel scope in Z axis | 20mm | |
Maximum circuit board area | 500×455mm | |
Positioning precision | 0.01mm | |
The buffer range of suction nozzle | 4.5mm | |
Weight | 600KG | |
Dimension | 1420*1370*1350mm | |
Power supply | 110V/220V, 50/60Hz | |
Compressed air | 0.5-0.6Mpa | |
Drive motor | Panasonic servo motor | |
Motion drive system | Panasonic high-speed DSP drive | |
Recognition mode | Simultaneous recognition of eight heads | |
Vacuum source of suction nozzle | High-speed on-off vacuum generator with vacuum breaker | |
Operating system | Full-automatic chip mounter operating system operating system. | |
Independently developed by us based on Windows operating system | ||
Supports windows xp, win7 | ||
Element angle | 0-360°synchronous rotation during movement | |
X/Y operation mode | Intelligent curve of the linear acceleration and deceleration linkage | |
MARK point positioning | Full-automatic (the MARK point can be adjust at will) | |
Intelligent alarm | Automatic correction, automatic filling, feeding shortage alarm | |
Plate entering mode | Automatic connection from left to right in single sections | |
Automatic PCB transfer positioning/plunger positioning, manual plate feeding | ||
Visual display | 17-inch industrial control display, 4:3, resolution: 1280 x1024 | |
Number of recognition cameras | One Mark recognition camera, four quick-recognition cameras | |
One precise-recognition camera. | ||
Adaptive mounting scope | Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP | |
Within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA. | ||
Packing details
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
A:After buying our machines,your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:Yes
