Fully automatic smd machine high speed automatic led light string making machine placement machine
- 76000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| place of origin; place of origin: | Guangdong, China | Weight (kg): | 1700 |
| payment terms: | Western Union, T/T | strength: | 380AC 50HZ |
| Core components: | motor | Mechanical test report: | if |
| Marketing Type: | normal product | Package preview: | |
| aspect: | 1600*1900*1550mm | brand: | Eaton |
| port: | Shenzhen | Health status: | new |
| Core component warranty: | 1 year | Installation height: | <15mm |
| Packaging Details: | Our packaging is vacuum packed in wooden boxes, and we promise to ship within four weeks after payment. | system: | Windows 7 |
| energy consumption: | 8KW | nozzle: | 32pcs |
| Video shipment inspection: | if | weight: | 1100 kg |
| software: | Independent research and development | Showroom location: | Egypt, Turkey, India |

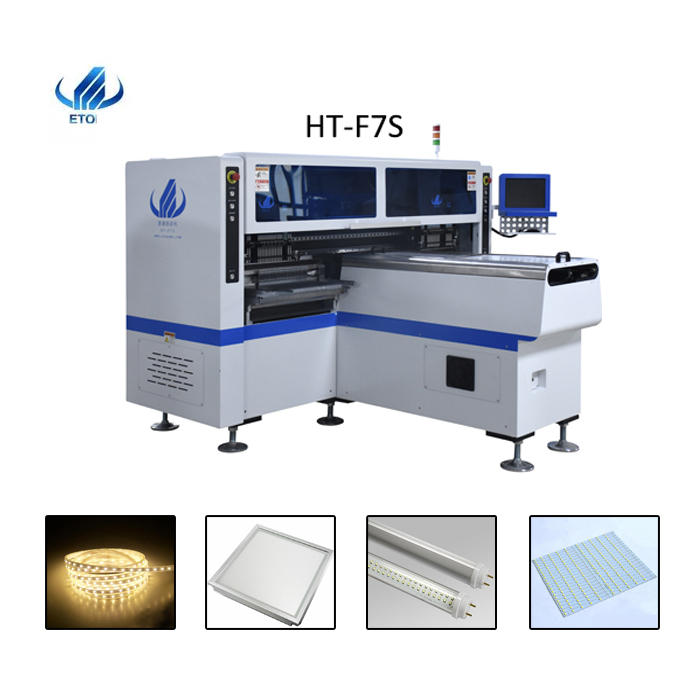

| model: | HT-F7S | port: | Shenzhen |
| Warranty: | 1 year, 1 year | Supply capacity: | 50 sets per month |
Product Description
Professional LED display placement machine with a capacity of150000~180000CPH.The installation head can be divided into two groups, each group has 17 suction nozzles. The number of placement heads can be increased or decreased according to customer needs.
featureAutomatic adjustment and fixation of PCB by software. There is no need for a support plate to install the LED display. Two modules, 32 suction nozzles in total, part A and part B can work independently or synchronously. Exclusive patented technology: group taking and group stickers.
Specification
aspect | ||
length | 2700mm | |
width | 2300mm | |
high | 1550mm | |
gross weight | 1700 kg | |
circuit board | ||
PCB length and width | Maximum: 1200*330mm Minimum: 100*100mm | |
PCB Thickness | 0.5-5mm | |
Printed Circuit Board Holder | adjustable pressurepneumatic | |
installation method | Group picking and individual placement | |
number of cameras | 5 sets (digital cameras) | |
Visual alignment, MARK correction | ||
Repeat placement accuracy | ±0.02mm (repeat accuracy) | |
installation height | ≦5mm | |
Mounting speed | 150000~180000 CPH | |

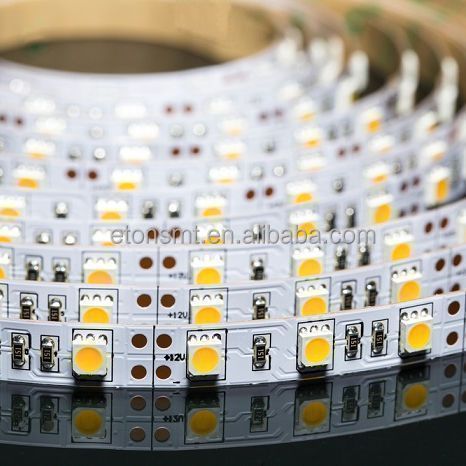

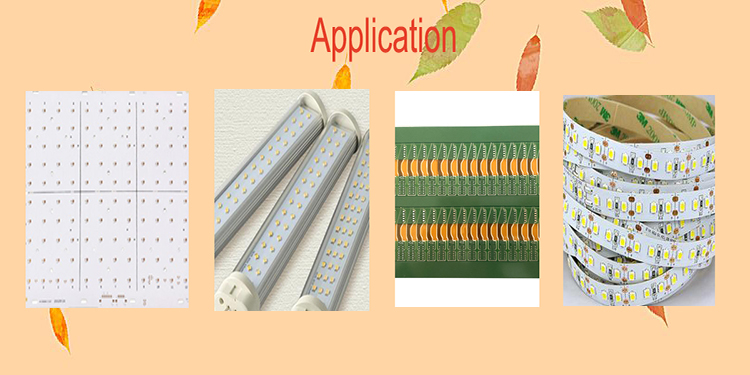

Element | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. | |
component space | 0.5mm | |
strength | 380AC 50Hz | |
energy consumption | 6 kW | |

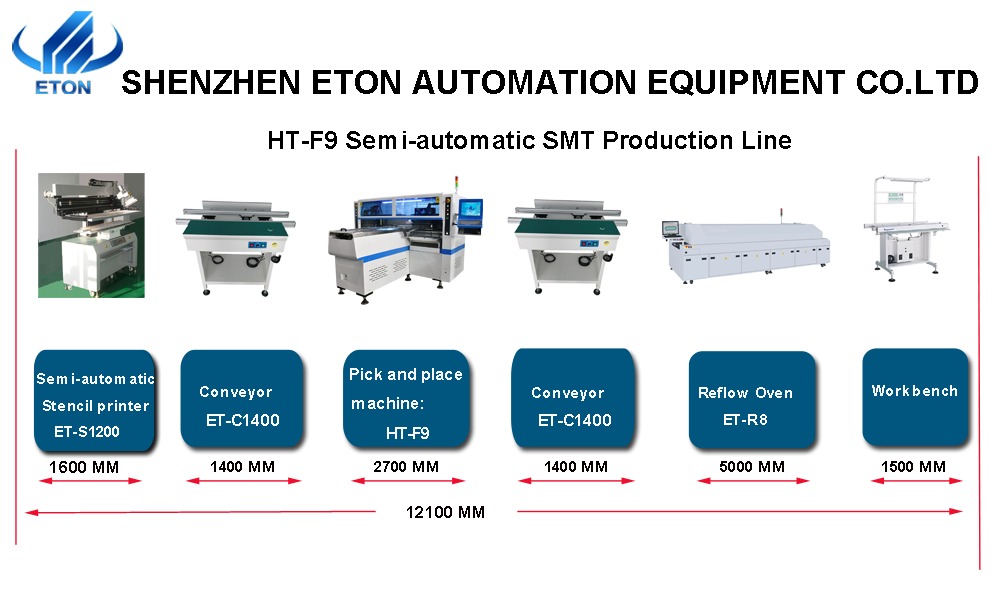

SMT line
