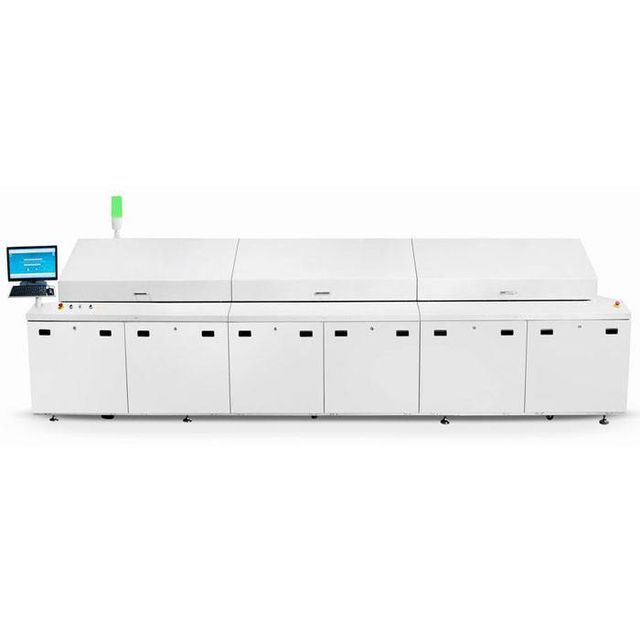

Industrial furnace S712A SMT reflow oven for soldering PCB solder paste

Lead-free hot air reflow oven (SER-712A from left to right)

Specification:

1> Heating part

— Pressurized forced hot air system, directly connected to high temperature motor drive, rear heating tube design, longer life

—Frequency conversion to adjust the wind speed of the hot air in the furnace body, the thermal shock is controllable

—12 heating temperature zones, 24 heating modules (upper 12/lower 12)

—Automatic furnace opening mode: convenient for maintenance and cleaning in the furnace

—Temperature control range: room temperature -320°C

—Temperature control accuracy: ±1°C (static)

—Substrate lateral temperature deviation: ±1°C

—The temperature performance index conforms to the IPC industry standard

2>Cooling section

- Pressurized forced air cooling (double cooling zone, drawer type rectification plate)

— Cooling zone temperature display

3>Control part

—PC+PLC control system, Windows operation interface, Chinese, English, Traditional and Simplified online free switching, LCD display

—Segment heating function

- Hot air motor abnormal alarm - temperature curve analysis, storage, call function

4>Transmission part

—Anti-interference plate chain and W440mm mesh belt synchronous transmission

—Transmission speed: 0.3M-1.5M/Min, accuracy ±2mm/min

—Transmission height and direction: 900±20mm, from left to right

—PCB width: min50mm~max400mm

—Height of substrate components: upper layer Max30mm, lower layer Max20mm

—Electric/manual rail width adjustment

—Two sections of double-sided guide rails (guide rails: special aluminum alloy material, superhard treatment, reducing wear and deformation)

5> Protection system

—Temperature out of tolerance, transmission speed out of tolerance, board drop alarm—Built-in computer and transmission UPS

—Chain automatic lubrication function (dripping time is adjustable)

—Computer self-diagnosis

—Operator password management, operation records

—Delay shutdown function

6> In-line device after flux filtration

—Inlet and outlet forced exhaust device

—The diameter of the inlet and outlet exhaust pipes is 145mm, and the required air volume is ≥20m3/min

7>Machine specifications

—Body size: L6490*W1372*H1450mm

—Power supply: AC35W380V50/60HZ, maximum leakage current 180ma-200ma

—Starting power: 37KW (segmented starting)/89KW (integrated starting)

Product Description

   S712ATechnical Parameters

our service

1.We will do careful inspection and testing before shipping.

2.We provide you with a friendly English user manual or operation video for free;

3.24 hours technical support via email, Skype, trade manager or phone.

4.1 year free warranty for machine accessories;

5. Engineers can repair machinery overseas.

Packaging and Shipping

Packing:

1) Standard box packaging for light and small items;

2) Sturdy wooden packaging for heavy and large equipment;

Shipping method:

1) By air, sample and small package, worldwide express, such as DHL, UPS, FedFX, EMS...

2) Shipping by sea, for big package and quantity;

3) Car or other ways required by customers;

Company Overview

FAQ

1) I am using this machine for the first time, is it easy to operate?

There are English manuals or guide videos to show you how to use the machine.

If you still have any questions, please contact us by email/Skype/Telephone/trademanager online service.

2) What should I do if the machine has any problem after receiving it?

Send you parts for free during machine warranty period.

If the parts are less than 0.5KG, we pay for the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ?

1 set machine, mixed orders are also welcome.

4) How can I buy this machine from you? (very simple and flexible!)

A. Ask us about the product online or by email.

B. Negotiate and confirm the final price, freight, payment method and other terms.

C. Send you Proforma Invoice and confirm your order.

D. Payment shall be made in the manner stated on the proforma invoice.

E. After confirming your full payment, we will prepare your order according to the Proforma Invoice.

And 100% quality inspection before shipment.

F. Send your order by air or sea.
