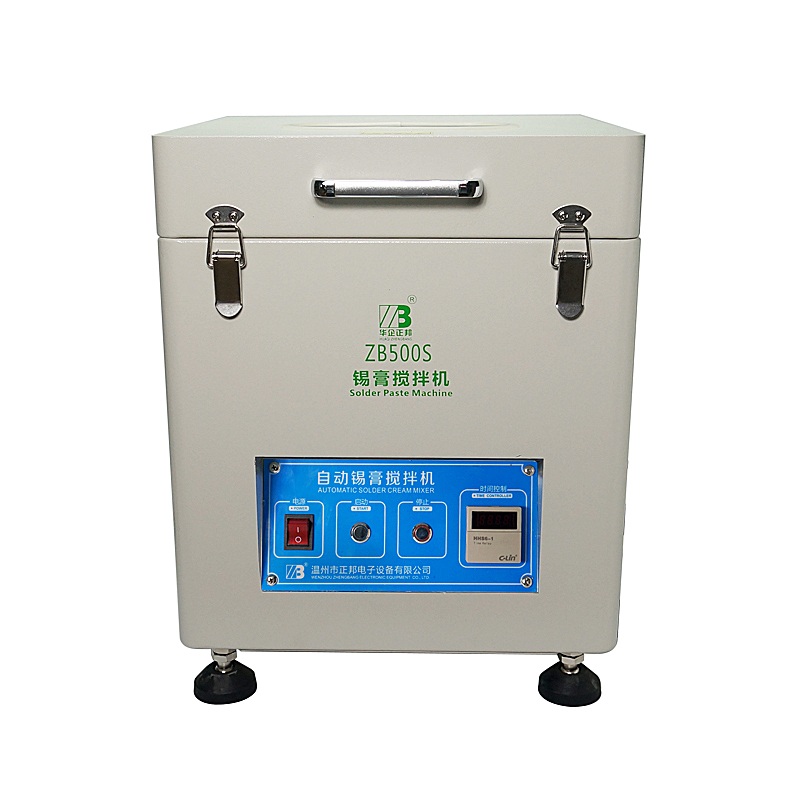

Automatic solder paste mixer 500g-1000g ZB500S for repairing PCB reflow soldering with LED digital display soldering equipment

Product details
Voltage:220VMotor speed:1350 rpm
type:Reflow solderingMain selling points:High accuracy
Packaging details:cartonGross weight of single piece:50.000kg
rated power:Constant speed 60WTwo spins:300 rpm
Core components:otherWarranty:1 year
Health status:newusage:PCB soldering

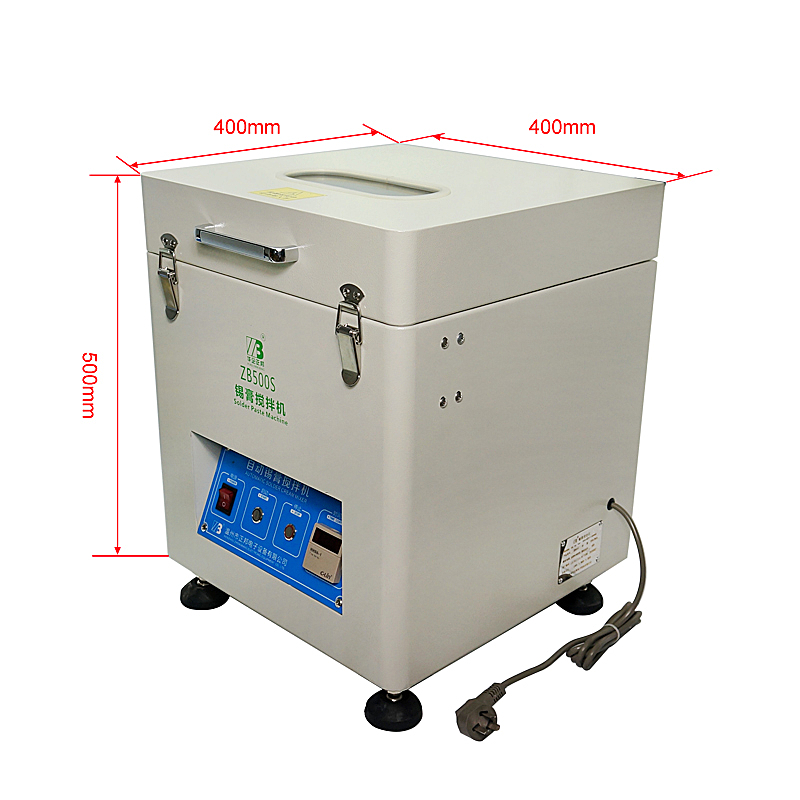

aspect:400x400x500mmRated Capacity:60W
Core component warranty:6 monthscurrent:50 Hz
Showroom location:not anyVideo outbound inspection:if
Package preview:A revolution:400 rpm
Applicable industries:Machinery repair shop, manufacturing plantMarketing type:2020 new products
Working power supply:AC 220V 50HzSales unit:Single product
time setting:0.01s~99H99s, minute and second settingsSingle piece packaging size:40X40X50 cm
Place of origin:Guangdong, ChinaMechanical test report:if
brand:LYDisplay mode:LED digital tube display
Operational capability:0-1000g*2 cansWeight (kg):50kg
Rated working cycle:90%
Product Description

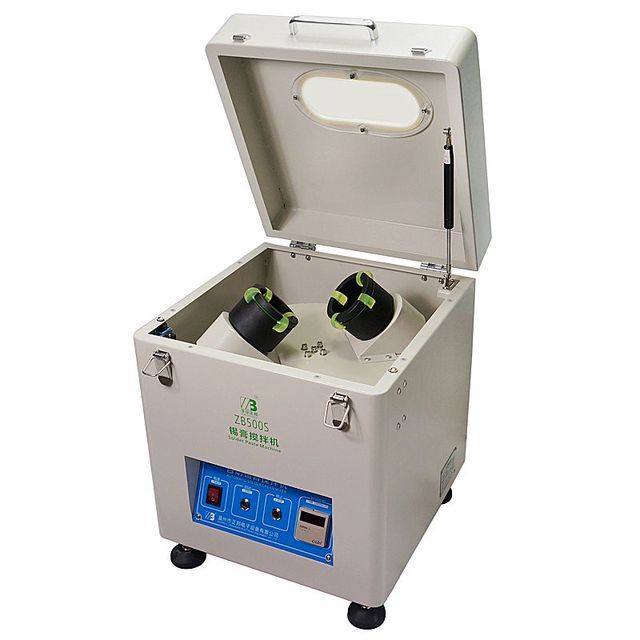

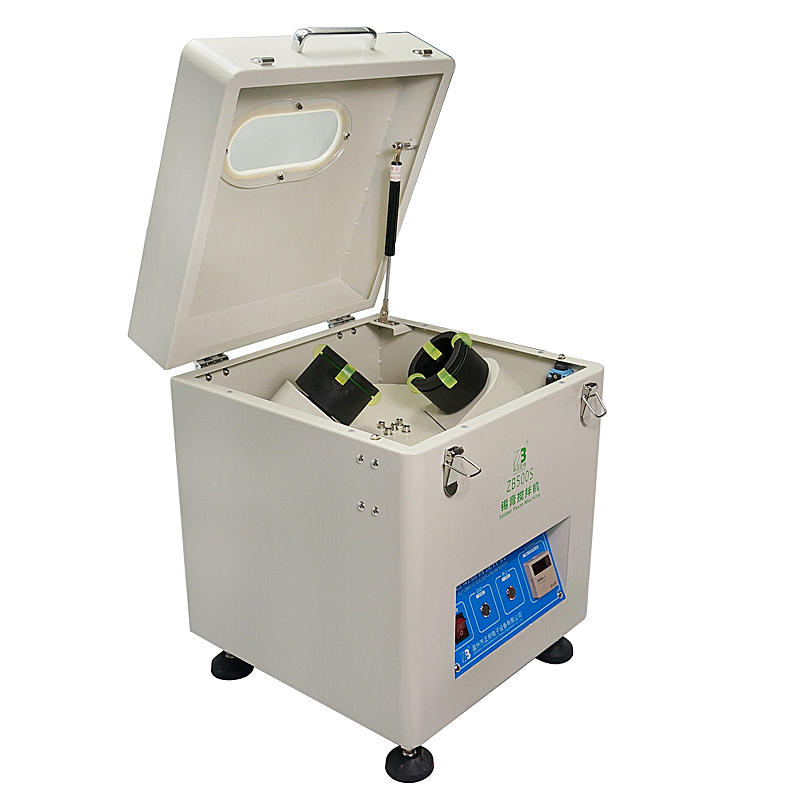

High quality automatic solder paste mixer 500g-1000g ZB500S for repairing PCB





The ZB500S automatic solder paste mixer uses the centrifugal force generated by revolution and the energy of the 45-degree rotation of the revolution axis to continuously move the solder paste downward. The solder paste located at the bottom of the tank moves upward from the surroundings, forming a tornado funnel-shaped stirring effect, which stirs, softens and defoams the solder paste with appropriate viscosity. The solder paste has good wettability and uniform diffusion. After mixing, the printing effect is excellent, and the best soldering performance can be achieved during reflow soldering.



Its characteristics are as follows:

·Special control circuit, adjustable stirring time, easy to operate.

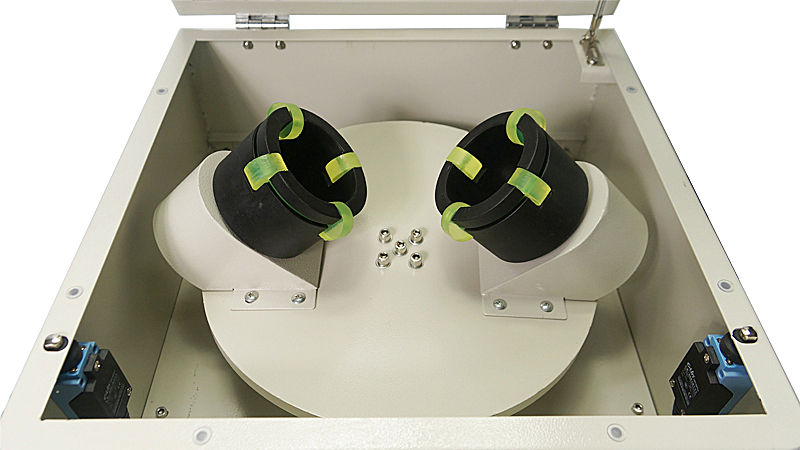

·The solder paste is placed at 45 degrees and rotated along the axis, so that the solder paste will not stick to the pot lid.

·Smooth operation, low noise, natural temperature recovery during mixing, and elimination of bubbles.

·There is no need to open the lid of the solder paste tank, making it easy and safe to take in and out.

·Equipped with safety devices to ensure personal safety.

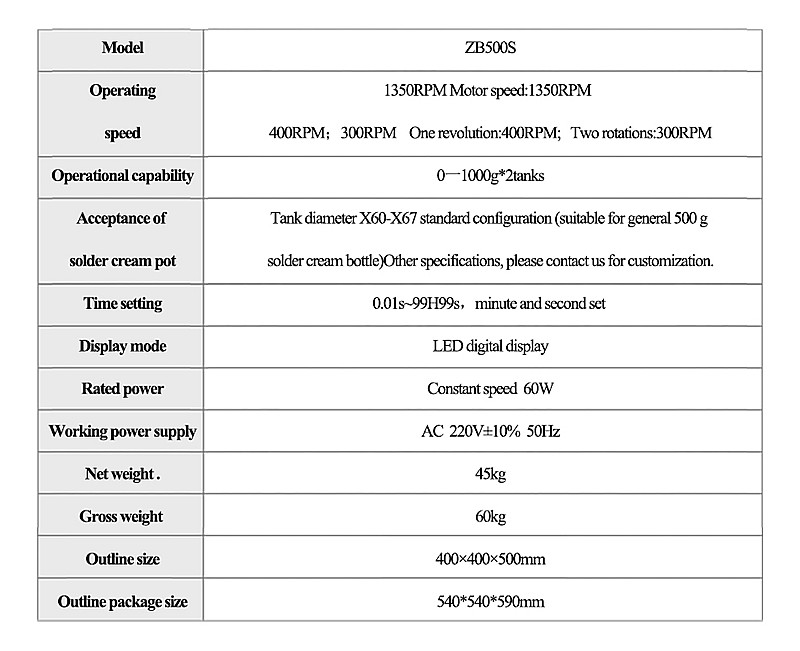

Technical Parameters



Running speed

Motor speed: 1350RPM


One revolution: 400RPM;

Two revolutions: 300RPM

Operational capability

0-1000g*2 cans

Solder paste jar acceptance

Tank diameter Φ60-Φ67 standard configuration (applicable to general 500g solder paste bottles)

For other specifications, please contact us for customization.

time setting

0.01s~99H99s, minute and second settings


display mode

LED digital tube display


rated power

Constant speed 60W

Working power supply

AC 220V±10%50Hz




Machine weight

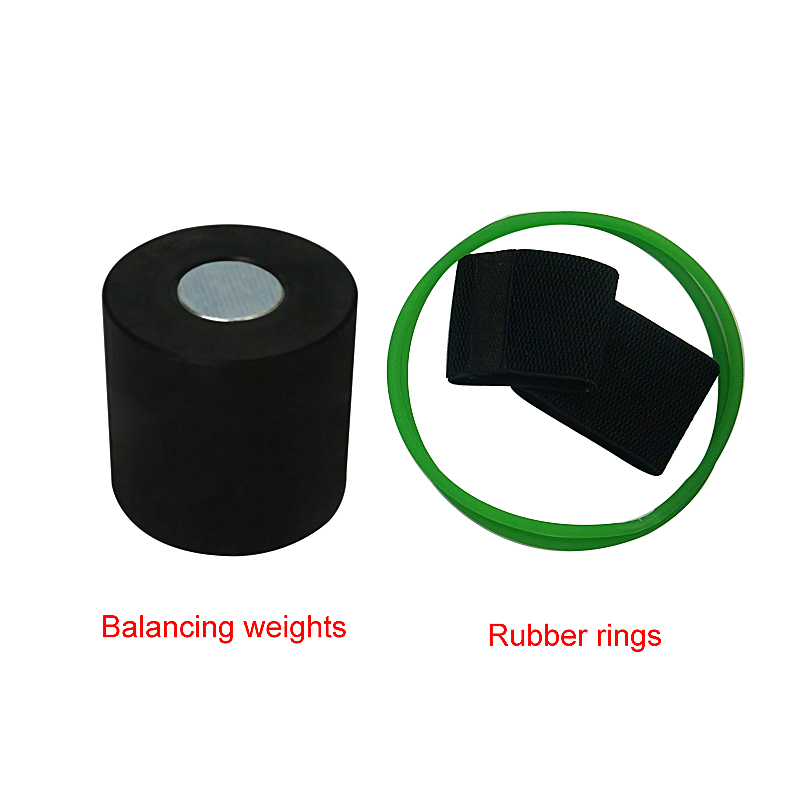

Accessory list


1. 2 adjustment straps

2. Rotary belt 2PCS

3. Balance weight 500g 1PCS

4. 1 manual

5. Quality Certificate 1PCS

6. Lining 2PCS


















Packaging and shipping

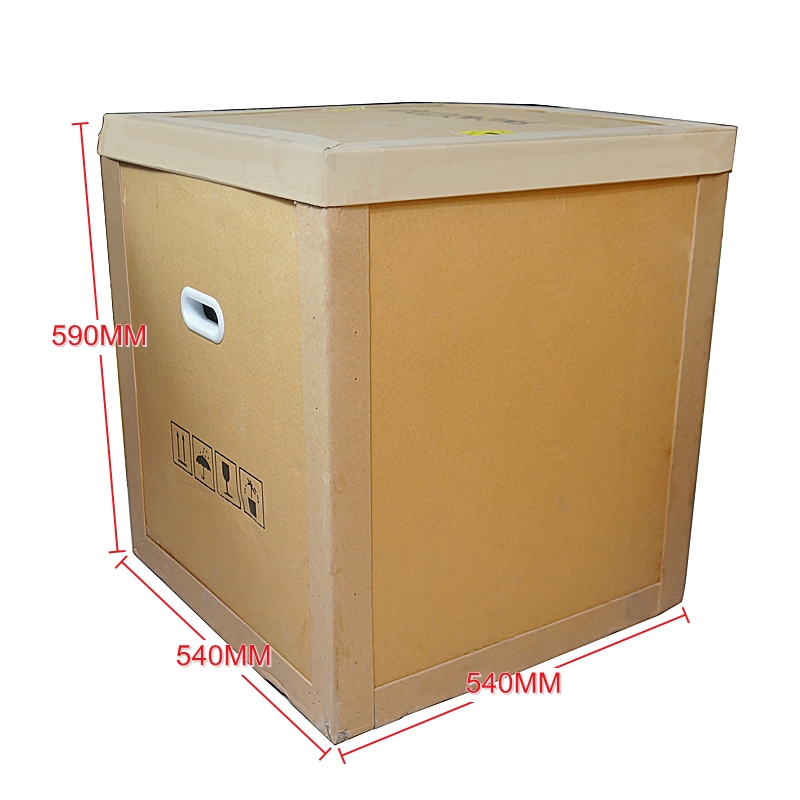

Packaging material: carton/wooden box with foam inside.


A. 3-5 working days shipped from China via air/express (DHL, FedEx, UPS, EMS, etc.)

C. 25-30 working days for shipping from China to Russian customers.

D. We can arrange sea shipping. Minimum CBM required: 1 CBM

our service

1. We provide you with a friendly English user manual or operation video for free.

2.24 hour technical support via email or phone.

3. Warranty: 1 year free, 2-3 years at cost price, always free technical support.

4. Free training to ensure you are proficient in the operation of our products.

5. OEM/ODM accepted. But the MOQ for OEM/ODM is 100 sets.
