Model:T-962

describe:

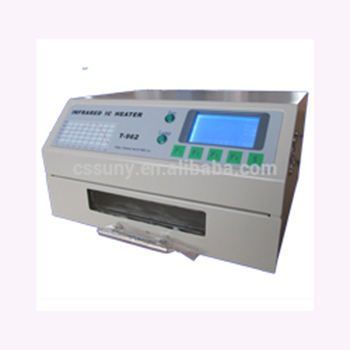

Infrared IC Heater T962 is a microprocessor controlled reflow oven. It can be used to effectively solder various SMD and BGA components.

The whole welding process can be completed automatically, and it is very convenient to use. This unit uses powerful infrared emission and thermal air circulation, so the temperature remains very accurate and evenly distributed.

The windowed drawers are designed to hold workpieces and allow safe soldering techniques and handling of SMD/BAGs and other small electronic parts mounted on PCB assemblies.

The T962 can be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.

feature:

(1) Infrared welding area is large
Effective welding area: 180*235mm; This greatly increases the range of use of this machine, making it an economical investment.

(2) Selection of different welding cycles

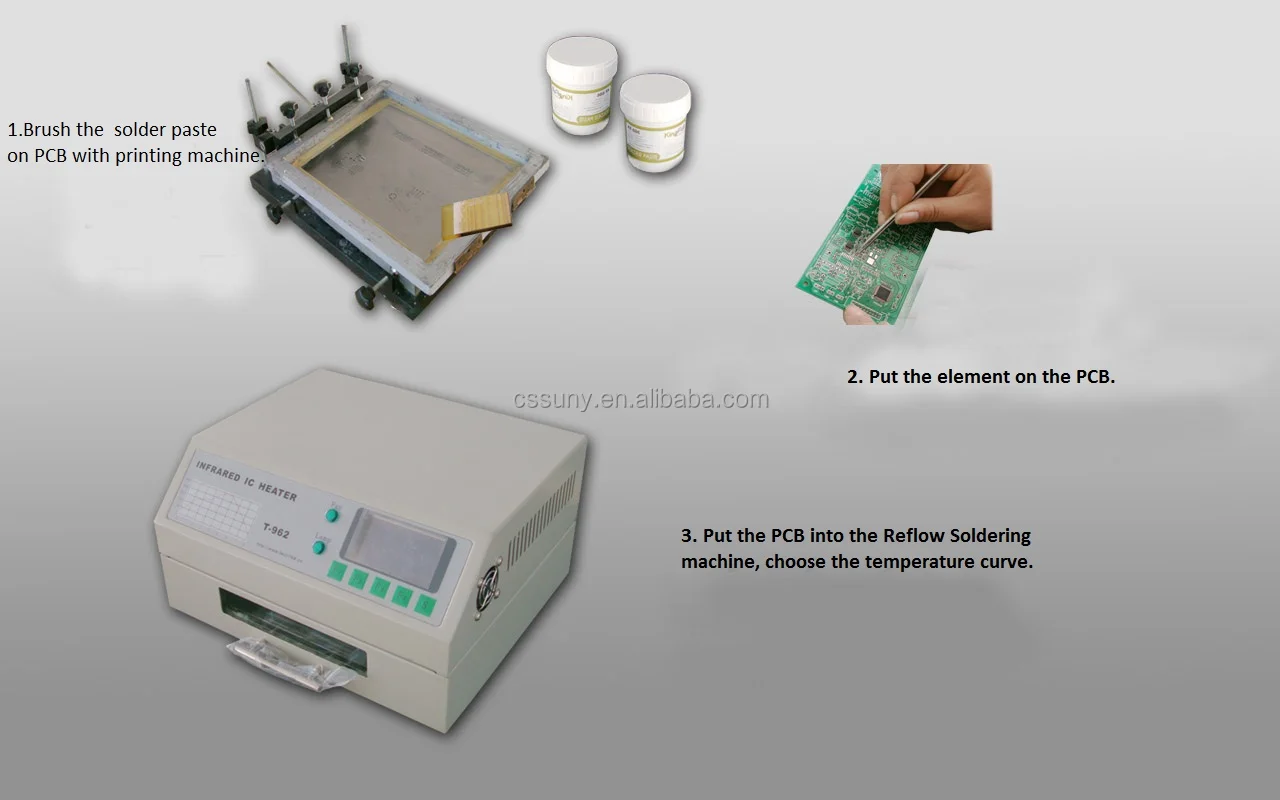

The parameters of eight soldering cycles are predefined, and the entire soldering process can be automatically completed from preheating, soaking and reflow to cooling.

(3) Special heating and temperature equalization for all designs
Reflows solder using up to 800 watts of energy-efficient infrared heating and air circulation.

(4) Ergonomic design, practical and easy to operate
Good build quality, but at the same time light weight and a small footprint allows the T962 to be easily placed on a bench for transport or storage.

(5) Large number of functions available
T962 can solder most raised eye or double-sided PCB board small parts, such as CHIP, SOP, PLCC, QFP, BGA, etc. It is the ideal rework solution from single runs to on-demand low-volume production

Technical Parameters
