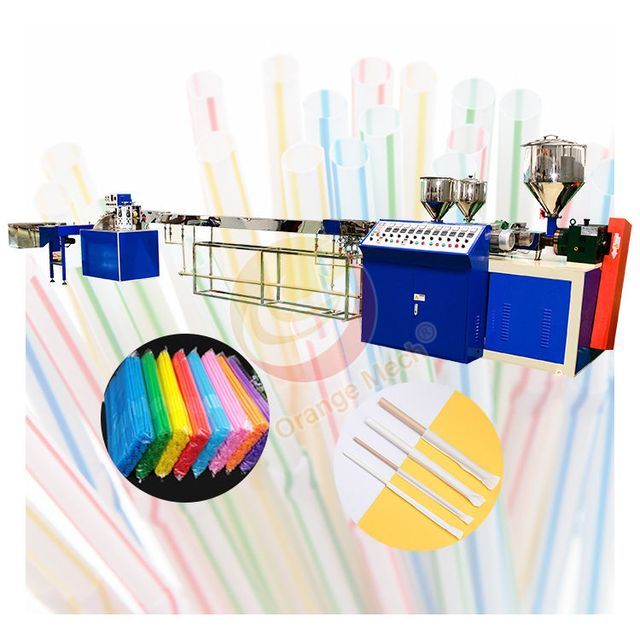

ORME fully automatic plastic edible beverage straw machine flexible straw production line

Supplier: Luohe Orange Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $25000.00 / 1 - 9 sets
$20000.00 / 10 - 19 sets
$15000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets per month	brand:	or me
Core component warranty:	1 year	Marketing type:	normal product
Advantage:	easy to use	Applicable industries:	Manufacturing factory, food and beverage factory, food store, food and beverage store
Application areas:	PLA PP plastic straw making	After-sales service provided:	Online support
Mechanical test report:	if	Video outbound inspection:	if
Warranty:	1 year	Health status:	new
application:	Beverage straw making machine	Showroom location:	not any
Packaging details:	wooden box	Final product:	Beverage straws, coffee straws, milk tea straws
Place of origin:	Henan, China	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Key words:	straw machine	product name:	Straw making machine
weight:	2100	Straw color:	1-3
raw material:	Polylactic acid polyethylene polypropylene	Core components:	PLC
Dimensions (lengthwidthheight):	81.21.6m	Processing type:	Automatic line

◆ Product description

introduce

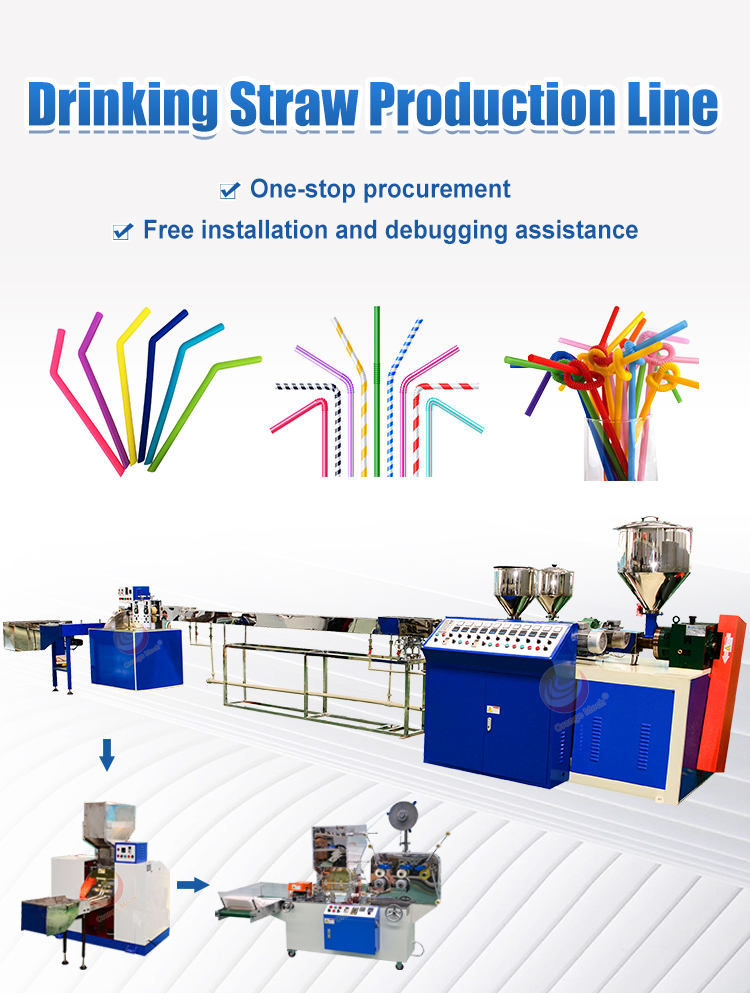

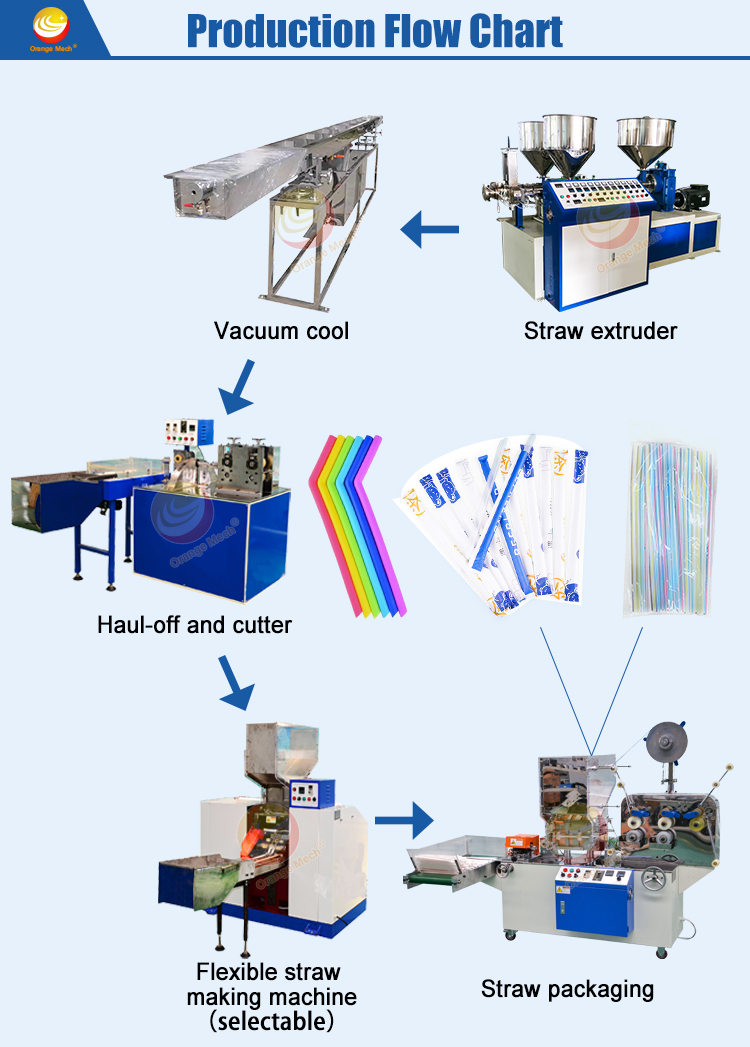

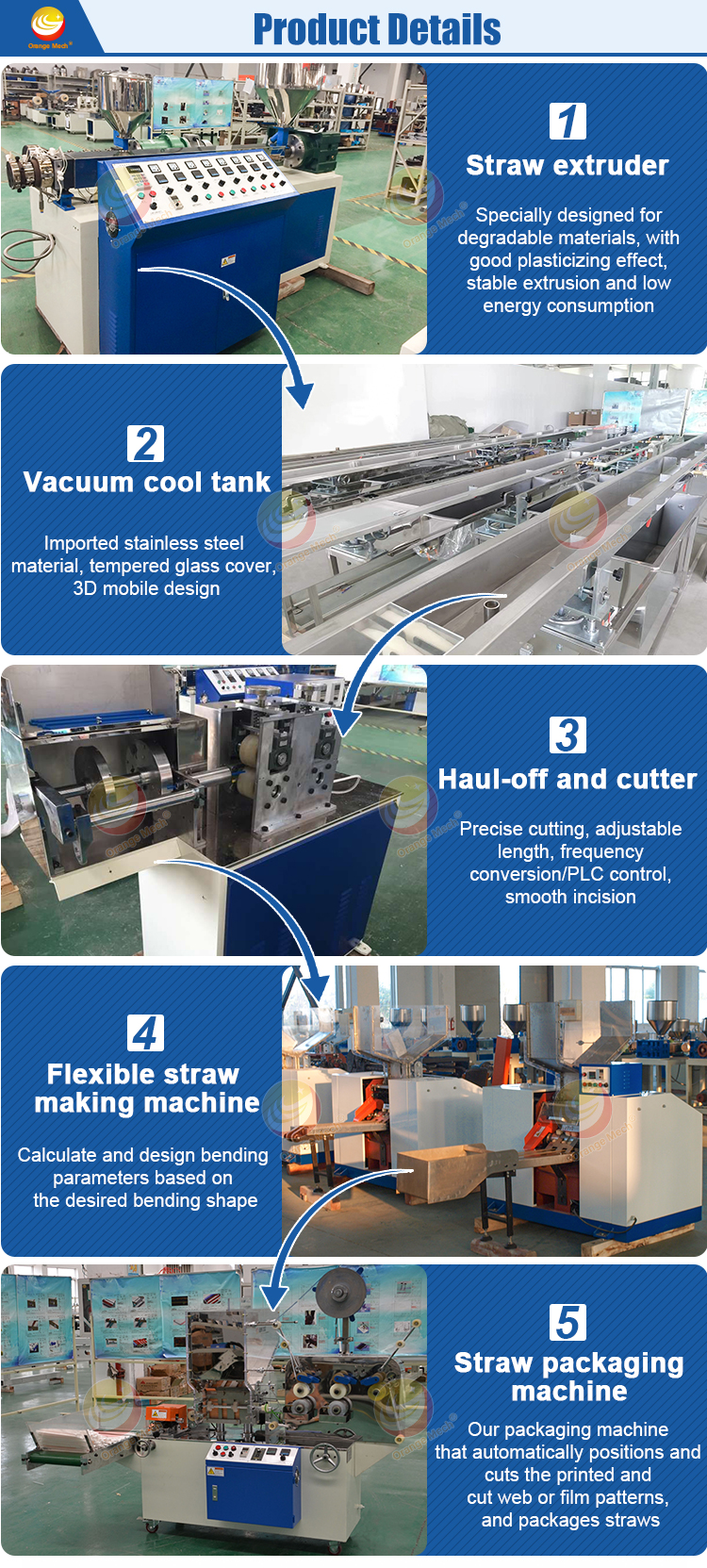

Straw production line is an automated equipment used to produce various types and sizes of straw. It usually consists of multiple independent equipment, including straw extrusion molding machine, cooling tank, cutting machine, packaging machine, etc. An important equipment in the entire production line, it can shape the raw materials through molds to form the shape and size of the straw. The cutting machine is responsible for cutting the shaped straw into the required length and trimming the edges. The packaging machine packages the finished straws into quantitative packages for sale and transportation.

application

1.Food industry: beverage straws, candy sticks, coffee sticks, milk tea straws.

2.Other industries: signature refills, nozzles, balloon poles, small flagpoles, cotton swabs.

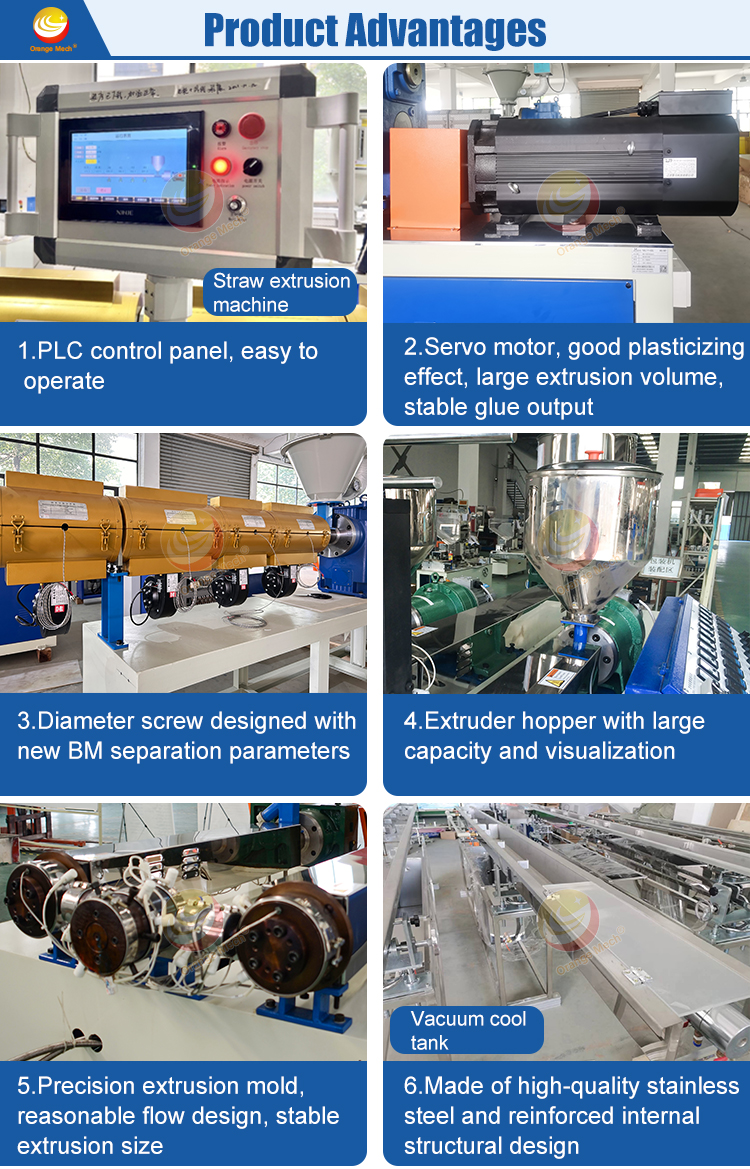

feature

1. Changing molds is quick and easy.

2.The cooling water tank and water tank frame are made of stainless steel and will never rust.

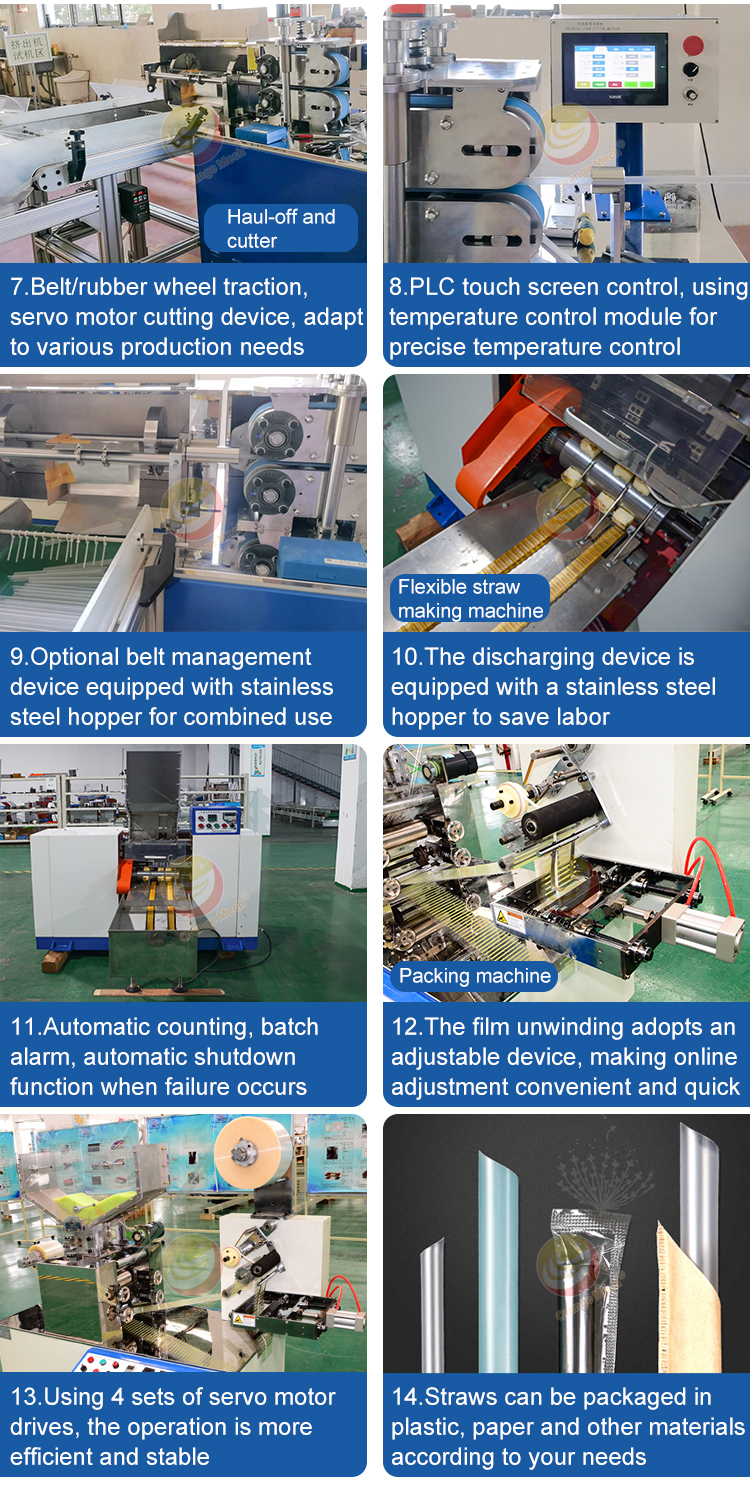

3.There are many combinations of traction cutting devices to meet the production needs of different products.

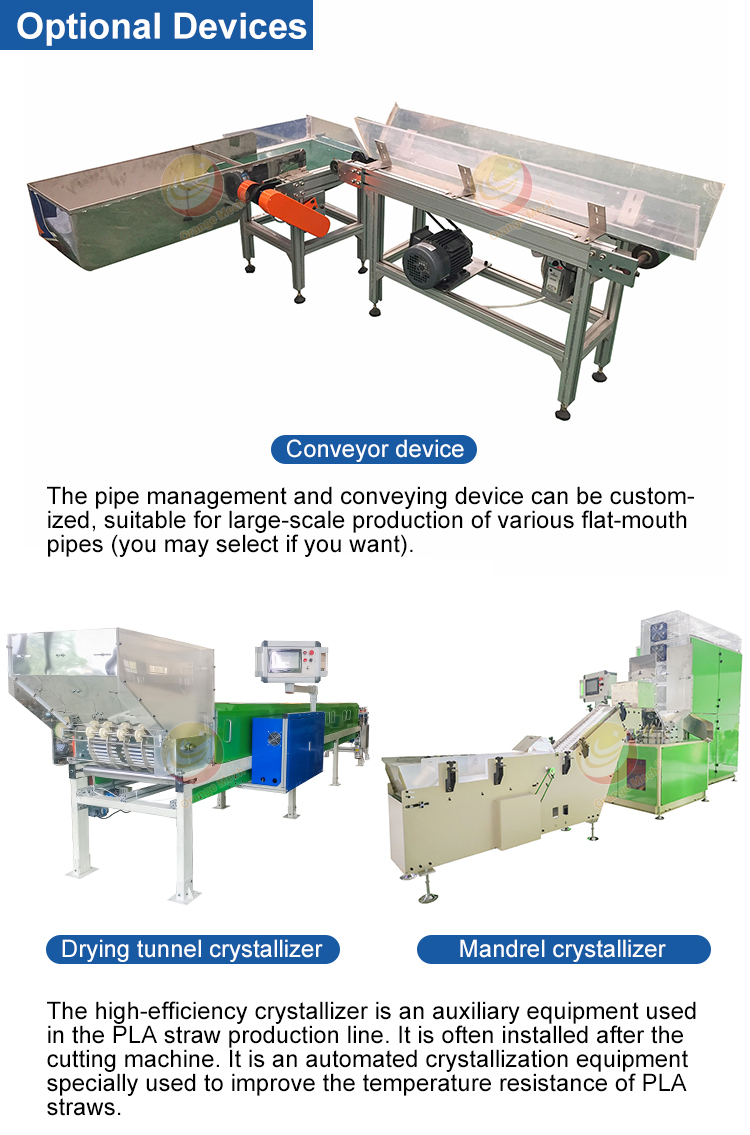

4.The management and conveying device can be customized, suitable for the large-scale production of various flat pipes.
5.Both the host machine and the cutting machine use touch screens and PLC systems to intelligently manage production data.

◆ Parameters

Model			ORME-12	Ogilvy 11-50	Omi 11-65	ORME12-PLA
feature	Material	polypropylene	Polylactic acid polypropylene polyethylene	Polylactic acid polypropylene polyethylene	Polylactic acid/polypropylene
		color	2	1	1	2
		Straw diameter	φ3.0～φ12mm	φ3.0～φ12mm	φ3.0～φ12mm	φ3.0～φ12mm
		thickness	0.10～0.35mm	0.10～0.35mm	0.10～0.35mm	0.10～0.35mm
		Straw length	80～300mm	80～300mm	80～300mm	80～300mm
		stripe	Straight or spiral	Straight or spiral	Straight or spiral	Straight or spiral
		ability	400～1800 pieces/minute	400～1800 pieces/minute	400～1800 pieces/minute	400～1800 pieces/minute
		Extrusion output range	20～40kg/hour	30～50kg/hour	60～100kg/hour	20～40kg/hour
extruder	Main screw diameter	φ50mm (BM screw)	Φ50mm (BM screw)	Φ65mm (BM screw)	φ50mm (BM screw)
		Screw diameter	28:1	33:1	33:1	33:1
		Main drive motor	11 kilowatts	22kW	30kW	18.5kW
		Vice screw diameter	φ25mm×1	φ25mm×1	0	φ25mm×1
		Auxiliary drive motor	0.75kW×1	0.75kW×1	0	0.75kW×1
		gearbox	ZLY133	ZLY146 hard tooth surface gear	ZY173	ZLY146 hard tooth surface gear
		automatic thermostat	8 sets	6 sets	6 sets	8 sets
		heating power	11.63kW	1 set	1 set	11.63kW
water cooling box	Forming device	1 set	1 set	1 set	1 set
		Vacuum pump motor	1.1 kW (optional)	1.1 kW (optional)	1.1 kW (optional)	1.1 kW (optional)
		water tank	3400mm/304 steel stainless steel	5600mm/304 steel stainless steel	3800mm/304 steel stainless steel	3400mm/304 steel stainless steel
		Bottom frame material	304 steel stainless steel	304 steel stainless steel	304 steel stainless steel	304 steel stainless steel
		Blow drying device	1 set	3 sets	3 sets	1 set
Rewinding and cutting device	Take-up unit	1 set	1 set	1 set	1 set
		Traction motor	0.75kW×1	0.75kW×1	0.75kW×1	0.75kW×1
		Cutter unit	1 set	1 set	1 set	1 set
		cutting motor	0.75kW×1	1.5kW×1	1.5kW×1	0.75kW×1
		port angle	90°/60°/45°	90°/60°/45°	90°/60°/45°	90°/60°/45°
		digital counter	1 set	1 set	1 set	1 set
others	Air compressor	1.5kw (optional)	1.5kw (optional)	1.5kw (optional)	1.5kw (optional)
		Dimensions length x width x height	8m×1.2m×1.6m	13.5m×1.4m×1.6m	9m×1.2m×1.6m	8.5m×1.2m×1.6m
		Machine weight	2100kg	2800kg	2500kg	2200kg
