Horizontal bread slicer, French bread slicer, cake base slicer

Supplier: Luohe Orange Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Suitable:	Hamburger buns or hot dog buns	Warranty:	1 year
Material:	304 stainless steel	Mechanical test report:	if
application:	Bread baking machine	Video outbound inspection:	if
Place of origin:	China	brand:	Orange Machine Technology
Core components:	engine	Supply capacity:	200 French bread slicers per month
Core component warranty:	1 year	Mechanical functions:	4000 pieces/hour
Showroom location:	not any	weight:	160kg
Dimensions (lengthwidthheight):	160011501200mm	port:	Shanghai
payment terms:	L/C, Western Union, D/P, T/T, MoneyGram	Marketing type:	2020 new products
Applicable industries:	Hotels, food and beverage factories, restaurants, home use, food stores, food and beverage outlets	Package preview:
product name:	Hot dog bun section slicer	raw material:	bread
Health status:	new	Function:	bread slicer
Output product name:	bread	Model:	Half loaf and full loaf cutting
capacity:	60-120 pieces/minute	strength:	0.75kW
Packaging details:	Standard export wooden box	Energy source:	electrical
Name:	French bread slicer	Output:	hamburger buns
Voltage:	240v or 380v	Cutting thickness:	10mm-20mm
Application areas:	Snack food factory, bakery	Main selling points:	High productivity

product description

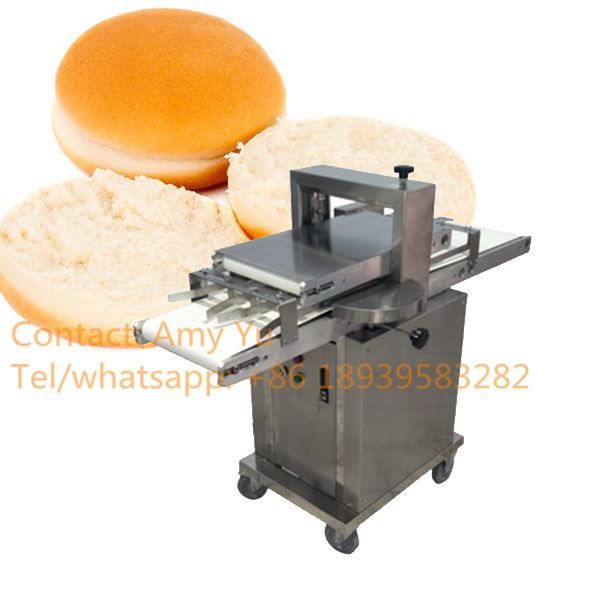

Best Price Commercial Adjustable Slicing Hamburger Bread Maker

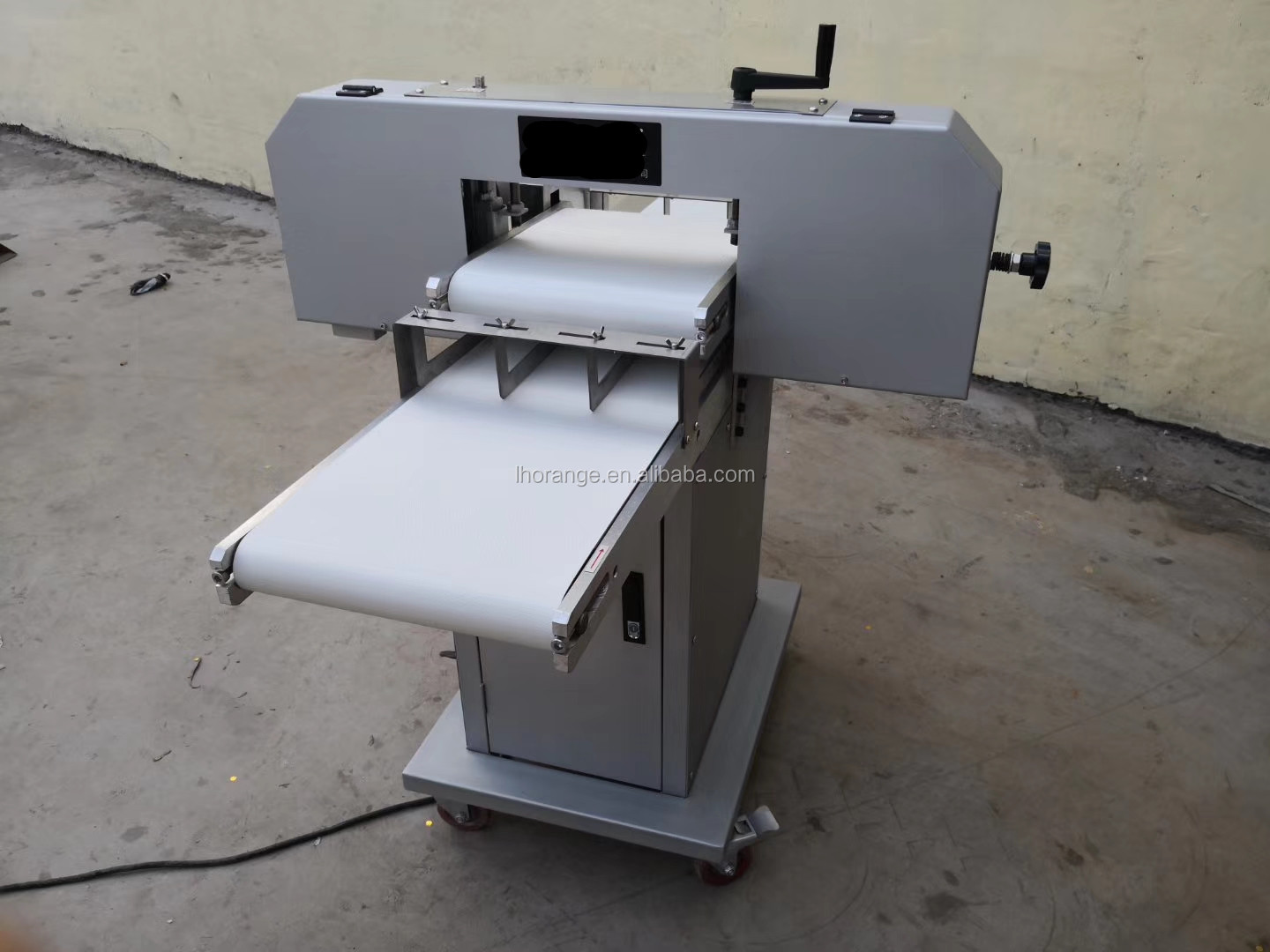

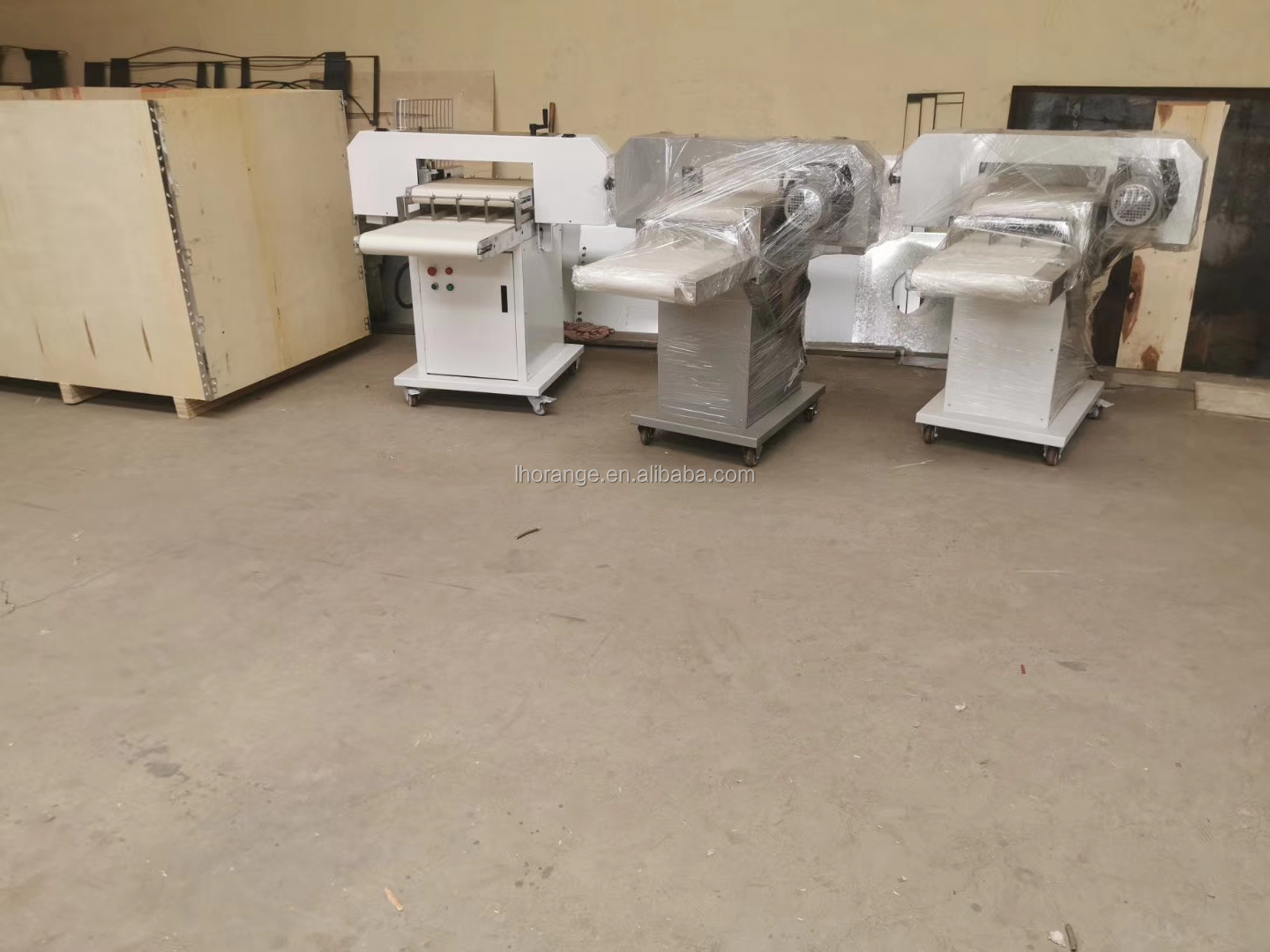

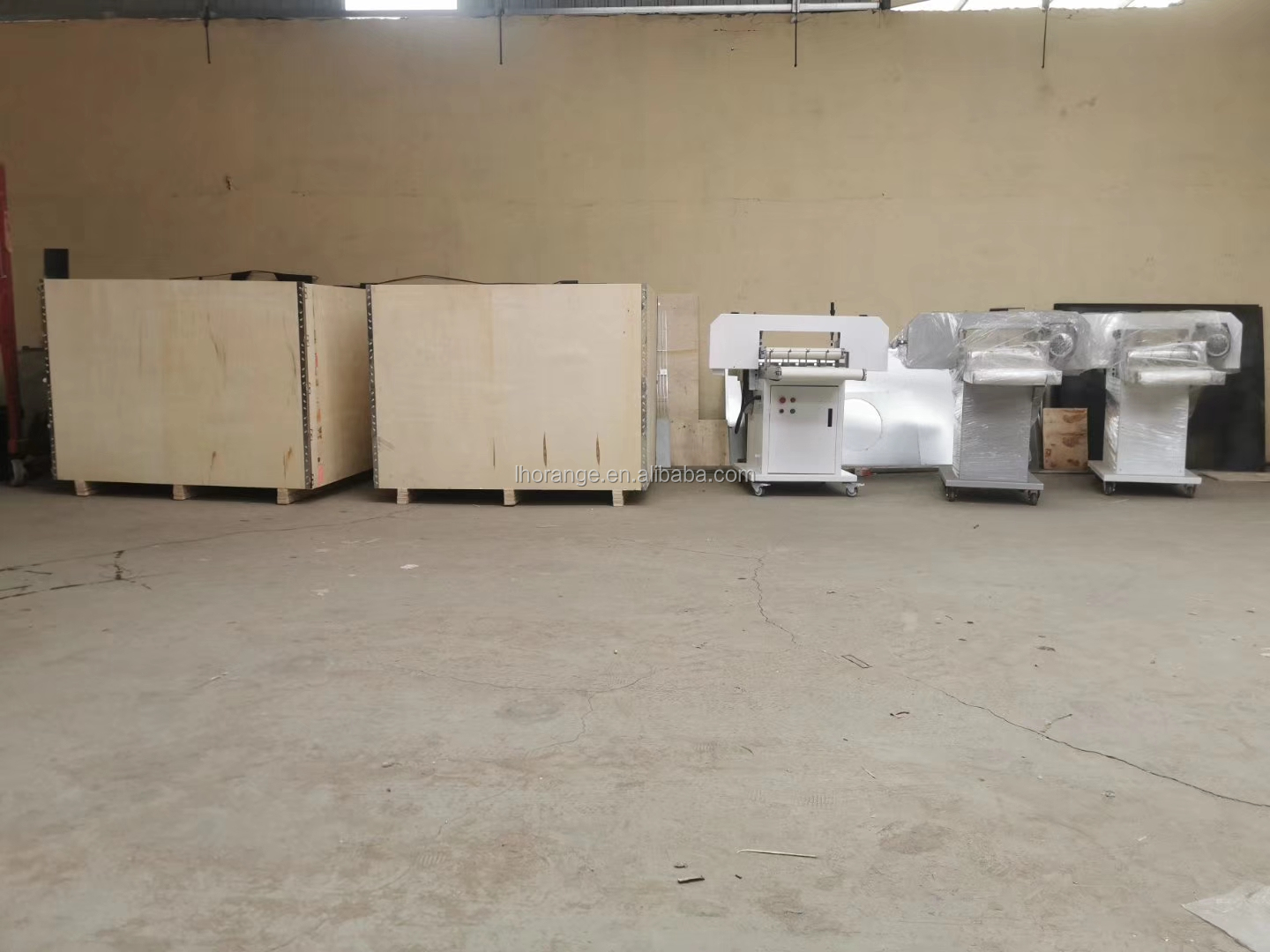

Hamburg horizontal cutting machine

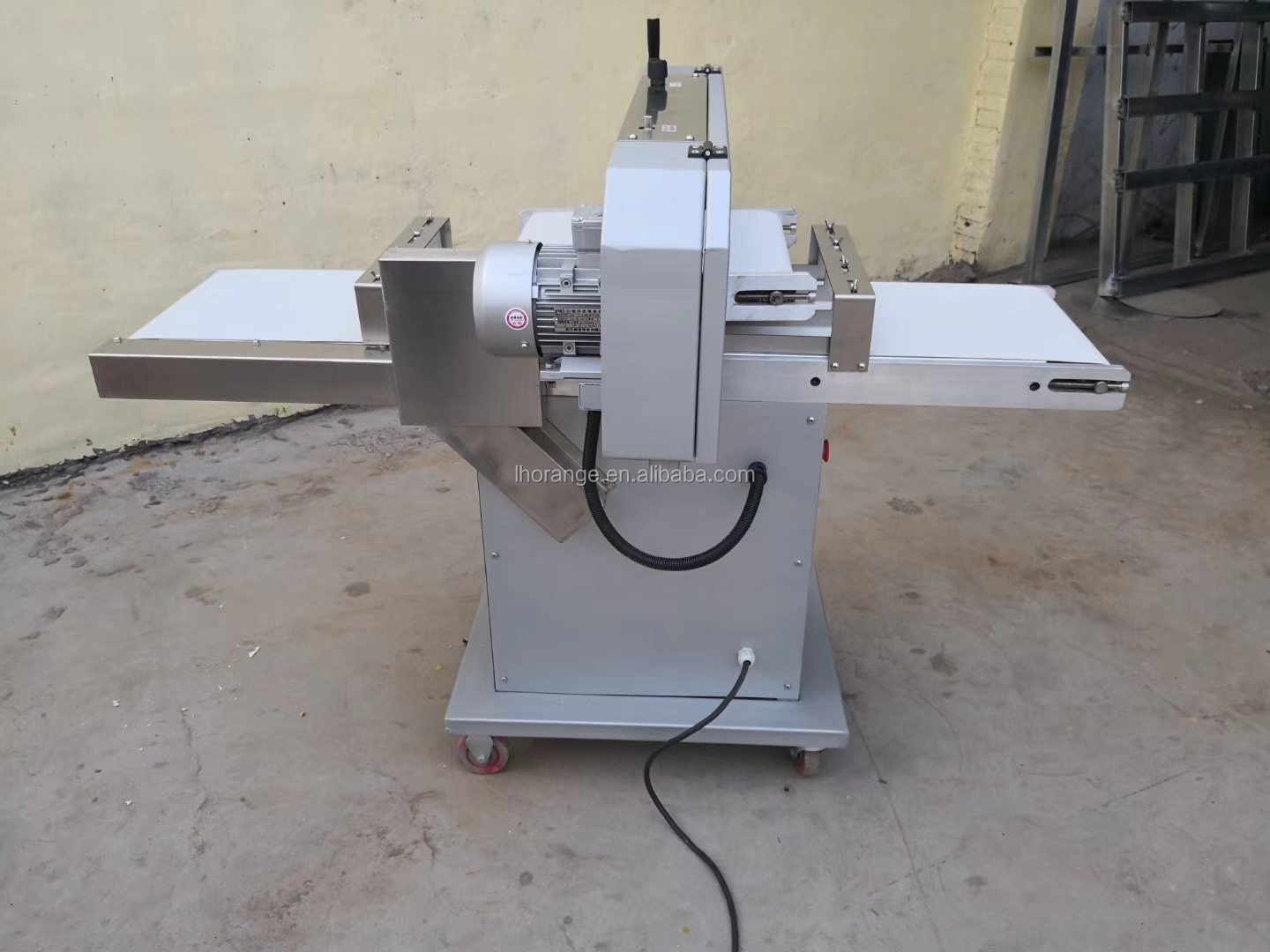

It mainly uses two driving wheels to drive the circular saw blade to wait for the burger to cut the items. The circular saw blade is installed on two transmission wheels. Adjust the appropriate tension and the parallelism and position of the two transmission wheels; the transmission wheels rotate to drive the circular saw blade to cut the items to be cut.
When the horizontal hamburger cutting machine cuts the burger horizontally, the lower conveyor belt cuts the burger, and at the same time, another synchronous conveyor belt compresses the cut burger to prevent the burger from being crushed. This results in uneven cuts and uneven height of the burger. In order to meet the requirements of various specifications, the upper and lower conveyor belts can be freely adjusted according to customer requirements.

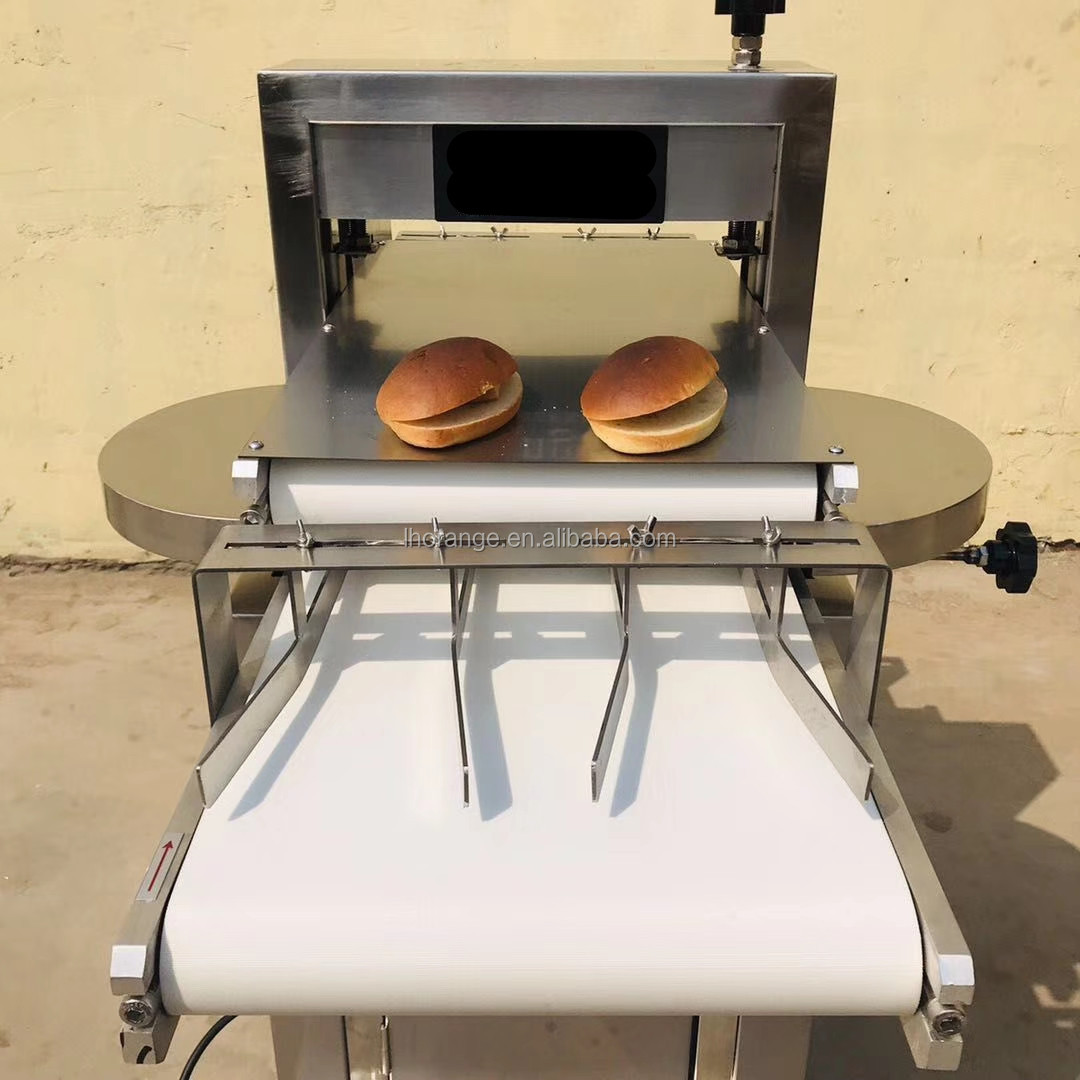

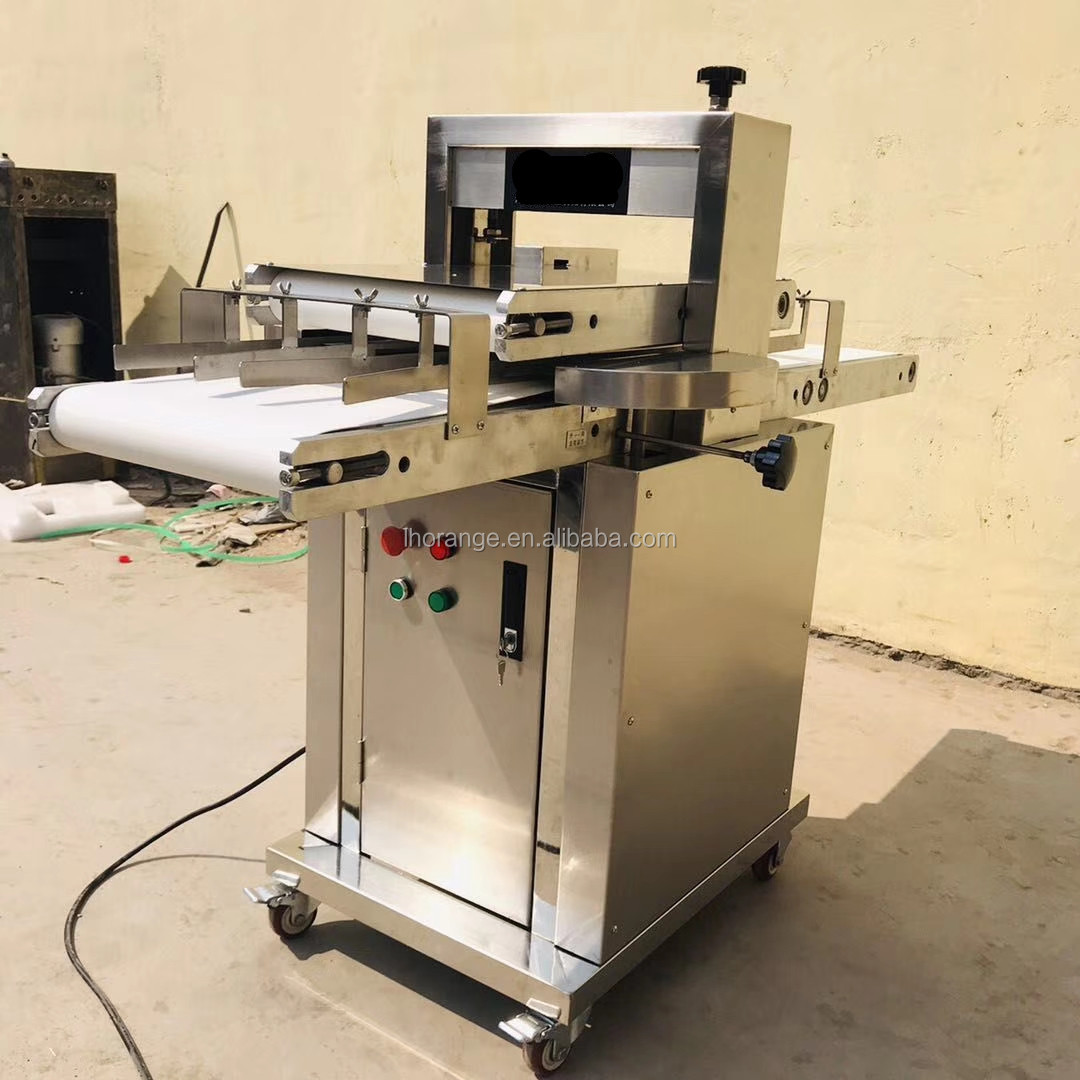

The burgers are placed on the conveyor belt and automatically enter the hamburger horizontal cutting machine for cutting. There are two adjustment screws on the top of the machine for adjusting the burger height and upper and lower cutting heightsconveyor. There is a knob on the right side of the horizontal burger cutter to adjust the tension of the band saw blade.

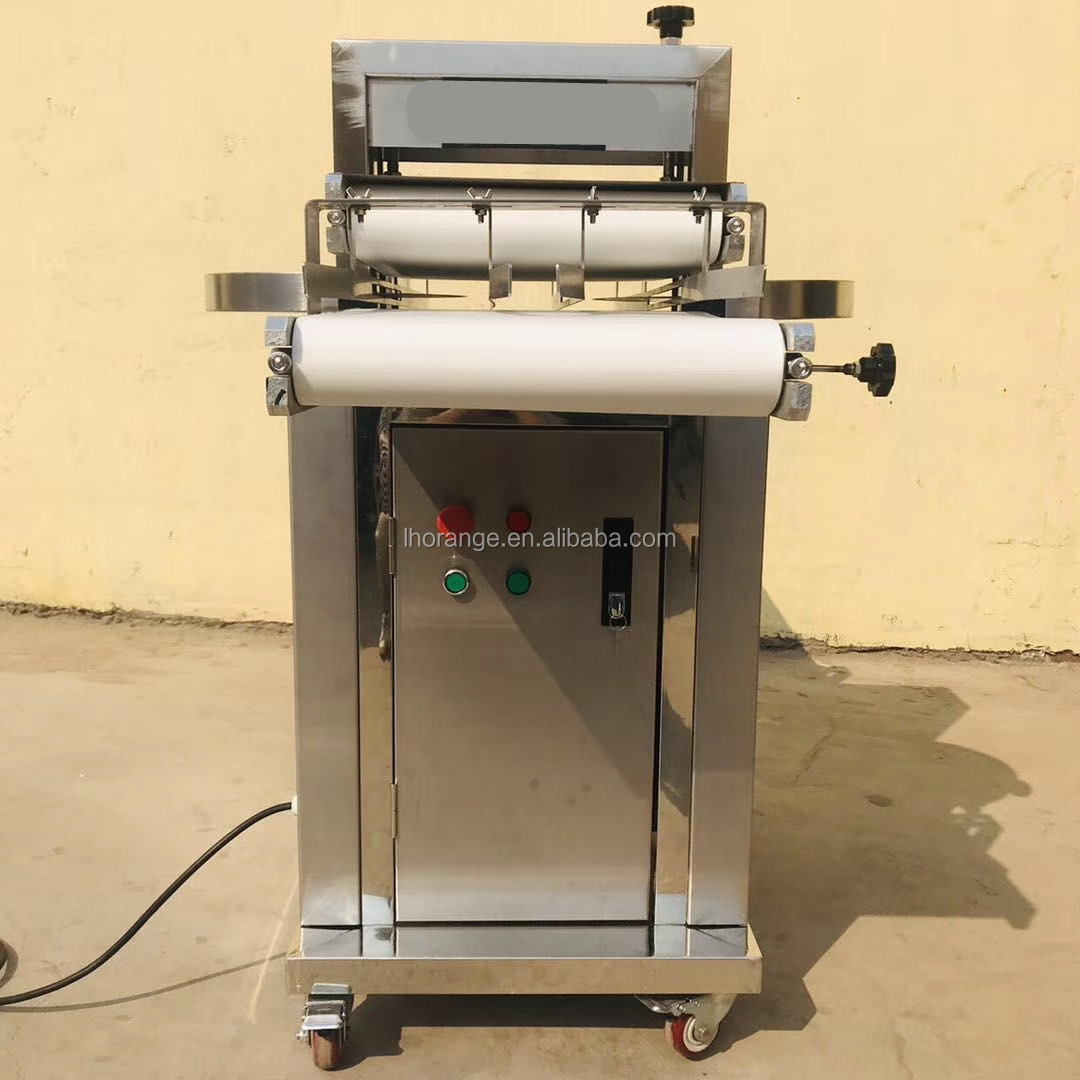

There are four recessed screws on the front of the horizontal hamburger cutter for book strap tension adjustment and conveyor belt leveling.

main feature:

The Hamburg transverse cutting machine adopts imported advanced technology and uses American band saw blades. It has the characteristics of safety and speed, adjustable thickness, automatic slag collection, and neat cuts. Used by food factory cake shops, KFC, McDonald's, Dicos and other fast food restaurants.

product specifications

Model	Voltage	capacity	strength	size	bread height	Bread cutting height	weight
full cut	380v 50hz 3phrase or made according to your requirements	8000 pieces/hour	0.75kW	160011501200mm	40-80mm	10-20mm	160kg
cut in half	380v 50hz 3phrase or made according to your requirements	125kW	4000 pieces/hour	1 kilowatt	40-80mm	10-20mm	16007501200mm	140kg
