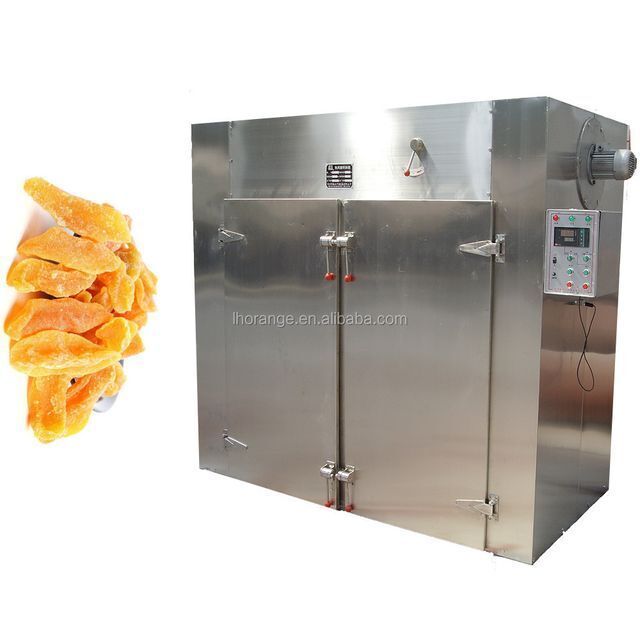

Hot air circulation high efficiency turmeric drying machine food fruit fish meat drying oven machine for sale

Supplier: Luohe Orange Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jasmine Yuan
Price: $3800.00 / 1 - 1 sets
$3700.00 / 2 - 2 sets
$3600.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Type:	Tray Dryer;	Voltage:	220v;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;	Evaporation Capacity(kg/h):	15;
Warranty of core components:	1 Year;	machine Material:	Stainless Steel 304 &201;
what is the machine advantage?:	Simple structure, smooth operation, low noise, high efficiency;	Temperature range:	50~100℃;
Axial Fan no.:	1 pcs;	Port:	shanghai,qingdao,tianjin,guangzhou etc. any port in China;
Application material:	herb, fruit,grain,vegetable,sea food,meat etc.;	Weight (KG):	180;
Tray no.:	24 pcs;	what after sale service do you offer?:	24h online support, video technical support;
Video outgoing-inspection:	Provided;	Local Service Location:	None;
Heating Method:	Electric Heating;	Machinery Test Report:	Not Available;
Brand Name:	Orangemech/OEM;	Showroom Location:	None;
Dimension(LWH):	1400X1200X2000MM;	Trolley no.:	1 pcs;
Marketing Type:	New Product 2021;	Application:	Medicine Processing,Food Processing;
Packaging Detail:	Big capacity 40 trays Stainless steel Coffee beans drying machine, meat drying machine: Standard export polywood case package;	Place of Origin:	Henan China;
Material:	SUS304,Other;	Core Components:	Motor,Other,PLC,Fan;
Supply Ability:	100 Sets per Month Stainless steel meat drying machine, sausage drying machine;	Power:	12000w;
Product name:	fruit drying machine meat drying oven dry dog food machine fish dryer;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Energy & Mining,Food & Beverage Shops,Pharmacy;
Warranty:	1 Year;	Condition:	New;
Certification:	CE;	Key Selling Points:	Energy saving;
After-sales Service Provided:	Online support,Video technical support,Free spare parts;	Feature:	High efficiency drying machine;
After Warranty Service:	Video technical support,Online support;	Package Preview:	;

Product Overview

Hot air circulation turmeric drying machine fruit drying machine meat drying oven dry dog food machine fish drying machine

Machine introduction:

1.The heat source includes steam, heat transfer oil, electric heating tube, far infrared tube, etc., for customers to choose. 2.Temperature range: steam heating 50-100℃, electric heating normal temperature to 100℃ (over 100℃ is non-standard High temperature oven needs to be customized, far infrared heating 50-350℃. 3.Automatic control system and computer control system are available for users to choose. 4.The usual steam pressure is 0.02-0.8Mpa. 5. Equipped with electric heating, 12kw calculated according to type I, practical 5-8kw per hour. 6. Please contact customer service before placing an order. Special requirements must be stated when ordering. 7.The price of non-standard oven is negotiable. 8.The operating temperature is greater than 100°C or less than 60°C, please specify when ordering. 9.The size of the baking trays of the factory's ovens is uniform, interchangeable, and supports non-standard customization. 10.Baking tray size: 460*640*45 mm, there are many styles to choose from.

FEATURES AT A GLANCE

1.Hot air circulation system, high efficiency, can drying food uniformly.

2.Temperature control and timer function, set up temperature and timer in accordance.

3.Adjustable temperature from 0~100 degrees.

4. Easy operation and clearing,high energy efficiency, food nutrients retained.

5. Movable type dry plate, free collocation drying food height, meet the size of the air dry demand.

6. Apply to dry fruits,medicinal materials and other kinds of foods.

7. Suitable for home use and commercial use.

PRODUCT SPECIFICATIONS

Production name	Food/fruit/fish/meat drying oven
Model	CT-24	CT-48	CT-96	CT-144	CT-192
Voltage	380V/50HZ
Power	12kw	15kw	30kw	45kw	60kw
Temperature range	Indoor temperature to 100 ℃
Tray size	640mm460mm45mm
Machine dimension(cm)	140120200	230120200	230220200	320220200	460220200
Machine weight(KG)	280	560	1000	1650	2000

The ORCT hot air circulation oven is specially designed for industrialized mass production. The pharmaceutical industry is widely used in the drying of raw materials, Chinese herbal medicines, extracts, powders, granules, granules, water pills, packaging bottles and other materials. It is also suitable for drying in many industries such as dehydrated vegetables, feed, MSG seasoning, chemical pigments, rubber, fiber, electronic components, new materials, and food.

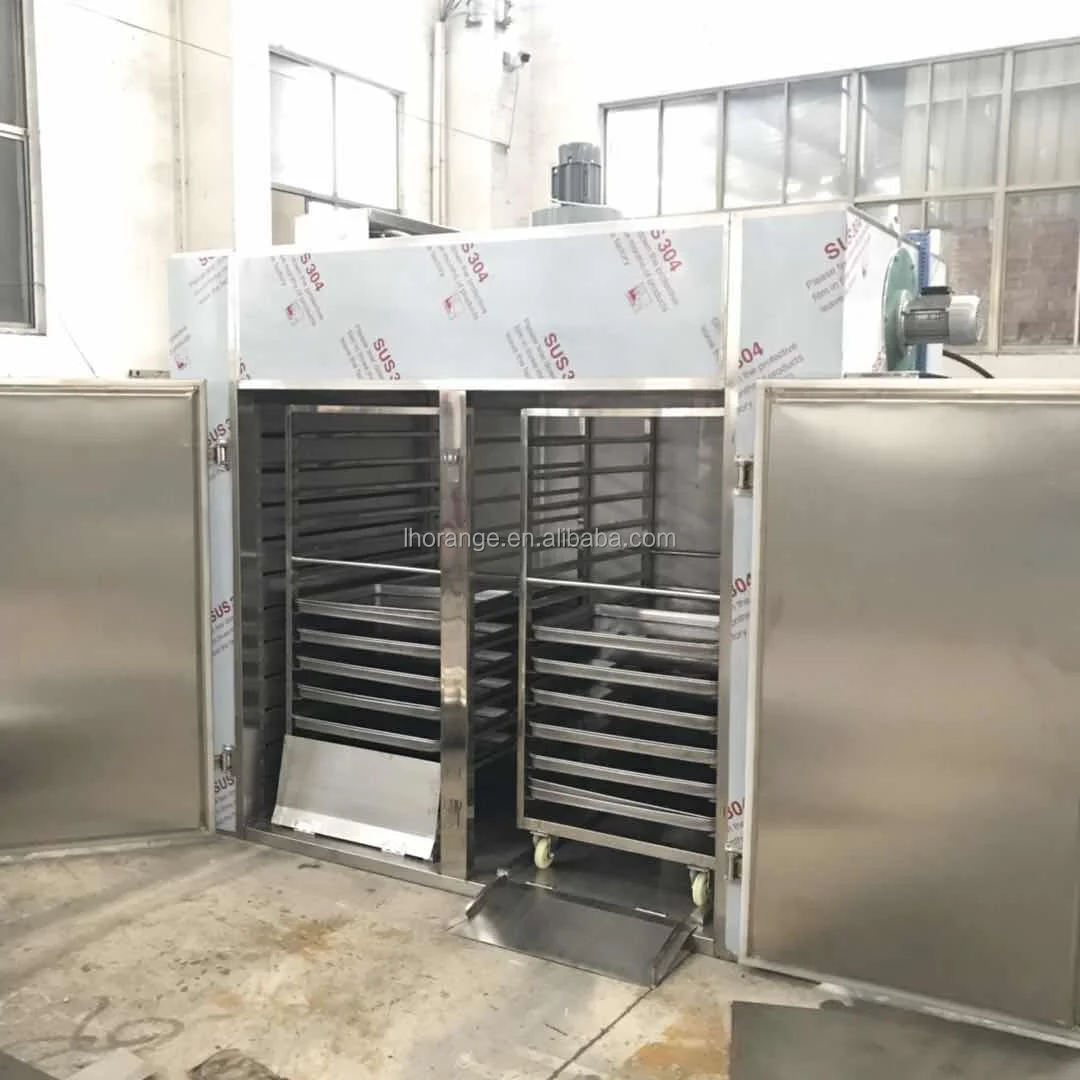

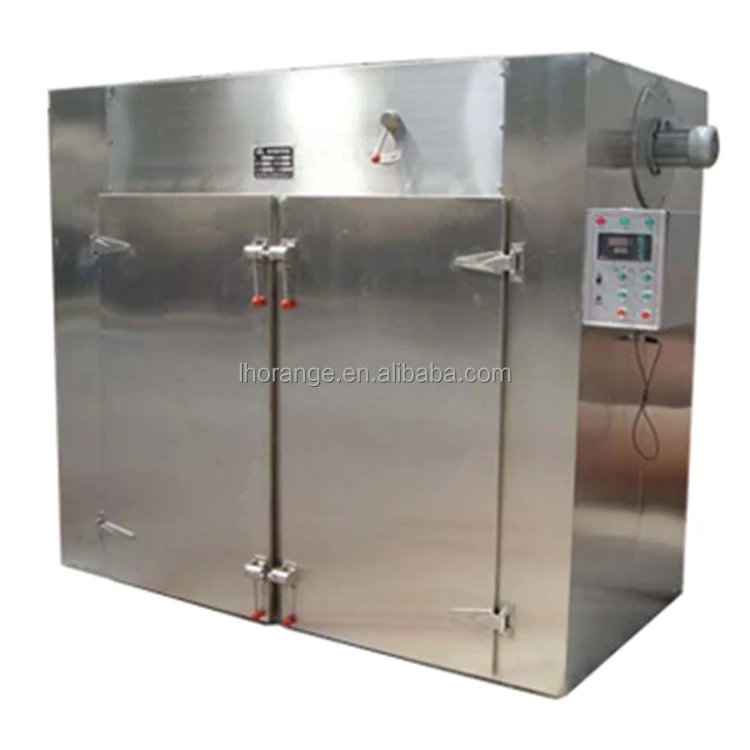

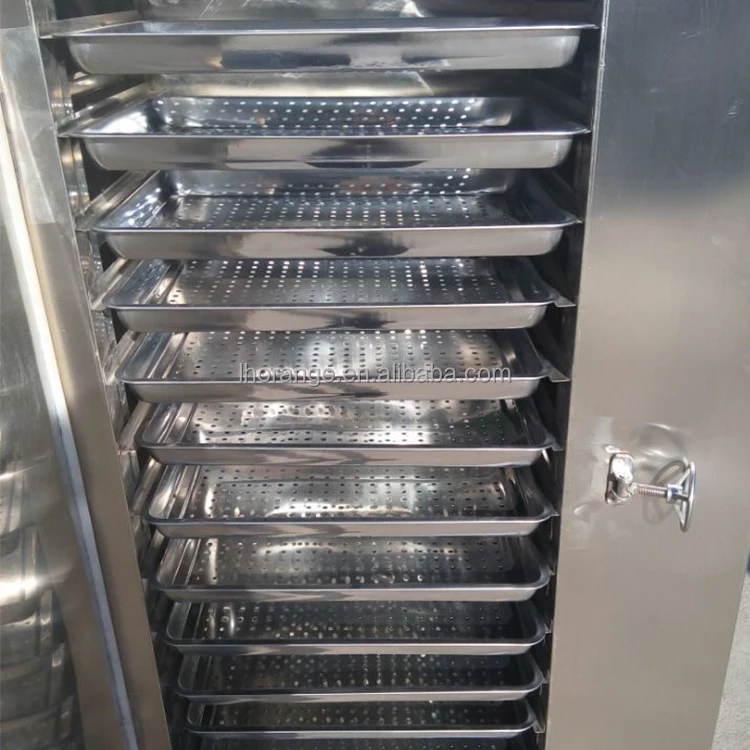

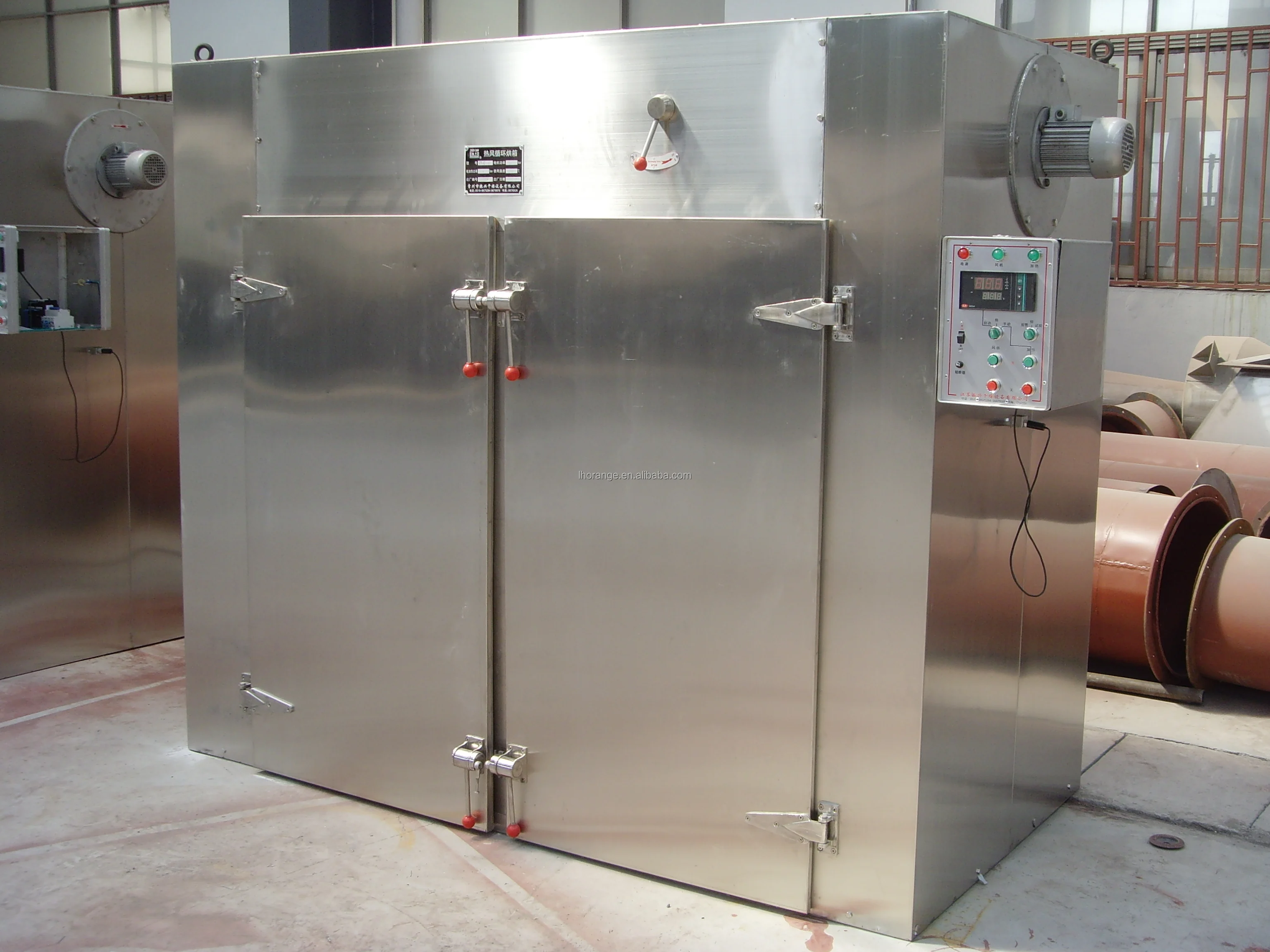

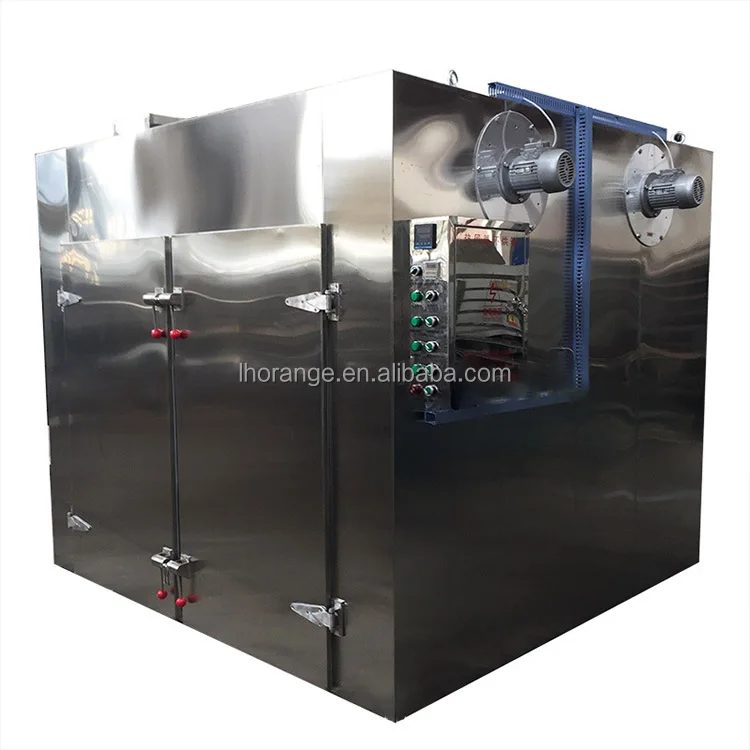

Product pictures:

SALES AND SERVICE NETWORK

Successful Project

Sent to Bulgaria

Sent to Russia

Sent to USA

Related Products

Why Choose Us

About Us

Customer Photos

Exhibition

Certifications

Packaging & Shipping

1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc. 2.Orange provide shipping method:Courier service,Air transport,Sea Transport 3.Can accept oder:Full container cargo load,Less container load 4.Our service:EXW,FOB,CIF,CNF,Door to Door etc. 5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time. 6.The tracking number will be provided to you once the consignment is shipped.

Our Service

After Sales Service

1.All the products have one year guarantee. 2.Providing professional installation instructions and video of troubleshoot. 3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time. 4.When some problems can’t be solved by customers, our engineer can go to door to support.

FAQ

Q1: What are the payment terms? A: We usually accept payment by T/T, L/C, Western Union or Escrow. Q2 : Can any of the products be custom imprinted? A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you. Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you? A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety. Q4: How to ensure that I received the machine undamaged? A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible! Q6 : Where will the orders be shipped from? A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.

Custom services

We provide the customized service. Please contact me freely.
