Vacuum drying machine, milk powder for vacuum drying

Supplier: Shanghai Minjie Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Jill Tan
Price: $2000000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application materials:	For food/chemical/pharmaceutical industry	port:	Shanghai
Dimensions (LWH):	1610022003550mm	type:	Vacuum drying equipment
application:	Pharmaceutical processing, chemical processing, plastic processing, food processing	Material:	SUS304, SUS316L
Evaporation capacity(kg/h):	80	Video shipment inspection:	if
Health status:	new	Packaging Details:	wooden box
Warranty:	1 year	Mechanical test report:	if
Drying process:	Continuous feeding, drying, granulation and discharging under vacuum	payment terms:	L/C, Western Union, D/P, D/A, T/T
Certification:	ISO9001, EU certification	Drying capacity (kg):	20-100
Supply capacity:	100 sets per year	Core component warranty:	1 year
Showroom location:	not any	Dryer temperature:	30-150℃ adjustable
Weight (kg):	18000	brand:	Minjie Vacuum Belt Dryer
Applicable industries:	Food and beverage factory, pharmaceutical factory	Drying time:	30-90 minutes
Voltage:	Three-phase/220v/380v/50Hz	Marketing Type:	New Products 2022
Core components:	Bearings, pumps, gears, motors, gearboxes, others, PLCs, engines, pressure vessels	Main selling points:	automatic
weight:	28 tons	heating method:	steam heating
Origin:	China Shanghai	After-sales service provided:	On-site installation, commissioning and training
strength:	16.5kw	High thermal efficiency:	Vacuum Belt Dryer
Vacuum degree:	-0.098MPA

Product overview

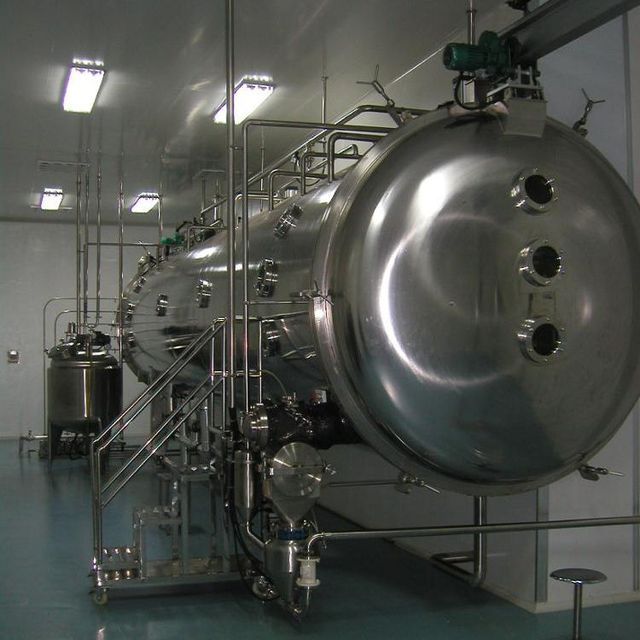

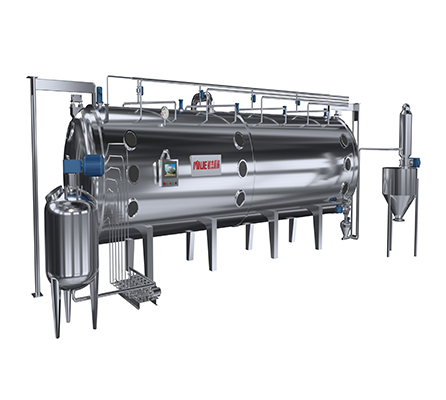

Vacuum Belt Dryer

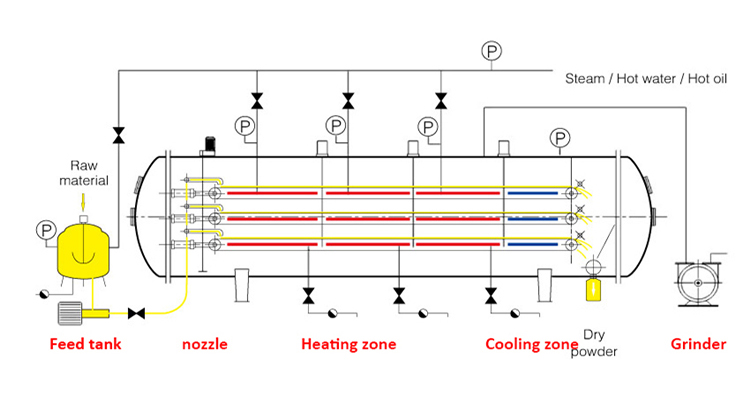

The vacuum belt dryer is a vacuum drying equipment with continuous feeding and discharging. Widely used in food, pharmaceutical, chemical and other industries, especially suitable for temperature-sensitive liquids and high-viscosity materials due to adjustable vacuum and temperature

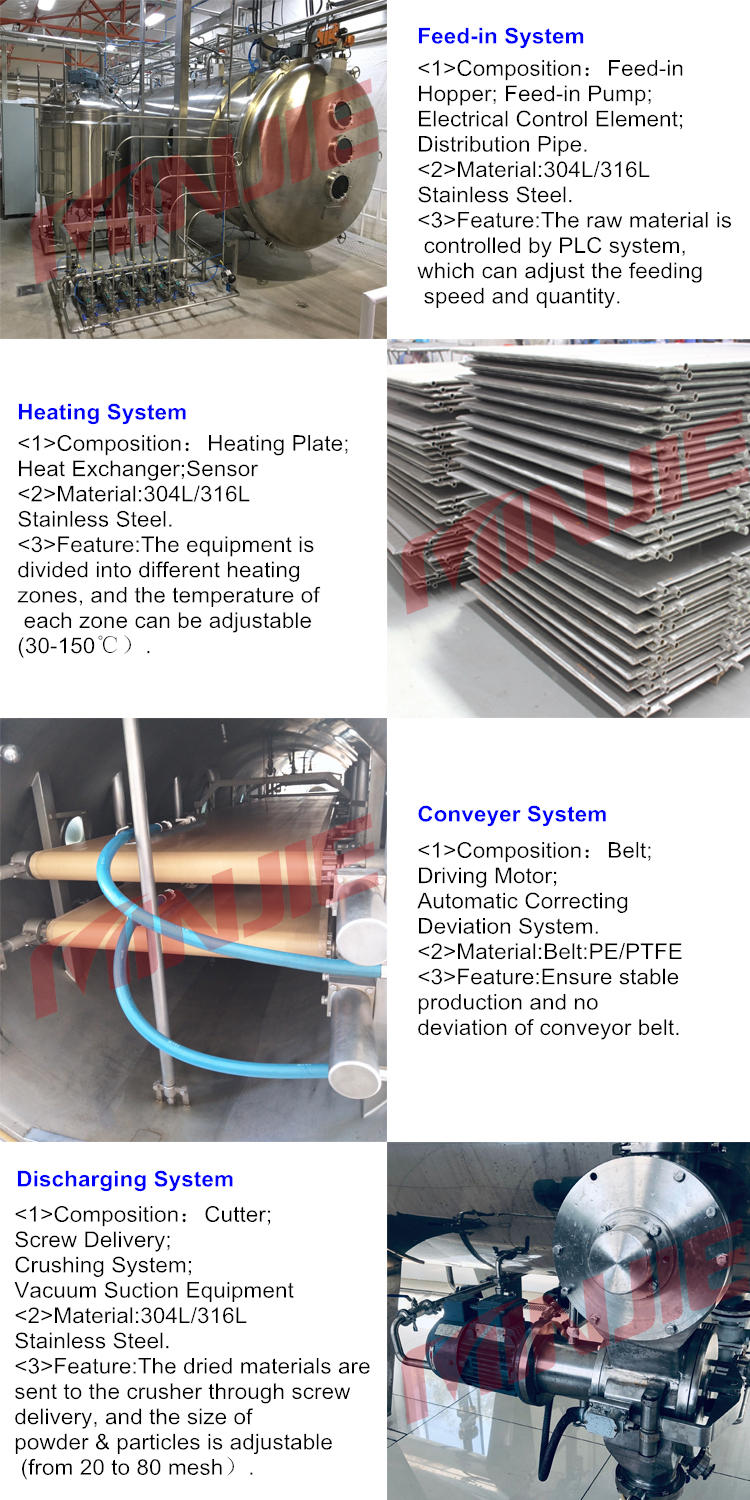

1 Continuous feeding and discharging in vacuum state

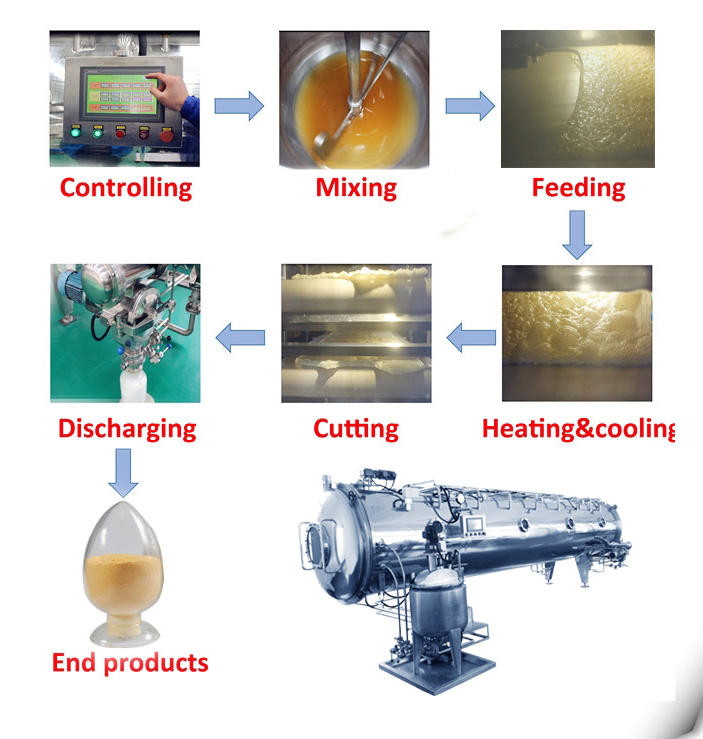

2.Complete drying, crushing and granulation process under vacuum condition

3.Automatic, continuous and pipe lining drying processes

4. High product quality and ingredient preservation

5.The drying temperature can be adjusted from 20°C to 150°C

6.Organic solvent recovery rate can reach 99%

7.Organic solvent recovery, no emission, no pollution 1/3 the operating cost of vacuum oven and spray dryer

8 Suitable for drying heat-sensitive, high-sugar, high-viscosity materials Suitable for drying heat-sensitive, high-sugar, high-viscosity materials

9.PLC control system, CIP cleaning system, GMP standard

Selection reference

Model	size	Heat exchange area㎡	Heating temperature °C	Feed moisture%	dry powder moisture	Water evaporation kg/h	heating medium
MJY30-4	1.79.82.7m	30	_{30-150 adjustable}	20-80% liquid	0.2-5% adjustable	15-25	steam or hot water or hot oil
MJY60-6	2.210.83.65m	60						45-55
MJY80-6	2.213.53.65m	80						60-75
MJY100-6	2.216.13.65m	100						80-90
MJY120-7	2.216.16.35m	120						100-110
MJY160-8	2.817.34.1m	160						120-140
MJY200-10	2.817.34.15m	200						160-180
