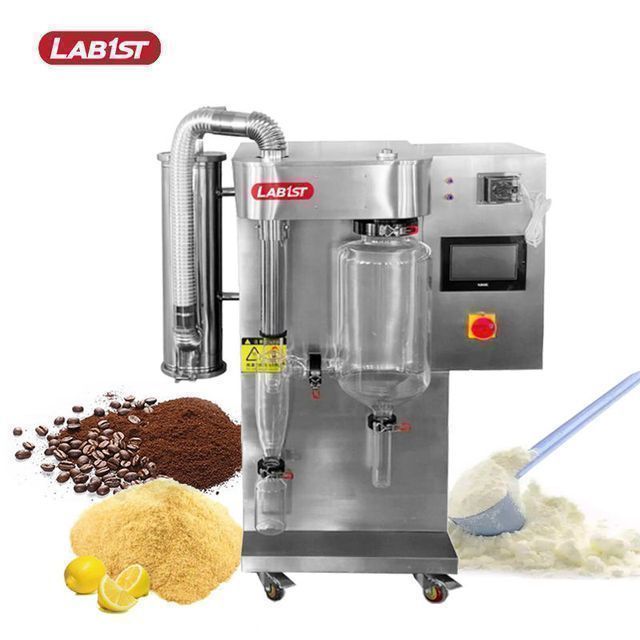

Laboratory Laboratory Glass Mini Small Centrifugal Dryer Spray Dryer Equipment Dry Milk Powder Vanilla Juice

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $2800.00 / 1 - 2 sets
$2650.00 / 3 - 4 sets
$2500.00 / 5 - 99 sets
$890.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Hotel, Food and Beverage Factory, Restaurant, Home Use, Food Store, Printing Store, Food and Beverage Store, Other, Chemical Industry	Card:	first laboratory
Evaporation:	1500mL/H~2500ml/h	Core components:	Other, PLC
port:	Shanghai	heating method:	electro-thermal
Nozzle Tip Diameter:	0.75mm//1.5mm optional	application:	Pharmaceutical processing, chemical processing, food processing
Marketing Type:	Hot Products 2022	Voltage:	220V
Showroom location:	U.S.	Inlet temperature control range:	30℃~300℃
Video external inspection:	if	brand:	LAB1ST
Material:	SUS304L	Package:	vertical wooden box
Dimensions (LWH):	650500mm1300mm	Packaging Details:	Standard wooden box. We also offer custom packaging.
Packaging Preview:		Main selling point:	Sustainable
strength:	3KW	Supply capacity:	100 sets per month
Feeding method:	peristaltic pump	product name:	Glass spray dryer
Outlet temperature control range:	30℃~140℃	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal
Core Components Warranty:	1 year	Weight (kg):	135
type:	spray drying equipment	Evaporation (kg/h):	1.5~2.5
Health status:	new	Mechanical test report:	if
Average drying time:	1.0~1.5S	Warranty:	1 year
Feeding capacity:	30~2500ml/h (adjustable)	place of origin; place of origin:	China Shanghai

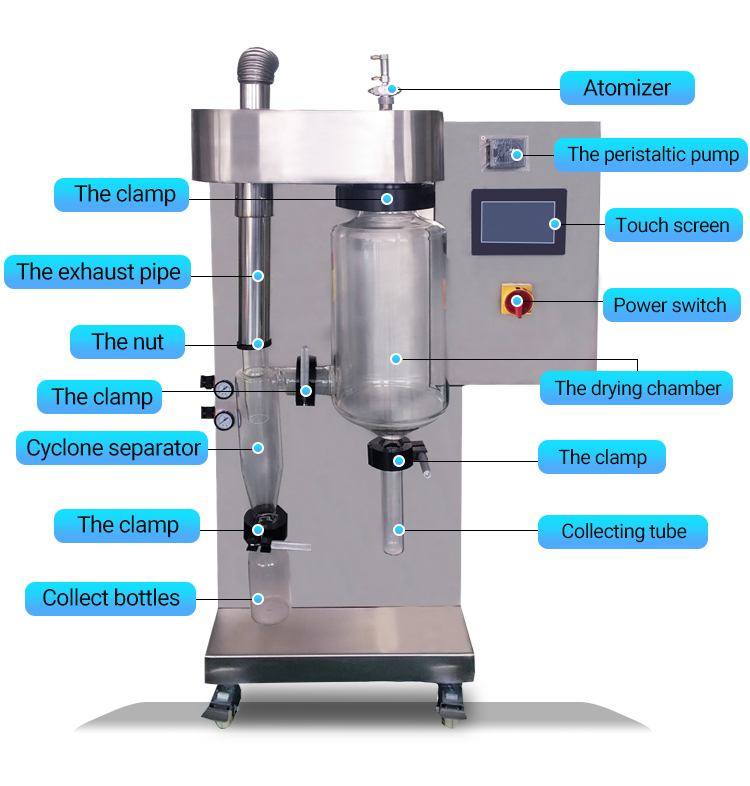

product structure

Product parameters

Air compressor:	Built-in silent temperature control range: ±1℃
Inlet temperature control range	Average drying time at 30℃～300℃: 1.0～1.5S
Outlet temperature control range	Average drying time at 30℃～300℃: 1.0～1.5S
Evaporation:	1500mL/H～2500ml/h Power: 3KW /220V
Feeding capacity:	30～2500ml/h (adjustable)
Feeding method	peristaltic pump

detail

feature

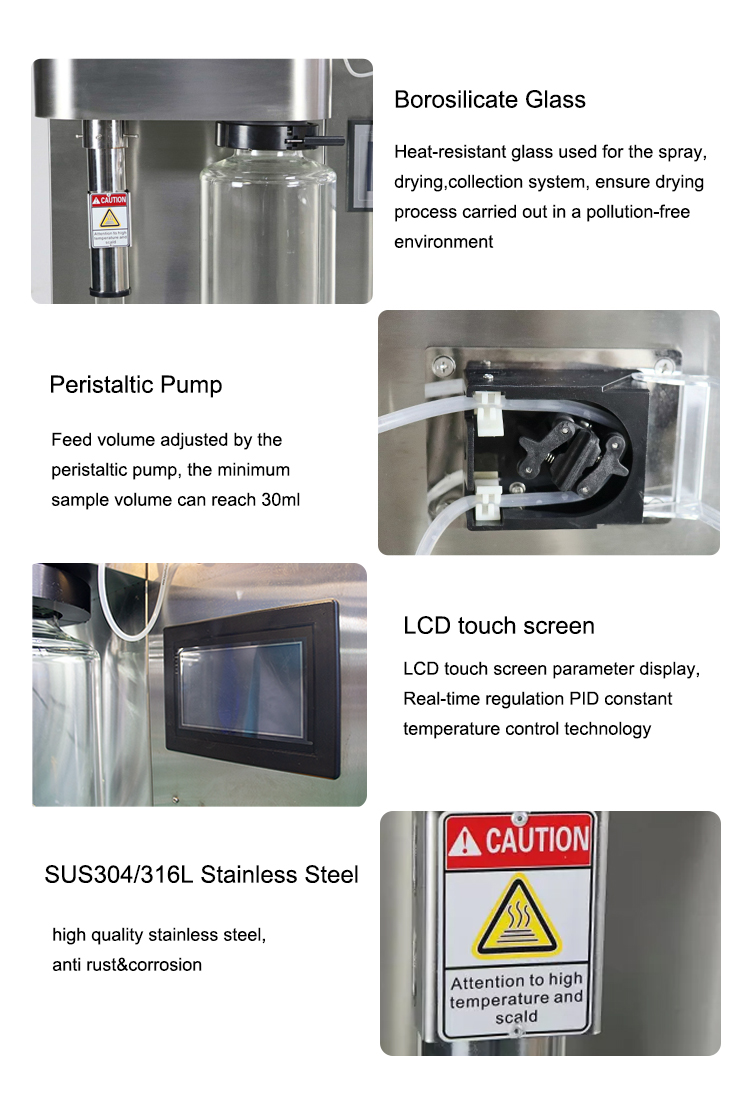

●The spraying, drying and collecting system adopts high-quality borosilicate heat-resistant glass to ensure that the drying process is carried out in a pollution-free environment.
● The software operating system with independent intellectual property rights (software copyright number: 2019SR1071014) is powerful, and 485 communication is optional.

●Stainless steel nozzle, two-fluid spray structure, high efficiency and good atomization effect.

● LCD touch screen parameter display.

●Real-time adjustment of PID constant temperature control technology.

●Equipped with an air inlet filter to maintain sample purity.

●The feeding volume is adjusted by peristaltic pump, and the minimum injection volume can reach 30ml.

●The particle size of the finished dry powder is uniform, and >95% of the dry powder is within the same particle size range.

●Equipped with a nozzle cleaner (via needle), which automatically clears when the nozzle is clogged.

application
