Vacuum freeze dryer price

Supplier:
Region:
Price: $1460.00 / 1 - 4 units
$1440.00 / >=5 units
Min. Order: 1 unit

Click here to contact

Product details

Mechanical test report:	if	Ultimate vacuum:	10pa (no load)
Voltage:	110V/220V	Cold trap coil temperature:	<-40℃ (no load)
Health status:	new	Material:	SUS304, SUS304L, SUS316, SUS316L
heating method:	electro-thermal	type:	Freeze drying equipment
Layer spacing:	45mm	power supply:	220V 50Hz
Warranty:	1 year	Dimensions (lengthwidthheight):	500mm×640mm×890mm
Showroom location:	not any	Core components:	Others, engine, refrigeration system, vacuum system, heating system, control system
port:	Shanghai, Tianjin, Qingdao	Packaging details:	Packaging: Carton or wooden box packaging, customized packaging is available.
product name:	Household Freeze Dryer/Freeze Dryer	Processing capacity:	4-8KG/batch
Material pallet dimensions:	305mm×510mm	Video outbound inspection:	if
strength:	1100W-2300W,1100W	Core component warranty:	1 year
Number of trays:	fourth floor	Applicable industries:	Manufacturing plant, food and beverage plant, restaurant, household, retail, food store, food and beverage store, chemical, biological
Freeze-drying area:	0.1-0.6	payment terms:	Letter of credit, wire transfer, MoneyGram, PayPal
application:	Chemical processing, food processing	Place of origin:	Henan, China
Marketing type:	Hot Products of 2023	Main selling points:	automatic
Supply capacity:	1,000 sets per month	Weight (kg):	80
brand:	Fendi

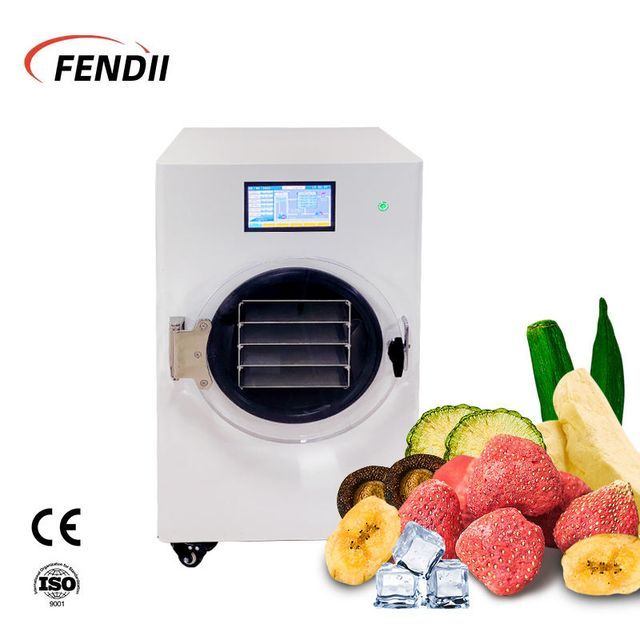

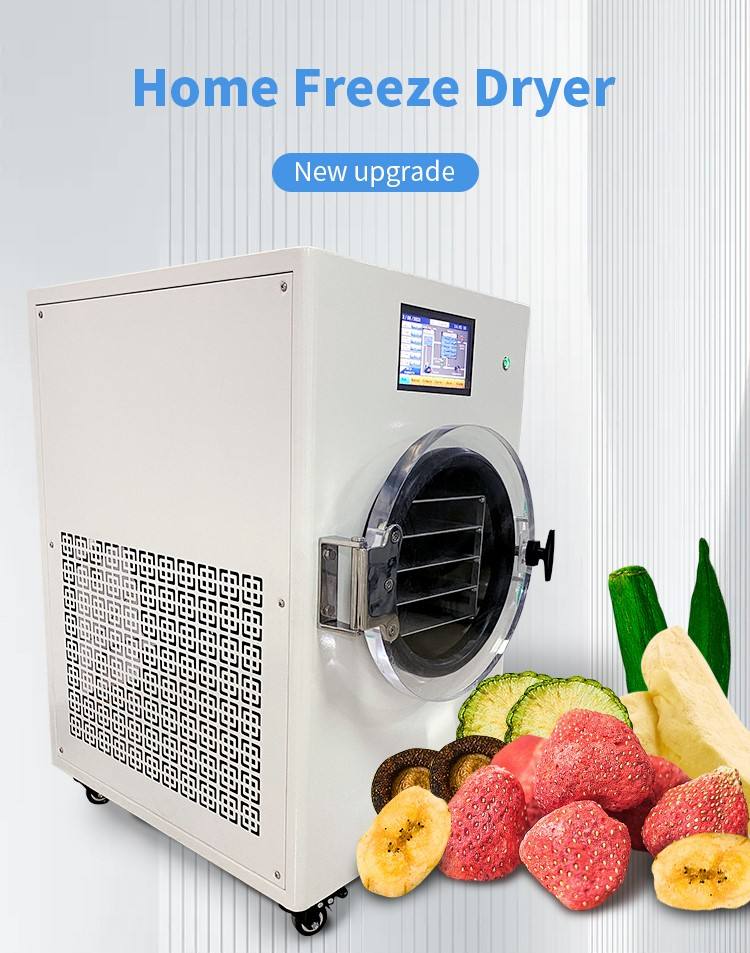

Household vacuum freeze dryer

Product Description

Vacuum freeze drying technology, also known as sublimation drying, is a method of pre-freezing water-containing substances and sublimating the water under vacuum. The original biological and chemical properties of freeze-dried products remain basically unchanged and are easy to store for a long time. After adding water, it can be restored to the state before freeze-drying and maintain its original biochemical characteristics. Therefore, vacuum freeze-drying technology is widely used in food, chemical industry, biological products and other fields.

Product parameters

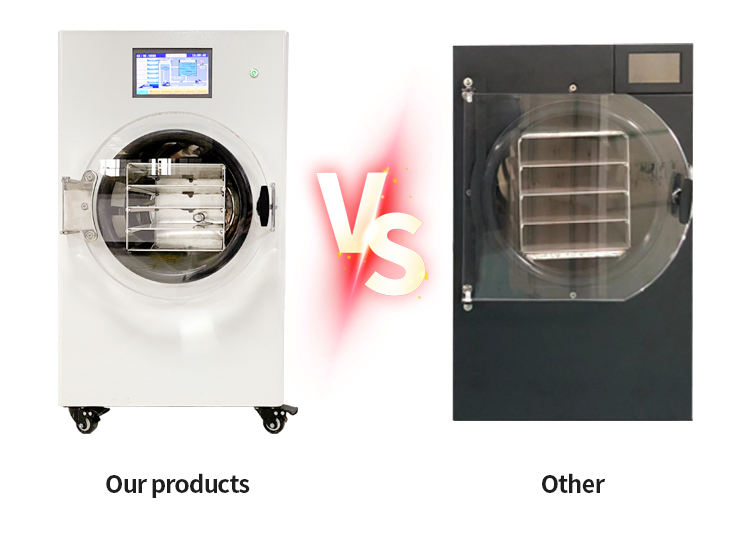

Compare	Lanfan 0.4	Other brands 0.4

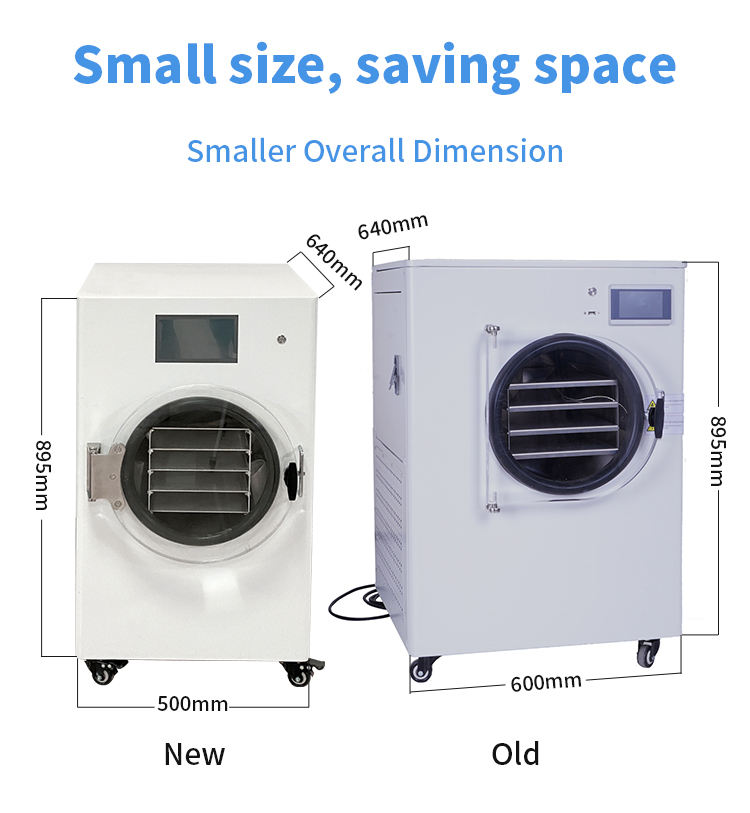

Dimensions (mm)	500x640x890	455x540x730
Dimensions (mm)	Equipped with universal casters for easy movement	No casters
Cold trap size (mm)	Φ305x510	Φ315x435
Pallet(mm)	4 pallets	4 pallets

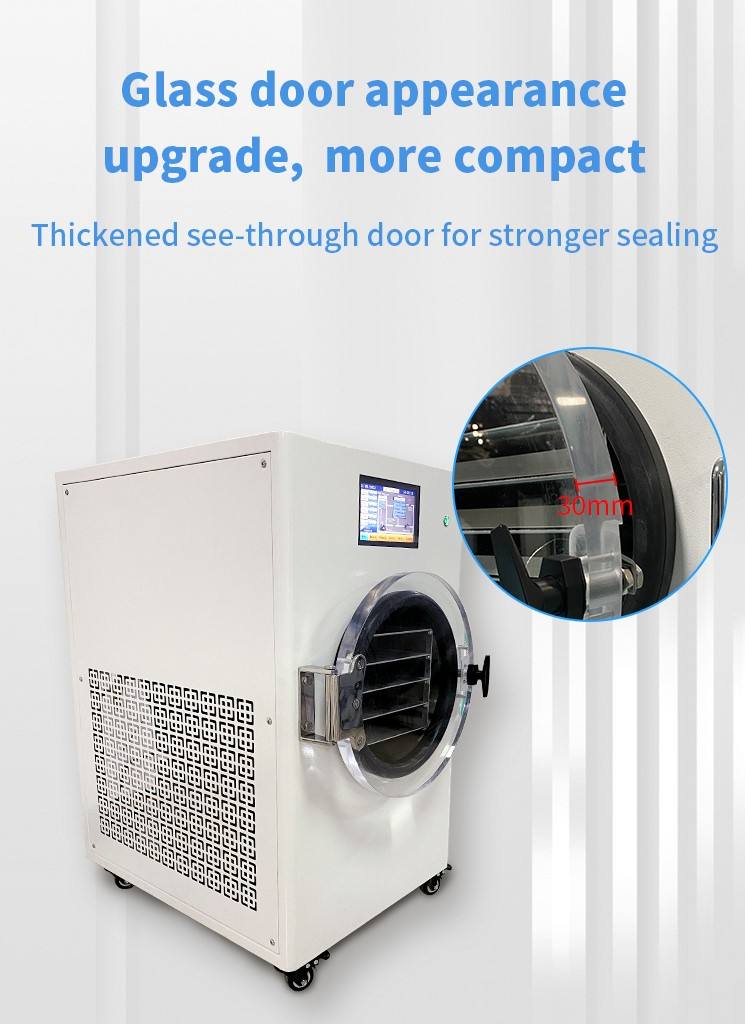

Door thickness (mm)	30	20
frame	Iron frame + spray plastic	Aluminum gusset + paint
frame	(Strong, not easy to scratch)	(Easily scratched)
compressor	French Danfoss brand	Chinese local brands
Cold trap temperature (°C)	≤-40℃	≤-25℃
Ultimate vacuum (pa)	No load: <10Pa	No load: <3000Pa
Ultimate vacuum (pa)	No load: <10Pa	No load: <3000Pa
Drying temperature (℃)	-40℃～+60℃	-25℃～+60℃
temperature probe	4 independent probes	1 probe

Product number	HFD-1	HFD-4	HFD-6	HFD-8
Freeze-drying area	0.1 square meters	0.4 square meters	0.6 square meters	1 m2
cold trap temperature	≤-40℃
ultimate vacuum	No load: <10Pa
power supply	220V/110V 50HZ/60HZ
strength	1100 watts	1550 watts	2000 watts	2500 watts
processing power	1-2kg/batch	4-6kg/batch	6-8kg/batch	10-16kg/batch
processing power	2.5-5 pounds/batch	9-13 lbs/batch	13-18 lbs/batch	22-35 lbs/batch
weight	127kg	142kg	203kg	203kg
weight	279 pounds	313 pounds	447 pounds	447 pounds
Number of pallets	3 pieces	4 pieces	4 pieces	8 pieces
Pallet size	27514520mm	42520020mm	43531530mm	43526525mm
Pallet size	1160.8 inches	1780.8 inches	1712.51.2 inches	1710.51 inches
Packaging size (widthlengthheight)	7506301120mm	8306301250mm	8308001500mm	8308001500mm
Packaging size (widthlengthheight)	302544 inches	332549 inches	333259 inches	333259 inches

Product advantages

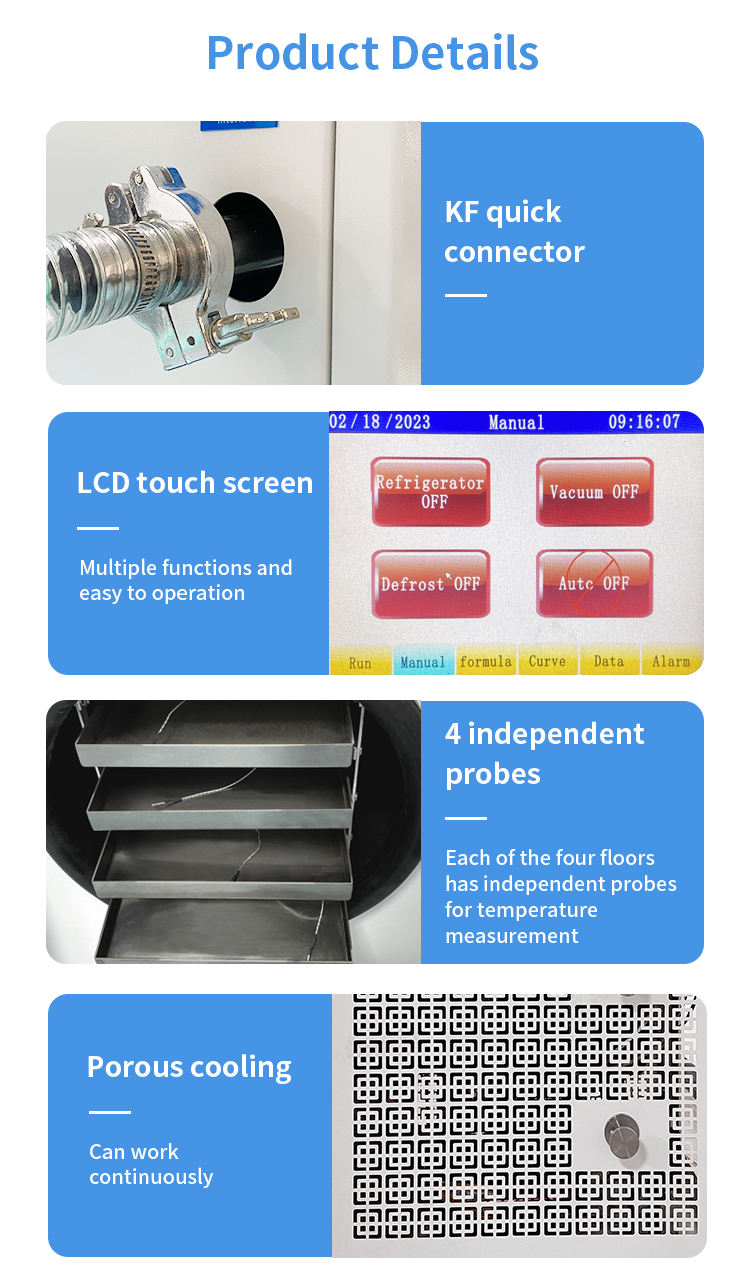

Product Details

Application scenarios

Household freeze dryer is a small vacuum freeze dryer. Suitable for home use and freeze-drying in small quantities. Widely used in freeze-drying of fruits, vegetables, meat, Chinese medicinal materials, health products, etc. Dried foods and materials are easy to store for a long time and can retain the taste, nutrients and shape of the raw materials to the greatest extent.
