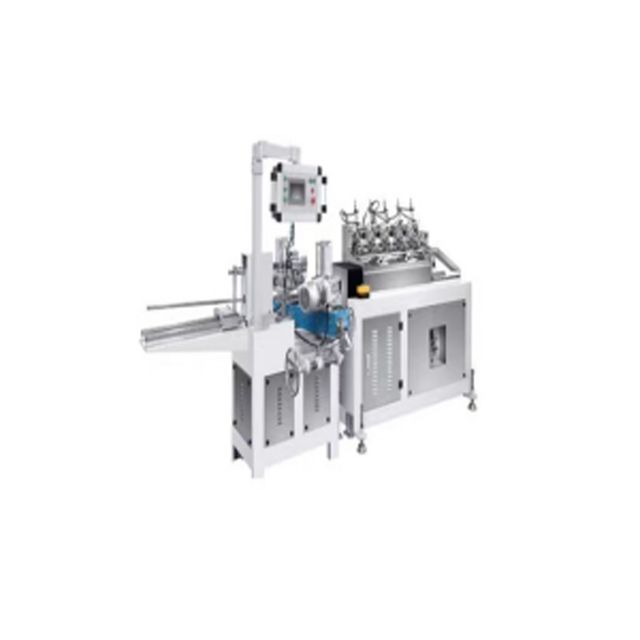

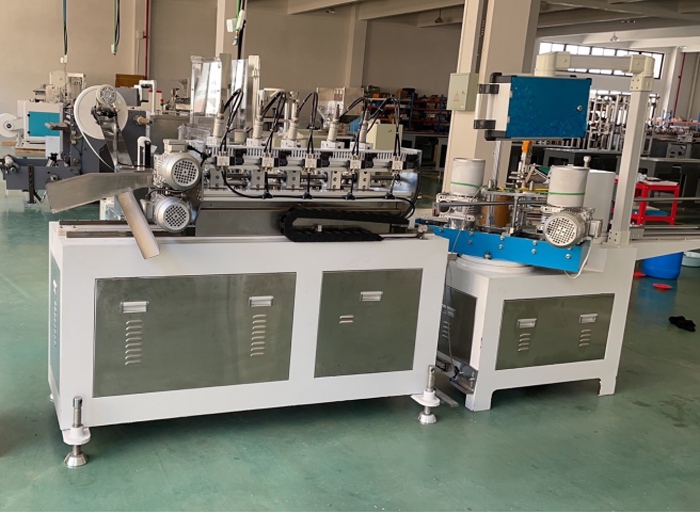

Beverage Paper Straw Machine Fully Automatic Paper Straw Making Machine
- 13000.00 1 - 2 sets
- 12000.00 >=3 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Steady speed: | 1-40 m/min | port: | Major ports in China |
| Product Name: | Paper Straw Machine | Supply Ability: | 100 sets per month |
| strength: | 3 kW | Dimensions (L*W*H): | 3500*1500*1200mm |
| Marketing Type: | Hot Products of 2020 | Health status: | New |
| Machines and parts: | painting | Payment Terms: | L/C, Western Union, T/T, Trade Assurance |
| Warranty: | 1 year | Brand Name: | All promotion |
| Applicable industries: | Hotels, manufacturing plants, food and beverage plants, restaurants, retail, food stores, construction projects, food and beverage stores, other | Inner Diameter: | 5-12 mm |
| Exhibition Hall Location: | No | Packaging Details: | Wooden box beverage paper straw machine fully automatic paper straw making machine |
| Wire wrap nose: | Double nose single strap | Paper layer: | 3 layers |
| Video factory inspection: | if | Voltage: | 380 volts |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | aspect: | 3500*1500*1200mm |
| Origin: | Henan, China | Wall Thickness: | 0.3-1 mm |
| weight: | 1300 kg, 1.3 | Model: | CFXG-50 |
| Core component warranty: | 1 year | Mechanical test report: | if |
Product Description
Paper layer | 3 layers |
Inner diameter | 5-12 mm |
Wall thickness | 0.3-1 mm |
Stable speed | 1-40 m/min. |
Curled Nose | Double nose single strap |
Machinery and parts | painting |
Fixed length | Encoder |
Speed control | Through the inverter |
Cutting system | Multi-blade; 5 pieces online |
Synchronous tracking cutting system | Servo motor synchronous tracking |
Paper straw collection | Manual |
Operator | 1-2 people |
Working air pressure | 0.6 MPa |
power supply | 380V / three phase / 50 Hz |
Measurement | 3500*1500*1200mm |
Workspace | 7000*5000mm |
weight | 1300 kg |
* Fully automatic high speed paper straw making machine.

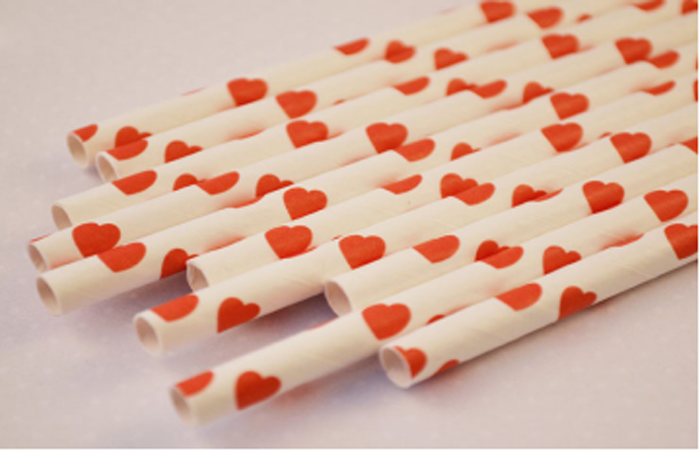

* This machine is used to make paper straws, small paper tubes.
* CNC servo cutter device, high cutting precision.
* Automatic cutting, automatic tube dropping, automatic speed change and automatic return.
* Computer PLC control, touch screen human-machine interface operation.
* Stainless steel glue box, equipped with polyurethane scraper and high carbon steel plastic knife, durable.
* Circular knife cutting, smoother cuts and more stable performance.

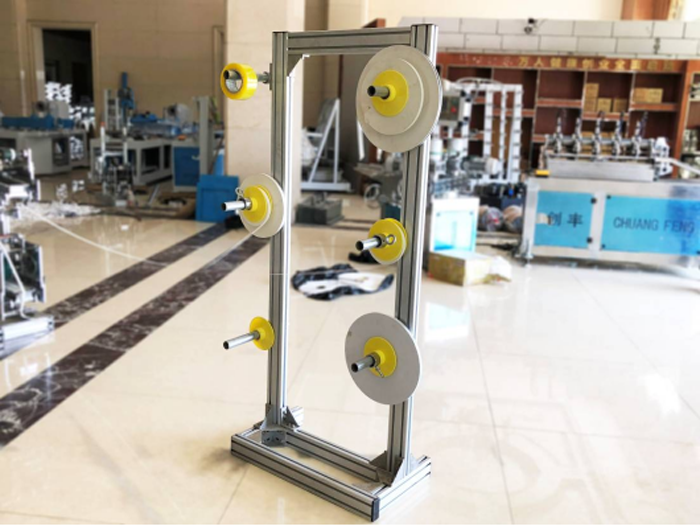

* Integral paper roll stand and gluing system integrated linkage device, fully electric adjustment of paper feeding.
* Equipped with multifunctional wax paper device, the machine will stop automatically when paper breaks.
* Adopt online multi-cutting blades, no need for secondary cutting, saving labor and time.
* This machine is used to make paper straws, small paper tubes.
* CNC servo cutter device, high cutting precision.
* Automatic cutting, automatic tube dropping, automatic speed change and automatic return.
* Computer PLC control, touch screen human-machine interface operation.
* Stainless steel glue box, equipped with polyurethane scraper and high carbon steel plastic knife, durable.
* Circular knife cutting, smoother cuts and more stable performance.
* Integral paper roll stand and gluing system integrated linkage device, fully electric adjustment of paper feeding.
* Equipped with multifunctional wax paper device, the machine will stop automatically when paper breaks.
* Adopt online multi-cutting blades, no need for secondary cutting, saving labor and time.
