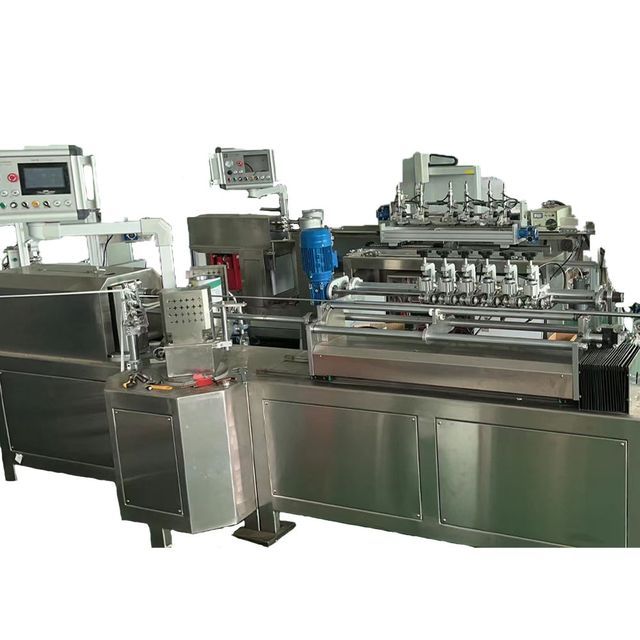

Used paper straw making machine 6 knives, used paper straw 6 knives machine, paper straw machine

Working principle and brief description:
Glue the different layers of paper strips and wrap/spiral them into paper tubes.
Multi-cutter system, through servo tracking, cuts paper tubes into small pieces of paper straws.
Material: Food-grade white kraft paper and food-grade glue.
Secondary Raw Materials: Oil may be required for lubrication and cooling. White mineral oil.
Standard power supply: 380V/three-phase/50Hz, can be changed according to special requirements, such as 60Hz or 220V/three-phase.
Power consumption: rated power, 6.15KW/h
FLA (Fully Loaded Amplifier): 13.5A
capacity:
How many straws per minute. For example: 70m/min, make 6*197mm straws. Considering some waste, we use 200mm for calculation.
70*1000/200=350 pieces/minute.

1. Higher speed, maximum 95m/min input, 70m/min output.
2. 8-knife system, cutting cylinder with new structure. Cylinder upward adjustment is easier
Point down when making paper straws of different diameters.
3. 5 sets of servo motors for spiral roller, left and right cutting system, support roller
and cutting knife.

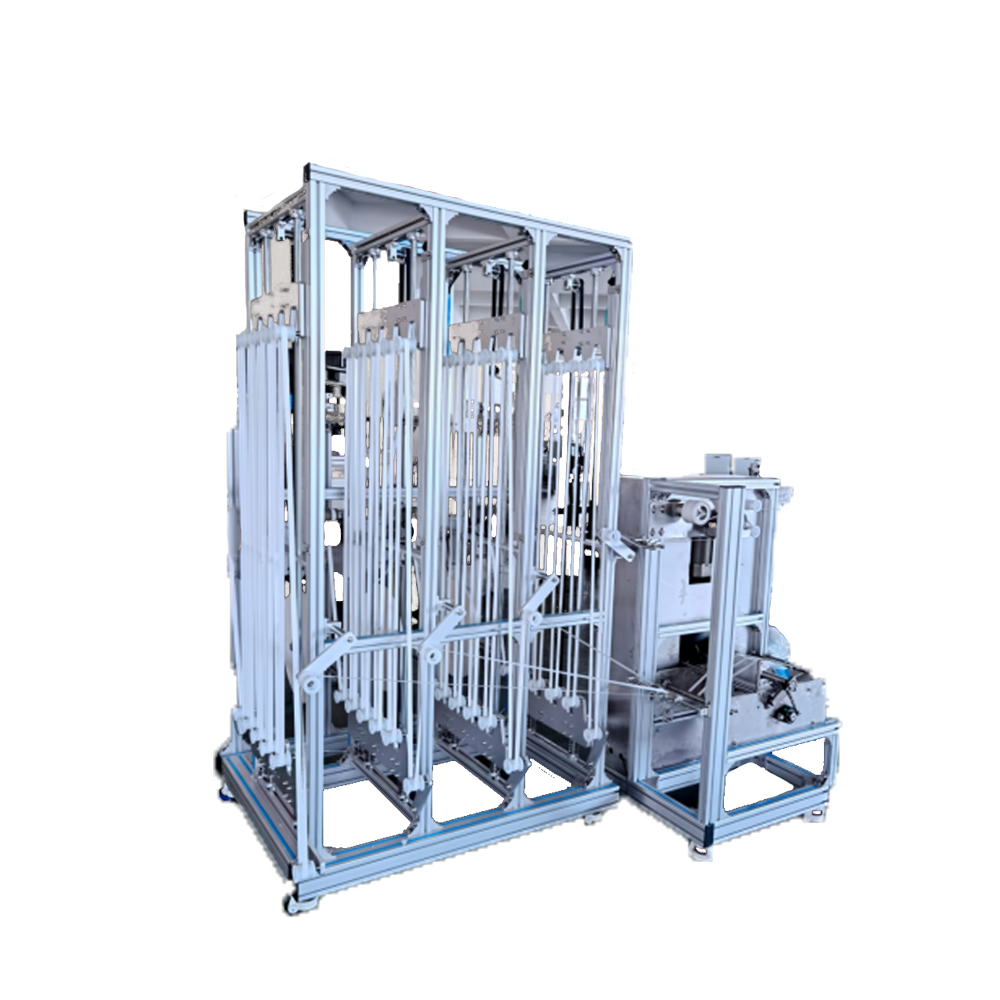

4. Automatic paper roll connection function hanger, automatic paper splicer, 4 layers. Other Brand Paper Straw Making Machine Paper Roll
The hanger has only 3 tiers.
5. Glue station with automatic feeding function.
6. Automatic lubrication and grease injection system for cutting system.
7. The main electrical components are selected from the well-known brand Schneider. Main servo motor, servo motor driver, frequency converter, touch screen
.
