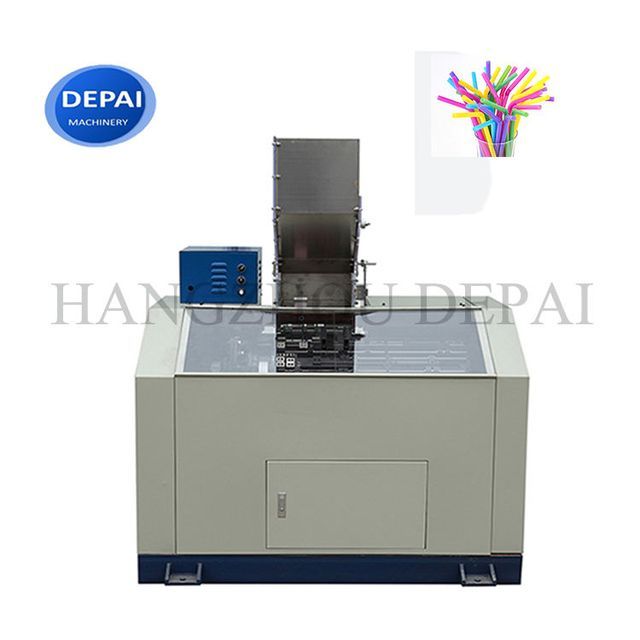

Plastic straw automatic flexible plastic straw bending machine
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

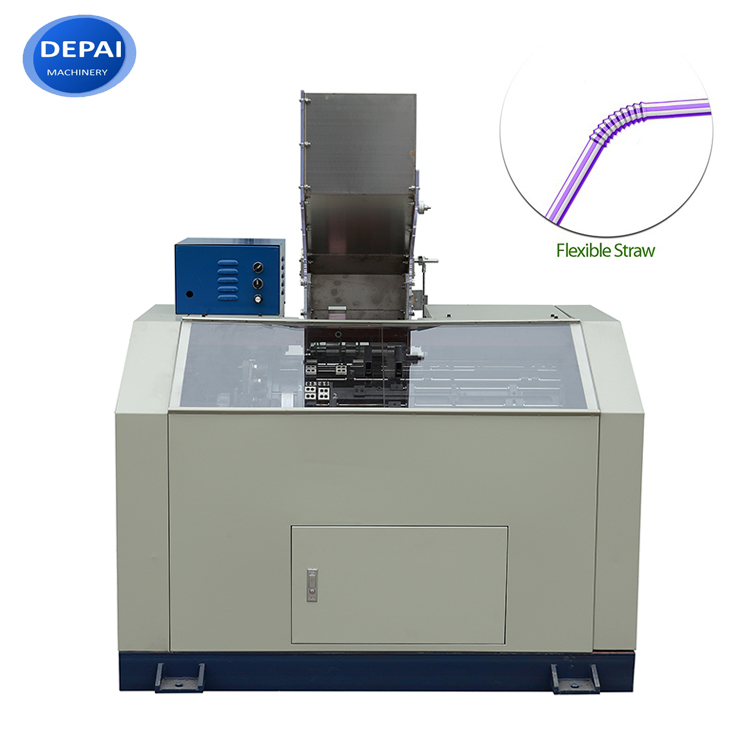

Plastic straw automatic flexible plastic straw bending machine
Product Description
describe:

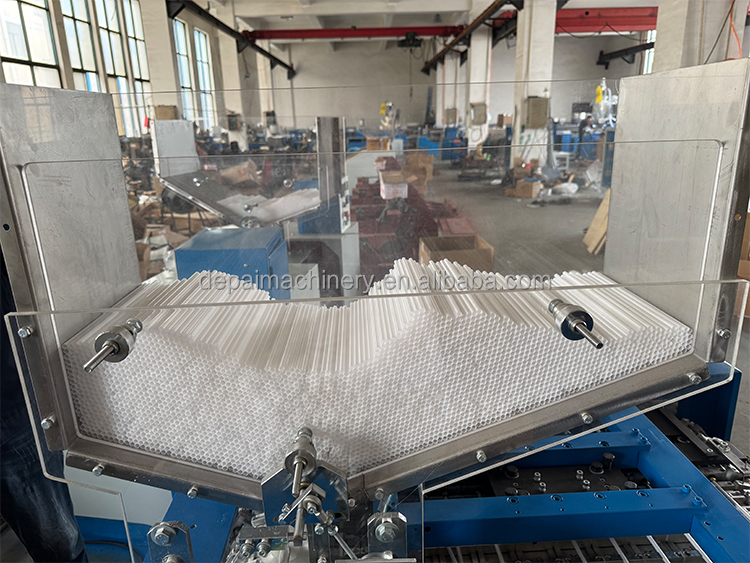

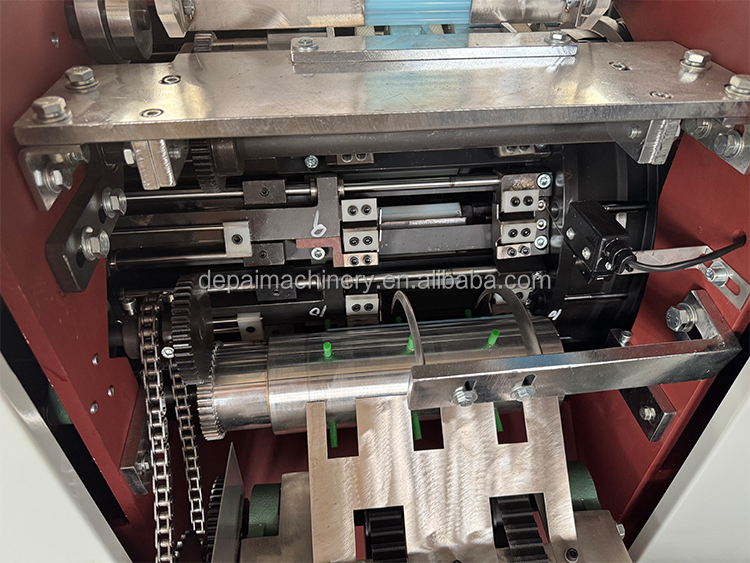

This machine is a molding machine for corrugating PP PE straight pipes and straws into flexible straws. Workers simply add straws to the hopper, and then place the straws one by one into the main drum, where they are clamped by two robotic arms. As the main roller rotates, the straw is squeezed through two rotating dies. After pressing, use two manipulators to compress it to obtain flexible properties, and then complete it and send it out. Since the main drum has 12 or 18 robots, which work in a continuous cycle, high output can be achieved.
feature:
1. Stable production capacity.
2. Products are automatically counted, quantity is preset, and operation is easy.
3. The machine will automatically shut down when a fault occurs.
This machine is a molding machine for corrugating PP PE straight pipes and straws into flexible straws. Workers simply add straws to the hopper, and then place the straws one by one into the main drum, where they are clamped by two robotic arms. As the main roller rotates, the straw is squeezed through two rotating dies. After pressing, use two manipulators to compress it to obtain flexible properties, and then complete it and send it out. Since the main drum has 12 or 18 robots, which work in a continuous cycle, high output can be achieved.
feature:
1. Stable production capacity.
2. Products are automatically counted, quantity is preset, and operation is easy.
3. The machine will automatically shut down when a fault occurs.
Specification
Name | Fully automatic flexible straw making machine | ||||||
main parts | The machine is mainly composed of a hopper, a feeding device, a rotating drum, a forming device, a conveying device and a control device. | ||||||
power supply | 1.5kw (variable frequency) | ||||||
productivity | 200-300 pieces/minute | ||||||
Straw specifications | inner diameter | Φ3.8 | Φ4.8 | Φ5.8 | |||
Straight straw length | 165~245mm | 200~260mm | 200~260mm | ||||
Straw thickness | 0.18±0.03 | 0.15±0.03 | 0.15±0.03 | ||||
Flexible straw length | 150~230mm | 185~245mm | 185~245mm | ||||
top length | 30~50mm (adjustable) | ||||||
Bend length. part | 8~12mm (adjustable) | ||||||
Machine size (length × width × height) | 1.5m×1.8m×1.6mm | ||||||
Equipment weight | 1T | ||||||

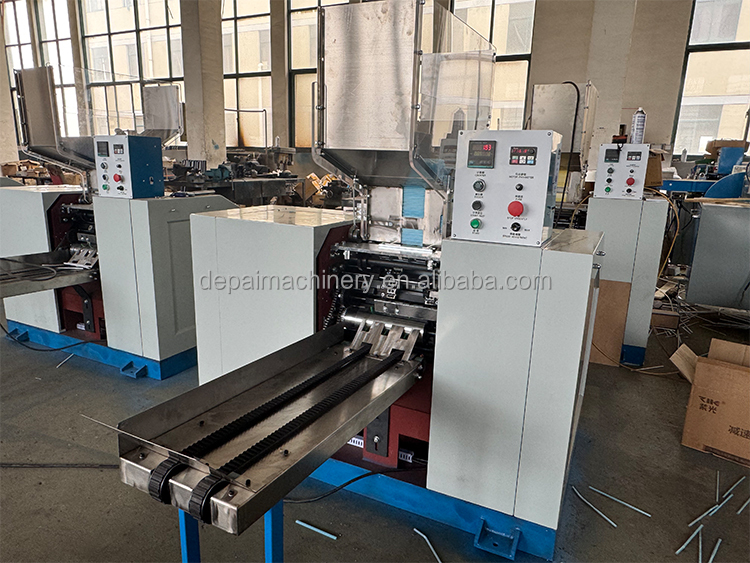

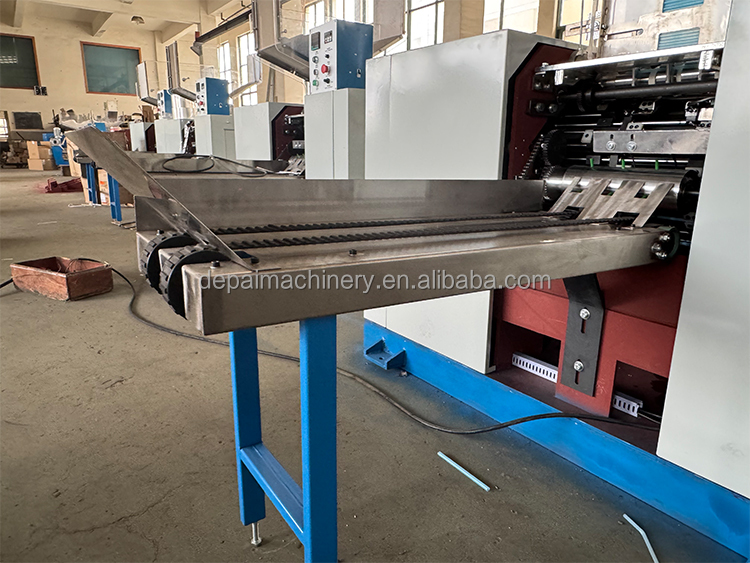

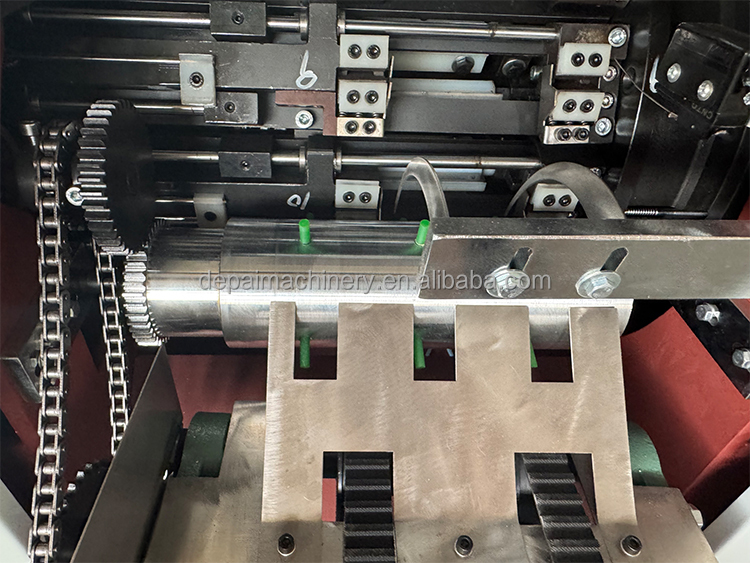

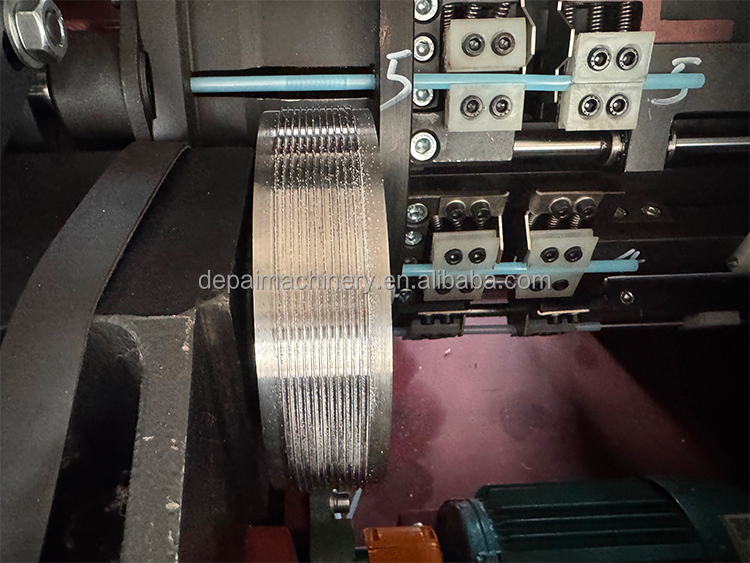

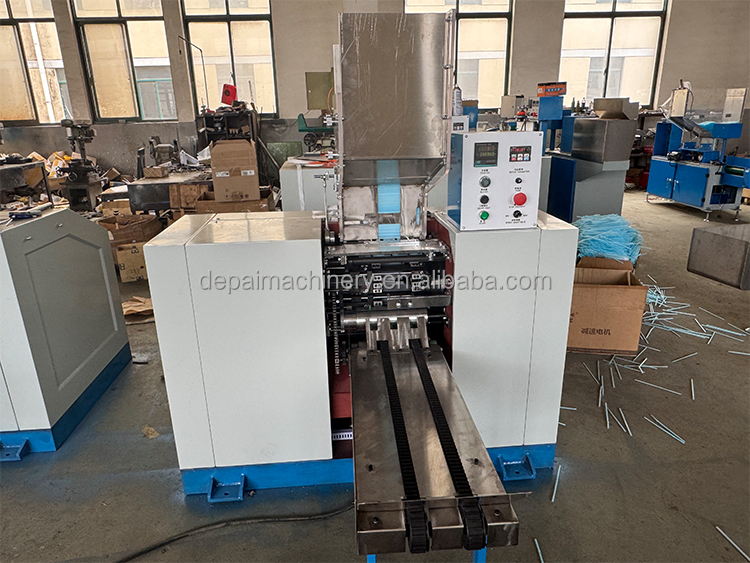

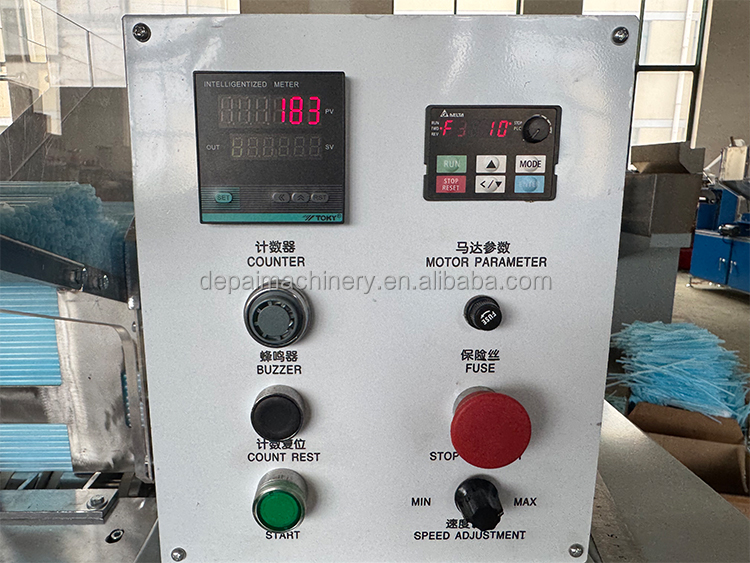

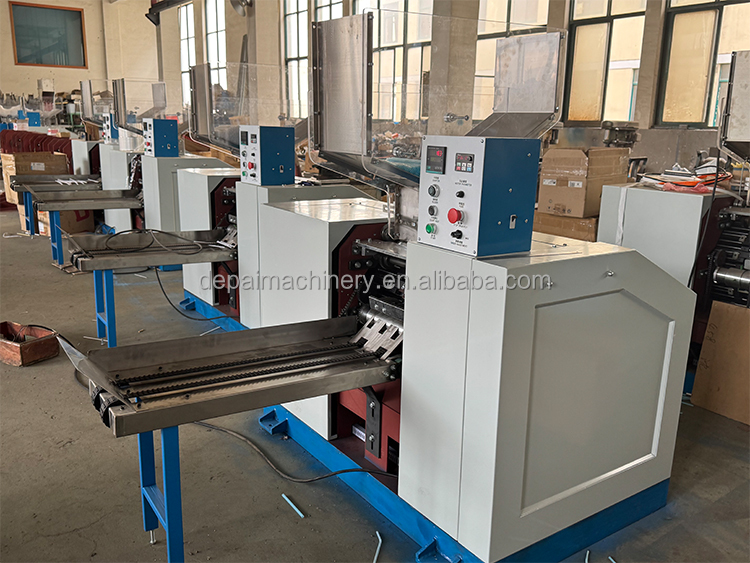

Machine details

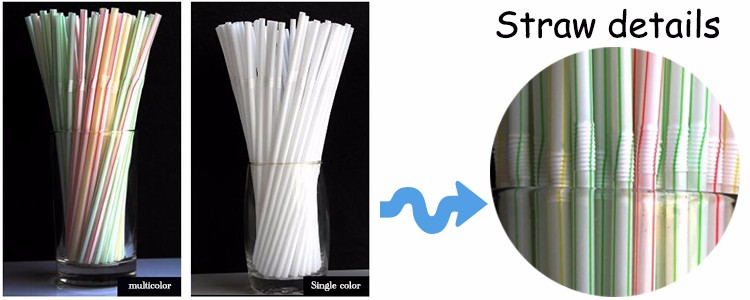

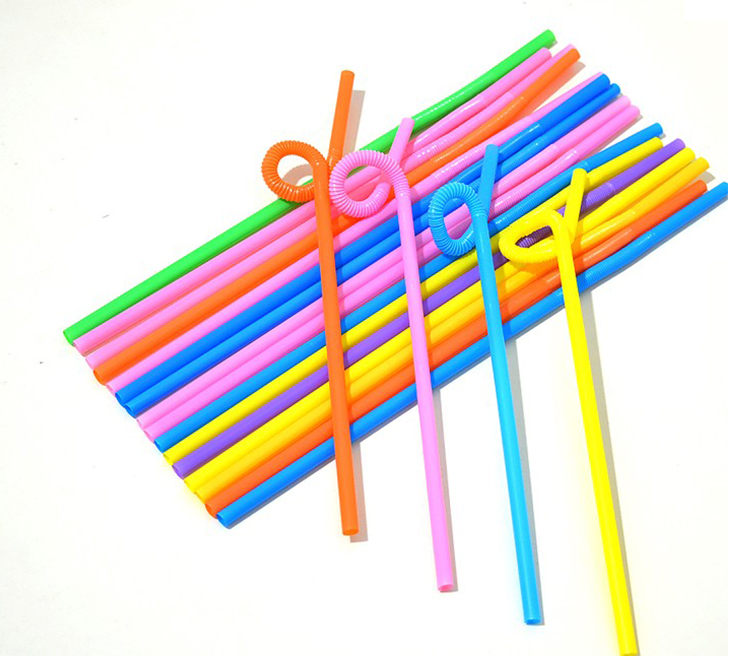

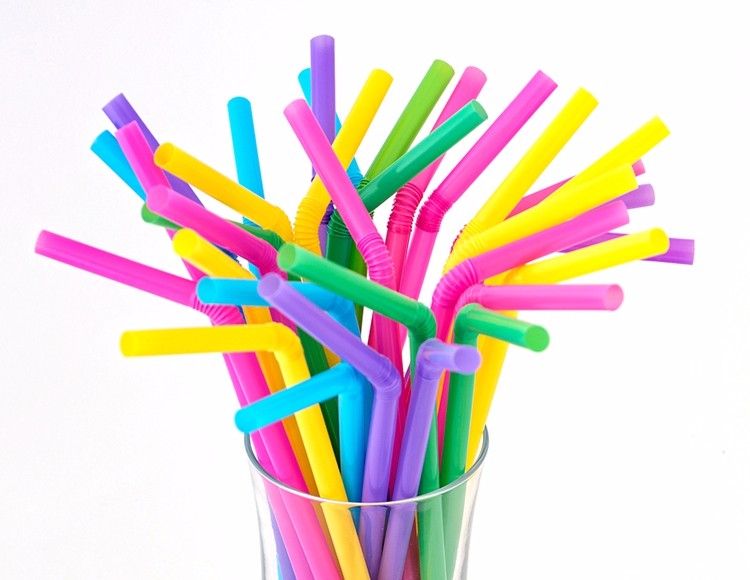

sample

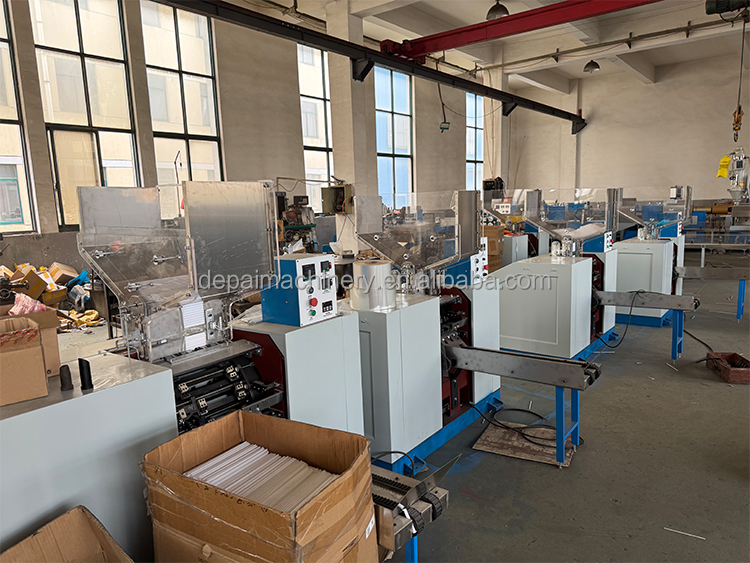

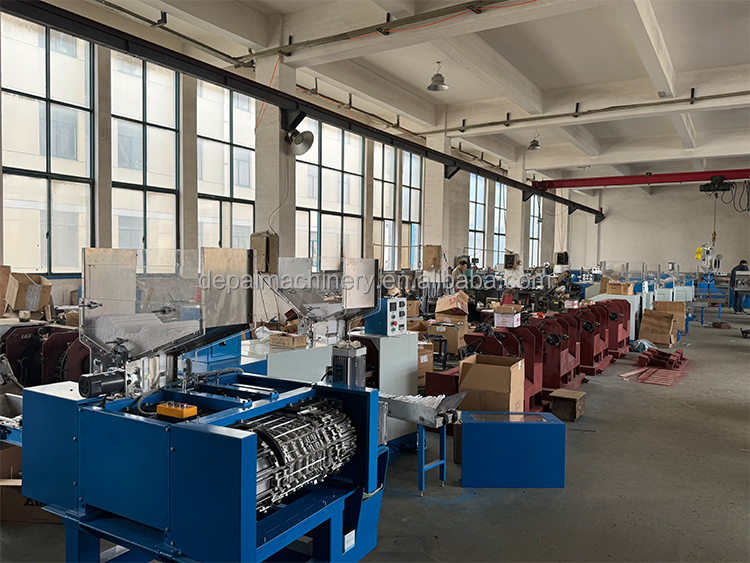

our factory
