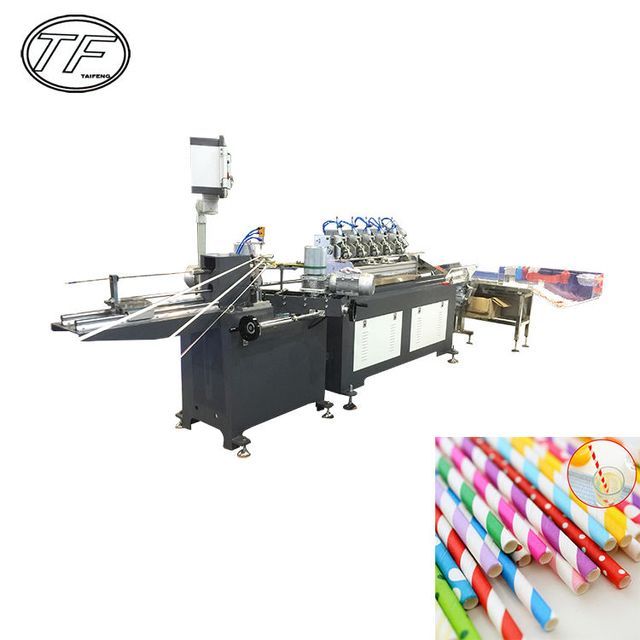

High Speed Straw Production Machine Paper Straw Forming Machine

Supplier: Quanzhou Taifeng Machine Technical Co., Ltd.
Region: Nanan, China
Contact: Mr Paul Hsu
Price: $17000.00 /set
Min. Order: 1 set

Click here to contact

Product details

strength:	5kW	Paper roll thickness:	0.5-2mm
Warranty:	1 year	Post-warranty service:	Video technical support
brand:	China Minsheng Taifeng	Core component warranty:	1 year
Cutting length:	100-320mm	After-sales service provided:	Engineers can repair machinery overseas
Straw inner diameter:	4.5-12mm	Dimensions (lengthwidthheight):	300010001450mm
Paper roll:	3rd floor	Place of origin:	Fujian Province, China
Health status:	new	payment terms:	wire transfer, cash
Marketing type:	2020 new products	Multi-knife cutting:	6 sets
Packaging details:	Seaworthy packaging/PE film/wooden box	Showroom location:	not any
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Voltage:	380V/50Hz
Applicable industries:	Machinery repair shop, manufacturing plant	Video outbound inspection:	if
Production speed:	30-45m/minute	Mechanical test report:	if
weight:	1300	port:	Xiamen
Work area space (mm):	6000*6000	Supply capacity:	60 sets per month

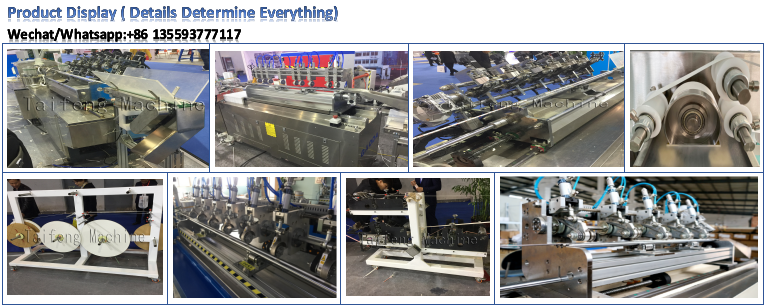

Product Description

(1) This machine is suitable for producing paper straws of different specifications and extremely fine paper gauges; touch screen human-machine interface. Parameter setting and operation are convenient.
(2) The cutting part adopts CNC multi-knife cutting system. Servo synchronous tracking cutting system, higher precision, multi-knife cutting, higher efficiency.
(3) The fuselage and main parts are made of stainless steel instead of painting. Ensure product hygiene and environmental protection.
(4) When the bottom paper breaks, it can automatically alarm and shut down the machine, thus avoiding the trouble that is difficult to eliminate with the white rubber roller.
(5) Use multiple cross-connected structures to increase the stability of the paper rack and reduce the area.
(6) Roller-type glue application is used. Each layer of glue rack is equipped with a motor to control the amount of glue applied. The amount of glue applied can be accurately adjusted according to customer needs.
(7) The mandrel is fixed in the form of a three-jaw chuck to achieve rapid clamping.
(8) The speed of the paper tube cutting part is controlled by a servo motor, and the paper tube production speed can be tracked and synchronized.
(9) The paper tube cutting system adopts the form of multiple knives cutting at the same time. It can cut 4 short paper tubes at one time, which can ensure the length accuracy of the paper tube, avoid secondary cutting of the paper tube, and save labor and equipment.

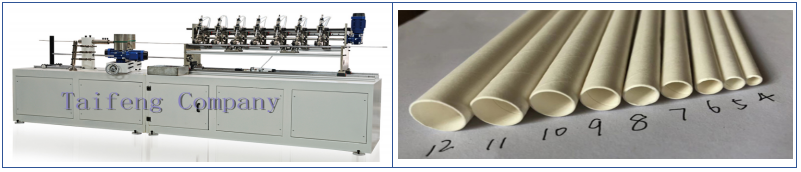

Product parameters

Model	TF-SFM	Straw thickness	0.5-1mm
paper roll	3rd floor	Production speed	30-45m/minute
Straw inner diameter	4.5-12mm	cutting length	100-820mm
Paper roll thickness	0.5-2mm	Multi-knife cutting	6 sets
Straw diameter	5-12mm	Limelight	2
Voltage	380V/50Hz	strength	5kW
air pressure	0.6Mpa	Feeding method	automatic
Machine weight	1300kg	operator	1-2
Machine size (mm)	300010001450	PLC controller	Delta DVP28SV
Packing size (mm)	350015001500	Work area space (mm)	6000*6000

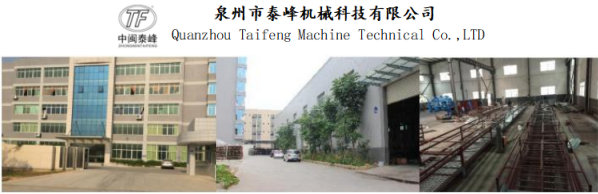

Quanzhou Taifeng Machinery Technology Co., Ltd. was established in 2013. The manufacturer is
It is located in Nan'an Optoelectronics Base, which is known as "Fujian Optoelectronics Pioneer Park". After more than ten years of unremitting efforts and construction, the existing factory has a total area of 9,000 square meters. At the same time, the company has a dynamic team with rich experience, professional knowledge and skills, professional installation and maintenance, and testing.

As always, Taifeng Company is committed to producing professional, safe and reliable medical gloves, examination gloves, household and industrial latex, nitrile glove production lines, mask machines, cigarette paper folding machines, cigarette paper printing and slitting machines, facial tissue , napkins, toilet paper machines, balloon production lines and printing presses and other mechanical products. The company pays close attention to product quality and reputation, and has passed ISO9000 certification system and CE certification, making the quality of its products in line with international standards. Over the years of development, we have gained the trust and praise of customers. Our products are not only sold to most provinces and cities in China, but also exported to Spain, Egypt, Colombia, Japan, South Africa and other countries and regions.

As the ancients said, "a promise brings a thousand pieces of gold". In the fiercely competitive market environment, the company will perform outstandingly in its future sustainable development. On the basis of ensuring product quality, Taifeng always adheres to the principles of honest cooperation, customer first, professional and sincere service, constantly improves product quality, provides customers with satisfactory products, and advances and retreats with customers to achieve a win-win situation. winning resultThat.

contact information
Contact: Zoe
Tel: +86-13559377117
Tel/Fax: +86-595-22861356
WeChat/WhatsApp/Skype:+86-13559377117
Website: www.qzyjkj.com/English/;www.balloonmachine1.com
Address: No. 22, Chuangzao Road, Optoelectronic Information Industry Base, Nan'an City, Fujian Province
