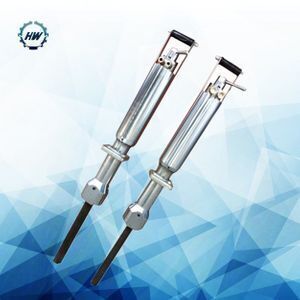

250mm/350mm/450mm Rock splitter and the hydraulic pump station

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Aggy Li
Price: $499.00 /set
Min. Order: 1 set

Click here to contact

Product details

actual splitting force:	600-680;	Certification:	ISO9001;
Warranty:	1 Year;	the hole depth:	300m-800mm;
Material:	Iron;	Single gross weight:	45 KG;
Efficiency:	Highly;	Package Type:	wooden case;
After-sales Service Provided:	No overseas service provided;	Single package size:	80X20X20 cm;
wedge length:	150-380mm;	Dimension(LWH):	450410700;
Place of Origin:	Shandong China (Mainland);	Brand Name:	HW;
Motor Type:	AC Motor;	Condition:	New;
crack time:	5-12s;	Applicable Industries:	Construction works ;
Selling Units:	Single item;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Diameter:	36-50mm;	Model:	Rock splitters;
Application:	rock;	Type:	Rock Splitter;

Product Description

Hengwang Rock Splitter Factory Sale

The stone is often broken into a lot of pieces, so that the utilization rate of stone is less than 30%.That is, the mining of stone is labor, time, but also caused a great waste of resources.If the use of splitting machine mining, as long as the stone to be mined on the surface of a few holes and some grooves, and then use the splitting machine split under the stone.If the same mining 10 meters long, 6 meters wide, 6 meters high stone, only 10 holes, a total length of 60 meters.

It consists of two parts: hydraulic pump station and splitter. The cylinder is driven by the ultra-high pressure oil output from the pump station. After mechanical amplification, the split object can be split in the predetermined direction.Product features:

Splitting process without vibration, no impact, no noise, no dust, a few seconds to complete the splitting, single big splitting force up to 5,000 tons, can control the splitting, dismantling, splitting size, light weight, simple operation, easy maintenance can be used in indoor and narrow site demolition work can be used for underwater construction.

Detailed Images

Rock Splitter	PLQ-250	PLQ-350	PLQ-450
Piston diameter	90mm	90mm	90mm
Drilling diameter	Φ42mm	Φ45mm	Φ50mm
Crack width	10-40mm	10-40mm	10-40mm
Cheese block length	250mm	350mm	450mm
Weight	41KG	42KG	43KG

Pump Station - Electric	BZ-D40	BZ-D55	BZ-D75
Weight	100KG	120KG	150KG
Power	4 kw	5.5 kw	7.5 kw
Working Pressure	55-80 Mpa	55-80 Mpa	55-80 Mpa
Working Flow	5 L/min	7 L/min	12 L/min

Pump Station - Diesel	BZ-C6	BZ-C8	BZ-C18
Weight	110KG	130KG	250KG
Power	6 hp	8 hp	18hp
Working Pressure	55-80 Mpa	55-80 Mpa	55-80 Mpa
Working Flow	6 L/min	9 L/min	22 L/min

-1* Air drill or rock drill drilling, hole depth is greater than two times the gun
-2* Insert each splitter in turn into the hole
-3* After starting the hydraulic pump station to observe the pressure index, shut down the pressure handle of the splitter in time
-4* The splitting machine will finish the work in 3-5 seconds. After the stone is split, push the pressure handle to the falling position to recover the middle wedge, put forward the splitting machine and carry out the next hole operation
