Hengwang 6m Hydraulic Press Solar Panel Factory Pile Driver Vibration Pile Driver

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Aggy Li
Price: $34999.00 / 1 - 4 sets
$29999.00 / 5 - 9 sets
$19999.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

application:	solar piling	Applicable industries:	PV piling
Rod or pile:	Suitable for all types	Showroom location:	France, Vietnam, Philippines, Mexico, Thailand, Chile, Romania
brand:	Hengwang	payment terms:	L/C,Western Union,T/T,MoneyGram
Marketing Type:	normal product	Unique Selling Points:	low maintenance cost
type:	hydraulic pile driver	place of origin; place of origin:	Shandong China
Engine power:	85KW	Mechanical test report:	if
Dimensions (LWH):	442019204900mm	Supply capacity:	500 pieces per month
weight:	6500 kg	Warranty:	1 year
Core components:	engine, pump	Packaging Details:	1 set 20 feet container, 3 sets can hold 1 set 40HQ container Hengwang 6m hydraulic press Solar panel workshop piling machine Vibratory piling machine
Pile driving speed (m/min):	3m/min	Name:	solar pile driver
advantage:	Cost-effective	Health status:	new
Core Components Warranty:	1 year	port:	Qingdao/Tianjin/Shanghai
color:	blue or customized	Hydraulic hammer model:	75/85/100 optional
efficiency:	high efficiency	Rotation angle:	360°
Key words:	solar pile driver	Video external inspection:	if
Packaging Preview:

Product Description

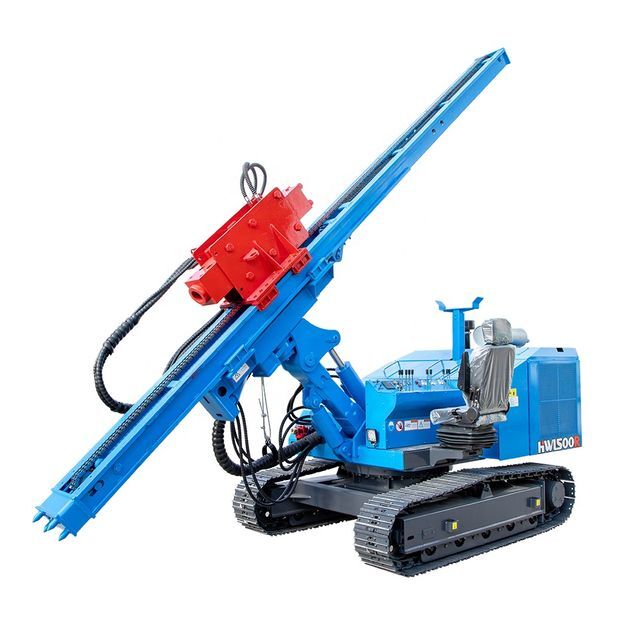

Hengwang 6m Hydraulic Press Solar Panel Factory Pile Driver Vibration Pile Driver

Product number	HWL600R
Hydraulic hammer model (mm)	75/85/100 optional
Drill pipe diameter (mm)	75/85/100
Pile height (mm)	According to slides
Sliding guide frame inclination (°)	(left) 5 (right) 5
Frame rotation angle (°)	360
Hydraulic system pressure (mpa)	twenty two
Driving speed (km/h)	3
Vehicle weight (kg)	6200
Track shoe width (mm)	350
Dimensions (mm)	442019204900-7900 (working status) 4500-750019202800 (transportation status)

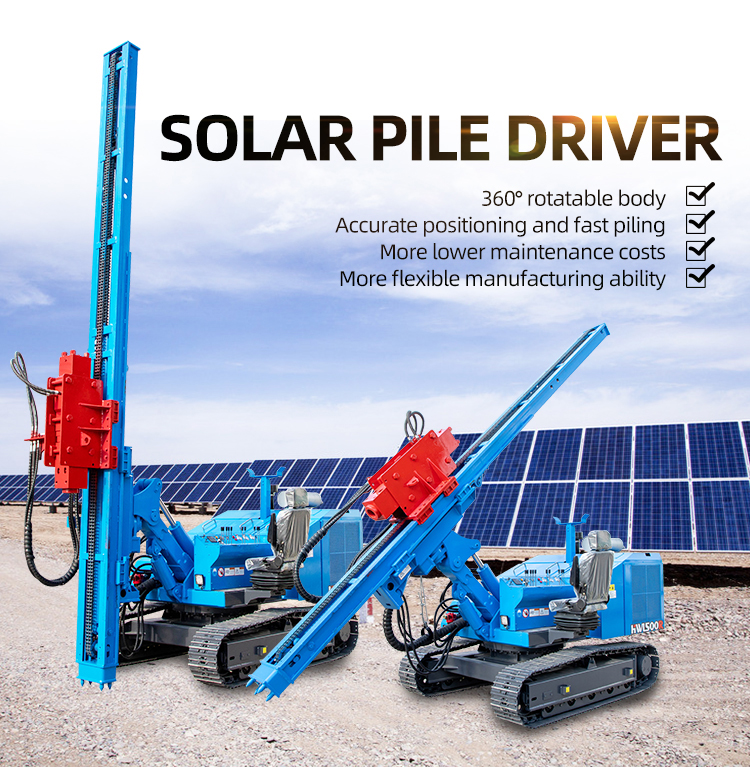

The hydraulic spinning pile driver is a multi-functional pile driver for solar piling projects, with 360-degree free rotation and multi-angle piling functions. The machine adopts diesel power, hydraulic mechanical transmission, high efficiency, convenient displacement, multi-angle multi-angle piles, high precision, durable, time-saving and labor-saving, especially suitable for on-site engineering construction.

Why choose our company's pile driver?

1. Newly upgraded pile driver

2.Factory direct supply, reducing middlemen to earn the difference

3.Flexible production, accept customization

4.Can be exported to EU, the machine has passed CE certification

detailed image

What are the features of our new pile driver? Please read the following introduction patiently, I believe you will like it.

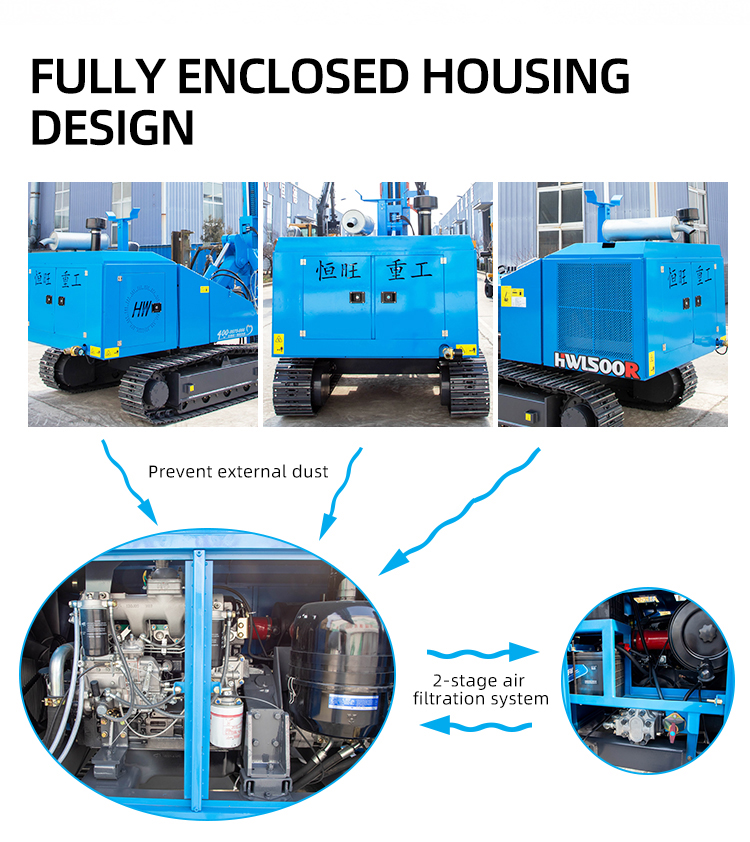

1.The fully enclosed house is more beautiful in design, which can effectively prevent external dust from causing damage to the inside of the machine, greatly reducing maintenance costs.

2.The suspension seat of this solar pile driver can reduce vibration, relieve the fatigue of workers after sitting for a long time, and greatly improve the work efficiency of workers.

3.Centralized operation and control platform, the operation is simpler and more convenient

4.The pile driver is equipped with a large power head, and the size of the pile cap can be customized.

5. In addition to piling, the machine can also be connected to the air compressor for drilling

6.Engineering steel crawler chassis makes the pile driver walk and work more stable and reliable than rubber crawler.

7.For this pile driver, we specially added the anti-wear pulley of the chain, which increases the service life of the chain and improves the working performance of the whole machine.

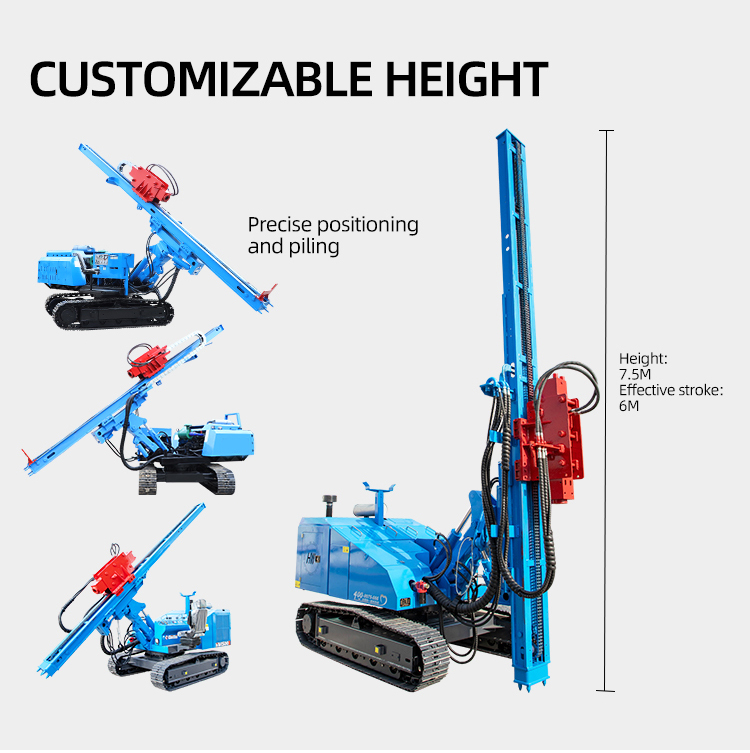

8.The height of the sliding table is 7.5 meters, and the effective stroke is 6 meters (the height can be customized), which can realize a certain angle of forward inclination, and can accurately locate the pile without moving the machine, saving positioning time and improving the efficiency of piling.

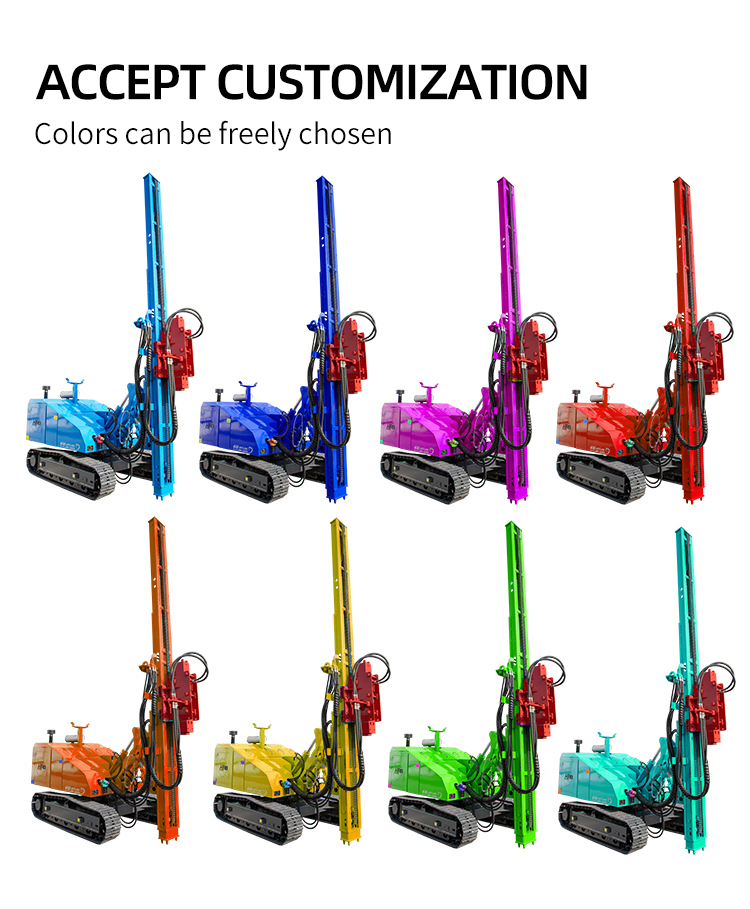

9.The color of the pile driver can be customized according to the customer's preference, our pile driver also has many advantages, if you need it, please ask us for a detailed introduction.

customer feedback

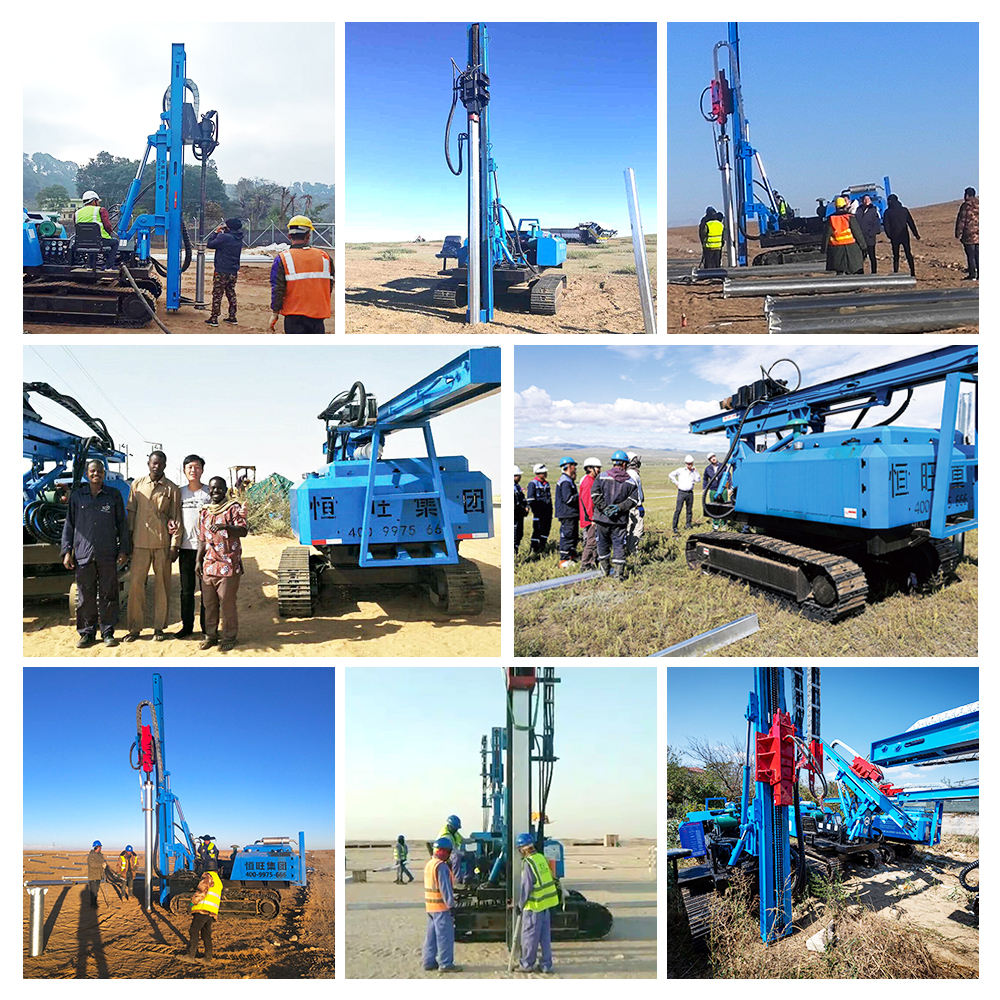

The following pictures of pile drivers are from customer feedback (Vietnam, Saudi Arabia, Romania, Mexico, South Africa, Philippines, Malaysia, Colombia, etc.), we also have manycustomer feedbackVideo, if you are interested, please contact us to send it to you.

Product configuration

Solar pile drivers are versatile, with different configurations suitable for different geology. Accept customization, any good ideas please contact us, our engineers will help you get what you want.
