Hot sale gasoline engine concrete vibrator/concrete vibrating tube

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Aggy Li
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Diameter of Flexible hose:	32mm;	Name:	pneumatic vibrator poker;
Frequency:	50/60HZ;	Weight:	8-16kg;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Single gross weight:	60 KG;
Selling Units:	Single item;	After-sales Service Provided:	Overseas third-party support available;
Type:	Internal;	Warranty:	3 years;
Single package size:	40X35X30 cm;	Place of Origin:	Shandong China;
Outside dia of Fiexible Shaft:	30mm;	Drive Mode:	Pneumatic Vibrator;
Condition:	New;	Certification:	CE/SGS/ATEX;
Length of Flexible Shaft:	1-12mm;	Dimension(LWH):	85068060;
Voltage:	220v/380v;	Package Type:	regular packaing;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	Vibrating Amplitude:	210Hz;
UNIQUE SELLING POINT:	Easy Maintenance;	Brand Name:	HW-XZ;
Length of Flexible Shaft:	400mm;	Innei Dia of Flexible Shaft:	8mm;

HW High efficiency pin type pneumatic vibrator poker

Product Description

Electric Concrete Vibrator features

1. Electrical or Engine Power Source

2. High strength rubber hose up to 16m, with many layers, such as meter net, canvas and steel belt for extreme high strength and long durability

3. 40-Chromium Alloy Head, hardness reached HRC52-55 degrees, long durability

4. Carbon Steel Body, hardness reached HRC52-55 degrees, long durability

5. Crank Shaft made of 40-Chromium Alloy, for extreme high strength

6. Flexible shaft made of spring steel, coiled without space for anti-breakage

Electric Concrete Vibrator parameter

Model		HW-XZ35	HW-XZ 50	HW-XZ 70
Vibrating spear	Diameter (mm)	35	50	70
	Vibrating Frequency(HZ)	200	183	183
	Vibrating Amqlitude(mm)	0.8	1	1.2
	Weight(KG)	3	5	8
Flexible axie&hose	Flexible axis Dia.(mm)	10	13	13
	Hose Dia.(mm)	30	36	36
	Length(mm)	4000	4000	4000
Electromotr	Power(KW)	1.1	1.5	2.2
	Voltage(V)	380	380	380
	Rotate speeed(rpm)	2840	2840	2840
Overall Dimensions	L×W×H(mm)	320×180×280	320×180×280	320×180×280
Gross	(kg)	16	17	19

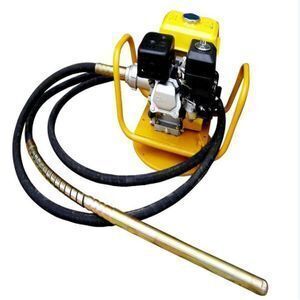

Pneumatic vibrator poker pictures

Packaging & Shipping

Company cooperation

Factory and Team

Customer Visit

Certifications

FAQ

Contact Way

Miss.Nina Rao
Overseas Marketing Manager
Tel.: 0086-537-2081658 mobile phone:008613668679003
Skype:649932389at qq.com Whatsapp:+8618353787695
E-mail:hw004at hengwanggk.com

Thank you for spending so much time reading, thank you for your time,.
