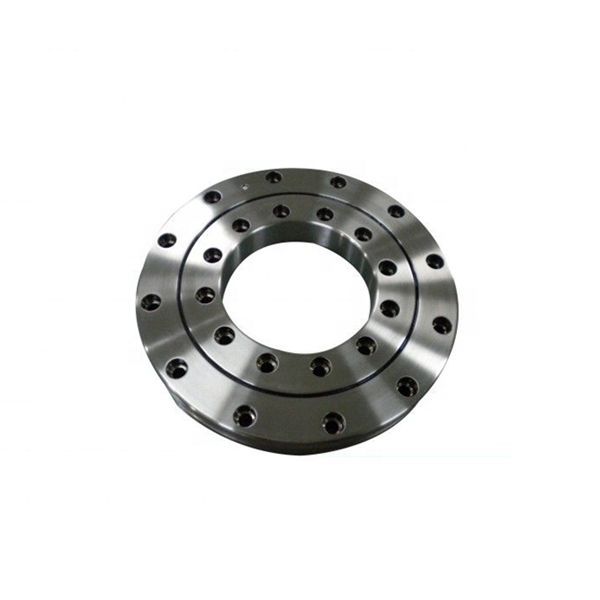

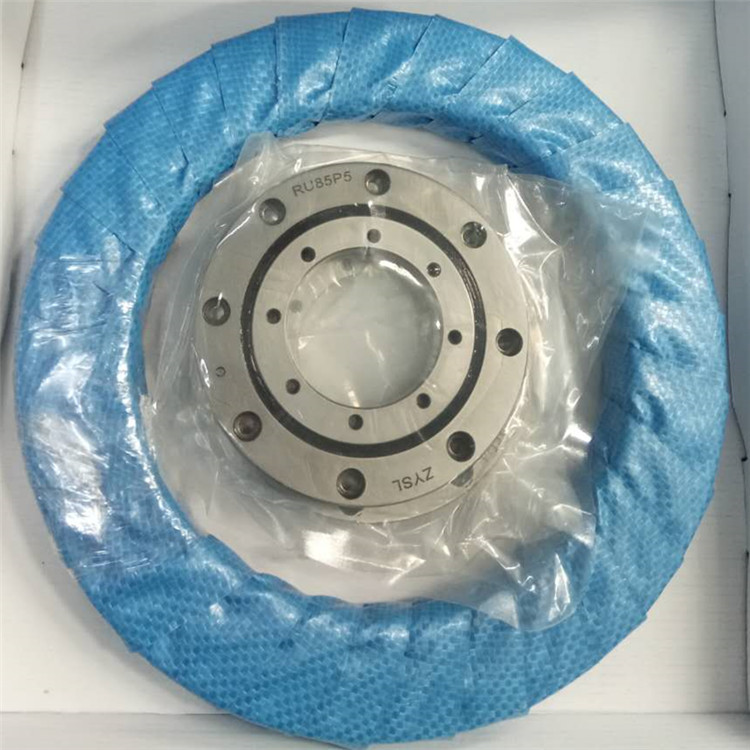

Forged RU85 crossed roller slewing bearing for heavy machinery

Supplier: Jinan Shenglei Bearing Co., Ltd.
Region: Shandong, China
Contact: Mr leon Han
Price: $182.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

application:	machine	Applicable industries:	Manufacturing plants, machine repair shops, retail, excavators
Name:	RU85	brand:	Sun Yat-sen University
Specifications and models:	Cross ring slewing bearing	model:	Ru85
Product Category:	Precision bearings	port:	Guangzhou, Qingdao
Certificate:	ISO9001:2008	Serve:	OEM customization service
Place of origin:	China	Gear options:	No gears
feature:	Cross roller	Bearing type:	Single row crossed rollers
type:	Slewing ring	Supply capacity:	1,000,000 pieces per month
hardness:	55HRC-62HRC	Seal type:	seal
product name:	Slewing bearings. Slewing bearings	Material:	Chrome steel
payment terms:	Western Union, wire transfer	Packaging details:	A: Tubular packaging + outer carton + pallet B: Single box + outer carton + pallet C: Tubular packaging + middle box + outer carton + pallet D: according to your requirements

model	Main dimensions						shoulder height		Basic load rating (radial)		weight
	inner ring d	Outer ring D	Roller pitch circle diameter dp	Width B	Lubrication hole d1	r	ds	DH	C	cobalt	Kilogram
									Thousand cattle	Thousand cattle
RU42	20	70	41.5	12	3.1	0.6	37	47	7.35	8.35	0.62
RU66	35	95	66	15	3.1	0.6	59	74	17.5	22.3	0.62

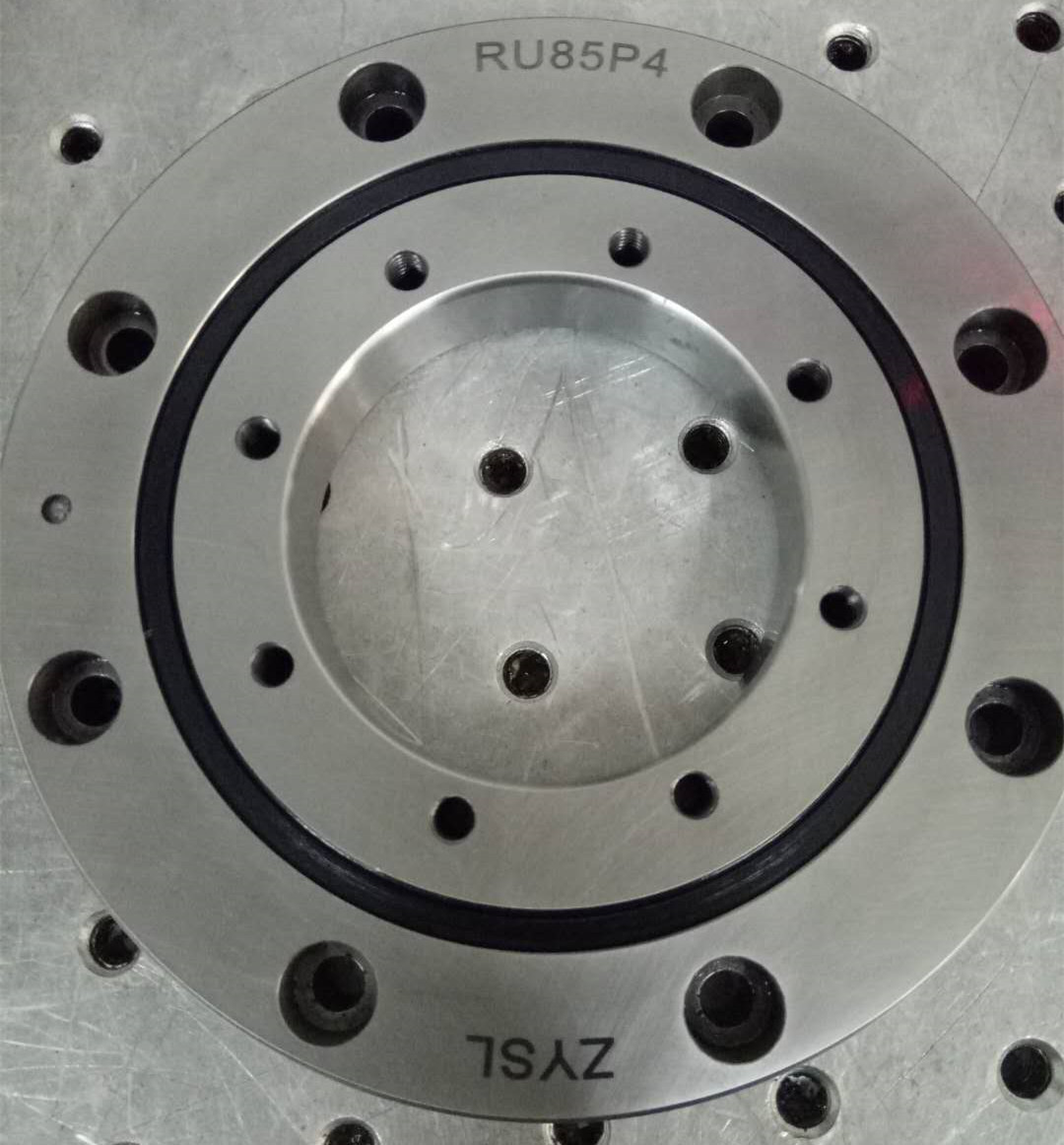

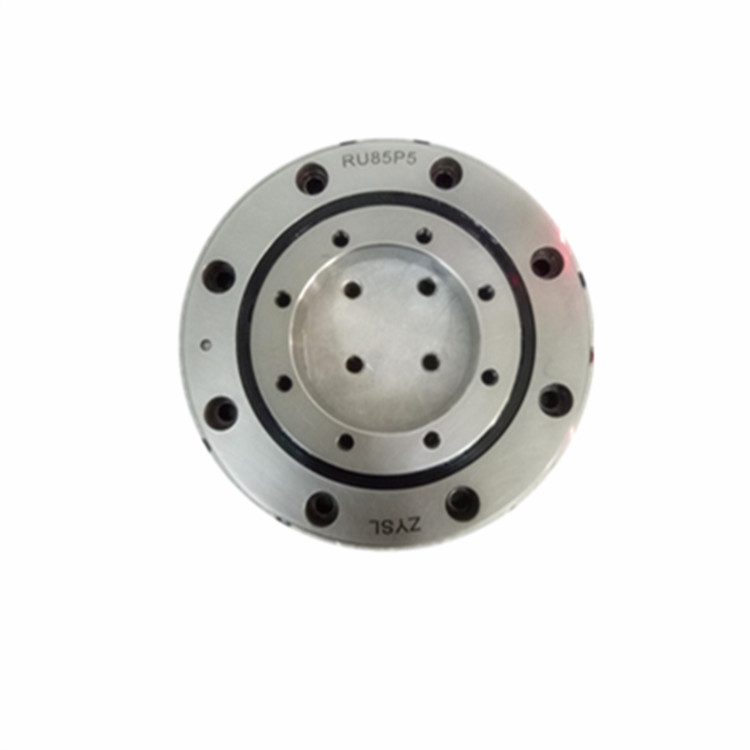

RU85	55	120	85	15	3.1	0.6	79	93	20.3	29.5	1
RU124(G)	80	165	124	number 22	3.1	1	114	134	33.1	50.9	2.6
RU124X
RU148(G)	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9
RU148(X)
RU178(G)	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8
RU178(G)
RU228(G)	160	295	227.5	35	6	2	208	246	104	172	11.4
RU228(X)
RU297(G)	210	380	297.3	40	6	2.5	Chapter 272	320	156	Chapter 281	21.3
RU297(X)
RU445(G)	350	540	445.4	45	6	2.5	Chapter 417	Chapter 473	222	Chapter 473	35.4
RU445(X)

Crossed roller bearing structural features:

with crossoverRoller bearings, cylindrical rollers are arranged in a cross arrangement, each roller is perpendicular to the adjacent roller, located in a 90° V-shaped groove, and are separated from each other by an isolation cage. This design allows only one bearing to carry loads in all directions, including radial, axial and moment loads. Because crossed roller bearings have high rigidity and an accuracy of up to P4.P2, although the sizes of the inner and outer rings are as small as possible, they are most suitable for applications such as joints and rotating units of industrial robots, rotating tables of machining centers, etc. Robot rotating devices, precision rotating tables, medical equipment, measuring instruments, IC manufacturing machines

Rotation accuracy:

Spacers installed between cross-arranged rollers prevent roller skew and an increase in rotational torque due to friction between rollers. Unlike conventional types that use steel plate cages, crossed roller bearings do not cause shifting or locking of the rollers and provide stable rotational torque. Since the inner and outer rings are designed to be separable, the bearing clearance can be adjusted. In addition, preload is provided by adjusting the bearing clearance to ensure high-precision rotational movement.

Features of use

The inner and outer rings are separable and are fixed to the crossed roller bearing body after the rollers and spacers are installed. This process prevents the rings from separating from each other. Therefore, it is easy to handle the rings when installing this type.

Crossed roller bearing types

RB type (external split type)
The RB series model is the basic model of crossed cylindrical roller bearings. Its internal and external dimensions are as small as possible. Its structure is that the outer ring is split and the inner ring is designed for occasions where the inner ring rotation accuracy is required. part.
RE type (inner split type)
The RE series model is a new style design derived from the XRB model, and its main dimensions are the same as the XRB model. Its structure is that the inner ring is split, and the outer ring is an external part specially designed for occasions that require high-precision rotation.
RU type (uniform size inside and outside)
RU series models have been processed with self-mounting holes and do not require fixed flanges and housings. In addition, due to the use of an external and seat ring integrated structure, there is almost no impact on performance, so stable rotation accuracy and torque can be obtained. Can be used to rotate outer and inner rings.
RBC type (external split type)
The structure of the RBC series model (corresponding to IKO's CRBC series) is a split outer ring, an integrated inner ring, and a full complement cylindrical roller bearing with a cage. It is suitable for occasions where the rotation accuracy of internal parts is high.
CRBH type (both inner and outer dimensions)
CRBH series models have an integrated structure in which the outer ring and inner ring rotate.
RA type (external split, ultra-thin)
The RA series model is the RB type, and the thickness of the outer ring is reduced to the compact limit. Ideal for applications where a lightweight, compact design is required, such as robots and robot rotating parts.
SX type (external split type)
The structure of the SX series model is similar to that of the RB series. The structure of the outer ring is connected by two and three snap rings, and the inner ring is specially designed for occasions that require high-precision rotation of the inner ring.
XRU08 type (uniform size of inner and outer rings)
The XSU08 series is similar to the RU series. The outer rings are processed with mounting holes, and there is no need to fix the flange and housing. In addition, due to the use of an external and seat ring integrated structure, there is almost no impact on performance, so stable rotation accuracy and torque can be obtained. Can be used to rotate outer and inner rings.

RU series:

RU42 RU66 RU85 RU124 RU148 RU178 RU124X RU148X RU178X RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G

SX series:

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

RA series:

RA5008 RA6008 RA7008 RA8008 RA9008 RA10008 RA11008 RA12008 RA13008 RA14008 RA15008 RA16013 RA17013 RA18013 RA19013 RA20013

RE series:

RE2008 RE2508 RE3010 RE3510 RE4010 RE4510 RE5013 RE6013 RE7013 RE8016 RE9016 RE10016 RE10020 RE11012 RE11015 RE11020 RE12016 RE12025 RE13015 RE13025 RE14016 RE14025 RE 15013 RE15025 RE15030 RE16025 RE17020 RE18025 RE19025 RE20025 RE20030 RE20035 RE22025 RE24025 RE25025 RE25030 RE25040 RE30025 RE30035 RE30040 RE35020 RE35025 RE40 0 35 RE40040 RE45025 RE50025 RE50040 RE50050 RE60040 RE70045 RE80070 RE90070 RE1000110 RE1250110

RB series:

RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 RB10016 RB10020 RB11012 RB11015 RB11020 RB12016 RB12025 RB13015 RB13025 RB14016 RB14025 RB15013 RB15025 RB15030 RB16025 RB17020 RB18025 RB19025 RB20025 RB20030 RB20035 RB22025 RB24025 RB25025 RB25030 RB25 040 RB30025 RB30035 RB30040 RB35020 RB40035 RB40040 RB45025 RB50025 RB50040 RB50050 RB60040 RB70045 RB80070 RB90070 RB1000110 RB1250110
