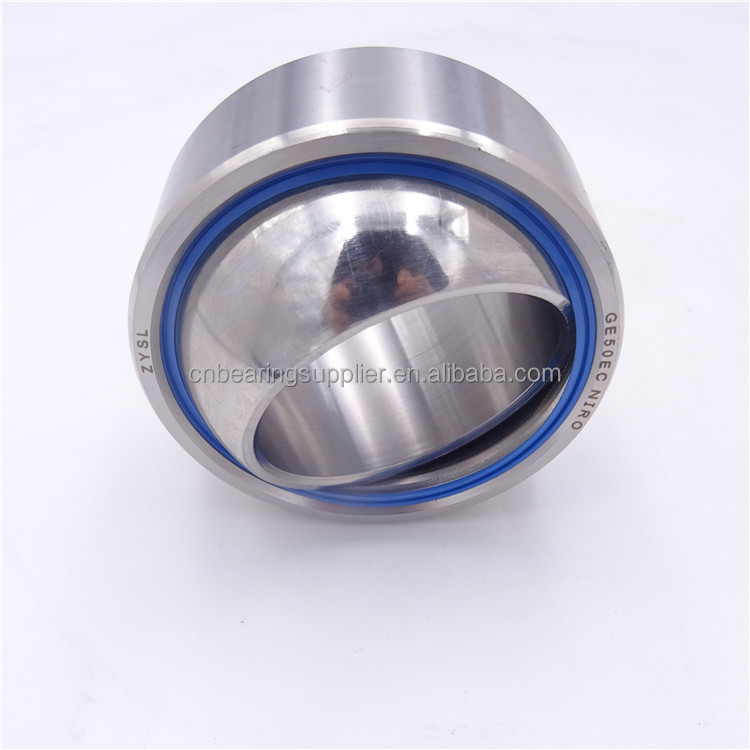

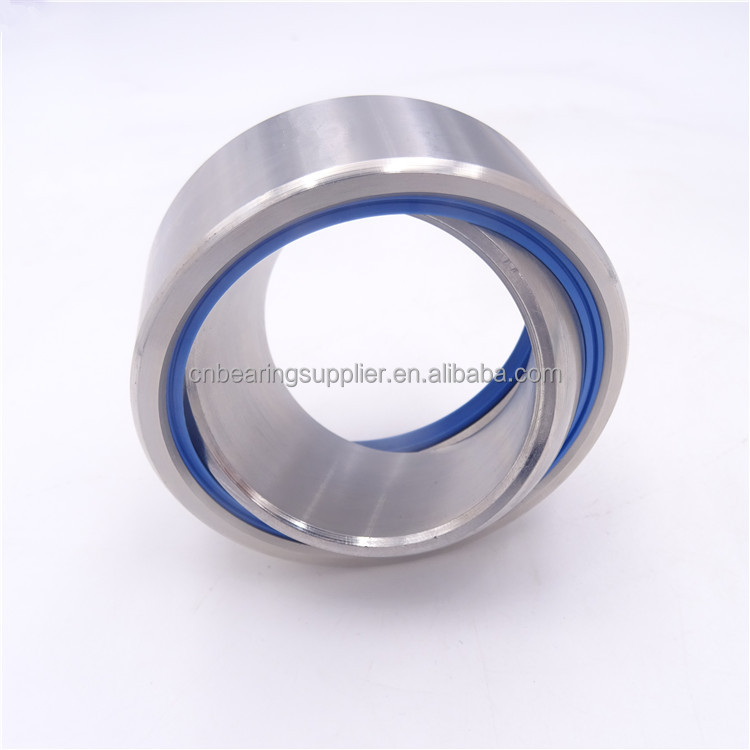

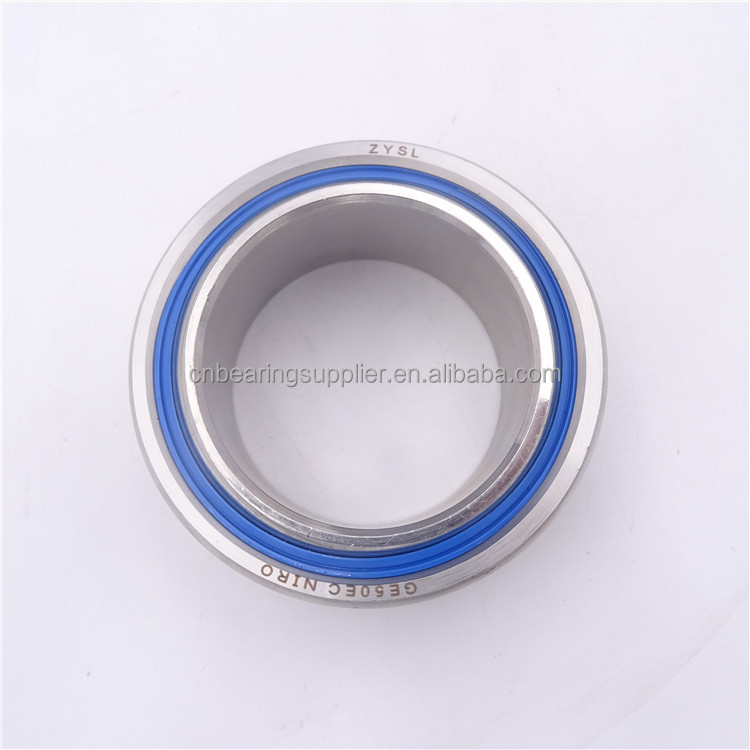

High quality GE50ES radial joint bearing GE 50 ES

Supplier: Jinan Shenglei Bearing Co., Ltd.
Region: Shandong, China
Contact: Mr leon Han
Price: $22.10 /set
Min. Order: 1 set

Click here to contact

Product details

feature:	High temperature bearing capacity	type:	end of pole
cage:	Steel cage. Brass cage	Origin:	Shandong Province, China
Certificate:	ISO9001:2008	Supply capacity:	100000 sets per month
application:	mechanical	Serve:	OEM customization service
Material:	Chrome steel/GCr15 stainless steel	payment terms:	L/C, Western Union, T/T, Official Bank Account/Paypal
Applicable industries:	Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Home Use, Retail, Construction, Energy and Mining, Other	model:	GE50ES
thickness:	35 mm	port:	Tianjin, Shanghai, Guangzhou, Shenzhen, Qingdao, Hong Kong
Packaging Details:	A: barrel + outer box + pallet B: single box + outer box + tray C: tube + middle	Accuracy class:	P0 P6 P5 P4 P2
brand:	Sun Yat-sen University	lubricating:	need maintenance

Product Description

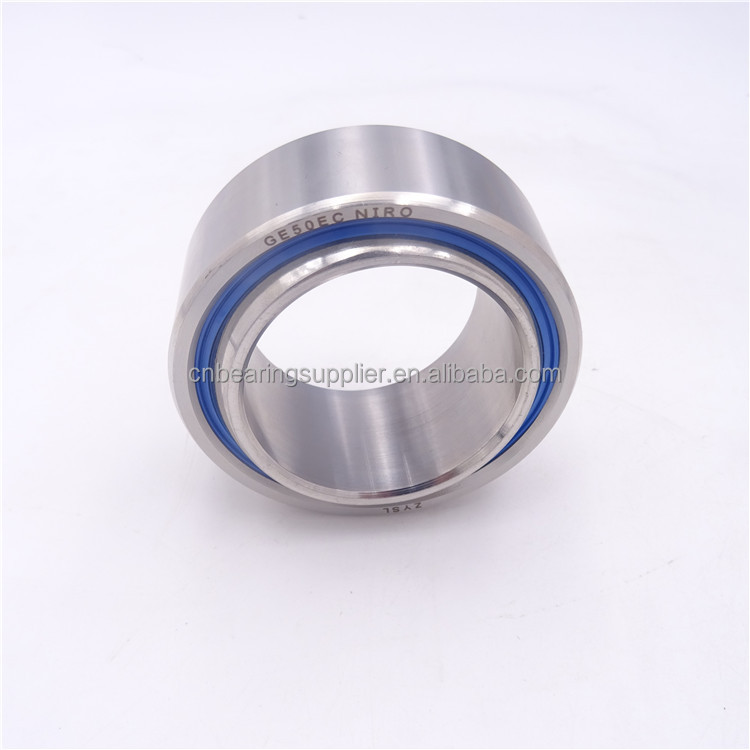

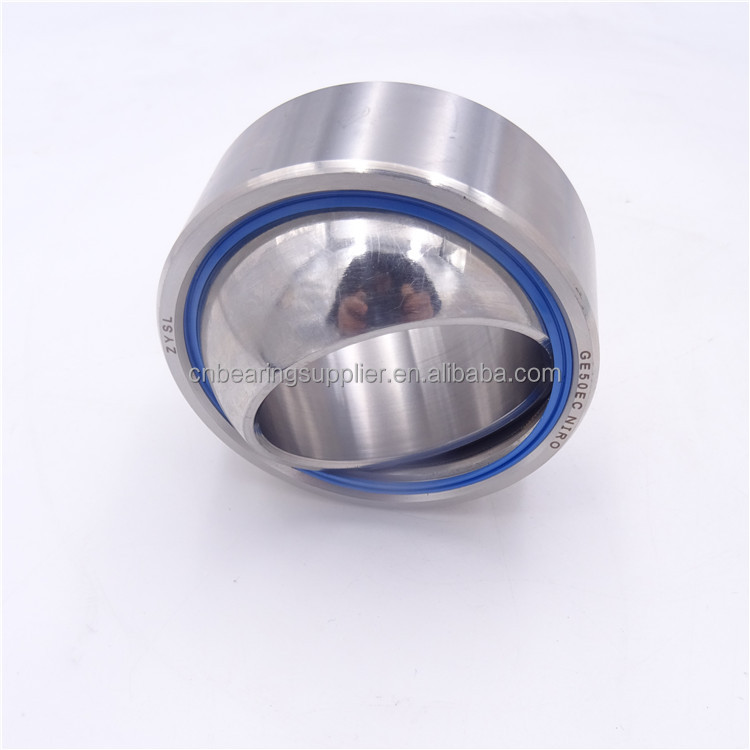

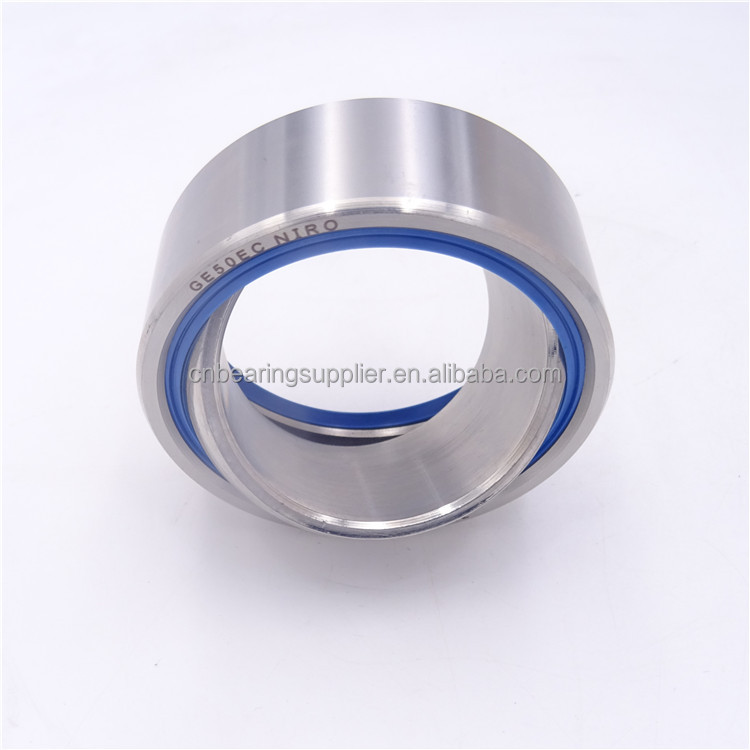

High quality GE50ES radial joint bearing GE 50 ES

describe

A spherical plain bearing, also known as a heim joint (North America) or a Rose joint (UK and elsewhere), is a type of mechanical hinged joint. These joints are used on control rods, steering linkages, the ends of tie rods or anywhere a precision articulated joint is required. A ball swivel with an opening that is pressed into a circular housing with a threaded shaft through which a bolt or other attachment hardware can pass.

The threaded portion may be externally or internally threaded.

Rod end bearings mainly bear radial load, and can also bear a certain amount of axial load, with small friction, high limit speed, and many sizes and forms. Suitable for precision instruments, low noise motors, automobiles, motorcycles and general machinery. , the most common type of bearing in the machinery industry.

Rod ends are spherical sliding bearings with spherical inner rings, and their precision and hardness are comparable to steel ball bearings. It provides very smooth rotational and oscillating motion with no backlash.

Material:
Galvanized steel rod ends, with external or internal thread, spherical surface with bronze lining, inner ring in carbon chrome steel, spherical surface chrome-plated, lubricated through a grease nipple or hole in the rod end. It has the characteristics of large carrying capacity, convenient assembly and disassembly, and simplified mechanism.

No.	Diameter (mm)	Diameter (mm)	Diameter (mm)	Weight (kg)
GE5E	5	14	6	0.005
GE6E	6	14	6	0.004
GE8E	8	16	8	0.007
GE10E	10	No. 19	9	0.011
GE12E	12	twenty two	10	0.016
GE15ES	15	26	12	0.025
GE16ES	16	30	14	0.041
GE17ES	number 17	30	14	0.041
GE20ES	20	35	16	0.061
GE25ES	25	42	20	0.11
GE30ES	30	47	twenty two	0.14
GE35ES	35	55	25	0.22
GE40ES	40	62	28	0.3
GE45ES	45	68	32	0.41

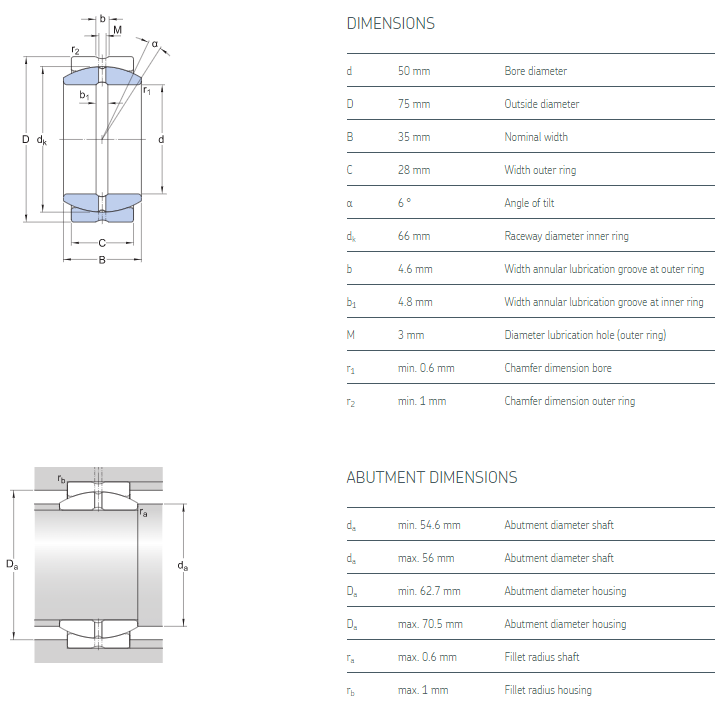

GE50ES	50	75	35	0.53
GE55ES	55	85	40	0.94
GE60ES	60	90	44	1
GE70ES	70	105	49	1.5
GE80ES	80	120	55	2.2
GE90ES	90	130	60	2.7
GE100ES	100	150	70	4.3
