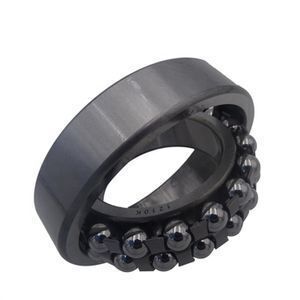

China Supplier Self-aligning Ball Bearing 1210 1210K 50*90*20mm for Motorcycles

Product details
Weight:0.465 kg;Quality:Wear.high;
Seals Type:Open;Feature:Stable Performance:low Voice;
Place of Origin:Shandong China;Model Number:1210;
Stock:Ready Goods;Structure:Self-Aligning;
Packing:Single Box Packing;Material:Chrome Steel;
Payment Terms:T/T,Western Union,Western Union / Paypal;Number of Row:DOUBLE ROW;
Packaging Detail:Single box or according to buyers requirement;Service:OEM Customized Services;
CERTIFICATE:ISO9001:2008;Brand Name:ZYSL;
Type:BALL;Payment Terms:T/T;
Port:Shenzhen;Supply Ability:1000000 Piece/Pieces per Month Self-aligning Ball Bearing 1210;
Outside Diameter:1 - 90 mm;Bore Size:1 - 50 mm;
Precision Rating:P0 P6 P5 P4 P2;Main Market:Middle;
 20 years of experience,The best quality!
Product Description

Brief introduction:
The components of the self aligning ball bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.
Features:
When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.
Product line:
Mini-series: 10x, 12x, 13x

General Series: 12xx, 13xx, 22xx 23xx

Typical applications:
Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.



Suffix definitions of Self-aligning ball bearings:

C3: radial clearance than ordinary clearance

K: 1/12 taper tapered bore

K30: 1/30 taper tapered bore

M: Ball guided machined brass cage

2RS: with both ends of closures

TV: ball guide glass fiber reinforced polyamide (nylon) solid cage

Parameters of China Supplier Self-aligning Ball Bearing 1210 1210K 50*90*20mm for Motorcycles

Brand
ZYSL or OEM
Name
bearing(self-aligning ball bearing)
ALL Model
     12***13***22***23***
Material
GCr15SiMn, GCr15, G20Cr2Ni4A,9Cr18
Certificate
 ISO9001:2008
Precision
P0, P6, P5, P4, P2
 ID Size:
10mm-110mm
Clearance
C0,C1,C2,C3,C4,C5 etc.
Seals Type
RS, 2RS, R2, Z, 2Z, 2RZ etc
Basic Rated Load (KN)
A. Dynamic:
5.48-87.2
B. Static:
1.2-37.5
Limit Speed(r/min)
A. Grease
24000-2800
B. Oil
28000-3400
Features
Low price,high speed,long life
Application
widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills.
Delivery Time
2-5 days
Package
card board package, pallet, wooden case or according to the requirement of the customers
Price
FOB,CIF

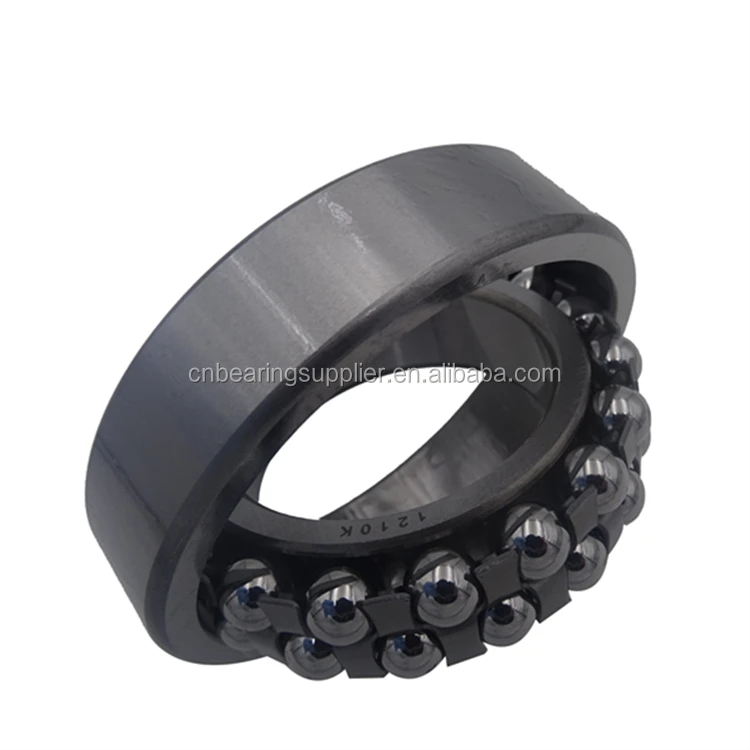

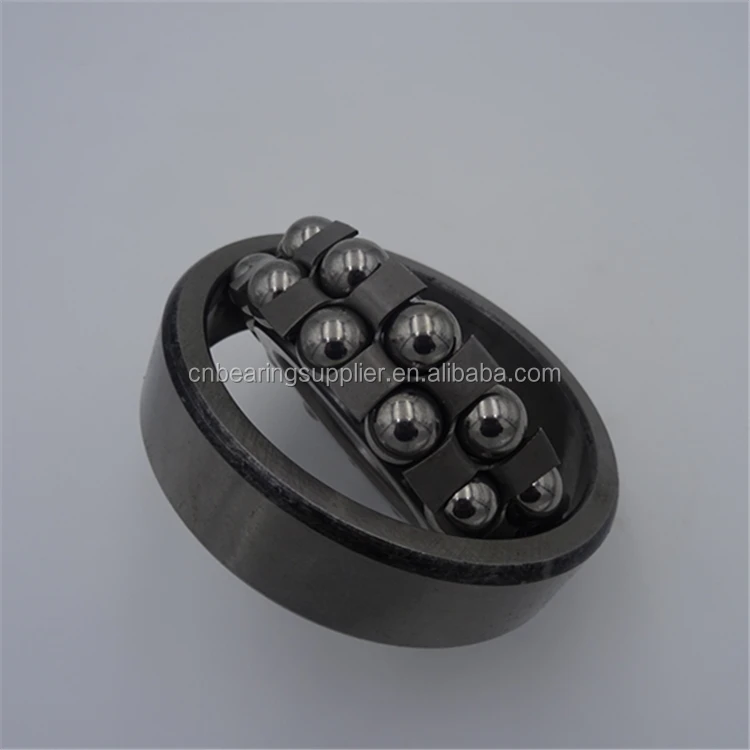

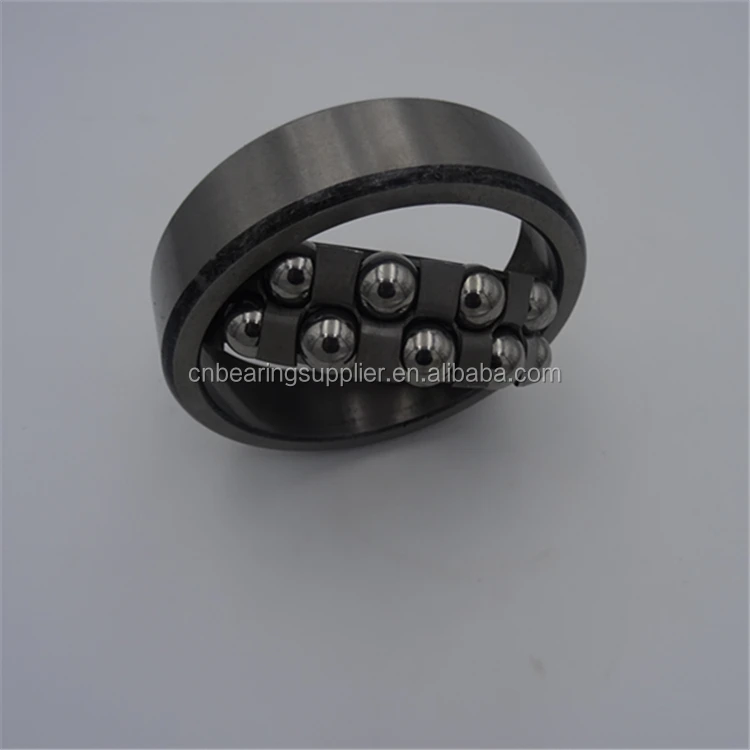

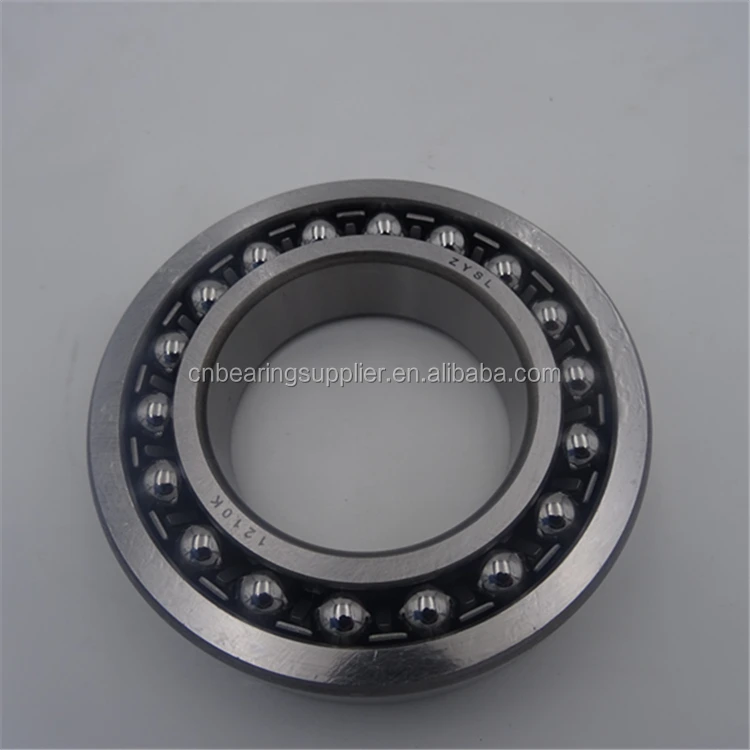

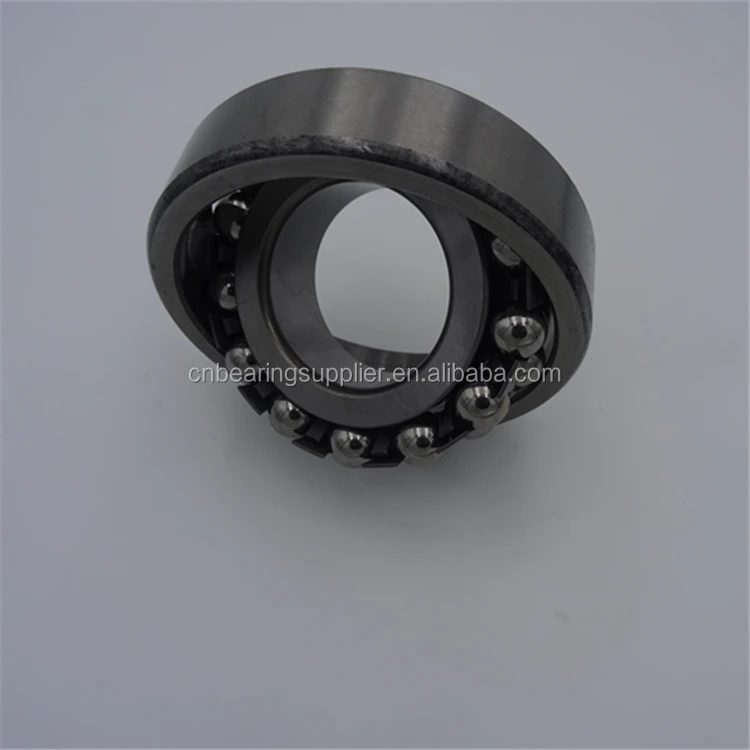

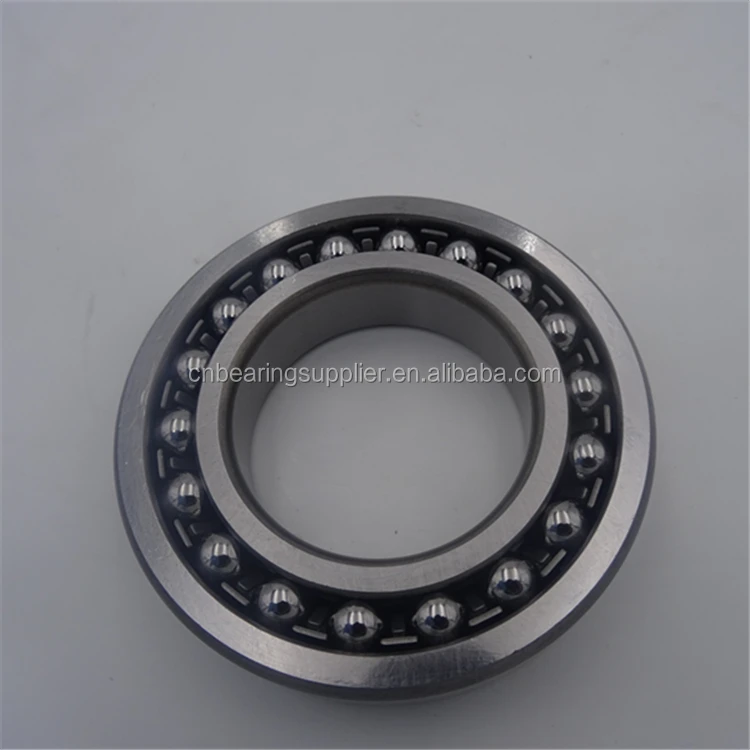

Product show of Self-aligning Ball Bearing 1210:

Main bearing product

Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.

 Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.

 Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.

 Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.

 Cylindrical roller bearing: N series, NU series, NJ series, etc.

 Pillow block bearing: UC series, UCP series, UCF series, UCFL series.

 Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.

 Needle Roller Bearing

 Sliding bearing

 Slewing Bearing

 Rod End Joint Bearing

 Ceramic Bearing

 Bearing Accessories



Payment terms



 We accept T/T, PAYPAL or Western Union, credit card.



Delivery



 By express, like TNT, FEDEX, UPS, DHL, or by air/ sea.


Advantages



Why Choose us?



1. World Class Bearing:We provide our customers with all type of indigenous



     bearing with world class quality.



2. OEM or Non Stand Bearings: Any requirement for Non-standard bearings is



      Easily Fulfilled by us due to its vast knowledge and links in the industry. It



     specializes in.



3. Genuine products With Excellent Quality: Company has always proved the



     100% quality products it provides with genuine intent.





Company information:

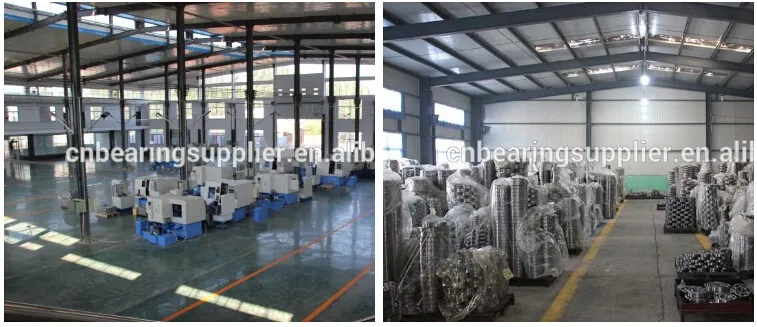

Jinan Shenglei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.

The company has passed ISO9001 Quality Management System and is managing the production in strict compliance with the international and domestic standards. "ZYSL" is the company's registered trademark. The main products include tapered roller bearings, self-aligning roller bearings, cylindrical roller bearings, deep groove ball bearings, self-aligning ball beairngs, angular contact ball bearings, thrust ball bearings, pillow block bearings, joint bearings, needle bearings, linear bearings, auto bearings,etc. Our bearing are mainly used in industry, machinery, rolling mill, textile, railway, metal lurgy, mining and other major manufacturers and facilitate the dealers in supporting and assistance service at any time. In addition,our technical team has also developed ceramic bearings, plastic bearings and stainless steel bearings etc. Our products are mainly exported to Middle East, Southeast Asia, South America, India, Pakistan, Canada, Singapore, Korea and other countries and areas.

We have been serving every customer by virtue of our superior pre-sale technological support and after-sale tracking service since the company was established. We dedicate to the proposition of “Quality assurance, great variety of goods, favorable price and punctual supply” and comply with the management idea of “Integrity,pragmatic and win-win “so that the most superior service and goods can be provided for our customers. We will also offer customers the most perfect service in terms of the selection of imported bearings, application direction, performance testing, and technology communication to grant every customer faith in all aspects of our products. We are sincerely looking forward to cooperating with more customers as well as friends and pushing forward prosperity of business. Warmly welcome people of vision from all walks of life in bearing industry to visit us for discussion and cooperation.

Packing & Delivery

Package:

A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.

Payment Terms:
A.100%T/T

B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union

certification



Customer photo:

FAQ



1. How long is your delivery term?



Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.




2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.




3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
