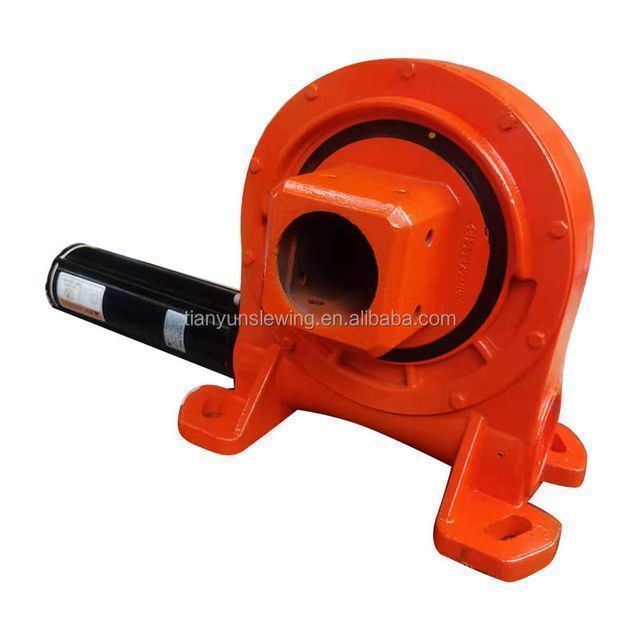

VE9 Solar System Slewing Drive Helical Gear Single Shaft Slewing Drive for Solar Panels, Vertical Slewing Drive
- 340.00 1 - 4 pieces
- 332.00 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| MOQ: | 1 | Gear options: | External gear only |
| port: | Nanjing | color: | According to customer needs |
| Supply capacity: | 10000 pieces per week | feature: | cross roller |
| Applicable industries: | Energy and Mining, Industrial Robotics | payment terms: | wire transfer |
| brand: | SRT | Warranty: | x1 year |
| Types of: | Slewing ring | Material: | 42CrMo, 50Mn, ductile iron |
| place of origin; place of origin: | Jiangsu, China | product name: | SEA7 rotary drive |
| Seal type: | fully sealed | model: | VE9 |
| Packaging Details: | plywood case |
Product Description
product name: | VE series rotary drive |
Material: | 42CrMo, 50Mn, ductile iron |
color: | According to customer needs |
Warranty: | 1 year |
MOQ: | 1 |
Types of Slewing drive data | 3'' | 5'' | 7'' | 9'' | 12'' | 14'' | 17'' | twenty one'' | 25'' |
Rated output torque/kN.m | 0.4 | 0.6 | 1 | 6.5 | 7.5 | 8 | 10 | 15 | 18 |
Overturning moment/kN.m | 1.1 | 1.8 | 13.5 | 33.9 | 54.3 | 67.8 | 135.6 | 203 | 271 |
Rated static load, axial/kN | 30 | 76 | 133 | 338 | 475 | 555 | 970 | 1598 | 2360 |
Rated static load, radial/kN | 16.6 | 22.6 | 53 | 135 | 190 | 222 | 390 | 640 | 945 |
Rated dynamic load, axial/kN | 9.6 | 13.8 | 32 | 81 | 114 | 133 | 235 | 385 | 590 |
Dynamic load rating, radial/kN | 8.4 | 11.8 | 28 | 71 | 100 | 117 | 205 | 335 | 470 |
transmission ratio | 62:1 | 62:1 | 73:1 | 61:1 | 78:1 | 85:1 | 102:1 | 125:1 | 150:1 |
self-locking gear | yes | yes | yes | yes | yes | yes | yes | yes | yes |
weight/kg | 12 | 20 | twenty one | 49 | 61 | 64 | 105 | 149 | 204 |
Applicable panel area/m2 | 3-5 | 6-9 | 10-17 | 18-30 | 31-45 | 46-60 | 61-95 | 96-120 | 120-165 |
Using the slewing bearing as its core component, the slewing drive device can bear axial force, radial force and overturning moment at the same time. Slewing drives are widely used in modular trailers, various types of cranes, aerial work platforms, solar tracking systems and wind power generation systems. Electric and planetary gearboxes can be designed according to customer requirements. Slewing drives offer the advantages of saving space in your facility, maximum load capacity in a compact design, extended service life, and reduced maintenance costs.
