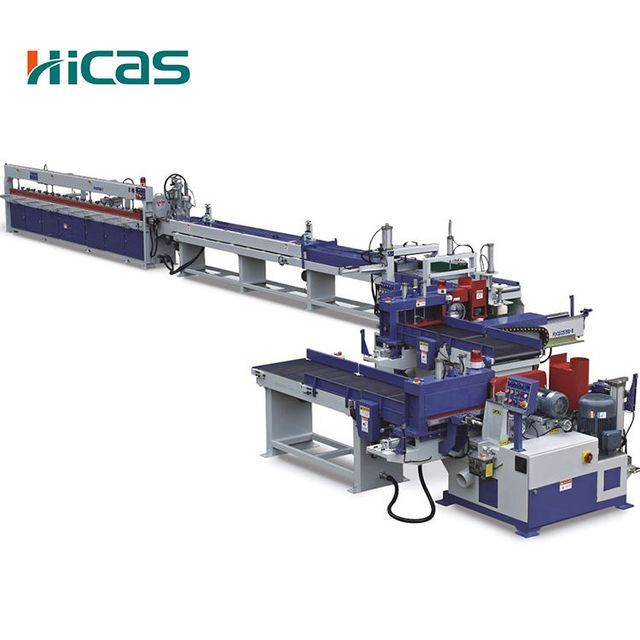

Easy-to-operate woodworking finger joint woodworking equipment production line

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $65000.00 / 1 - 3 sets
$35000.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Qingdao	Origin:	Shandong Province, China
Main selling points:	automatic	Molding thickness:	20-150 mm
Mechanical test report:	if	brand:	HICAS, HICAS
Certification:	CE/ISO/ISO9000	air pressure:	6-8 bar
Forming machine spindle diameter:	50mm	Press width:	30-150 mm
Dimensions (LWH):	18000x6000mm	Warranty:	1 year, 1 year
product name:	Finger joint machine	Showroom location:	not any
Voltage:	220V/380V	Press thickness:	20-80mm
Core components:	/	Health status:	new
Feed length:	150-900mm	Supply capacity:	10 sets of finger joint production lines per month
Applicable industries:	manufacturing plant	Marketing Type:	normal product
Weight (kg):	1 kg	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	Core component warranty:	1 year
Packaging Details:	Easy-to-operate woodworking finger-joint production line wood equipment: standard packaging or packaging according to customer requirements

Easy-to-operate woodworking finger joint woodworking equipment production line

Product Description

Machine Specifications	Feed length	150-900 mm
	Forming thickness	20-150 mm
	Forming processing maximum processing width table	590 mm
	Press thickness	20-80mm
	Press width	30-150 mm
	Shaft diameter	50mm
	Forming machine spindle speed	6750 rpm
	Mower Spindle Diameter	30mm
	Lawn mower spindle speed	2840 rpm
	Maximum pressing length	6040 mm
	Maximum thrust	7500 kg
Motor Power	Planer spindle power	15 kW x 2
	Hogg Power	4 kW x 2
	Scoring saw power	0.75kw×3
	The total power of the forming machine conveyor	0.75kw×2
	Punch hydraulic system power	4 kW
	Press saw blade power	4 kW
	Total power of punch conveyor	1.5 kW
	Total Power of Belt Conveyor	1.5 kW
	Total Power of Roller Conveyor	2.25 kW
	Total power of chain conveyor	3.75 kW
	Motor total power	58.75 kW
Comment	working pressure	6-8 bar
	Dust collector air volume measurement	9000 cubic meters / hour
	fixed size	18000×6000mm

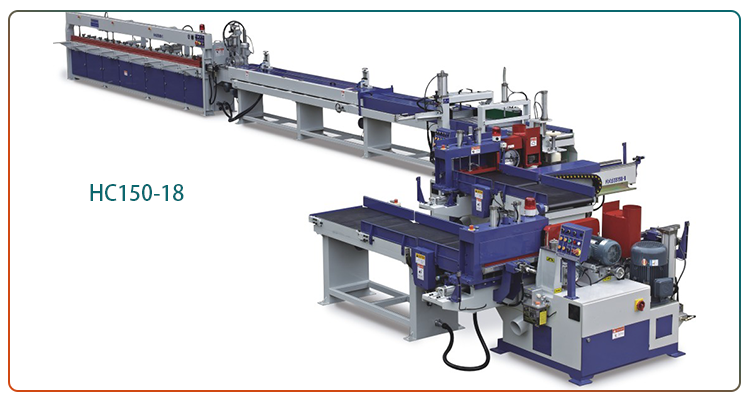

product display

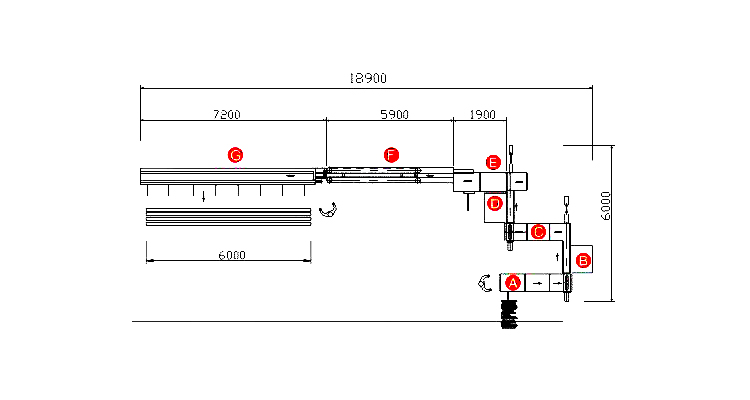

layout planning

A-belt conveyor

B- Automatic finger joint forming machine

C-belt conveyor

D-Automatic finger joint forming machine (with glue)

E-roller conveyor

G-Automatic Finger Joint Press

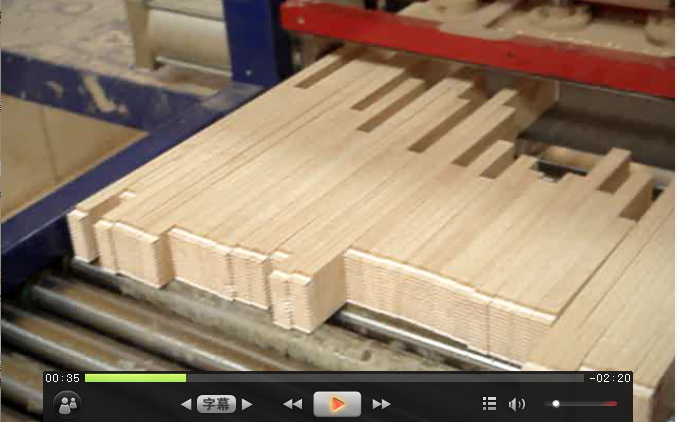

product video

The following video is the production statuscustomer usedHC-15018finger jointProductionline for two years.Please click the video button below to watch.
