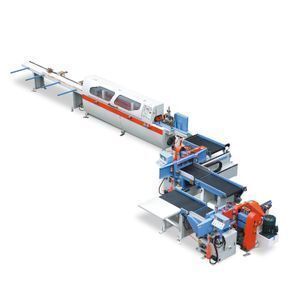

China Wood Finger Joint Machine Line For Sale

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $41000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Assembly length:	6000mm or unlimited;	Local Service Location:	None;
Place of Origin:	Shandong China;	Condition:	New;
Applicable Industries:	Woodworking;	Warranty:	1 year;
Weight (KG):	6000 KG;	After Warranty Service:	Video technical support,Online support;
Key Selling Points:	Automatic;	Feeding thickness:	20-150mm;
Voltage:	380v 50hz 3phase;	Productivity:	15-20m/min;
Power(W):	40.8kw;	Showroom Location:	None;
Name:	finger joint line;	Air Pressure:	0.8mpa;
Weight:	6ton;	Supply Ability:	100 Set/Sets per Year;
Dimension(LWH):	14000*6000mm;	Packaging Detail:	Containers;
After-sales Service Provided:	Field installation, commissioning and training;	Feeding width:	30-80mm;
Payment Terms:	L/C,T/T;	Certification:	CE, ISO;
Shaper spindle diameter:	70mm;	Port:	Qingdao;
Brand Name:	Hicas;	Feeding length:	150-850mm;
Hydraulic Pressing force:	7800kg;

China Wood Finger Joint Machine Line For Sale

Product Description

Specifications	Working length	150-850mm
	Working thickness	20-80mm
	Working width	30-150mm
	Pressing thickness	15-80mm
	Pressing width	30-150mm
	Shaper spindle diameter	70mm
	Shaper spindle speed	6000rpm
	Main saw blade spindle speed	2840rpm
	Shaper cutter out side diameter	160mm
	Main saw blade size	255mm
	Max. thrust force	7800kg
	Max. Assembly length	2500mm (HS-2500)
	Max. Assembly length	6000mm (HS-6000)
Motor power	1st Shaper spindle power	16.12kw
	2nd Shaper spindle power	16.87kw
	Conveyor power	0.375kw*3pc
	Assembly machine power	6.7kw
	Total motor power	40.8kw
	Voltage	380v 50hz 3phase
Remark	Working air pressure	0.5-0.8mpa
	Volume of dust collector	9000m³/h
	Machine working dimension	9000*3000mm (HS-2500)
	Length* width	14000*3000mm (HS-6000)
